17-21 CAN-AM,X3RS,UTV,FRONT BRAKE KIT,11.25" DRILLED ROTORS,RED CALIPERS

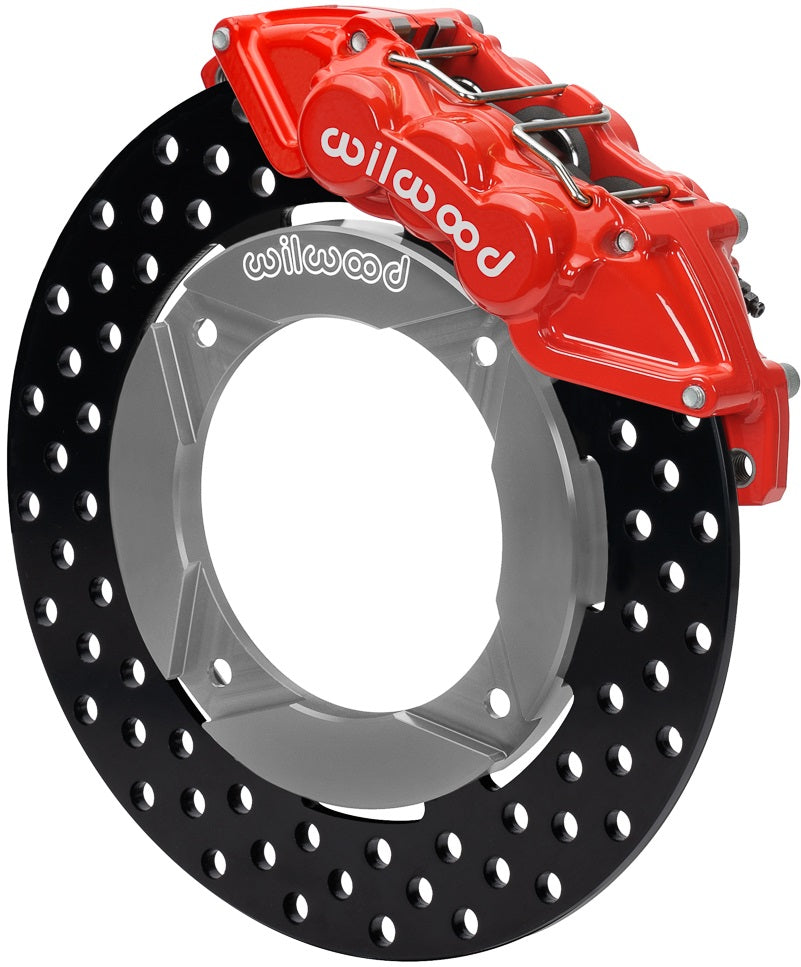

BRAND NEW WILWOOD UTV6 11.25" DRILLED DISC BRAKE KIT (PART #140-16628-DR) FOR BOTH FRONT WHEELS.

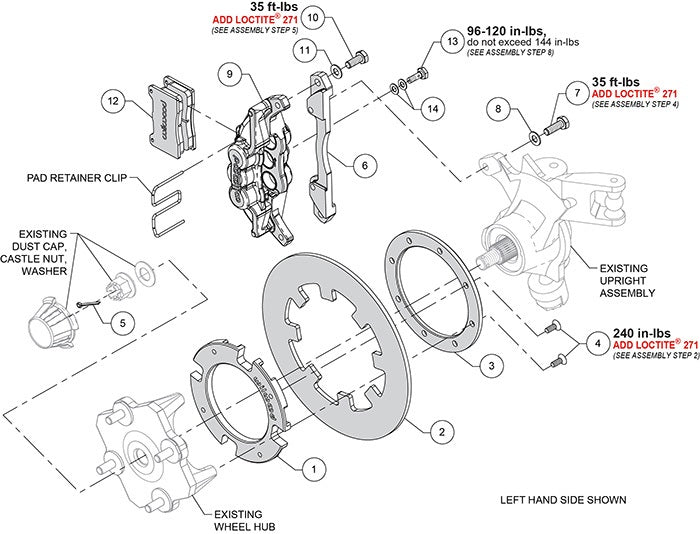

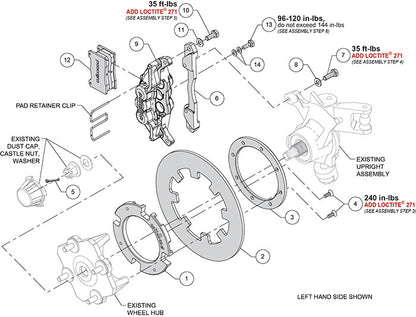

ONLY ONE SIDE PICTURED. SEE THE LIST & DIAGRAM BELOW FOR A DETAIL OF THE PARTS INCLUDED. FEATURES RED CALIPERS.

COMPATIBLE WITH:

• CАN-AM:
• 2021 MAVERICK X3 DS TURBO BASE
• 2020-2021 MAVERICK X3 DS TURBO R BASE
• 2021 MAVERICK X3 MAX DS TURBO BASE
• 2020-2021 MAVERICK X3 MAX DS TURBO R BASE
• 2020-2021 MAVERICK X3 MAX RS TURBO R BASE
• 2018-2020 MAVERICK X3 MAX TURBO BASE
• 2017-2019 MAVERICK X3 MAX TURBO R BASE
• 2017-2019 MAVERICK X3 MAX X DS TURBO R BASE
• 2020-2021 MAVERICK X3 MAX X DS TURBO RR BASE
• 2020-2021 MAVERICK X3 MAX X MR TURBO RR BASE
• 2017-2019 MAVERICK X3 MAX X RS TURBO R BASE
• 2020-2021 RR MAVERICK X3 MAX X RS TURBO BASE
• 2021 MAVERICK X3 MAX X RS TURBO RR SMART-SHO BASE
• 2020-2021 MAVERICK X3 RS TURBO R BASE
• 2018-2020 MAVERICK X3 TURBO BASE
• 2017-2019 MAVERICK X3 TURBO R BASE
• 2017-2019 MAVERICK X3 X DS TURBO R BASE
• 2020-2021 MAVERICK X3 X DS TURBO RR BASE
• 2018-2021 MAVERICK X3 X MR TURBO BASE
• 2018-2019 MAVERICK X3 X MR TURBO R BASE
• 2020-2021 MAVERICK X3 X MR TURBO RR BASE
• 2018-2021 MAVERICK X3 X RC TURBO BASE
• 2018-2019 MAVERICK X3 X RC TURBO R BASE
• 2020-2021 MAVERICK X3 X RC TURBO RR BASE
• 2017-2019 MAVERICK X3 X RS TURBO R BASE
• 2020-2021 RR MAVERICK X3 X RS TURBO BASE
• 2021 MAVERICK X3 X RS TURBO RR SMART-SHOX BASE

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOOD MATCHED FRONT AND REAR UTV BRAKE KITS FEATURE DYNAMICALLY-MOUNTED ROTORS AND UPGRADED CALIPERS FOR POPULAR SIDE-BY-SIDE MACHINES. KITS COMBINE FIXED MOUNT MULTI-PISTON CALIPERS WITH GREATER CLAMPING FORCE, AND LARGER DIAMETER FLOATING ROTORS FOR MORE BRAKE TORQUE, IMPROVING BRAKING ON HIGHER-POWERED UTVS.

FORGED ALUMINUM DIFFERENTIAL-BORE UTV6 PISTON CALIPERS REDUCE DEFLECTION AND PROVIDE MORE UNIFORM ENGAGEMENT TO INCREASE BRAKING FORCE AND IMPROVE FEEL. HIGH-FRICTION STEEL ROTORS, ARE UP TO 20% GREATER IN DIAMETER AND THICKER FOR LESS DISTORTION. DYNAMICALLY MOUNTED ROTORS REDUCE THERMAL STRESS AND PREVENT PISTON KNOCKBACK FROM ROUGH TERRAIN.

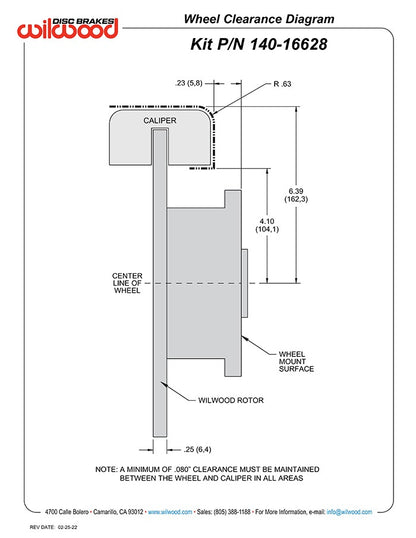

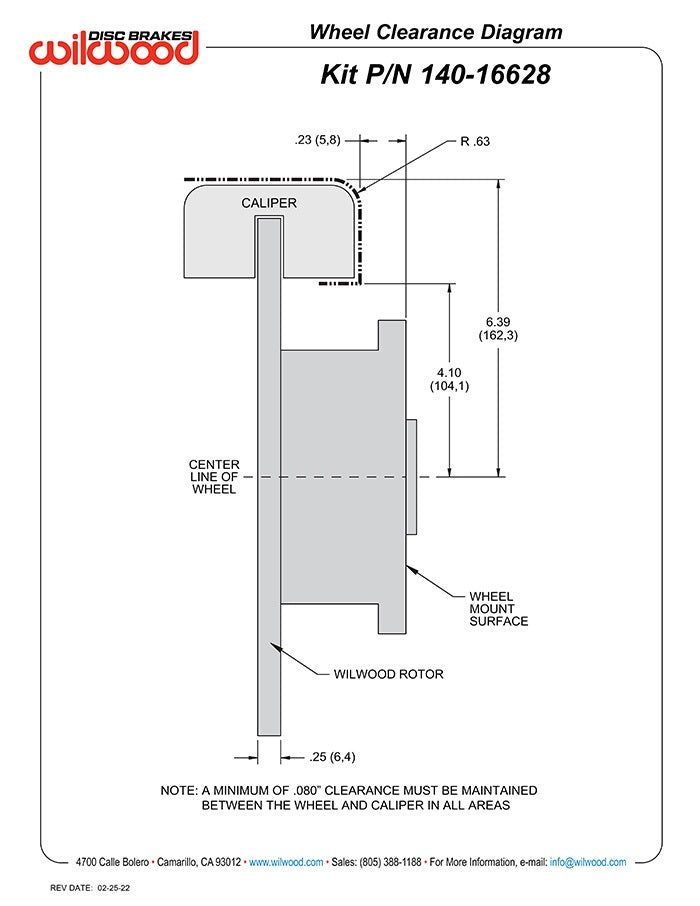

THESE BIG BRAKE KITS REQUIRE AT LEAST 14" DIAMETER WHEELS.

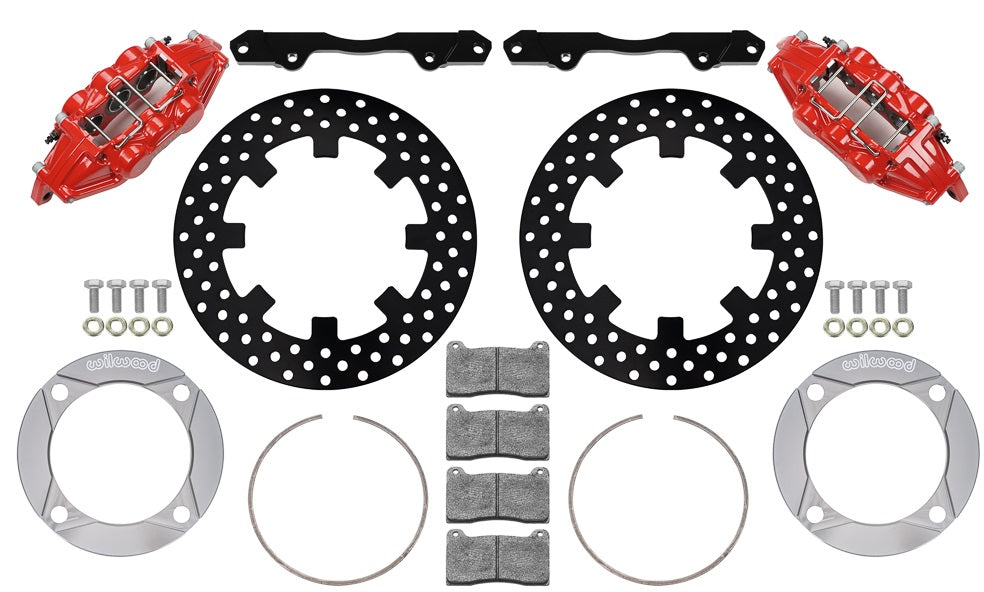

BRAKE KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED .25" THICK X 11.25" O.D. ROTORS
• UTV6 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 24 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE.
