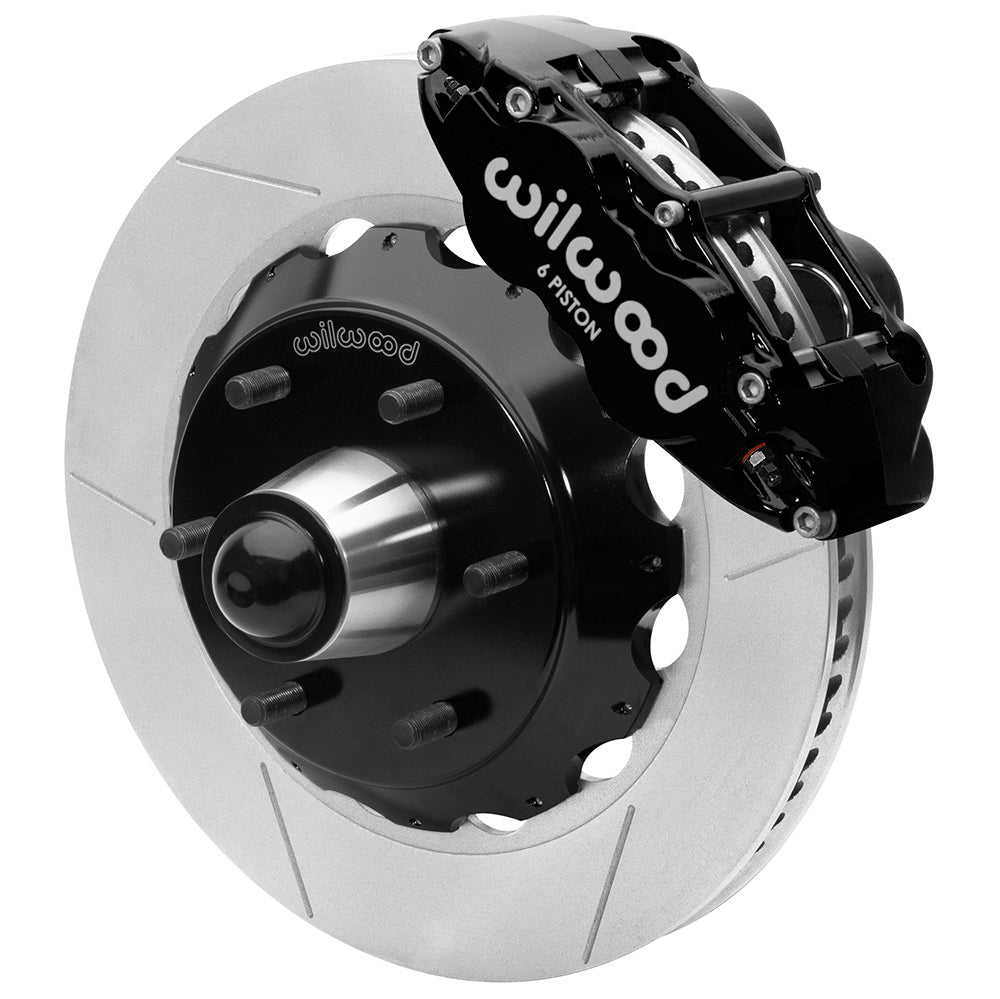

63-87 CHEVY C10 FRONT DISC BRAKE KIT FOR RIDETECH,CPP SPINDLES,6-LUG,14",BLACK

BRAND NEW WILWOOD BIG BRAKE SUPERLITE BOLT-ON FRONT 14" DISC BRAKE KIT (PART #140-16458-DR) FOR BOTH FRONT WHEELS WITH 6-LUG WHEELS.

THIS KIT FITS RIDETECH AND CPP 2" DROP SPINDLES FOR CHEVY C10 & GMC C15 TRUCKS AND SUBURBANS. WE DO HAVE THOSE SPINDLES AVAILABLE, AS WELL AS COMPLETE SETS WITH BRAKES AND SPINDLES. THIS BRAKE KIT IS ONLY DESIGNED FOR USE WITH THE SPINDLED LISTED BELOW. IT WONT FIT OTHER SPINDLES.

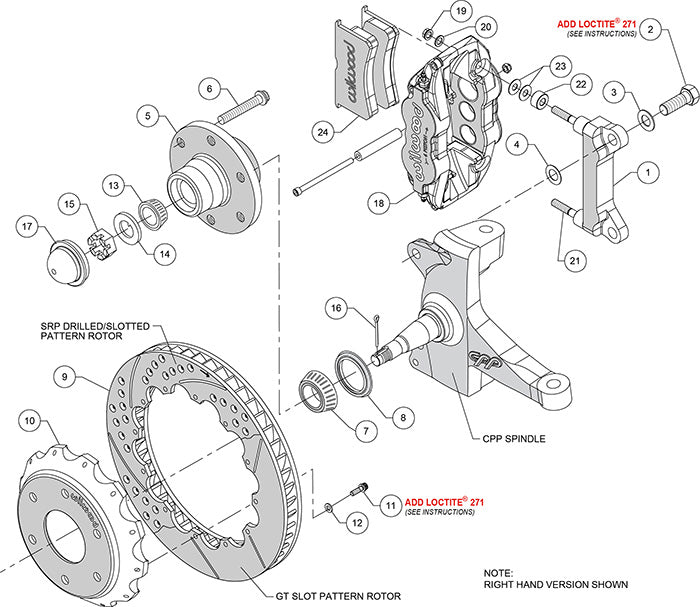

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• 1963-1987 CHEVY C10 AND GMC C15 6-LUG 2WD TRUCKS AND SUBURBANS THAT ARE EQUIPPED WITH ANY OF THE SPINDLE SETS LISTED BELOW:
  *RIDETECH 11349300 (1963-1970)
  *RIDETECH 11359300 (1971-1972)
  *RIDETECH 11369300 (1973-1987)
  *CPP 30106-2 (1963-1970)
  *CPP 30106-3 (1971-1972)
  *CPP 30106-4 (1973-1987)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

SUPERLITE BIG BRAKE FRONT KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR AMERICAN MUSCLE TRUCKS AND RODS. FORGED NARROW SUPERLITE CALIPERS, 14.00" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

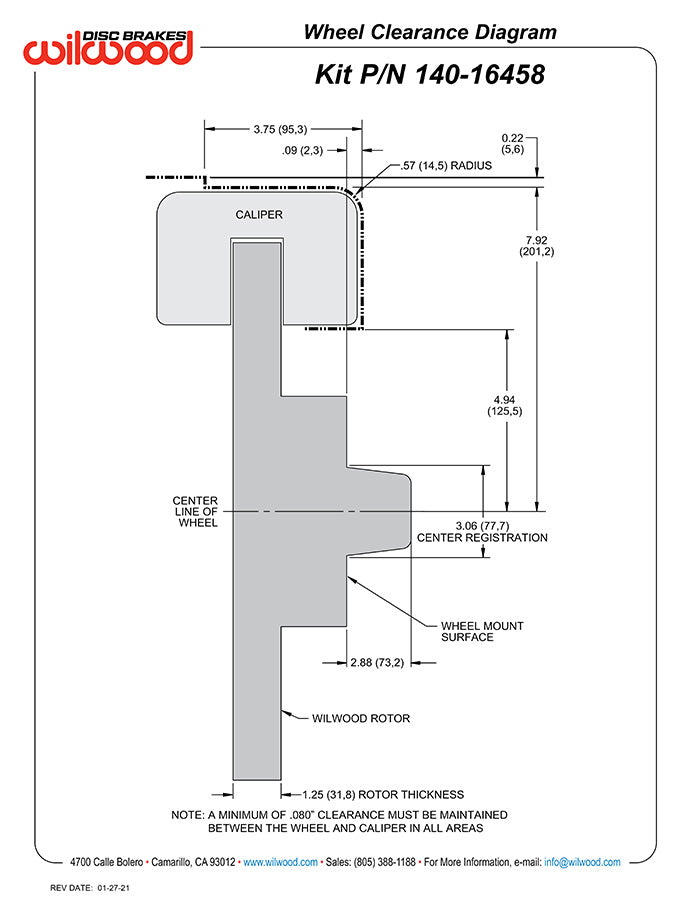

THESE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

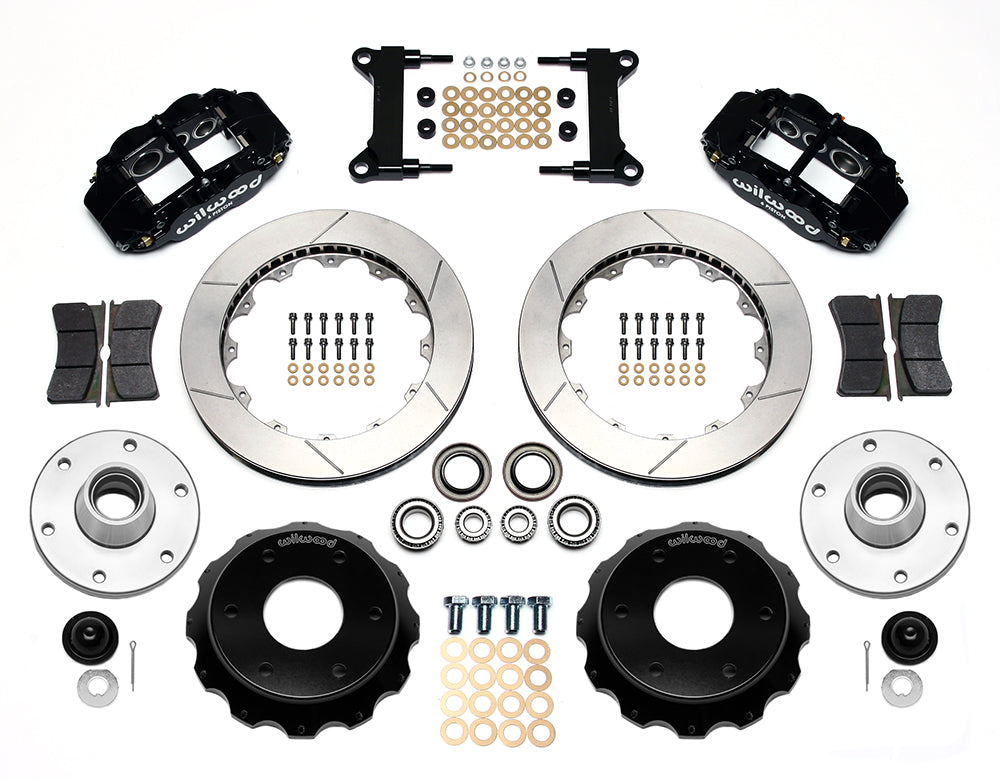

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.25" THICK X 14.00" O.D. ROTORS
• FORGED NARROW SUPERLITE 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• 6 X 5.50" HATS, HUBS, BEARINGS, SEALS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 74 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
