61-68 JAGUAR KIT,FRONT,11",RED,W/LINES

BRAND NEW WILWOOD DYNAPRO RADIAL BIG BRAKE BOLT-ON 11" FRONT DISC BRAKE KIT FOR BOTH FRONT WHEELS.

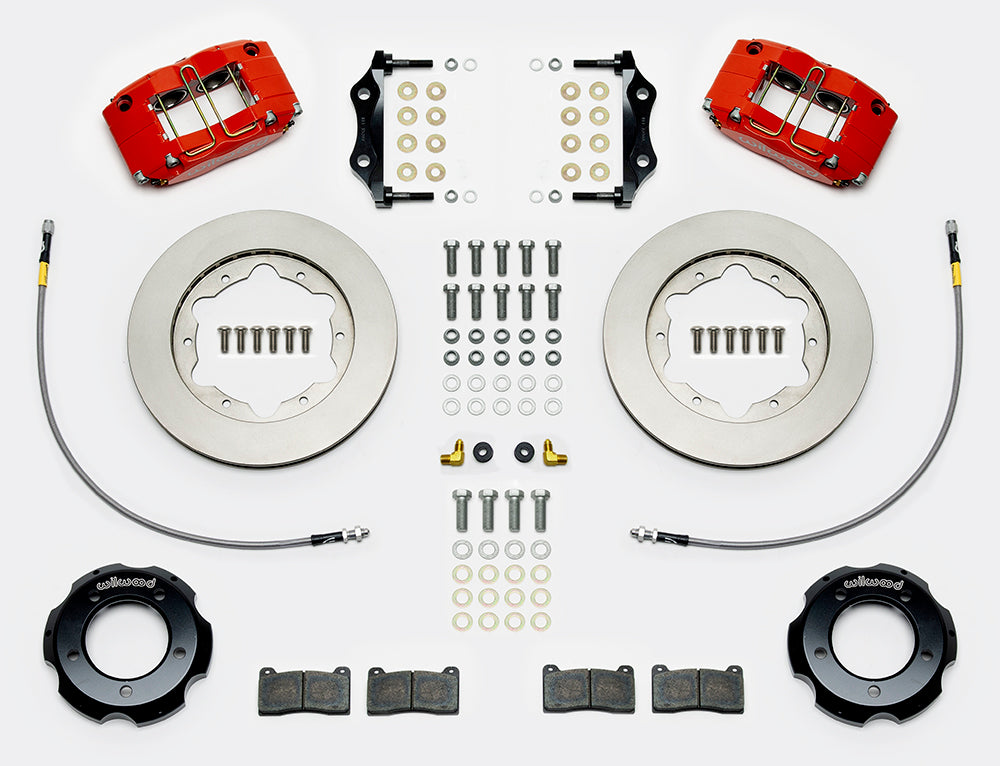

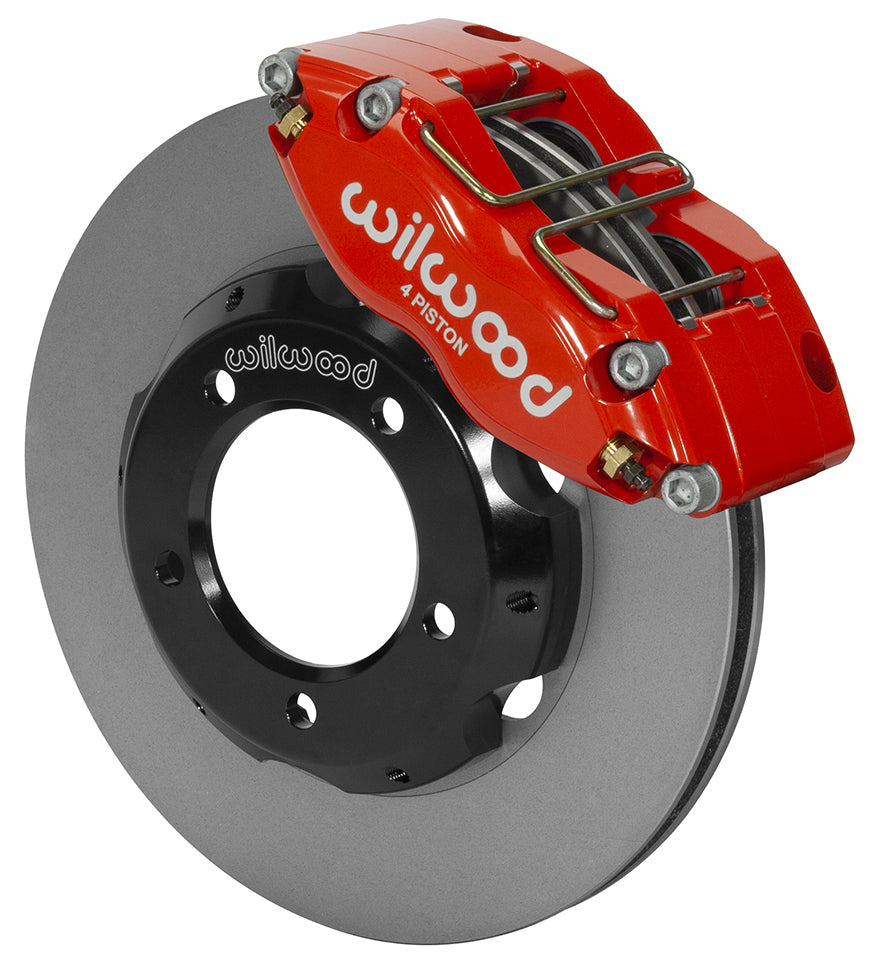

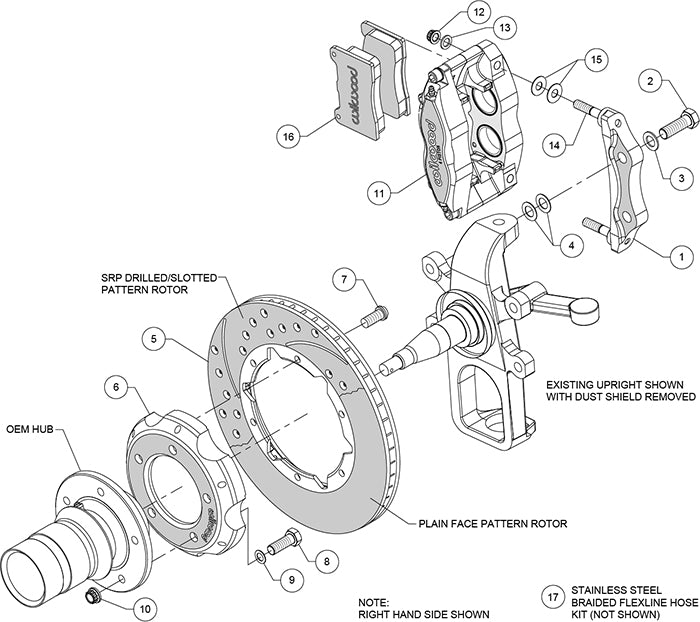

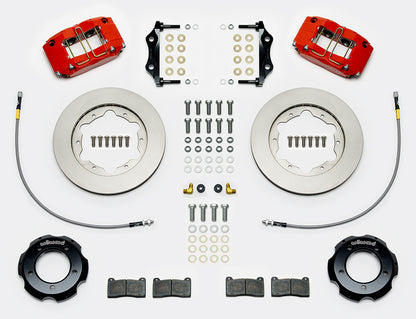

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

• JAGUAR:
• 1961-1967 JAGUAR XKE
• 1968 JAGUAR XKE SERIES 1

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

RADIAL MOUNTING PROVIDES SECURE AND ACCURATE INSTALLATION OF THE FORGED BILLET DYNAPRO DUST SEAL FOUR PISTON CALIPER WITH LARGE DIAMETER ROTORS FOR THIS GROUP OF FRONT AND ALL WHEEL DRIVE SPORT COMPACTS. THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, AND SUSPENSION UPGRADES ON DAILY DRIVERS, COMPETITION VEHICLES, AND CUSTOM STYLED SHOW MACHINES. EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE TO MAINTAIN FULL COMPATIBILITY WITH THE OE MASTER CYLINDER OUTPUT.

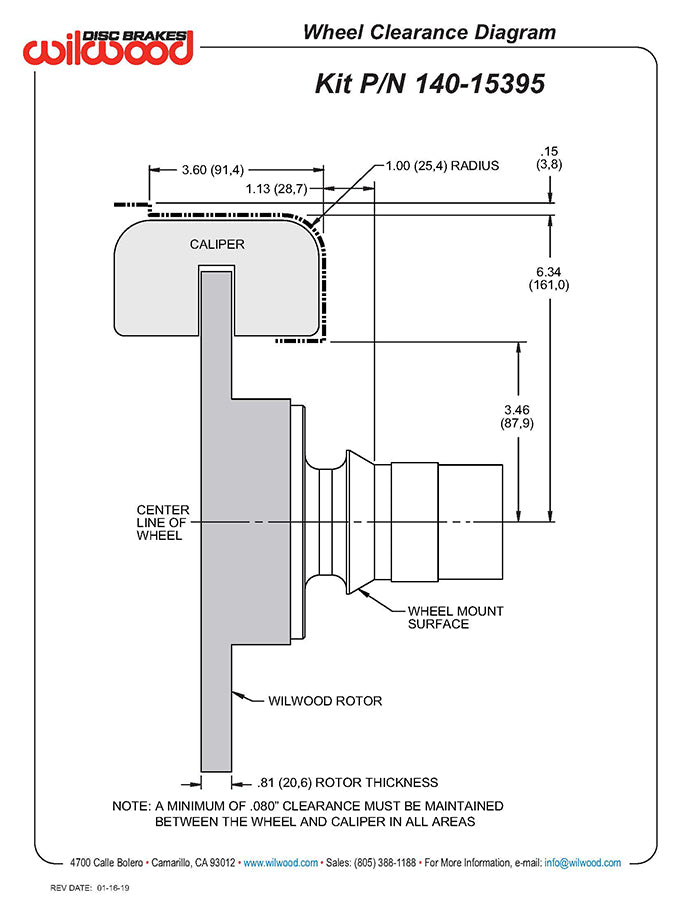

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

• .810" THICK X 11.00" O.D. ROTORS
• DYNAPRO DUST SEAL RADIAL MOUNT 4 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HATS
• STEEL BRAIDED LINE KIT WITH NECESSARY FITTINGS
• ALL BOLTS, WASHERS, SHIMS, & NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 38 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS DISC BRAKE KIT HERE.
