04-08 FORD F-150,TX6R,FRONT,15.50",RED

BRAND NEW WILWOOD PREMIUM 15 1/2" BIG BRAKE BOLT-ON FRONT HAT & DISC BRAKE KIT (PART #140-15286-R) FOR BOTH FRONT WHEELS.

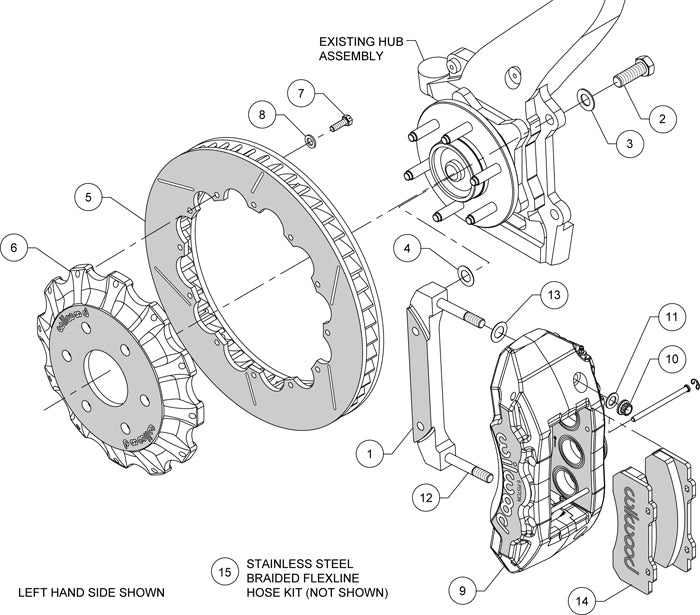

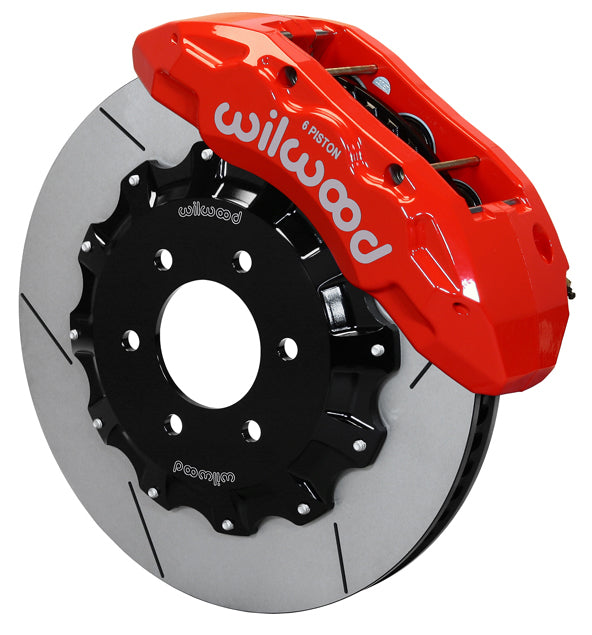

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

• FORD F-150 6-LUG TRUCKS:
• 2004 F-150, 4X4, NEW MODEL (6-LUG)
• 2005-2008 F-150, 4X4 (6-LUG)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOOD?ÇÖS TACTICAL EXTREME TX6R BIG BRAKE KITS ARE ULTIMATE IN BRAKING PERFORMANCE FOR TRUCK, SUV AND ARMORED VEHICLES. USING TX6R RADIAL MOUNT SIX-PISTON CALIPERS AND MASSIVE 15.50" GT-60 DIRECTIONAL VANE SPEC-37 ALLOY ROTORS, THESE KITS DELIVER CONSISTENT STOPPING POWER AND EXTREME DUTY DURABILITY UNDER SUSTAINED HIGH HEAT WITH THIS READY TO BOLT-ON KIT. THE CALIPERS ARE VOLUME MATCHED FOR COMPATIBILITY WITH ORIGINAL EQUIPMENT POWER BRAKE SYSTEM OUTPUT. KITS INCLUDE RADIAL MOUNT CALIPER BRACKETS, AND ALL THE NECESSARY HARDWARE TO COMPLETE THE INSTALLATION.

THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

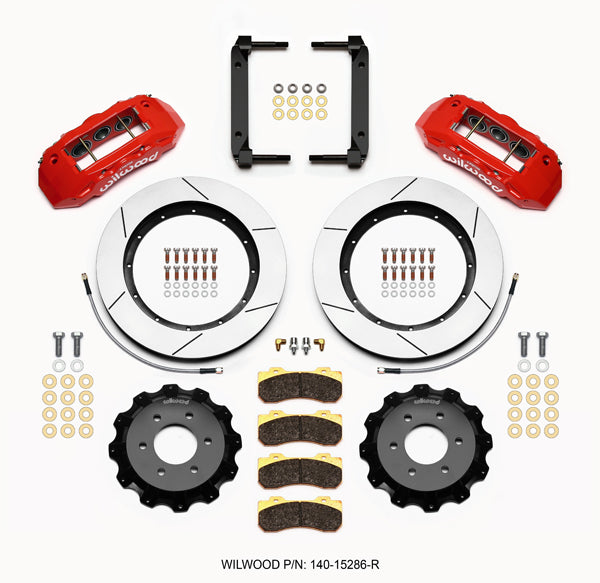

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.38" THICK X 15.50" O.D. ROTORS
• TX6R 6 PISTON RADIAL CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• WILWOOD BP-20 SMART COMPOUND BRAKE PADS
• BRAKE HATS,
• STAINLESS STEEL BRAKE LINES WITH FITTINGS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 102 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
