MINI-COOPER KIT,2014-2017,FRONT,FSL6,13",BLACK

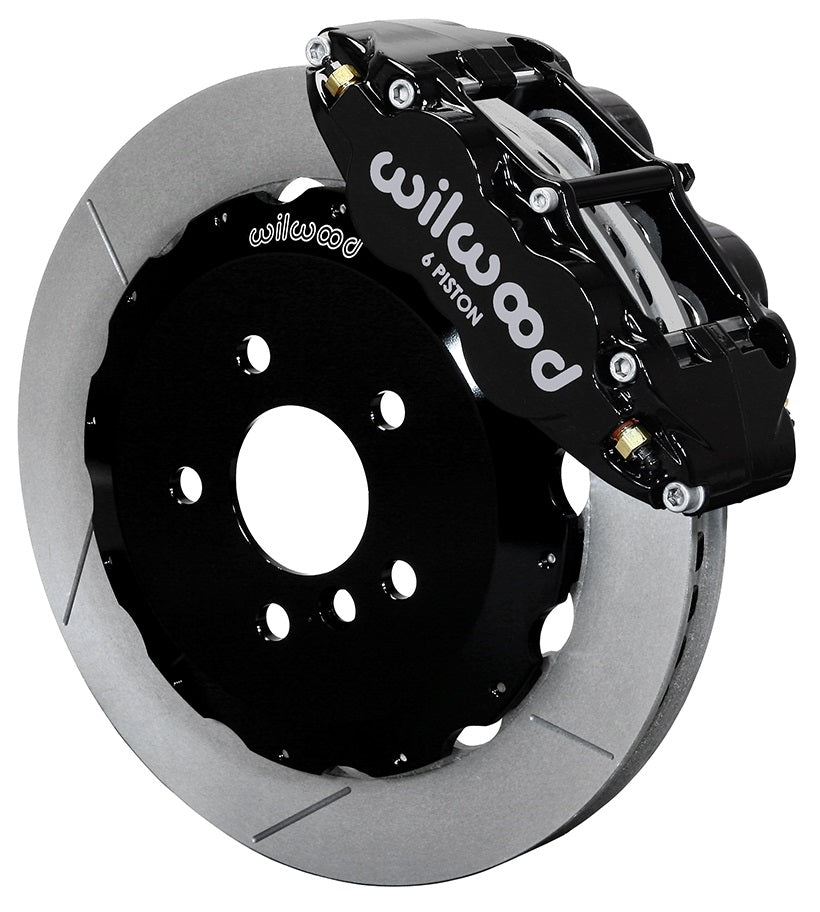

BRAND NEW WILWOOD BIG BRAKE SUPERLITE 6R PISTON CALIPER, BOLT-ON FRONT HAT, & 12.88" DISC BRAKE KIT (PART #140-15214) FOR BOTH FRONT WHEELS.

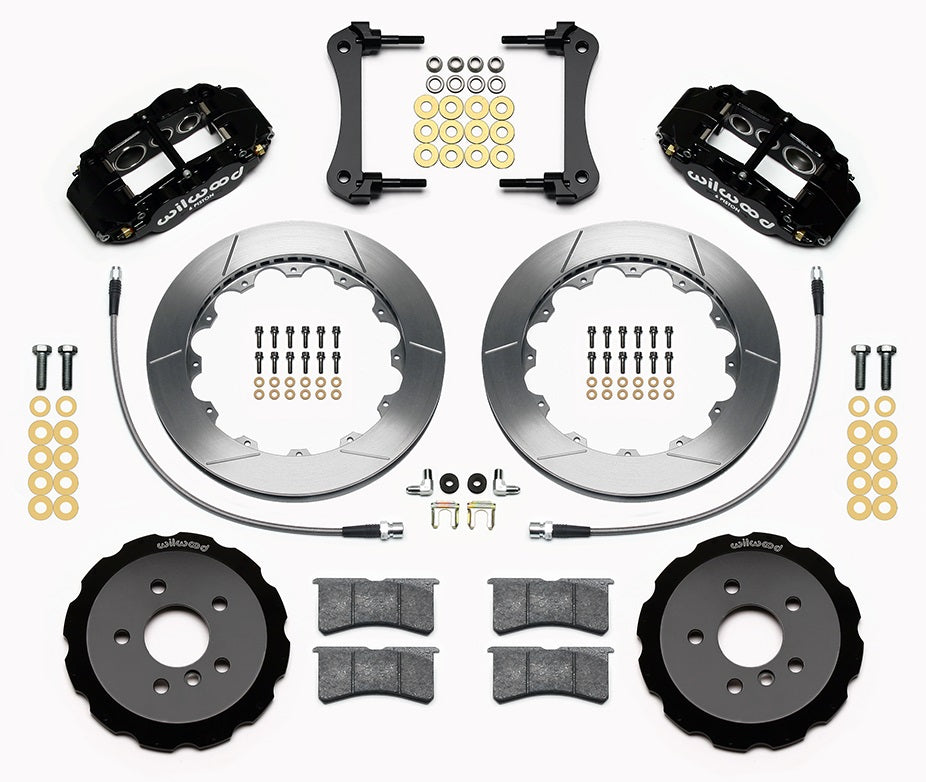

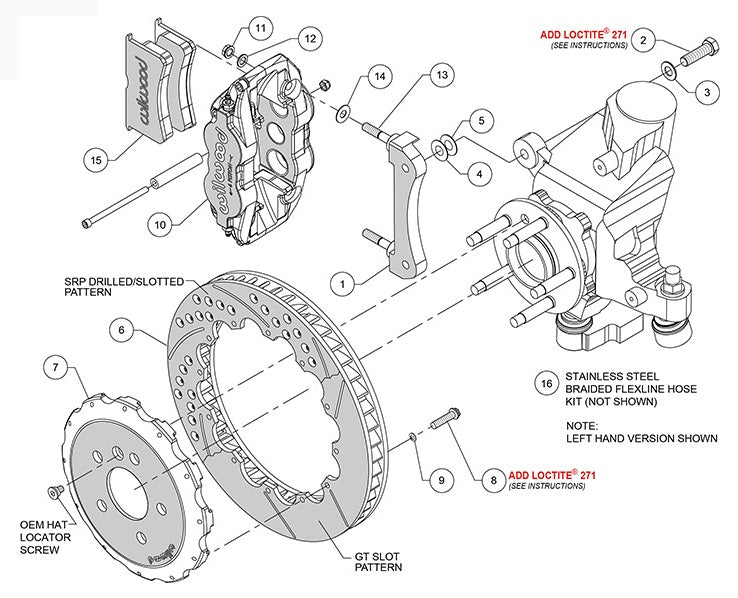

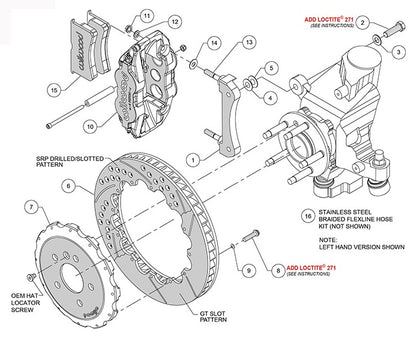

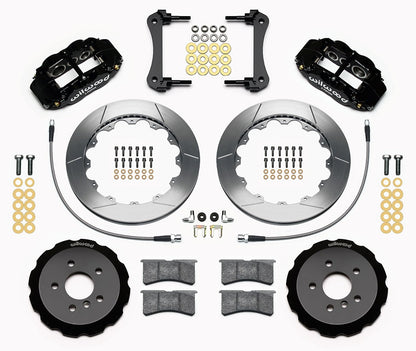

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES BLACK CALIPERS.

FITS:

• MINI COOPER:
  • 2016-2017 BASE
  • 2014-2015 HATCHBACK (2-DOOR/4-DOOR)
  • 2016-2017 JOHN COOPER WORKS
  • 2016-2017 S

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 6R SIX-PISTON CALIPER SERVES AS THE BASE OF THIS GROUP OF 12.88" BIG ROTOR KITS FOR THESE POPULAR LATE MODEL VEHICLES. FNSL6R KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES.

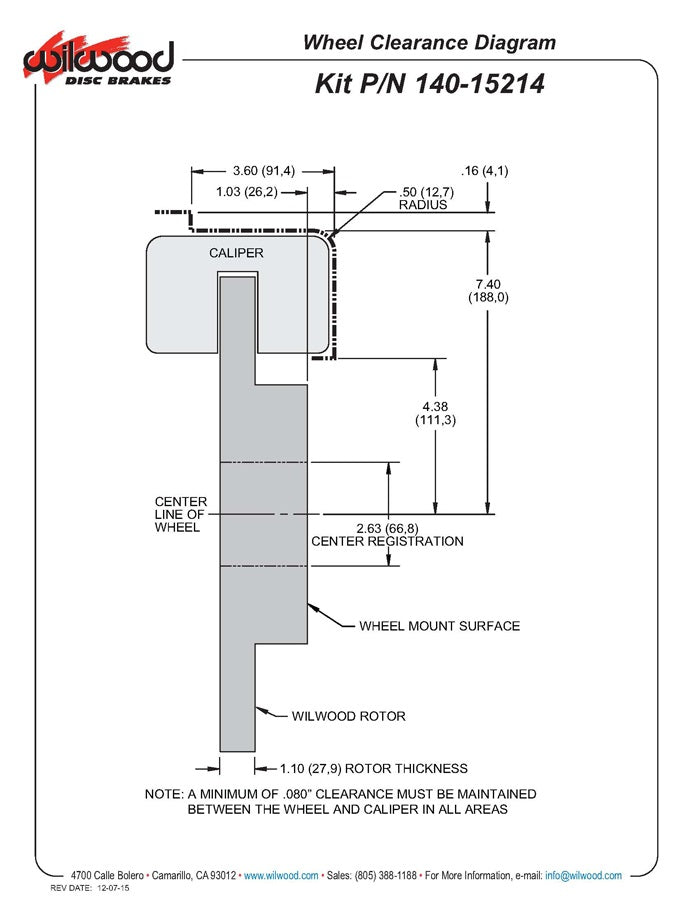

THESE BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 12.88" O.D. ROTORS
• SUPERLITE 6R PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• STEEL BRAIDED LINES WITH FITTINGS
• ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
