03-11 CROWN VIC,FRONT,SL6R,13",RED

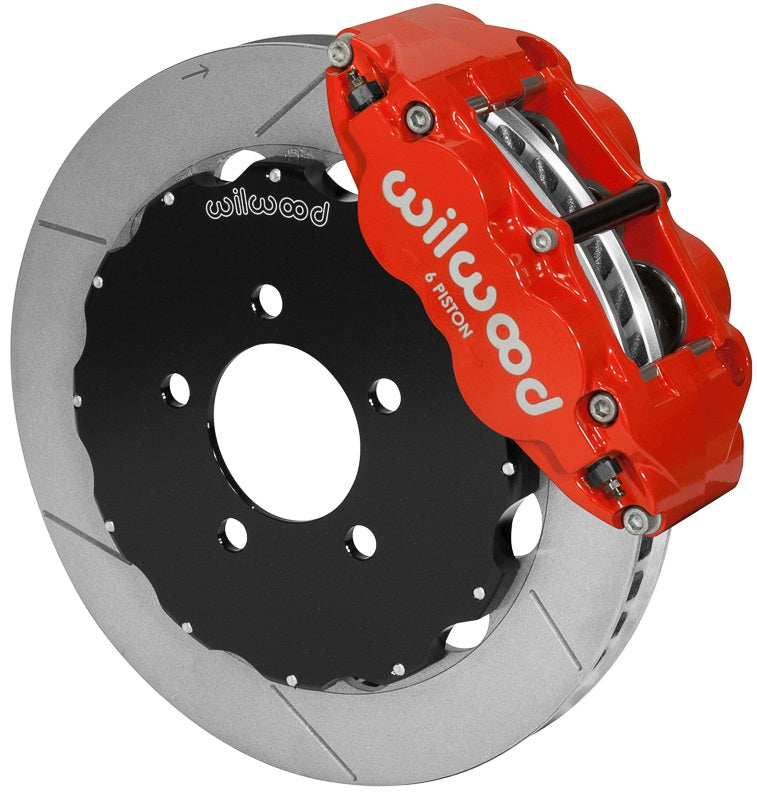

BRAND NEW WILWOOD FORGED NARROW SUPERLITE 6R BIG BRAKE FRONT BRAKE KIT (PART #140-14680-R) FOR BOTH FRONT WHEELS

THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 6R SIX-PISTON CALIPER SERVES AS THE BASE OF THIS GROUP OF 13"-14" BIG ROTOR KITS FOR THESE POPULAR LATE MODEL VEHICLES. FNSL6R KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED.

BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS SIMPLIFY PERSONALIZING THE STYLE AND BRAKING REQUIREMENTS OF ANY APPLICATION.

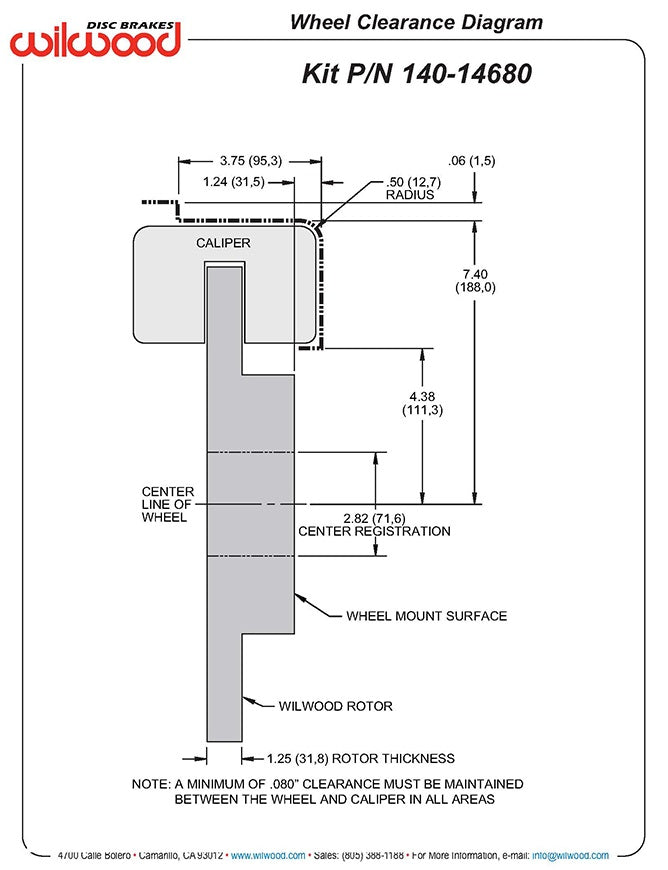

NOTE: THESE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

COMPATIBLE WITH:

• FORD:
• CROWN VICTORIA 2005-2011 ALL
• CROWN VICTORIA 2003-2004 ALL, EXCEPT LONG WHEEL BASE
• CROWN VICTORIA 2003-2004 LONG WHEEL BASE
• LINCOLN:
• TOWN CAR 2003-2011 ALL, EXCEPT LONG WHEEL BASE
• TOWN CAR 2003-2011 LONG WHEEL BASE
• MERCURY:
• GRAND MARQUIS 2005-2011 ALL
• GRAND MARQUIS 2003-2004 ALL, EXCEPT LONG WHEEL BASE
• GRAND MARQUIS 2003-2004 LONG WHEEL BASE
• MARAUDER 2003-2004 ALL

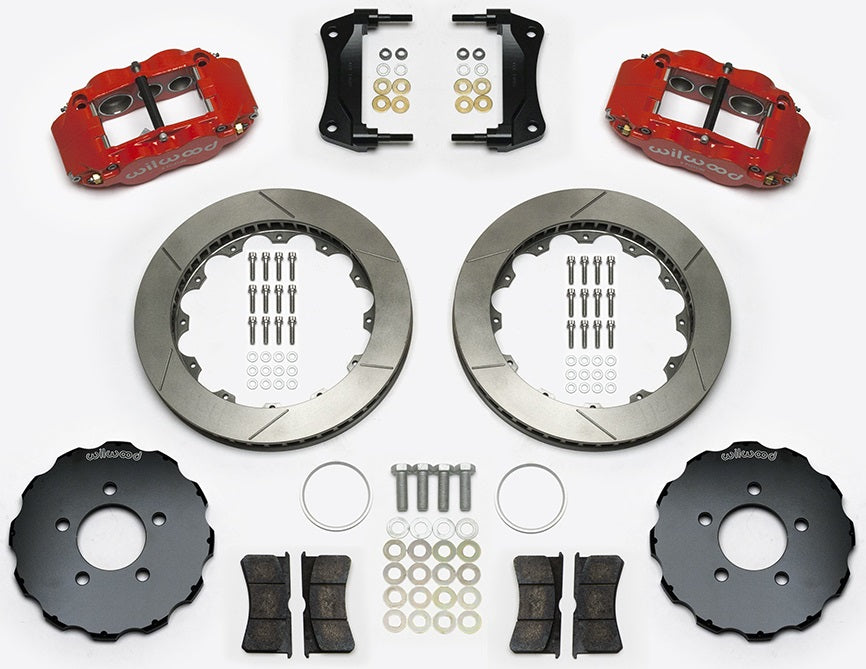

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.25" THICK X 12.88" O.D. 1-PIECE ROTORS
• FORGED NARROW SUPERLITE 6R 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS, RACES, SEALS, DUST CAPS, STUDS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.

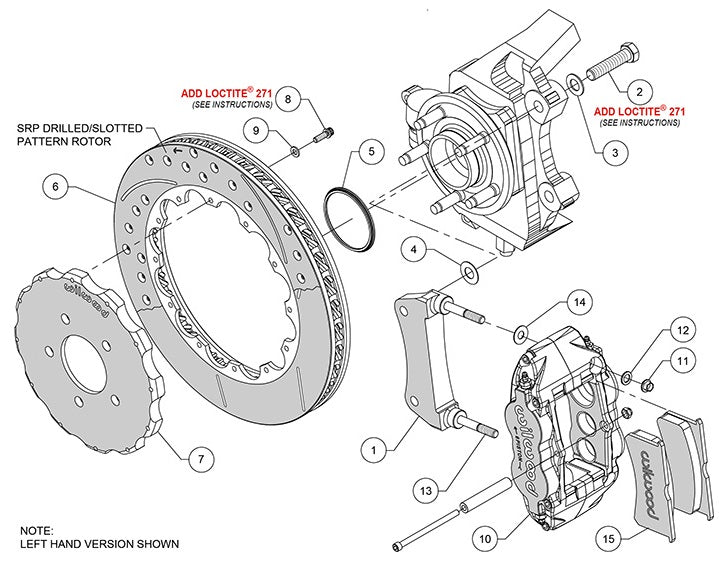

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
