68-72 FORD F-100,FRONT,DP6,11.75",BLACK

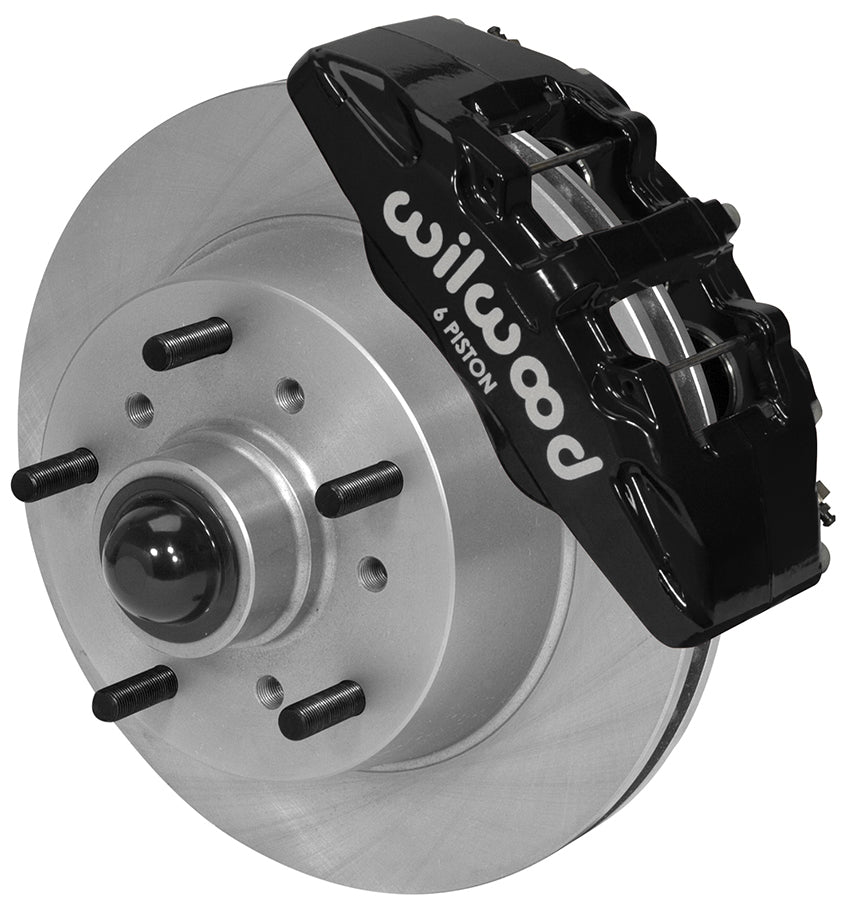

BRAND NEW WILWOOD CLASSIC BOLT-ON FRONT HUB & 11.75" 1- PIECE DISC BRAKE KIT (PART #140-14614) FOR BOTH FRONT WHEELS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOOD CLASSIC SERIES FRONT DISC BRAKE KITS FOR FORD F100 TRUCKS FROM 1968 TO 1972, OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. A COMPLETELY NEW KIT DESIGN, FEATURING A ONE PIECE 11.75" X 1.10" ROTOR AND HUB ASSEMBLY. BASED ON THE VENERABLE FORGED BILLET DYNAPRO 6 CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST.

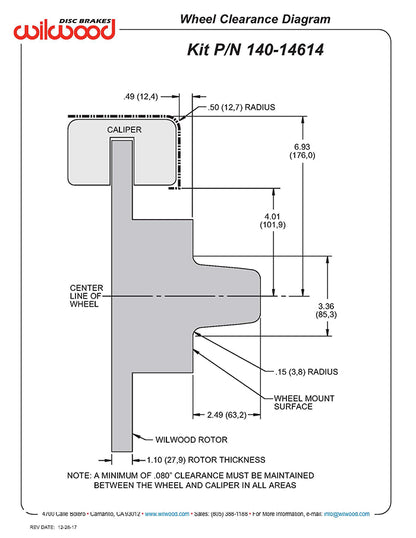

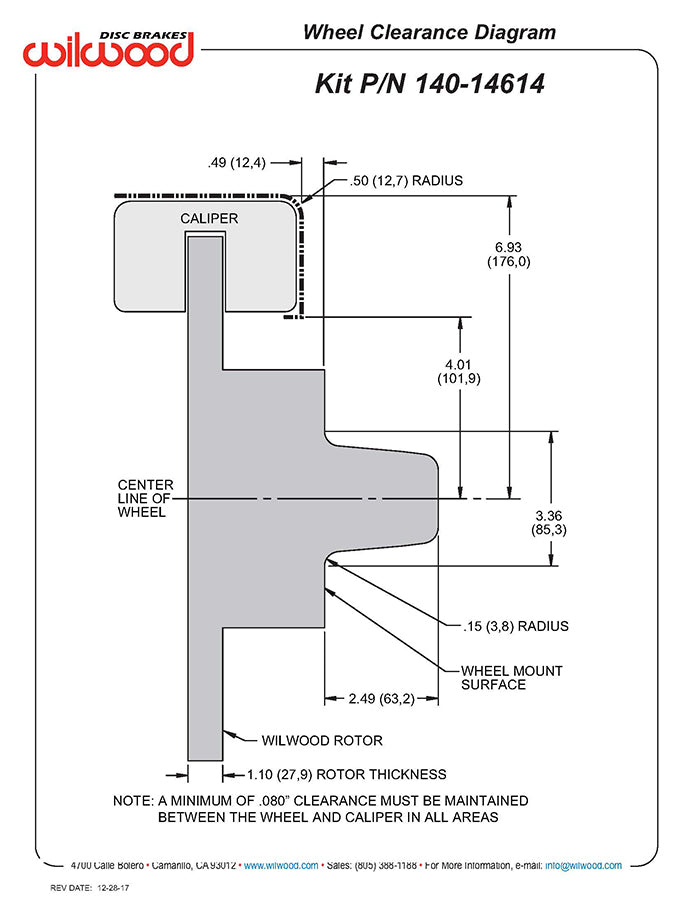

INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND SHOULD PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS. DP6 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE WITH CALIPERS, ROTORS AND HUB ASSEMBLY, BRACKETS, AND HARDWARE.

NOTE: THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

COMPATIBLE WITH:

• FORD:
• 1968-1972 F-100, 4 X 2

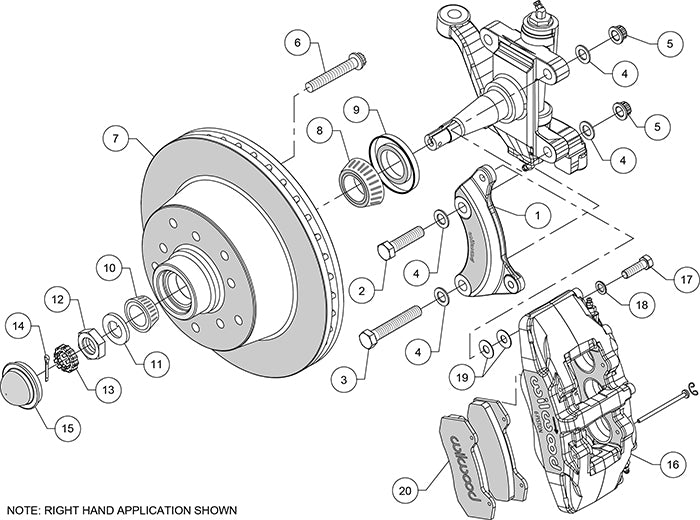

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 11.75" O.D. 1-PIECE ROTORS
• FORGED DYNAPRO 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS, RACES, SEALS, DUST CAPS, STUDS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 78 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
