13-22 FORD F-250,F-350 4WD SRW FRONT DISC BRAKE KIT,TX6R 6 PISTON,15" ROTORS,BLK

BRAND NEW WILWOOD PREMIUM 15" BIG BRAKE BOLT-ON FRONT HAT & DISC BRAKE KIT (PART #140-14558) FOR BOTH FRONT WHEELS.

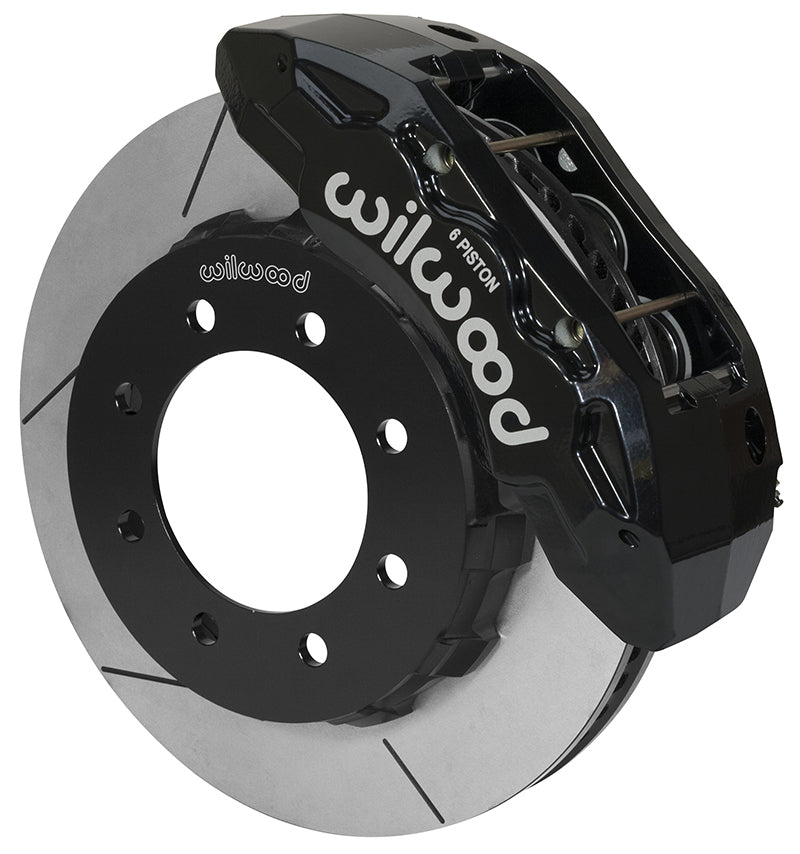

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• FORD:
  • 2013-2020 F-250 SUPER DUTY 4 X 4 WITH SINGLE REAR WHEELS
  • 2013-2020 F-350 SUPER DUTY 4 X 4 WITH SINGLE REAR WHEELS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS TACTICAL EXTREME TX6R BIG BRAKE KITS ARE ULTIMATE IN BRAKING PERFORMANCE FOR TRUCKS AND SUVS. USING TX6R RADIAL MOUNT SIX-PISTON CALIPERS AND MASSIVE 15.00" GT-60 DIRECTIONAL VANE SPEC-37 ALLOY ROTORS, THESE KITS DELIVER CONSISTENT STOPPING POWER AND EXTREME DUTY DURABILITY UNDER SUSTAINED HIGH HEAT WITH THIS READY TO BOLT-ON KIT. THE CALIPERS ARE VOLUME MATCHED FOR COMPATIBILITY WITH ORIGINAL EQUIPMENT POWER BRAKE SYSTEM OUTPUT. KITS INCLUDE RADIAL MOUNT CALIPER BRACKETS, AND ALL THE NECESSARY HARDWARE TO COMPLETE THE INSTALLATION. BRAIDED STAINLESS STEEL FLEX LINES WILL NEED TO BE PURCHASED FOR SOME APPLICATIONS.

THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

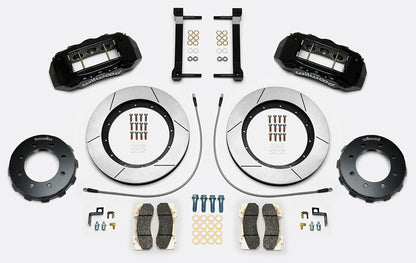

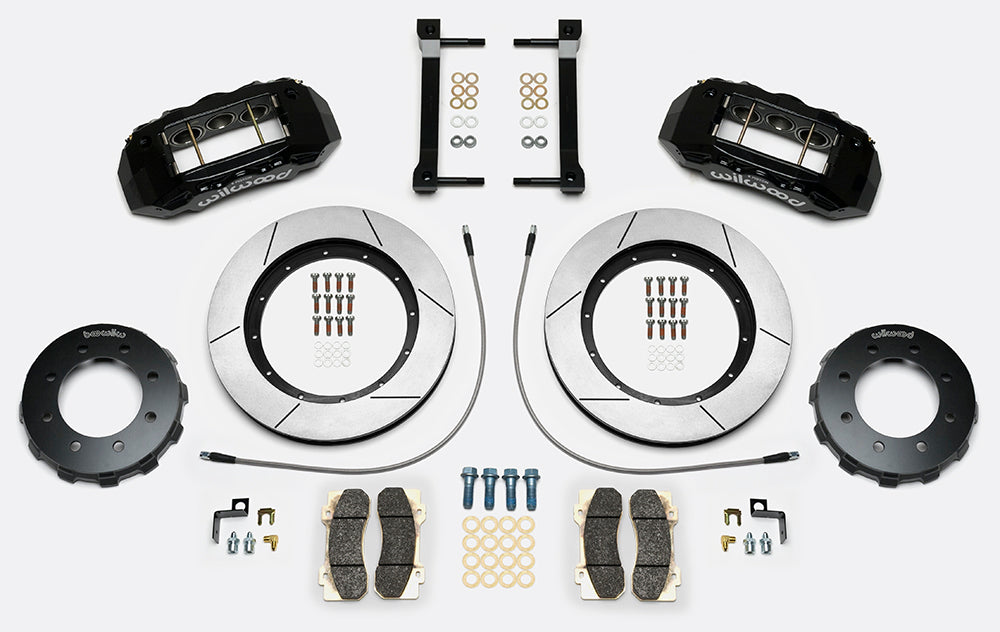

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.50" THICK X 15.00" O.D. ROTORS
• TX6R 6 PISTON RADIAL CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• WILWOOD BP-20 SMART COMPOUND BRAKE PADS
• BRAKE HATS,
• STAINLESS STEEL BRAKE LINES WITH FITTINGS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 112 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
