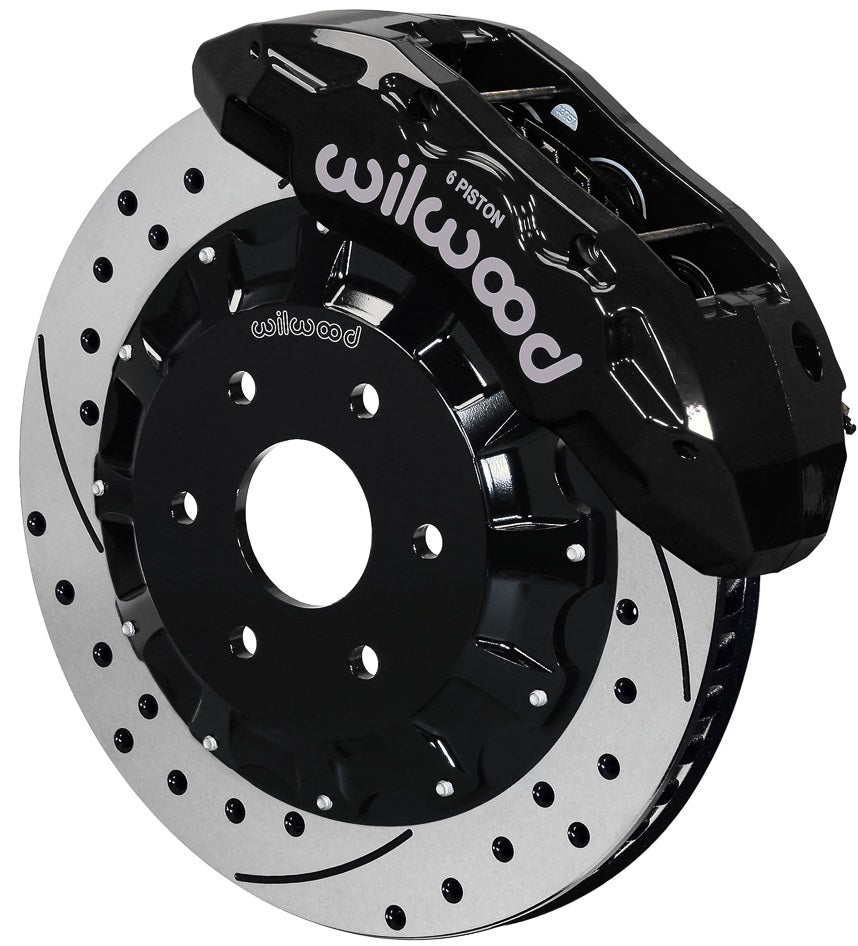

99-18 GM 1500 TRUCK/SUV,FRONT,TX6R 6 PISTON BLACK CALIPERS,16" DRILLED ROTORS

BRAND NEW WILWOOD TX6R BIG BRAKE TRUCK 16" FRONT DISC BRAKE KIT WITH BLACK CALIPERS (PART #140-13876-D) FOR BOTH FRONT WHEELS

WILWOOD TACTICAL EXTREME TX6R BIG BRAKE KITS ARE ULTIMATE IN BRAKING PERFORMANCE FOR TRUCK, SUV AND ARMORED VEHICLES. USING TX6R RADIAL MOUNT SIX-PISTON CALIPERS AND MASSIVE 15.00" TO 16.00" GT-60 DIRECTIONAL VANE SPEC-37 ALLOY ROTORS, THESE KITS DELIVER CONSISTENT STOPPING POWER AND EXTREME DUTY DURABILITY UNDER SUSTAINED HIGH HEAT WITH THIS READY TO BOLT-ON KIT.

THE CALIPERS ARE VOLUME MATCHED FOR COMPATIBILITY WITH ORIGINAL EQUIPMENT POWER BRAKE SYSTEM OUTPUT. KITS INCLUDE RADIAL MOUNT CALIPER BRACKETS, AND ALL THE NECESSARY HARDWARE TO COMPLETE THE INSTALLATION. BRAIDED STAINLESS STEEL FLEX LINES WILL NEED TO BE PURCHASED FOR SOME APPLICATIONS.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS

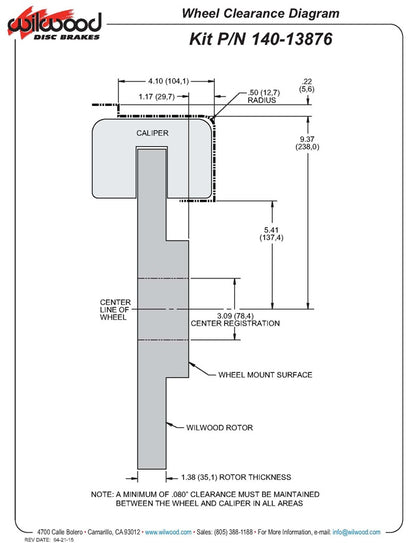

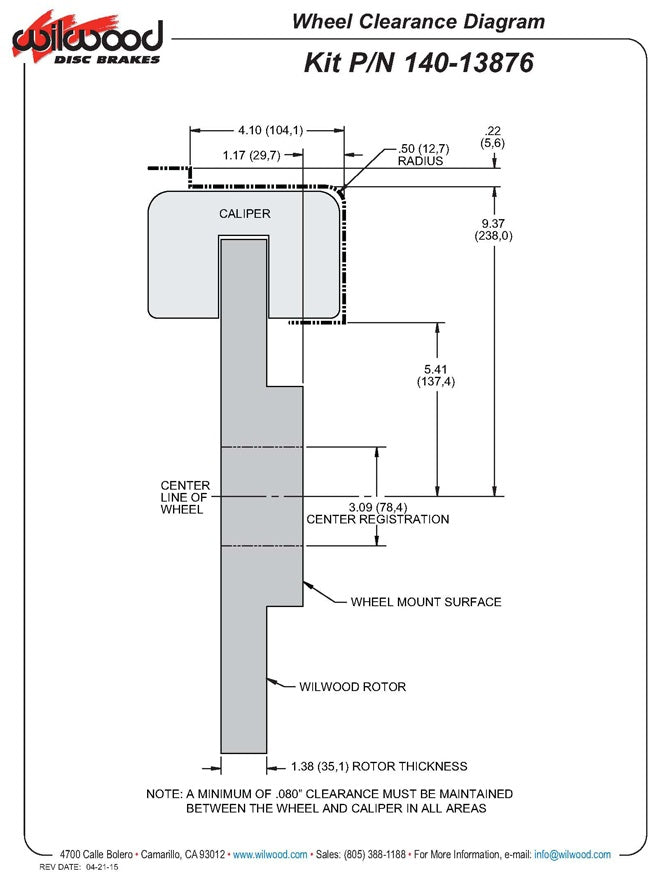

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

COMPATIBLE WITH:

• CADILLAC:
• ESCALADE 2006-2012 6 LUG - 4 X 2
• ESCALADE 2002-2005 6 LUG - 4 X 2 W/ 4 WHEEL STEERING
• ESCALADE 2002-2005 6 LUG - 4 X 2 W/ OUT 4 WHEEL STEERING
• ESCALADE 2006-2013 6 LUG - 4 X 4
• ESCALADE 2002-2005 6 LUG - 4 X 4 W/ 4 WHEEL STEERING
• ESCALADE 2002-2005 6 LUG - 4 X 4 W/ OUT 4 WHEEL STEERING
• ESCALADE 2007 6 LUG - ALL
• ESCALADE 2008 6 LUG - ALL (W/ FINGER CLIP FRONT PAD)
• ESCALADE 2008 6 LUG - ALL (W/O FINGER CLIP FRONT PAD)
• ESCALADE 2009 6 LUG -ALL
• ESCALADE 2014-2018 BASE
• ESCALADE 2014-2018 LUXURY
• ESCALADE 2014-2018 PLATINUM
• ESCALADE 2014-2017 PREMIUM
• ESCALADE 2018 PREMIUM LUXURY
• ESCALADE ESV 2010-2012 6 LUG - 4 X 2
• ESCALADE ESV 2010-2013 6 LUG - 4 X 4
• ESCALADE ESV 2007 6 LUG - ALL
• ESCALADE ESV 2008 6 LUG - ALL (W/ FINGER CLIP FRONT PAD)
• ESCALADE ESV 2009 6 LUG -ALL
• ESCALADE ESV 2008 6 LUG -ALL (W/O FINGER CLIP FRONT PAD)
• ESCALADE ESV 2014-2018 BASE
• ESCALADE ESV 2014-2018 LUXURY
• ESCALADE ESV 2014-2018 PLATINUM
• ESCALADE ESV 2014-2017 PREMIUM
• ESCALADE ESV 2018 PREMIUM LUXURY
• ESCALADE EXT 2010-2012 6 LUG - 4 X 2
• ESCALADE EXT 2002-2004 6 LUG - 4 X 2 W/ 4 WHEEL STEERING
• ESCALADE EXT 2002-2004 6 LUG - 4 X 2 W/ OUT 4 WHEEL STEERING
• ESCALADE EXT 2010-2013 6 LUG - 4 X 4
• ESCALADE EXT 2002-2004 6 LUG - 4 X 4 W/ 4 WHEEL STEERING
• ESCALADE EXT 2002-2004 6 LUG - 4 X 4 W/ OUT 4 WHEEL STEERING
• ESCALADE EXT 2007 6 LUG - ALL
• ESCALADE EXT 2008 6 LUG - ALL (W/ FINGER CLIP FRONT PAD)
• ESCALADE EXT 2008 6 LUG - ALL (W/O FINGER CLIP FRONT PAD)
• ESCALADE EXT 2009 6 LUG -ALL
• CHEVROLET:
• AVALANCHE 2010-2013 6 LUG - 4 X 2
• AVALANCHE 2008 6 LUG - 4 X 2 (W/ FINGER CLIP FRONT PAD)
• AVALANCHE 2008 6 LUG - 4 X 2 (W/O FINGER CLIP FRONT PAD)
• AVALANCHE 2010-2013 6 LUG - 4 X 4
• AVALANCHE 2008 6 LUG - 4 X 4 (W/ FINGER CLIP FRONT PAD)
• AVALANCHE 2008 6 LUG - 4 X 4 (W/O FINGER CLIP FRONT PAD)
• AVALANCHE 2007 6 LUG - ALL
• AVALANCHE 2009 6 LUG -ALL
• AVALANCHE 1500 2002-2006 6 LUG - 4 X 2
• AVALANCHE 1500 2002-2006 6 LUG - 4 X 4
• SILVERADO 1500 2017-2018 CUSTOM
• SILVERADO 1500 2015-2018 HIGH COUNTRY
• SILVERADO 1500 2016-2018 LS
• SILVERADO 1500 2015-2018 LT
• SILVERADO 1500 2015-2018 LTZ
• SILVERADO 1500 2016-2018 SSV
• SILVERADO 1500 2015-2018 WT
• SILVERADO 1500 PICKUP 2002-2006 6 LUG - 4 X 2 W/ DRUM REAR
• SILVERADO 1500 PICKUP 2002-2006 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• SILVERADO 1500 PICKUP 2002-2006 6 LUG - 4 X 2 W/ OE SINGLE PISTON REAR BRAKE
• SILVERADO 1500 PICKUP 2002-2006 6 LUG - 4 X 4 W/ DRUM REAR
• SILVERADO 1500 PICKUP 2002-2006 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• SILVERADO 1500 PICKUP 2002-2006 6 LUG - 4 X 4 W/ OE SINGLE PISTON REAR BRAKE
• SILVERADO 1500 PICKUP 2014 6 LUG - ALL
• SILVERADO 1500 PICKUP 2008-2010 6 LUG - ALL W/ DISC REAR, EXCEPT POLICE PACKAGE
• SILVERADO 1500 PICKUP 2008-2013 6 LUG - ALL W/ DRUM REAR
• SILVERADO 1500 PICKUP 2001 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• SILVERADO 1500 PICKUP 1999-2001 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
• SILVERADO 1500 PICKUP 2011-2013 6 LUG - ALL W/ REAR DISC BRAKE
• SILVERADO 1500 PICKUP 2007 6 LUG - CLASSIC STYLE W/ DRUM REAR
• SILVERADO 1500 PICKUP 2007 6 LUG - CLASSIC STYLE W/ OE 2 PISTON REAR
• SILVERADO 1500 PICKUP 2007 6 LUG - CLASSIC STYLE W/ OE SINGLE PISTON REAR
• SILVERADO 1500 PICKUP 2007 6 LUG - NEW STYLE W/ DISC REAR
• SILVERADO 1500 PICKUP 2007 6 LUG - NEW STYLE W/ DRUM REAR
• SILVERADO 1500 PICKUP 2008-2010 6 LUG - POLICE PACKAGE W/ DISC REAR
• SILVERADO 1500 PICKUP 2000 ALL W/ OE SINGLE PISTON REAR BRAKE
• SUBURBAN 2015-2018 LS
• SUBURBAN 2015-2018 LT
• SUBURBAN 2015-2016 LTZ
• SUBURBAN 2017-2018 PREMIER
• SUBURBAN 1500 2009-2013 6 LUG - 4 X 2
• SUBURBAN 1500 2008 6 LUG - 4 X 2 (W/ FINGER CLIP FRONT PAD)
• SUBURBAN 1500 2008 6 LUG - 4 X 2 (W/O FINGER CLIP FRONT PAD)
• SUBURBAN 1500 2002-2006 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• SUBURBAN 1500 2009-2013 6 LUG - 4 X 4
• SUBURBAN 1500 2008 6 LUG - 4 X 4 (W/ FINGER CLIP FRONT PAD)
• SUBURBAN 1500 2008 6 LUG - 4 X 4 (W/O FINGER CLIP FRONT PAD)
• SUBURBAN 1500 2002-2006 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• SUBURBAN 1500 2007 6 LUG - ALL
• SUBURBAN 1500 2000-2001 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• SUBURBAN 1500 2014 LS
• SUBURBAN 1500 2014 LT
• SUBURBAN 1500 2014 LTZ
• TAHOE 2009-2013 6 LUG - 4 X 2 ALL W/ REAR DISC BRAKE
• TAHOE 2002-2006 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• TAHOE 2009-2013 6 LUG - 4 X 4 ALL W/ REAR DISC BRAKE
• TAHOE 2002-2006 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• TAHOE 2008 6 LUG - ALL EXCEPT POLICE (W/O FINGER CLIP FRONT PAD)
• TAHOE 2007 6 LUG - ALL EXECPT POLICE
• TAHOE 2008 6 LUG - ALL INCLUDING POLICE (W/ FINGER CLIP FRONT PAD)
• TAHOE 2001 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• TAHOE 2001 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
• TAHOE 2000 6 LUG - NEW STYLE W/ OE HD 2 PIST REAR
• TAHOE 2007 6 LUG - POLICE PACKAGE
• TAHOE 2008 6 LUG - POLICE PACKAGE (W/O FINGER CLIP FRONT PAD)
• TAHOE 2014-2018 LS
• TAHOE 2014-2018 LT
• TAHOE 2014-2016 LTZ
• TAHOE 2016-2018 PPV
• TAHOE 2017-2018 PREMIER
• TAHOE 2016-2018 SSV
• GMC:
• SIERRA 1500 2015-2018 BASE
• SIERRA 1500 2015-2018 DENALI
• SIERRA 1500 2015-2018 SLE
• SIERRA 1500 2015-2018 SLT
• SIERRA 1500 PICKUP 2005-2006 6 LUG - 4 X 2 W/ DRUM REAR
• SIERRA 1500 PICKUP 2002-2006 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• SIERRA 1500 PICKUP 2002-2006 6 LUG - 4 X 2 W/ OE SINGLE PISTON REAR BRAKE
• SIERRA 1500 PICKUP 2005-2006 6 LUG - 4 X 4 W/ DRUM REAR
• SIERRA 1500 PICKUP 2002-2006 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• SIERRA 1500 PICKUP 2002-2006 6 LUG - 4 X 4 W/ OE SINGLE PISTON REAR BRAKE
• SIERRA 1500 PICKUP 2014 6 LUG - ALL
• SIERRA 1500 PICKUP 2008-2010 6 LUG - ALL W/ DISC REAR, EXCEPT POLICE PACKAGE
• SIERRA 1500 PICKUP 2008-2013 6 LUG - ALL W/ DRUM REAR
• SIERRA 1500 PICKUP 2001 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• SIERRA 1500 PICKUP 1999-2001 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
• SIERRA 1500 PICKUP 2011-2013 6 LUG - ALL W/ REAR DISC BRAKE
• SIERRA 1500 PICKUP 2007 6 LUG - CLASSIC STYLE W/ DRUM REAR
• SIERRA 1500 PICKUP 2007 6 LUG - CLASSIC STYLE W/ OE 2 PISTON REAR
• SIERRA 1500 PICKUP 2007 6 LUG - CLASSIC STYLE W/ OE SINGLE PISTON REAR
• SIERRA 1500 PICKUP 2007 6 LUG - NEW STYLE W/ DISC REAR
• SIERRA 1500 PICKUP 2007 6 LUG - NEW STYLE W/ DRUM REAR
• SIERRA 1500 PICKUP 2008-2010 6 LUG - POLICE PACKAGE W/ DISC REAR
• SIERRA 1500 PICKUP 2000 ALL W/ OE SINGLE PISTON REAR BRAKE
• YUKON 2009-2012 6 LUG - 4 X 2
• YUKON 2008 6 LUG - 4 X 2 (W/ FINGER CLIP FRONT PAD)
• YUKON 2008 6 LUG - 4 X 2 (W/O FINGER CLIP FRONT PAD)
• YUKON 2002-2006 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• YUKON 2002 6 LUG - 4 X 2 W/ OE SINGLE PISTON REAR BRAKE
• YUKON 2009-2013 6 LUG - 4 X 4
• YUKON 2008 6 LUG - 4 X 4 (W/ FINGER CLIP FRONT PAD)
• YUKON 2008 6 LUG - 4 X 4 (W/O FINGER CLIP FRONT PAD)
• YUKON 2002-2006 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• YUKON 2002 6 LUG - 4 X 4 W/ OE SINGLE PISTON REAR BRAKE
• YUKON 2007 6 LUG - ALL
• YUKON 2001 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• YUKON 2001 6 LUG - ALL W/ OE SINGLE PISTON REAR BRAKE
• YUKON 2000 6 LUG - EXCEPT DENALI W/ OE HD 2 PIST REAR
• YUKON 2014-2018 DENALI
• YUKON 2014-2018 SLE
• YUKON 2014-2018 SLT
• YUKON XL 2015-2018 DENALI
• YUKON XL 2015-2018 SLE
• YUKON XL 2015-2018 SLT
• YUKON XL 1500 2009-2012 6 LUG - 4 X 2
• YUKON XL 1500 2008 6 LUG - 4 X 2 (W/ FINGER CLIP FRONT PAD)
• YUKON XL 1500 2008 6 LUG - 4 X 2 (W/O FINGER CLIP FRONT PAD)
• YUKON XL 1500 2002-2006 6 LUG - 4 X 2 W/ OE HD 2 PISTON REAR BRAKE
• YUKON XL 1500 2009-2013 6 LUG - 4 X 4
• YUKON XL 1500 2008 6 LUG - 4 X 4 (W/ FINGER CLIP FRONT PAD)
• YUKON XL 1500 2008 6 LUG - 4 X 4 (W/O FINGER CLIP FRONT PAD)
• YUKON XL 1500 2002-2006 6 LUG - 4 X 4 W/ OE HD 2 PISTON REAR BRAKE
• YUKON XL 1500 2007 6 LUG - ALL
• YUKON XL 1500 2000-2001 6 LUG - ALL W/ OE HD 2 PISTON REAR BRAKE
• YUKON XL 1500 2014 DENALI
• YUKON XL 1500 2014 SLE
• YUKON XL 1500 2014 SLT

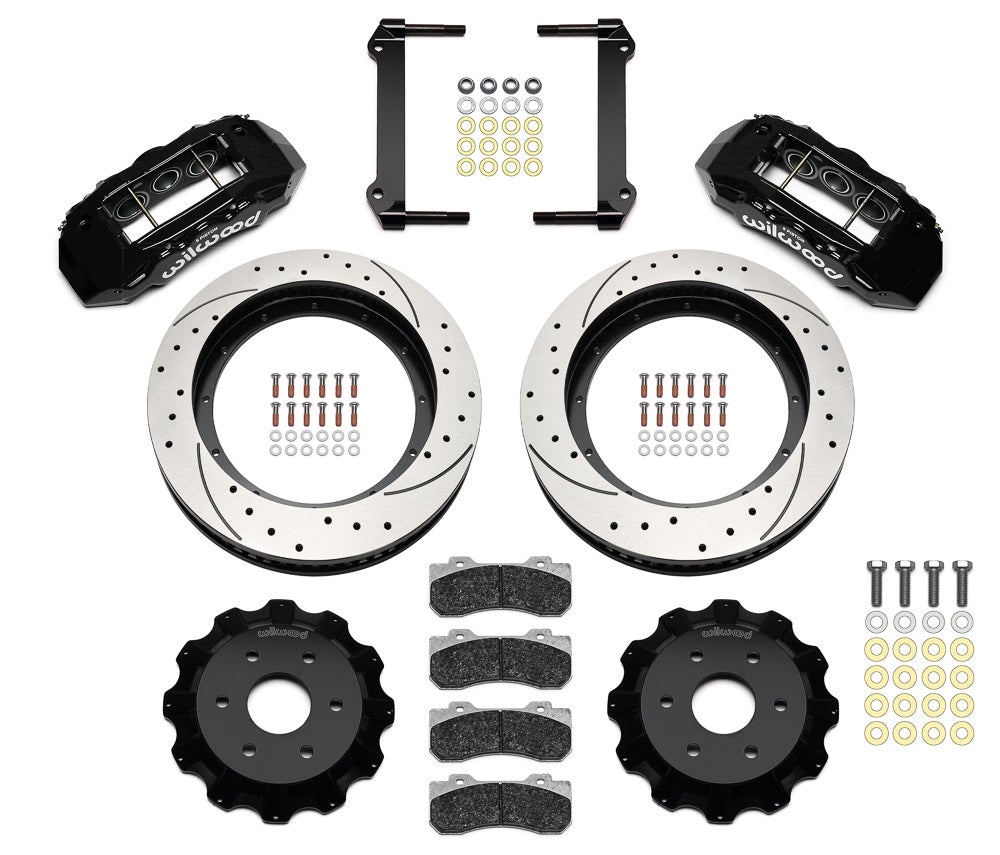

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED 1.38" THICK X 16" O.D. ROTORS
• TX6R 6 PISTON RADIAL CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-Q SMART COMPOUND BRAKE PADS
• BRAKE HATS, &
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 101 LBS.

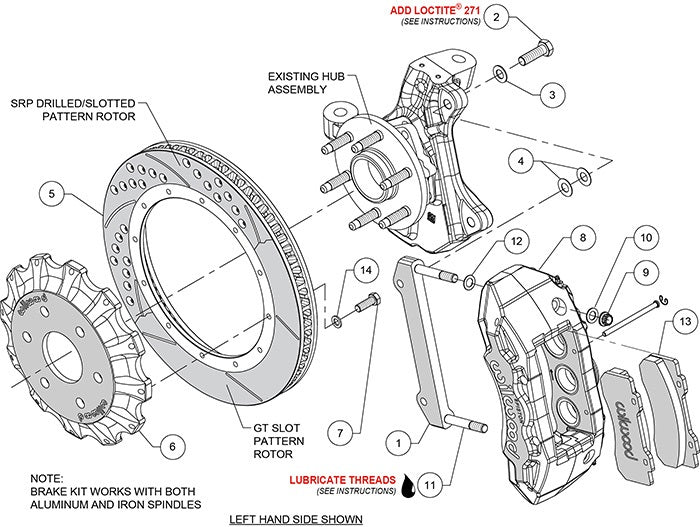

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
