89-05 MAZDA MIATA,FRONT,DP6,11",RED

BRAND NEW WILWOOD FORGED DYNAPRO 6 BOLT-ON FRONT 11" DISC BRAKE KIT (PART #140-13380-R) FOR BOTH FRONT WHEELS.

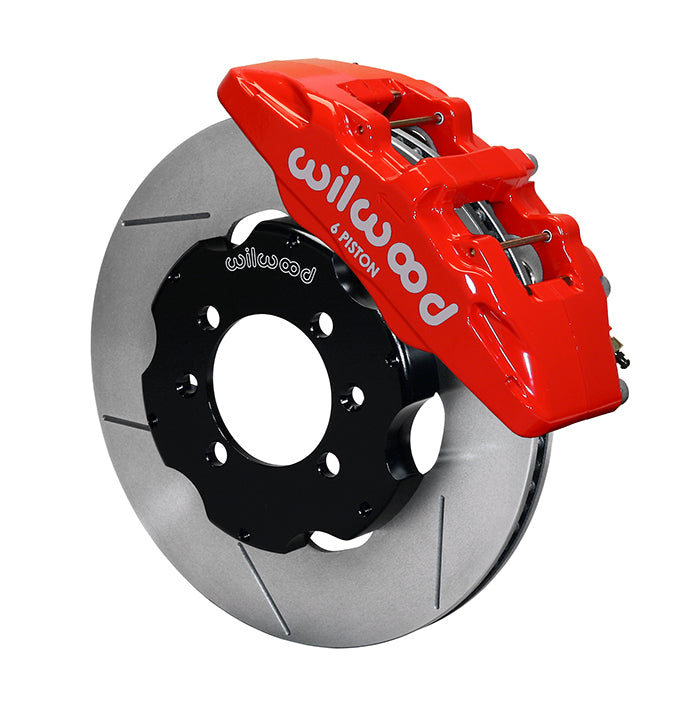

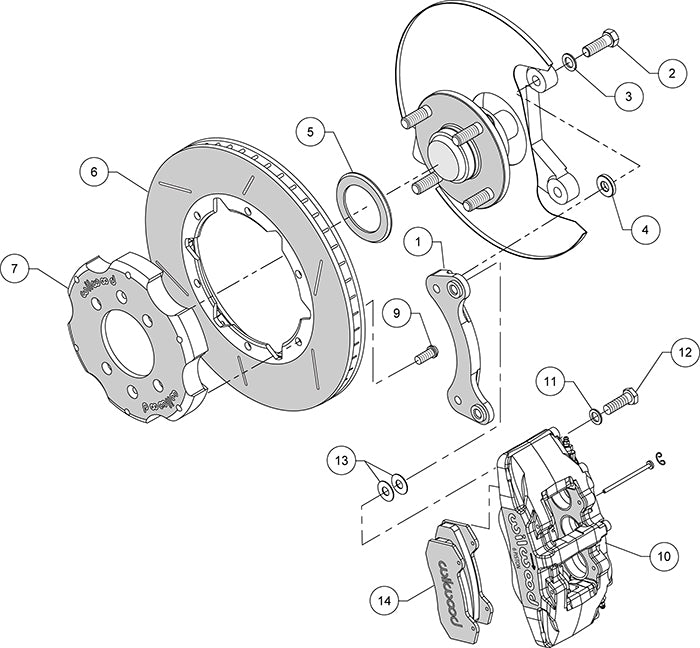

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST & DIAGRAM FOR A DETAIL OF THE PARTS INCLUDED.

FITS:

• 1989-2005 MAZDA MX-5 MIATA

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FORGED BILLET DYNAPRO 6 CALIPERS, OVERSIZED GT SPEC-37 ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS DELIVER BIG BRAKE STOPPING POWER WITH HIGH-TECH STYLE FOR FRONT WHEEL DRIVE SPORT COMPACTS. THESE KITS ARE THE PERFECT COMPLEMENT TO WHEEL, TIRE, AND SUSPENSION UPGRADES. OPTIONS FOR CALIPER FINISH AND ROTOR DESIGN MAKE IT SIMPLE TO MATCH THE BRAKE RESPONSE AND STYLE PREFERENCES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES. EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE. THEY ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT WHILE RETAINING THE FULL FACTORY ABS FUNCTIONS.

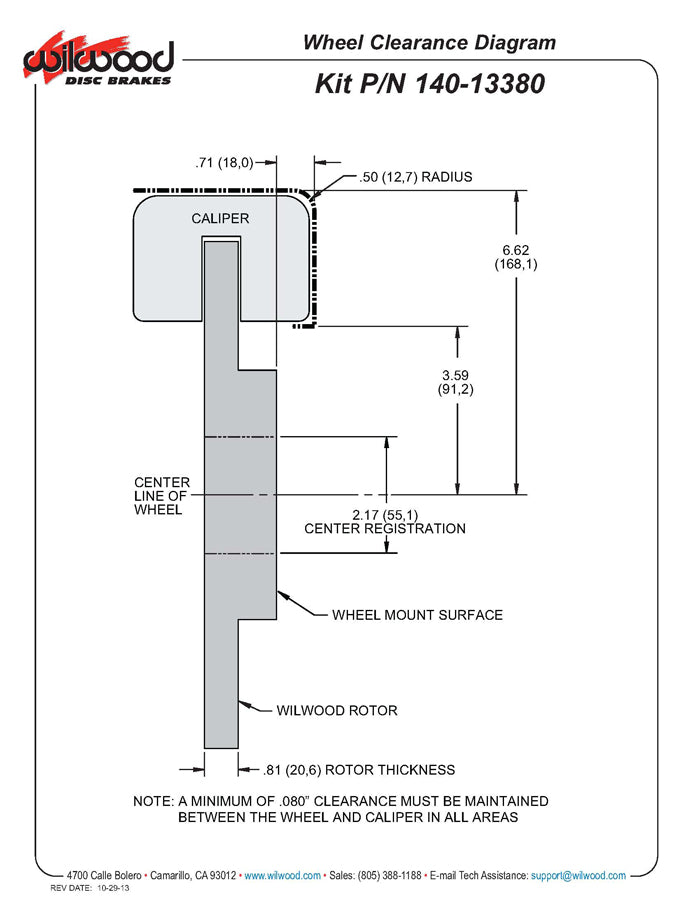

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

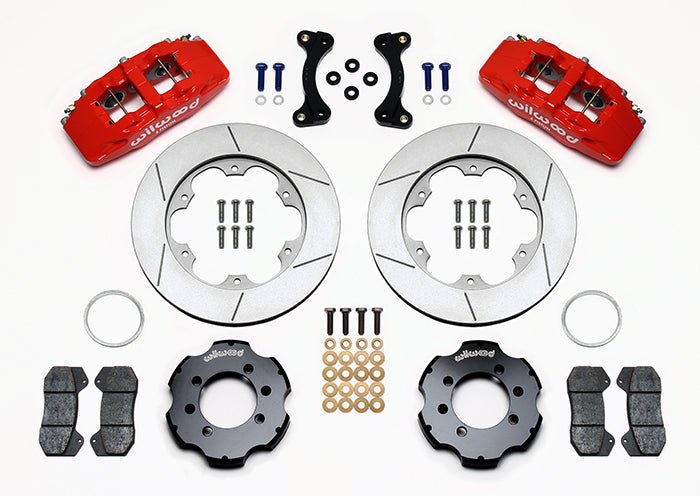

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .810" THICK X 11.00" O.D. ROTORS
• FORGED DYNAPRO 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 38 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
