66-75 BRONCO,SMALL FORD,REAR,14",BLACK

BRAND NEW WILWOOD PREMIUM BIG BRAKE FORGED NARROW SUPERLITE 4R CALIPER BOLT-ON REAR HAT, & 14" DISC BRAKE KIT FOR BOTH REAR WHEELS.

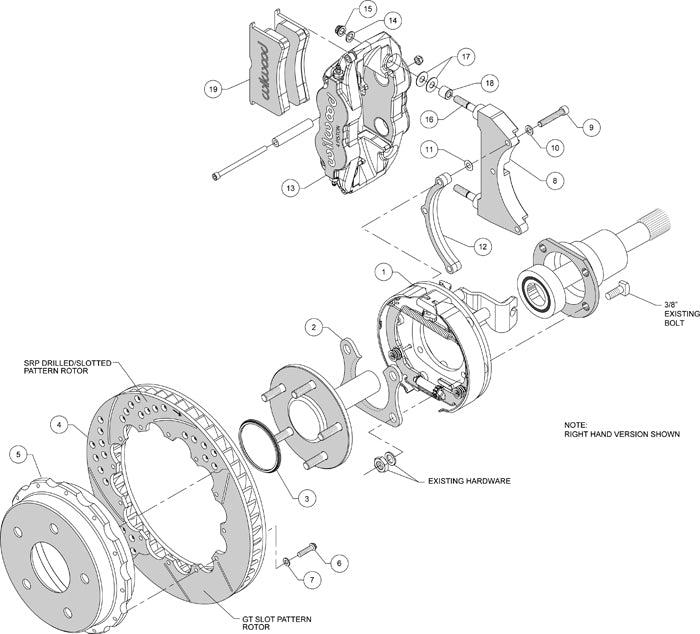

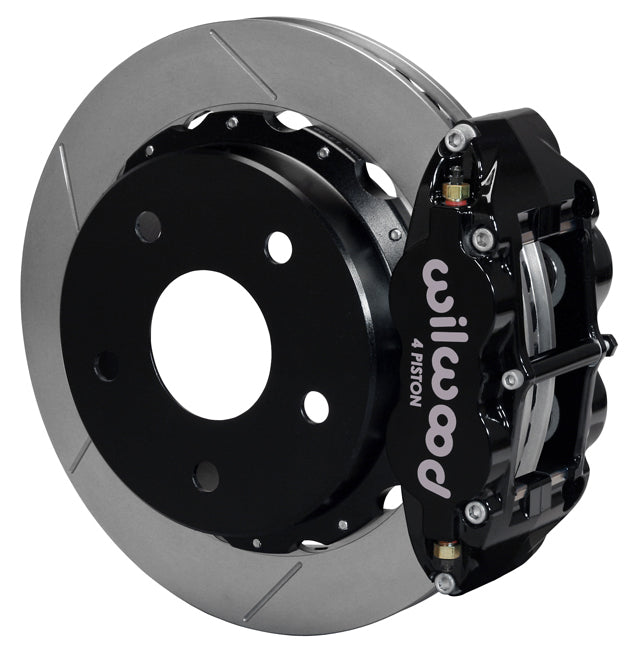

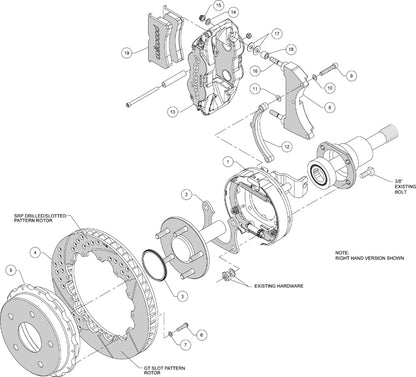

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• 1966-1973 FORD BRONCO (2700 LB AXLE & 10" DRUM BRAKES)*

• 1974-1975 FORD BRONCO (2900 LB AXLE & 10" DRUM BRAKES)*

• SMALL BEARING FORD REAR ENDS WITH A 3.336" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)



WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THESE VERSIONS OF FORGED NARROW SUPERLITE 4R REAR DISC KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION FOR BRONCO 65-75 REAR AXLES WITH SMALL FORD FLANGE AND BEARING. (NORMALLY: OE 10 INCH DIAMETER BRAKES AND 2700 OR 2900 GVW.) EACH INCLUDES A HIGH EFFICIENCY DRUM STYLE PARKING BRAKE ASSEMBLY. FNSL4R FOUR PISTON CALIPERS, 14" TWO-PIECE ROTORS, AND HIGH PERFORMANCE BP-10 COMPOUND PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES AVAILABLE FOR BRONCO PLATFORM.

THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ALLOW BUILDERS TO PERSONALIZE THE STYLE AND PERFORMANCE FOR EVERY APPLICATION.

THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

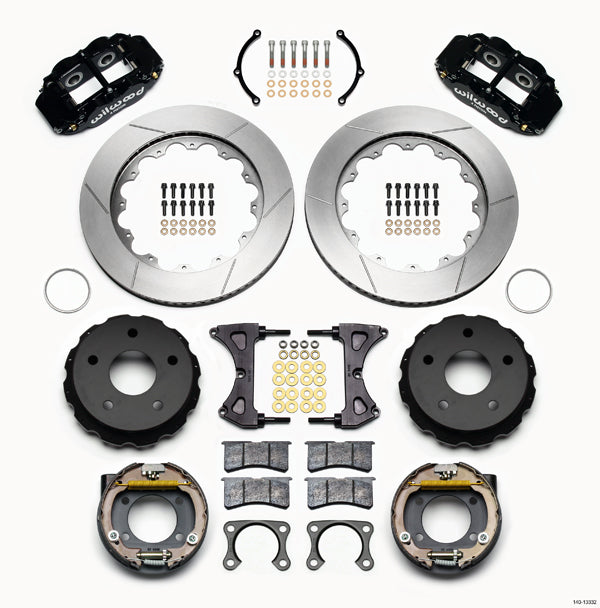

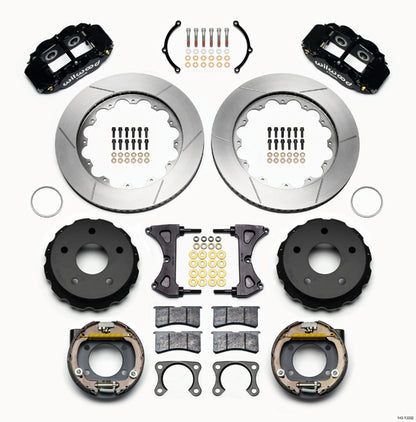

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• 1.1" THICK X 14" O.D. ROTORS

• FORGED NARROW SUPERLITE 4 PISTON CALIPERS - BLACK

• DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS

• BP-10 SMART COMPOUND BRAKE PADS

• BRAKE HATS

• ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM FOR BOTH REAR WHEELS



COMPLETE KIT WEIGHS APPROXIMATELY 80 LBS.

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
