66-77 BRONCO,BIG,REAR,12.90" DRILLED ROTORS,BLACK

66-77 BRONCO,BIG,REAR,12.90" DRILLED ROTORS,BLACK

WIL 140-13323D

$2,019.99
$2,019.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE SUPERLITE CALIPER, BOLT-ON REAR HAT, & 12.88" DISC BRAKE KIT FOR BOTH REAR WHEELS.

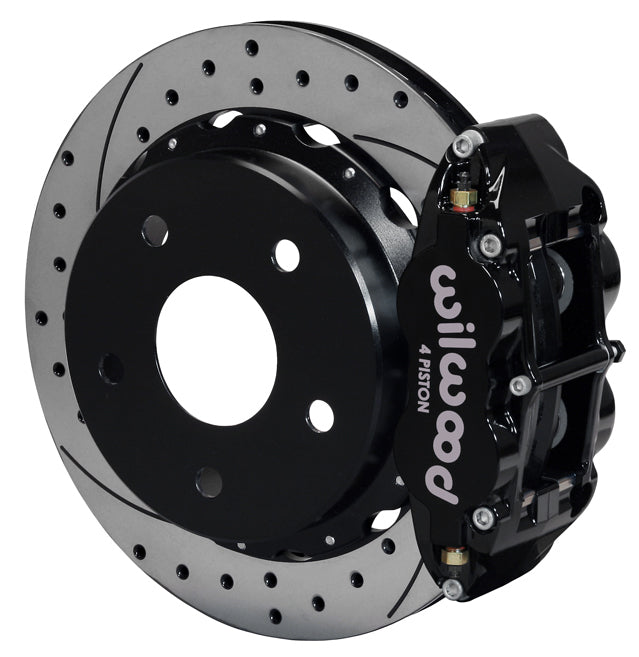

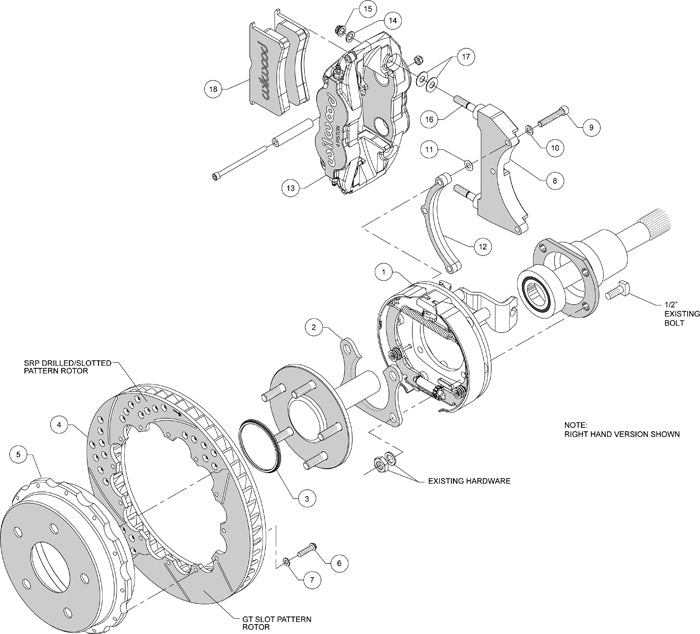

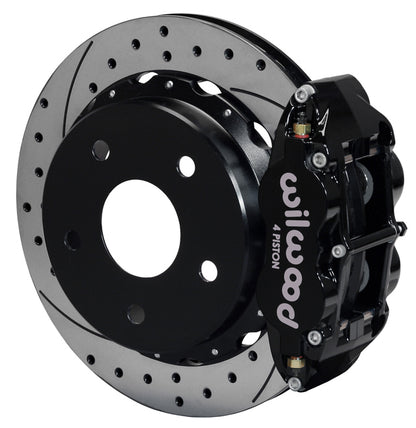

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

    • FITS:

    • 1966-1975 FORD BRONCO (3300 LB AXLE & 11" DRUM BRAKES)*
    • 1976-1977 FORD BRONCO, ALL*

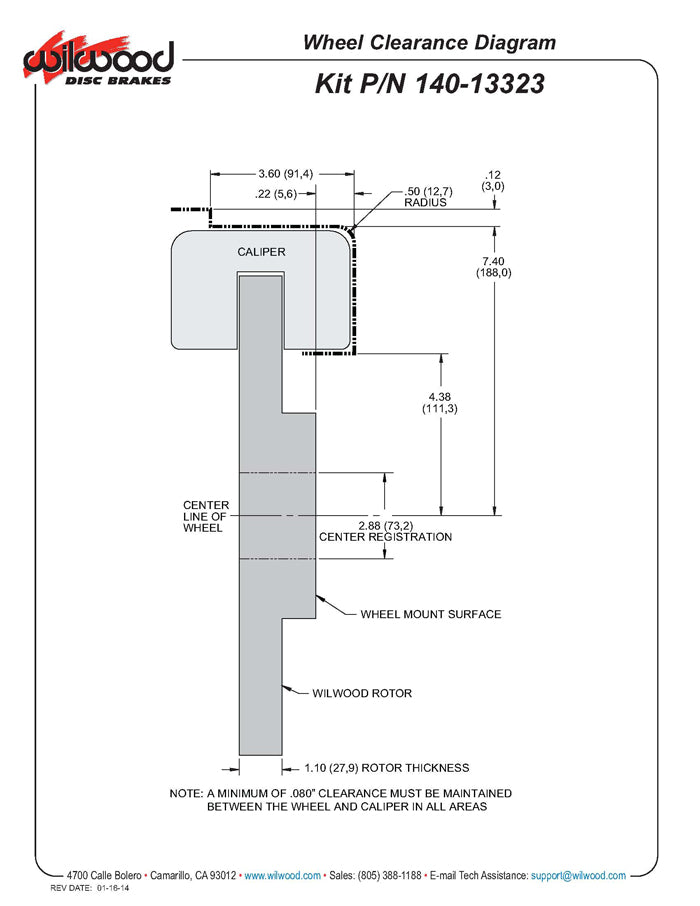

    • *THIS KIT FITS THE BIG FORD AXLE FLANGES, WHICH THE ABOVE APPLICATIONS SHOULD HAVE, BUT TO CONFIRM THE FITMENT FOR YOUR SPECIFIC BRONCO (SEE THE DIAGRAM BELOW)

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THESE FORGED NARROW SUPERLITE 4R REAR DISC KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION FOR BRONCO 65-77 REAR AXLES WITH BIG FORD FLANGE (NORMALLY: OE 11 INCH DIAMETER BRAKES AND 3300 GVW.) EACH KIT INCLUDES A HIGH EFFICIENCY DRUM STYLE PARKING BRAKE ASSEMBLY (PARKING BRAKE CABLE NOT INCLUDED, BUT AVAILABLE). FNSL4R FOUR PISTON CALIPERS, 13" TWO-PIECE ROTORS, AND HIGH PERFORMANCE BP-10 COMPOUND PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES AVAILABLE FOR BRONCO PLATFORM. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

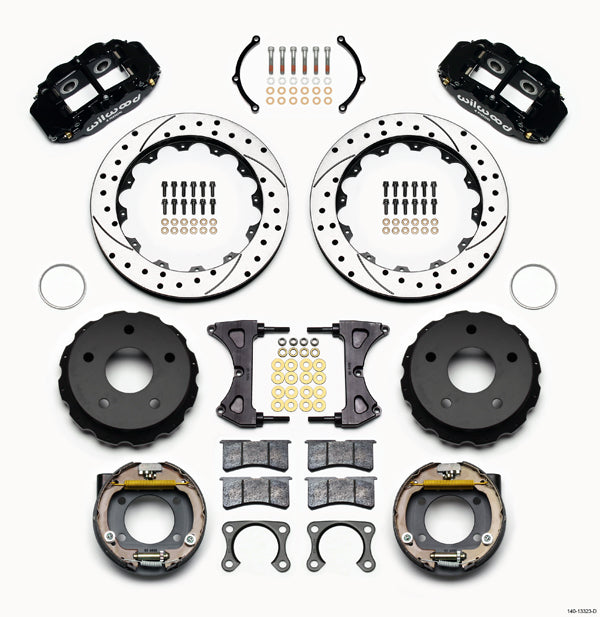

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • DRILLED & SLOTTED, 1.10" THICK X 12.88" O.D. ROTORS
    • FORGED NARROW SUPERLITE 4 PISTON CALIPERS - BLACK
    • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM FOR BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 76 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.



    • Click Picture
    For Larger View

    Bolt-On Disc Brake Kits > Ford Kits > Bronco Rear Kits, 1966-1977
