66-77 BRONCO,BIG FORD,REAR,12.19,RED

66-77 BRONCO,BIG FORD,REAR,12.19,RED

WIL 140-13322R

$1,149.99
$1,149.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO LUG MOUNT PARKING BRAKE CALIPER BOLT-ON REAR HAT, & 12.19" DISC BRAKE KIT FOR BOTH REAR WHEELS.

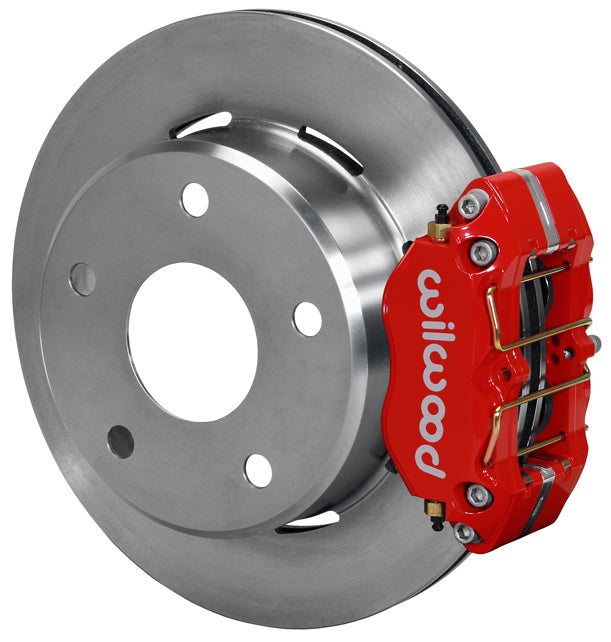

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED RED CALIPERS.

    • FITS:

    • 1966-1975 FORD BRONCO (3300 LB AXLE & 11" DRUM BRAKES)*
    • 1976-1977 FORD BRONCO, ALL*

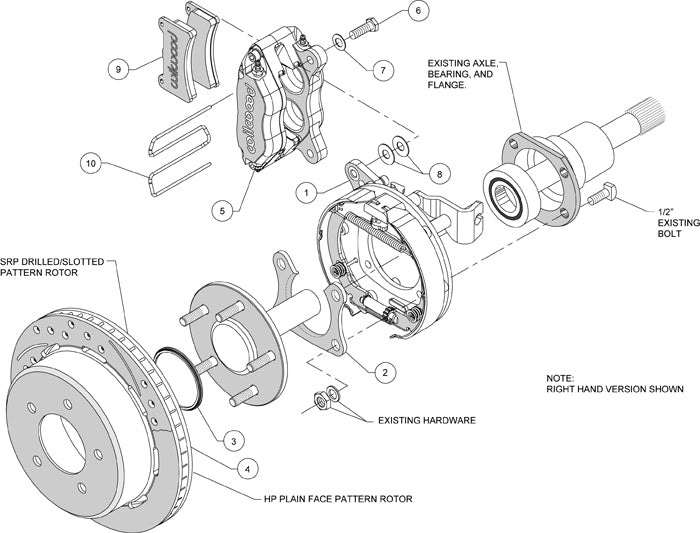

    • *THIS KIT FITS THE BIG FORD AXLE FLANGES, WHICH THE ABOVE APPLICATIONS SHOULD HAVE, BUT TO CONFIRM THE FITMENT FOR YOUR SPECIFIC BRONCO (SEE THE DIAGRAM BELOW)

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THESE VERSIONS OF DPL PRO-SERIES REAR DISC KITS PROVIDES A COMPLETE SOLUTION FOR BRONCO 65-77 REAR AXLES WITH BIG FORD FLANGE AND BEARING. (NORMALLY: OE 11 INCH DIAMETER BRAKES AND 3300 GVW.)

  • FORGED BILLET DYNAPRO LUG MOUNT FOUR PISTON CALIPERS, 12.19" ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES AVAILABLE FOR BRONCO PLATFORM.

  • THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO PERSONALIZE THE STYLE AND OPTIMIZE BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

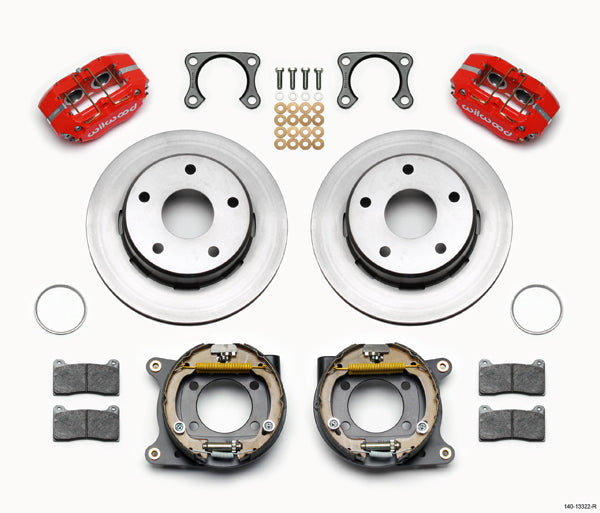

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • 0.81" THICK X 12.19" O.D. ROTORS
    • FORGED DYNAPRO LUG MOUNT 4 PISTON CALIPERS - RED
    • DISC BRAKE WITH DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM FOR BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 50 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.



    • Click Picture
    For Larger View
