82-86 JEEP CJ KIT,FRONT,12",RED CALIPERS

82-86 JEEP CJ KIT,FRONT,12",RED CALIPERS

WIL 140-12613R

$1,089.99
$1,089.99
View full details

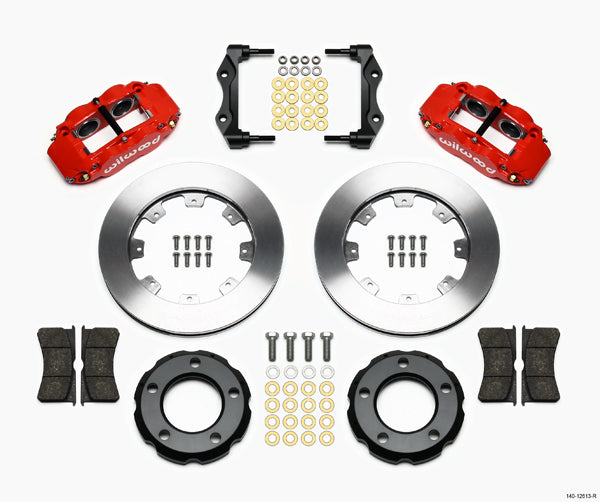

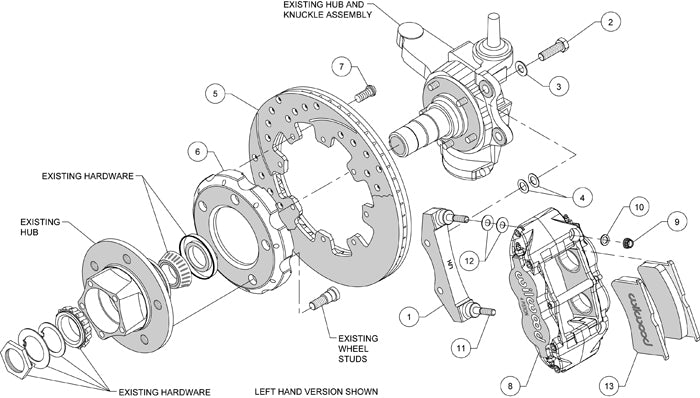

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE SUPERLITE BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT FOR:
    JEEP CJ SERIES (CJ5 AND CJ7):
    -1981 MODELS WITH 5 BOLT DRIVE FLANGE HUBS; THIS KIT WILL NOT WORK WITH 6 BOLT DRIVE FLANGE HUBS*
    -1982-1986, ALL*

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 4R FOUR-PISTON CALIPER SERVES AS THE BASE OF THIS 12.19" BIG ROTOR KIT FOR THE POPULAR JEEP CJ VEHICLES, KIT FITMENT STARTS WITH 1981 MODELS ORIGINALLY EQUIPPED WITH 5 BOLT DRIVE FLANGE ROTORS AND FITMENT CONTINUES TO ALL 82-86 YEAR VEHICLES
  • SL4R KITS ARE ENGINEERED APPLICATION SPECIFIC TO THESE VEHICLES, PROVIDING SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED
  • BIG BRAKE KITS OFFER INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES

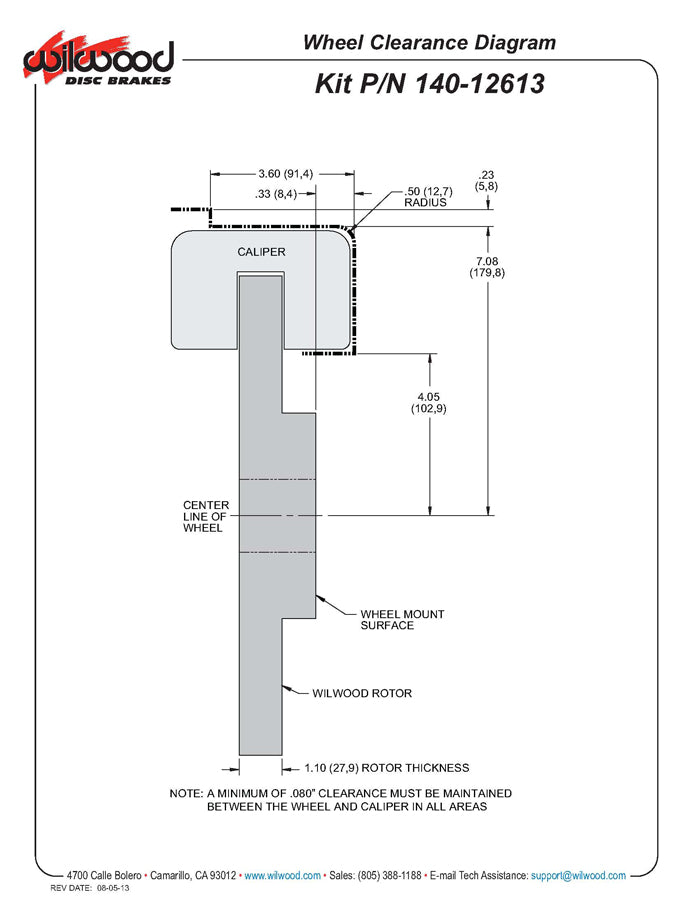

  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

  • KIT INCLUDES:
    *STANDARD, 1.10" THICK X 12.19" O.D. ROTORS,
    *NARROW SUPERLITE 4 PISTON RADIAL MOUNT CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HATS, &
    *ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Jeep Kits > CJ Front Kits, 1982-1986
