97-02 JEEP WRANGLER,DANA 35,REAR,D154,12"

97-02 JEEP WRANGLER,DANA 35,REAR,D154,12"

WIL 140-12567B

$969.99
$969.99
View full details
  • BRAND NEW WILWOOD REAR PARKING BRAKE, D-154 PRO SERIES, BOLT-ON 12.19" DISC BRAKE KIT FOR BOTH REAR WHEELS ON REAR ENDS WITH DANA 35 AXLE FLANGES AND WITHOUT ABS.

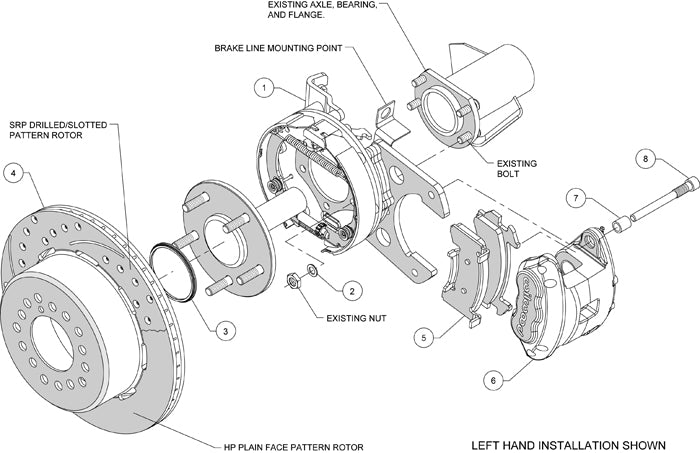

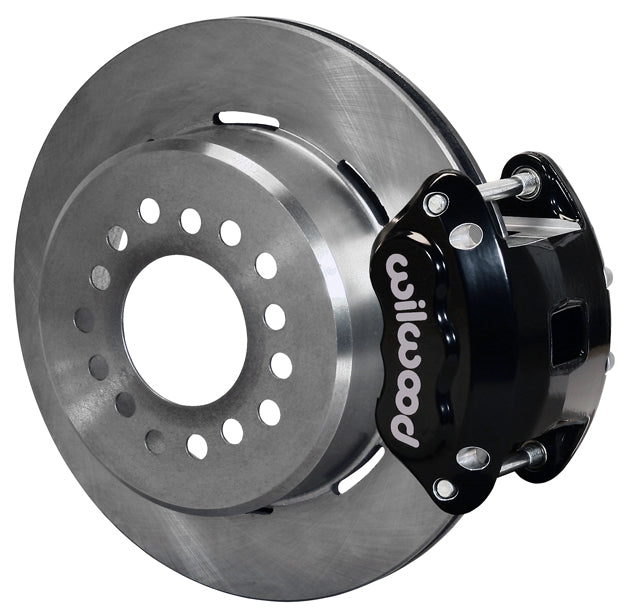

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED BLACK CALIPERS.

    • FITS:

    • 1997-2002 JEEP WRANGLER WITH DANA 35 REAR ENDS AND WITHOUT ABS***
    • ***IN ORDER FOR THIS KIT TO FIT, YOUR REAR END HAS TO HAVE THE DANA 35 AXLE FLANGES (SHOWN AT THE RIGHT)
    • ***ALSO, THIS KIT WONT WORK WITH ABS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THE D154 PRO SERIES REAR DISC CONVERSION KIT WITH INTEGRAL PARKING BRAKE PROVIDES HIGH-TECH STYLING FOR THE STREET AND RUGGED DURABILITY FOR THE TOUGHEST OFF-ROAD CONDITIONS. EXPERIENCE BIG BRAKE STOPPING POWER FROM 12.19" DIAMETER ROTORS AND TWO-PISTON FLOATING MOUNT CALIPERS FOR ULTIMATE CONTROL WITH BIG WHEEL AND TIRE PACKAGES. THIS KIT COVERS THE FULL RANGE OF NON-ABS DANA 35 REAR AXLES USED OVER A WIDE RANGE OF JEEP MODELS AND FEATURE BOLT-ON INSTALLATION AND FULL COMPATIBILITY WITH THE OE MASTER CYLINDER OUTPUT. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

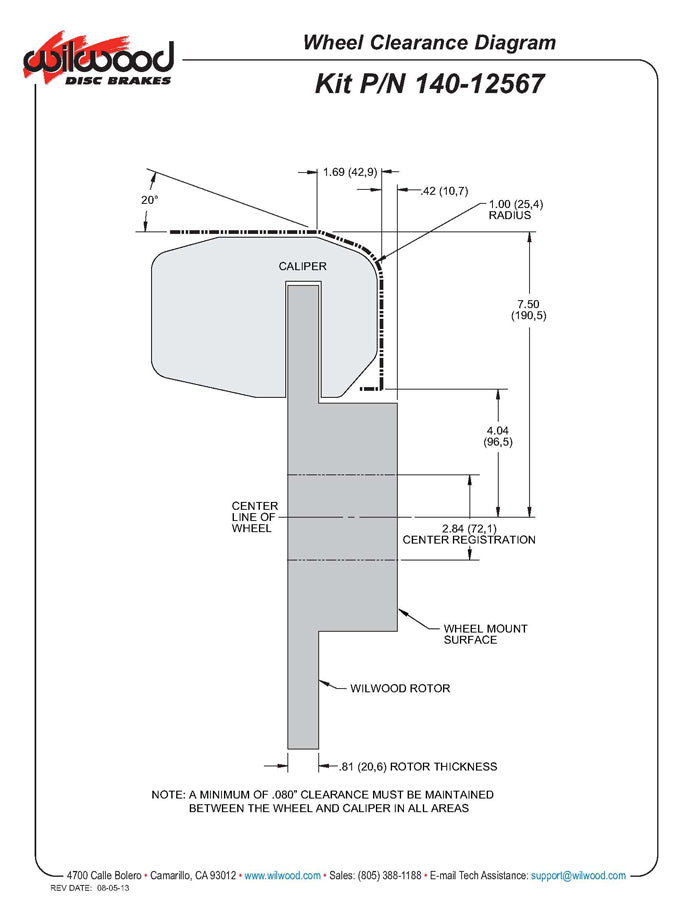

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

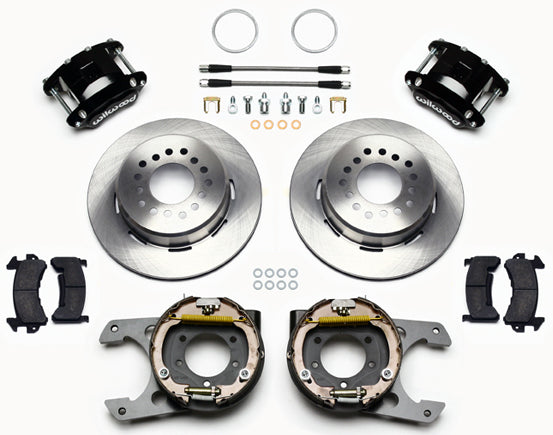

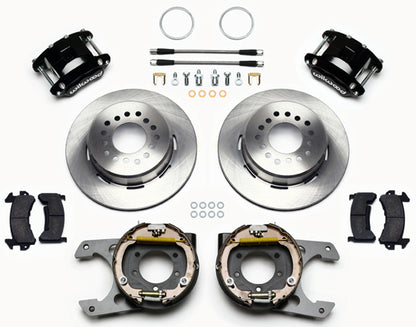

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • .810" THICK X 12.19" O.D. ROTORS
    • D-154 TWO-PISTON FLOATING CALIPERS - BLACK
    • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • SLIDE PIN BOLTS AND SLEEVES
    • STEEL BRAIDED BRAKE LINE KIT WITH FITTINGS
    • NECESSARY HARDWARE TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 59 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Jeep Kits > Wrangler Rear Kits, 1997-2002
