BIG FORD NEW KIT,2.50",REAR PB,GM D154 BLACK CALIPERS,12.19" ROTORS

BIG FORD NEW KIT,2.50",REAR PB,GM D154 BLACK CALIPERS,12.19" ROTORS

SKU:WIL 140-12209

Regular price $899.99
Regular price Sale price $899.99
View full details

BRAND NEW WILWOOD REAR PARKING BRAKE, D-154 PRO SERIES, BOLT-ON 12.19" DISC BRAKE KIT FOR BOTH REAR WHEELS

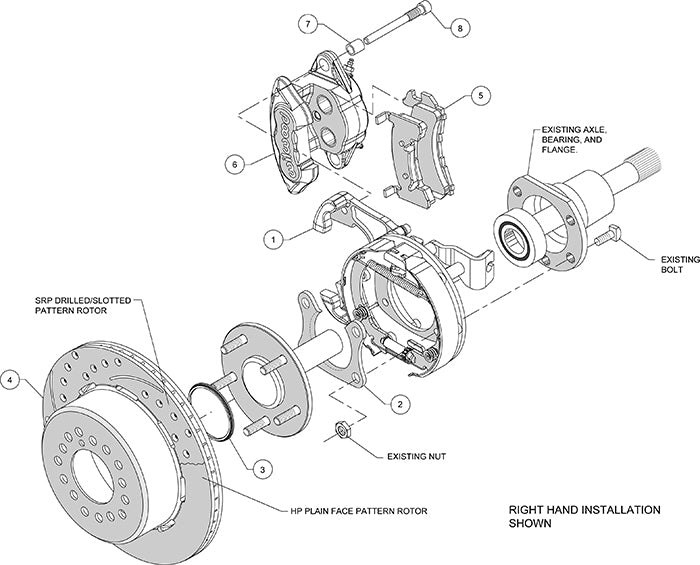

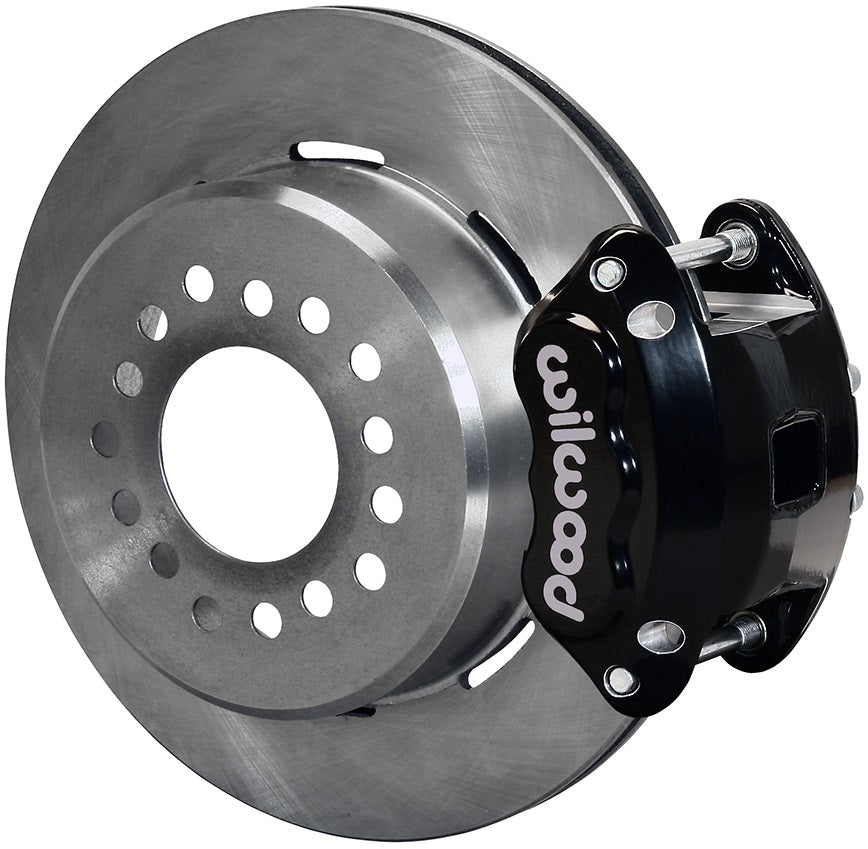

NOTE: ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

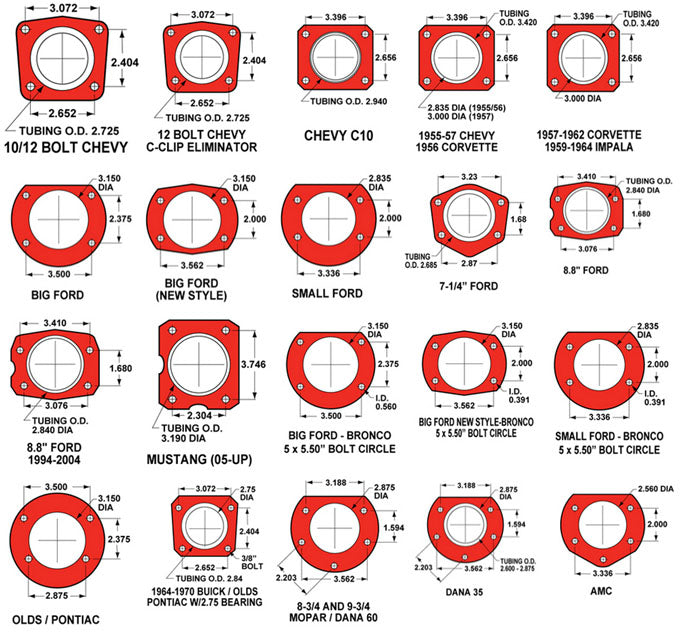

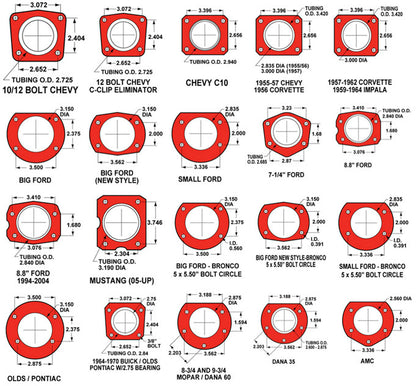

  • BIG BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

D154 PRO-SERIES REAR DISC KITS PROVIDES A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED D154 DUAL PISTON CALIPERS, 12.19" ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

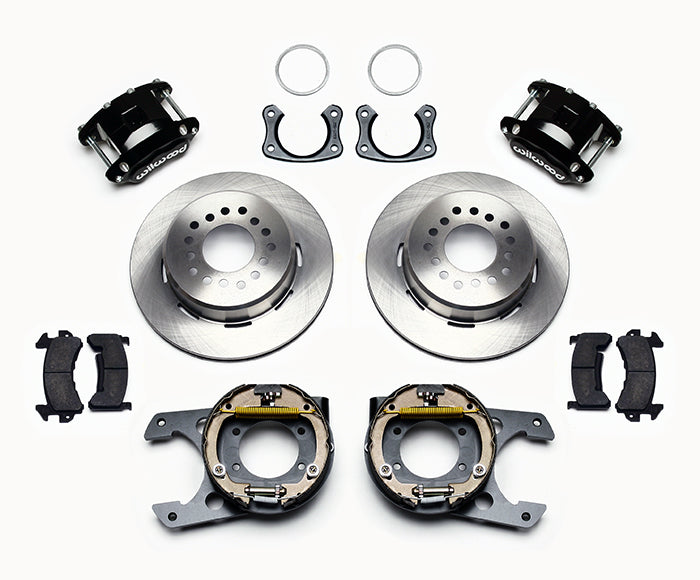

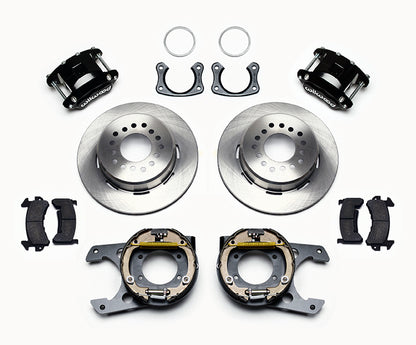

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

  • .810" THICK X 12.19" O.D. ROTORS
  • .FORGED D-154 CALIPERS - BLACK
  • .DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
  • .BP-10 SMART COMPOUND BRAKE PADS
  • .ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 59 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE.
