HONDA/ACURA KIT,FRONT,DP6,12",DRILLED

HONDA/ACURA KIT,FRONT,DP6,12",DRILLED

WIL 140-10735D

$1,089.99
$1,089.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 PISTON CALIPER, BOLT-ON FRONT HAT, & 12.19" DISC BRAKE KIT FOR BOTH FRONT WHEELS.

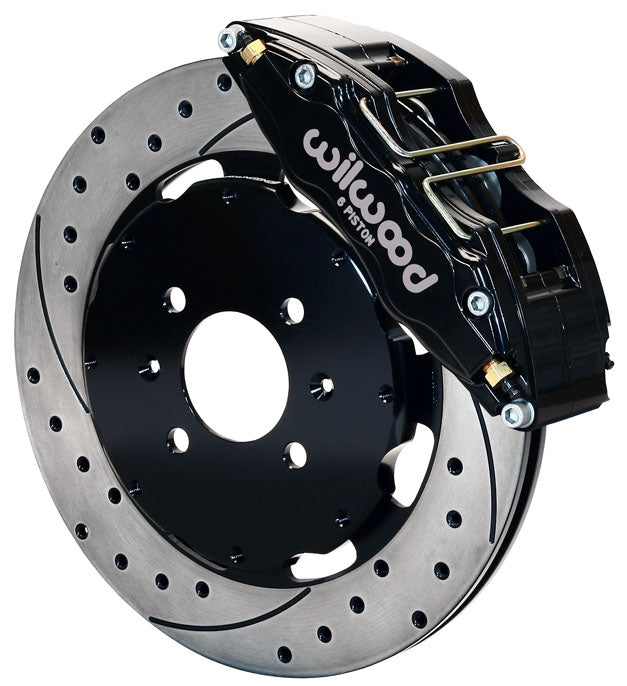

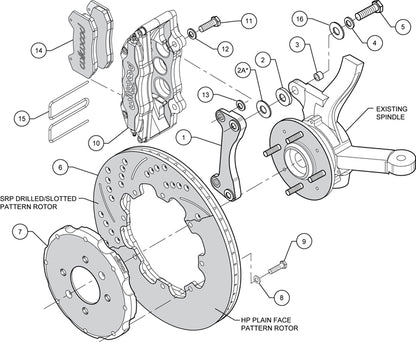

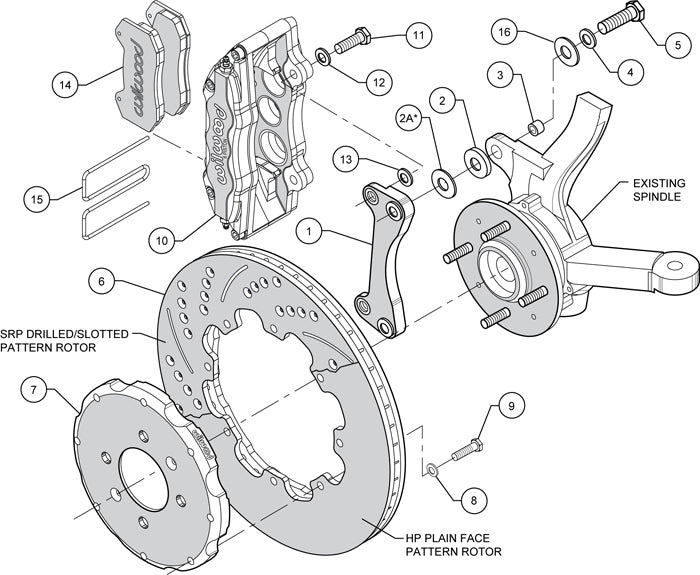

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

    • FITS:

    • ACURA:
      • INTEGRA:
        • 1990-1996, ALL
        • 1997-2001, ALL EXCEPT TYPE R
      • EL:
        • 2001, ALL WITHOUT ABS (CANADA)
        • 2001-2005, ALL WITH ABS (CANADA)
    • HONDA:
      • CIVIC COUPE:
        • 1993-1995 EX, ALL
        • 1996 EX, ALL WITH ABS
        • 1997-2002 EX, ALL
        • 1999-2000 SI, ALL
        • 2001 DX, HX, & LX, ALL
        • 2002 DX & LX, ALL
        • 2003-2005, ALL
      • CIVIC HATCHBACK:
        • 1994-1995 SI, ALL WITH ABS
        • 1996-1997, ALL
        • 2002-2003 SI, ALL
      • CIVIC SEDAN:
        • 1990-1991 EX, ALL
        • 1992-1996 EX, ALL WITH ABS
        • 1994-1996 LX, ALL WITH ABS
        • 1997-2000 EX, ALL
        • 2001-2005, ALL
      • DEL SOL:
        • 1994, ALL WITH REAR DISCS AND WITH ABS VTEC
        • 1995-1997, ALL WITH REAR DISCS AND WITH ABS
      • FIT:
        • 2007-2011, ALL
    • *THESE ARE ALL FOR THE 4 LUG APPLICATIONS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE DYNAPRO 6 FORGED BILLET SIX-PISTON CALIPER IS COMBINED WITH 12.19" DIAMETER ROTORS FOR THESE COMPACT KITS. THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, AND SUSPENSION UPGRADES ON DAILY DRIVERS, COMPETITION VEHICLES, AND CUSTOM STYLED SHOW MACHINES. EACH KIT IS ENGINEERED VEHICLE SPECIFIC TO MAINTAIN FULL COMPATIBILITY WITH THE OE MASTER CYLINDER OUTPUT AND FACTORY ABS FUNCTIONS.

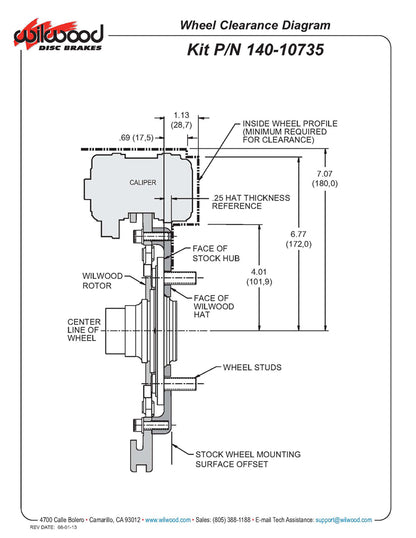

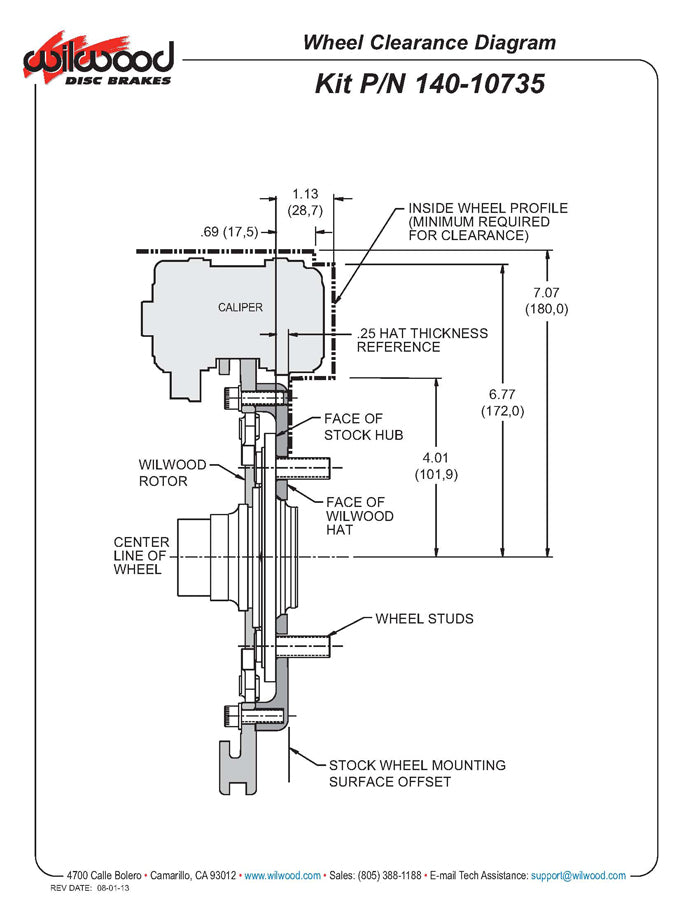

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

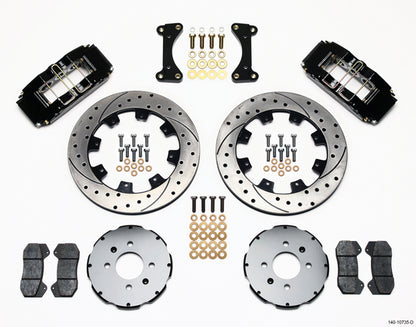

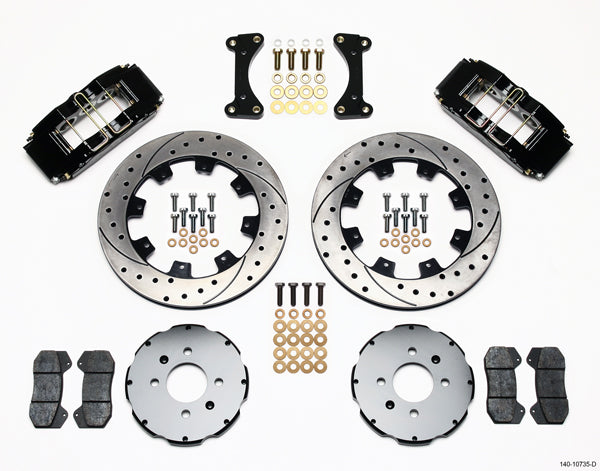

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 39 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Honda Kits > Civic Front Kits
