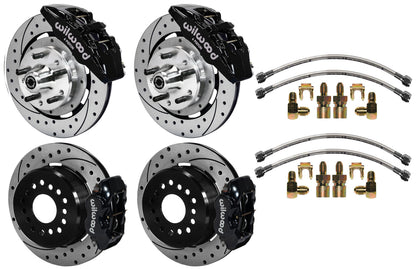

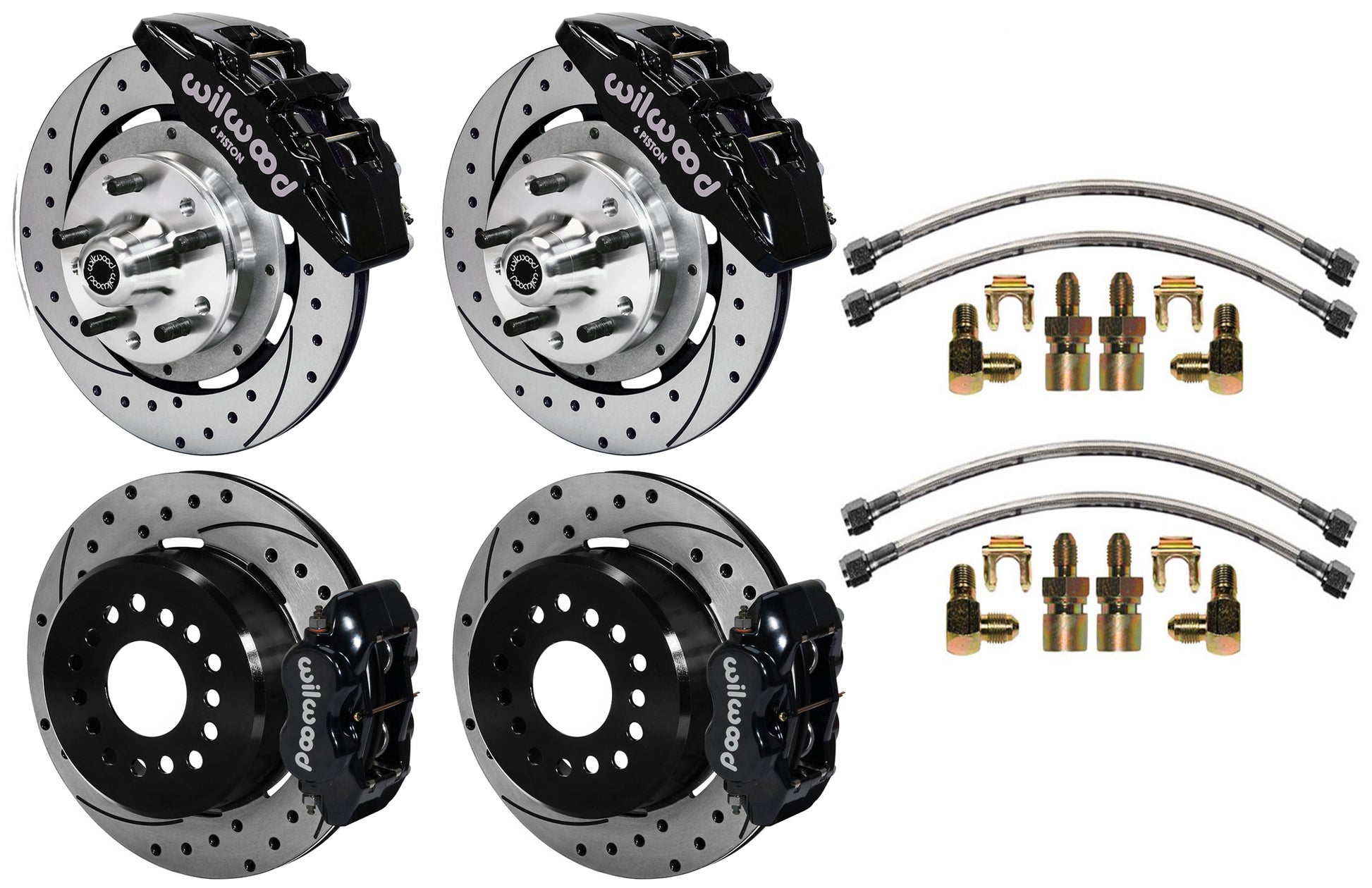

64-74 GM DISC BRAKE KIT,FRONT 6 & REAR 4 PISTON WITH LINES,12.19" DRILLED,BLACK

BRAND NEW WILWOOD FRONT & REAR DISC BRAKE KIT WITH STEEL BRAIDED LINE KITS.

FEATURES DRILLED & SLOTTED ROTORS AND POWDER-COATED BLACK 6 PISTON FRONT AND 4 PISTON REAR CALIPERS.

THIS COMBINED WILWOOD KIT BY SOUTHWEST SPEED INCLUDES:

• FRONT 6 PISTON, 12.19" DISC BRAKE KIT (#140-10510-D)
• REAR 4 PISTON, 12.19" DISC BRAKE KIT (#140-7141-D)
• FULL FRONT LINE KIT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITINGS
• FULL REAR LINE KIT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITINGS

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FITS:

• 1964-1972 CHEVROLET CHEVELLE, MONTE CARLO, MALIBU, & EL CAMINO
• 1967-1969 CHEVROLET CAMARO
• 1968-1974 CHEVY II / NOVA
• 1964-1972 OLDSMOBILE CUTLASS, F85 VISTA CRUISER, 4-4-2, & CALAIS
• 1973-1974 OLDSMOBILE OMEGA
• 1964-1972 PONTIAC GTO, LEMANS, GRAND AM, GRAND LEMANS, TEMPEST, & T37
• 1967-1969 PONTIAC FIREBIRD
• 1971-1974 PONTIAC VENTURA
• 1964-1972 BUICK REGAL, CENTURY, LUXUS, SKYLARK, & SPECIAL
• 1973-1974 BUICK APOLLO

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FOR THE FRONT, WILWOOD PRO SERIES BIG BRAKE KITS PROVIDE THE ADDED ADVANTAGE OF PREMIUM 12.19" DIAMETER BRAKE ROTORS, FORGED DYNAPRO 6 PISTON CALIPERS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS TO GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

FOR THE REAR, FDL PRO SERIES DISC KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE 4-PISTON CALIPERS, 12.19" O.D. ONE-PIECE ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF MACHINES. THE NEATLY HIDDEN INTERNAL SHOW SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING

THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

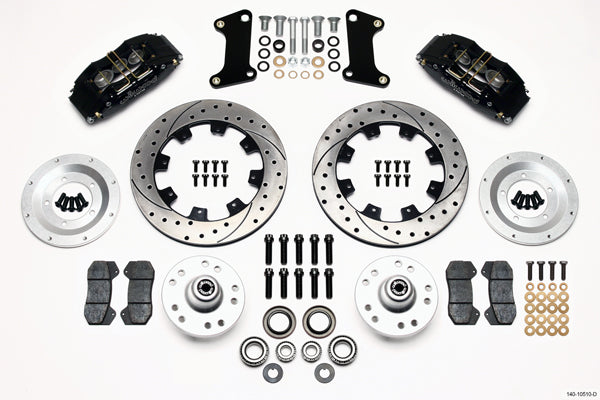

FRONT KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 0.81" THICK X 12.19" O.D. ROTORS
• FORGED DYNAPRO 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED LINE KIT WITH FITTINGS TO CONNECT TO THE WILWOOD CALIPERS AND TO THE STOCK HARD LINES
• BRAKE HUBS
• ALL BEARINGS, RACES, SEALS, BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

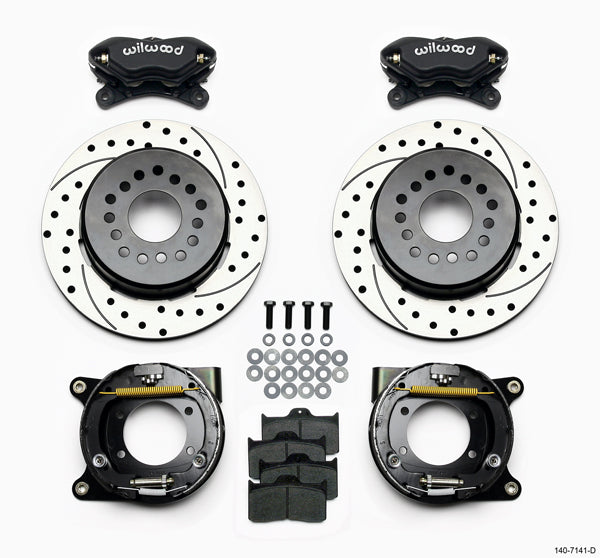

REAR KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• DRILLED & SLOTTED, 0.81" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE 4 PISTON CALIPERS - BLACK
• DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED LINE KIT WITH FITTINGS TO CONNECT TO THE WILWOOD CALIPERS AND TO THE STOCK HARD LINES
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 95 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THE FRONT KIT AND THE REAR KIT.
