CALIPER,MC4 MECHANICAL PB,.310-.394",LEFT,GREY

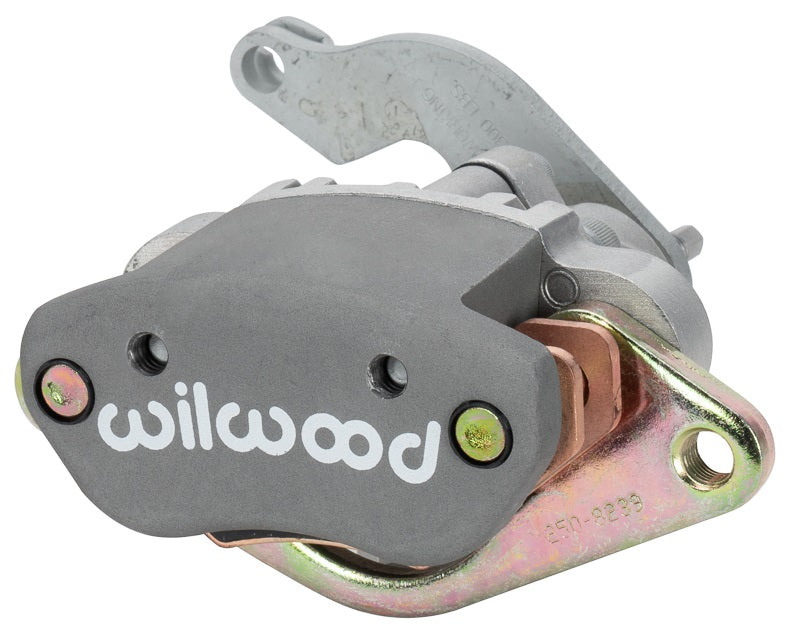

BRAND NEW WILWOOD MC4 MECHANICAL PARKING BRAKE CALIPER WITH PADS - LEFT-HAND (PART #120-17272).

WILWOODS MC4 MECHANICAL PARKING BRAKE CALIPER IS A MULTI-USE, CABLE-OPERATED BRAKE CALIPER THAT COMBINES HIGH OUTPUT PERFORMANCE WITH SIMPLICITY IN DESIGN AND CONSTRUCTION, AND IS THE PERFECT SOLUTION FOR VEHICLE APPLICATIONS REQUIRING A SEPARATE, MECHANICALLY ACTUATED PARKING BRAKE CALIPER. BUILT TO ACCEPT ROTORS FROM 0.31" TO 0.39" THICK, WITH AN 11.00-14.00" DIAMETER RANGE, THE MC4 COMBINES AN EFFICIENT DIE-CAST BODY WITH A FORGED BILLET ANVIL FOR SUPERIOR STRENGTH UNDER LOAD YET IS LIGHTWEIGHT AT ONLY 3.8 POUNDS. SUPPLIED WITH EACH CALIPER ARE OUR COMPOSITE METALLIC (CM) HIGH-FRICTION, HIGH STATIC-HOLD BRAKE PADS AND ARE PRE-FITTED WITH NOISE-CANCELING SHIELDS.

ENGINEERED WITH NOISE-DAMPENING FEATURES FOR QUIET, RATTLE-FREE OPERATION, THE MC4 SLIDING CALIPER INCLUDES A STEEL BRACKET FOR CONVENIENT MOUNTING. THE CALIPERS LEVER CARTRIDGE CAN BE CLOCKED IN THREE POSITIONS FOR OPTIMUM POSITIONING AND EASE OF CABLE ROUTING. THE 1.19" ALUMINUM PISTON IS FULLY DUST BOOTED TO KEEP MOISTURE AND DEBRIS OUT. EACH CALIPER IS FITTED WITH A CABLE RETURN SPRING, AND THE MECHANICAL LEVER ACCEPTS A .310" DIAMETER BARREL-ENDED PARKING BRAKE CABLE*. THE CONVENIENT MANUAL ADJUSTER REQUIRES NO SPECIAL TOOLS, ALLOWING INCREMENTAL ADJUSTMENT TO COMPENSATE FOR PAD AND ROTOR WEAR.

SPECS:

• PISTON COUNT: 1
• PISTON AREA (IN^2;): 1.11
• PISTON TYPE: ALUMINUM
• DUST BOOT: YES
• ROTOR WIDTH (IN): 0.31-0.39"
• ROTOR DIAMETER(IN): 11.00-14.00"
• BRAKE PAD TYPE: 6407
• PAD AREA (IN^2;): 1.7
• PAD VOLUME (IN^3;): 0.26
• MATERIAL: CAST ALUMINIUM
• WEIGHT(LBS): 3.8
• FINISH: TYPE III ANODIZE

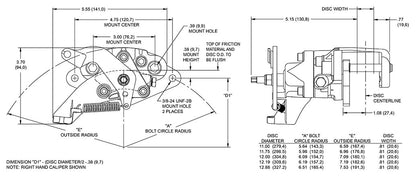

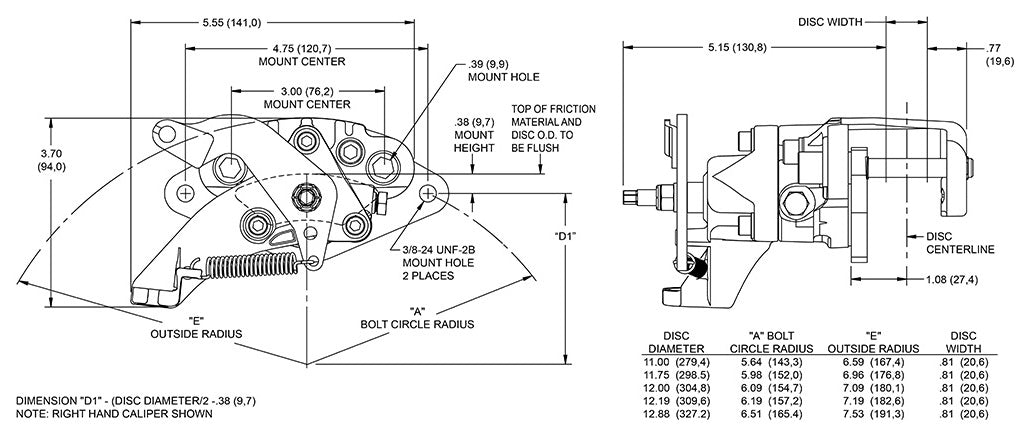

• MOUNT CENTER(IN): 4.75
• MOUNT HOLE SIZE(IN): 0.67
• MOUNT SIDE: LEFT HAND
• MOUNT TYPE: FLOATING
