CALIPER,DYNAPRO 6,.38/.00",5.25",0.81",L

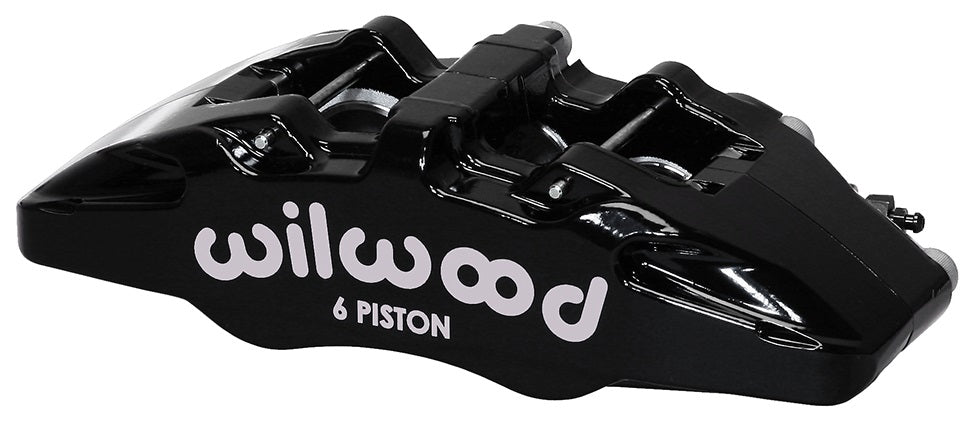

BRAND NEW WILWOOD DYNAPRO 6A LUG MOUNT BRAKE CALIPER - LEFT HAND (PART #120-13439-BK).

WILWOODS NEWEST DYNAPRO DP6A CALIPERS COMBINE PURE-BRED RACING TECHNOLOGY WITH CONTEMPORARY DESIGN TO DELIVER SUPERIOR BRAKING AND HIGH-TECH STYLE ON A WIDE RANGE OF CUSTOM, SHOW, AND COMPETITION VEHICLES. THIS NEWEST MODEL IN THE DYNAPRO SERIES FEATURES A REINFORCED TRIPLE BRIDGE CONSTRUCTION, WITH FIVE HIGH STRENGTH STEEL BRIDGE BOLTS, MAKING IT THE STRONGEST AND STIFFEST DP6 CALIPER EVER BUILT. OFFERS DIRECT INTERCHANGE WITH ALL 5.25" PATTERN LUG MOUNT DYNAPRO AND DYNALITE CALIPERS. WITH FORGED ALUMINUM, SIX PISTON DIFFERENTIAL BORE BODY AND STAINLESS STEEL PISTONS WITH HIGH TEMPERATURE SEALS. DP6A CALIPERS ACCOMMODATE ROTORS FROM 10 TO 13 INCH DIAMETER AND WIDTHS FROM 0.75" TO 0.83".

SPECS:

• PISTON COUNT: 6
• PISTON 1 BORE (IN): 1.38
• PISTON 2 BORE (IN): 1.00
• PISTON 3 BORE (IN): 1.00
• TOTAL PISTON AREA (IN^2): 3.08
• PISTON TYPE: STAINLESS
• DUST BOOT: NO
• ROTOR WIDTH (IN): 0.81
• MAX ROTOR WIDTH (IN): 0.83
• MIN ROTOR WIDTH (IN): 0.75
• MAX ROTOR DIAMETER(IN): 13.00
• MIN ROTOR DIAMETER(IN): 10.00
• BRAKE PAD TYPE: 6712
• PAD AREA (IN^2): 7.3
• PAD VOLUME (IN^3): 2.4
• MATERIAL: ALUMINUM
• WEIGHT (LBS): 5.1
• FINISH: BLACK POWDER COAT
• MOUNT CENTER(IN): 5.25
• MOUNT SIDE: LEFT HAND
• MOUNT TYPE: LUG
