INTAKE MANIFOLD,BBC,OVAL PORT,396>502

INTAKE MANIFOLD,BBC,OVAL PORT,396>502

WEI 8123WND

$334.95
$334.95
View full details

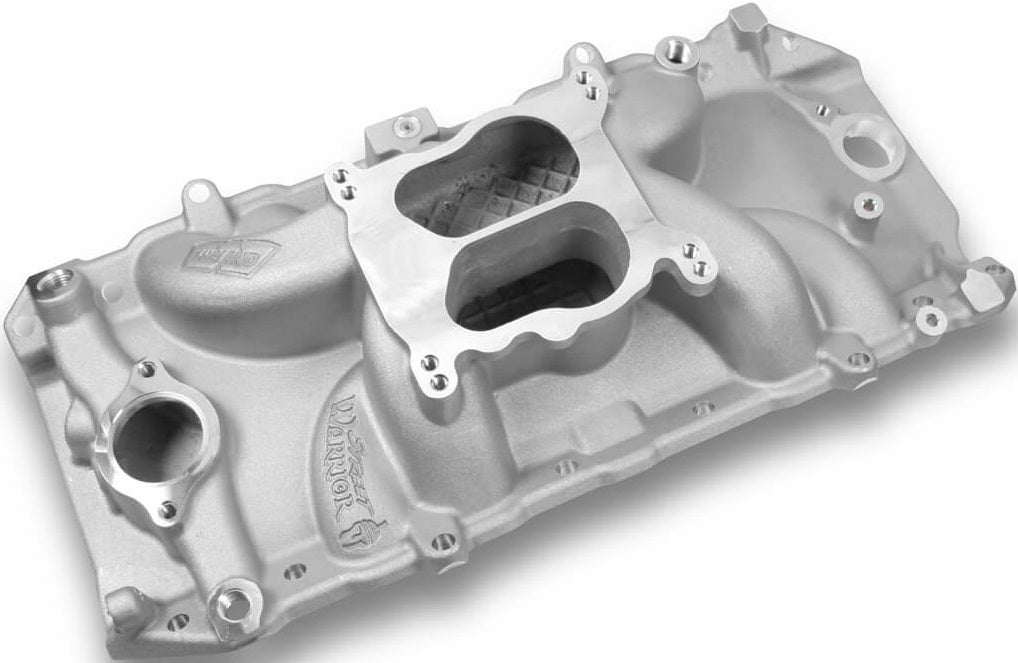

BRAND NEW WEIAND STREET WARRIOR INTAKE MANIFOLD, LOW RISE, SILVER SATIN CAST FINISH, 396-427 BBC V8, OVAL PORT HEADS, COMPATIBLE WITH 1965-1974 CHEVROLET CORVETTE

MOST OF THE INTAKES ON THE MARKET WERE DEVELOPED 20 PLUS YEARS AGO WHEN TYPICAL ENGINES WERE 396-427 CUBIC INCHES. WITH THE POPULARITY OF LARGER ENGINES, STROKER COMBINATIONS AND MORE EFFICIENT CYLINDER HEAD AND CAM DESIGNS CAME THE NEED FOR INTAKE MANIFOLDS TO SUPPORT THESE COMBINATIONS.

DESIGNED WITH COMPUTATIONAL FLUID DYNAMICS SOFTWARE, THE STREET WARRIOR INTAKE RISES TO THE CHALLENGE AND DELIVERS THE PERFORMANCE TO CONQUER THE COMPETITION!

COMPATIBLE WITH:

  • CHEVROLET:
    • 1963-1975 BEL AIR
    • 1973-1974 BLAZER
    • 1963-1972 BISCAYNE
    • 1969-1972 BROOKWOOD
    • 1975-1979 C10
    • 1968-1974 C10 PICKUP
    • 1968-1979 C10 SUBURBAN
    • 1975-1979 C20
    • 1968-1974 C20 PICKUP
    • 1968-1979 C20 SUBURBAN
    • 1975-1979 C30
    • 1968-1974 C30 PICKUP
    • 1967-1972 CAMARO
    • 1966-1976 CAPRICE
    • 1965-1973 CHEVELLE
    • 1968 CHEVY II
    • 1965-1974 CORVETTE
    • 1966-1975 EL CAMINO
    • 1969-1970 ESTATE
    • 1963, 1965-1976 IMPALA
    • 1976 & 1979 K10
    • 1968-1974 K10 PICKUP
    • 1968-1974 K10 SUBURBAN
    • 1976-1978 K20
    • 1968-1974 K20 PICKUP
    • 1968-1974 K20 SUBURBAN
    • 1977 K30
    • 1968-1974 K30 PICKUP
    • 1976-1978 K5 BLAZER
    • 1969-1972 KINGSWOOD
    • 1973-1975 LAGUNA
    • 1965-67, 1973-75 MALIBU
    • 1970-1975 MONTE CARLO
    • 1969-1972 NOVA
    • 1969-1972 TOWNSMAN
  • GMC:
    • 1975-1978 C15
    • 1975-1978 C15 SUBURBAN
    • 1968-1974 C15/C1500 PICKUP
    • 1968-1974 C15/C1500 SUBURBAN
    • 1979 C1500
    • 1979 C1500 SUBURBAN
    • 1975-1978 C25
    • 1975-1978 C25 SUBURBAN
    • 1968-1974 C25/C2500 PICKUP
    • 1968-1974 C25/C2500 SUBURBAN
    • 1979 C2500
    • 1979 C2500 SUBURBAN
    • 1975-1978 C35
    • 1968-1974 C35/C3500 PICKUP
    • 1979 C3500
    • 1973-1974, 1976 JIMMY
    • 1976 K15
    • 1968-1974 K15/K1500 PICKUP
    • 1968-1974 K15/K1500 SUBURBAN
    • 1976-1978 K25
    • 1976-1977 K25 SUBURBAN
    • 1968-1974 K25/K2500 PICKUP
    • 1968-1974 K25/K2500 SUBURBAN
    • 1968-1974 K35/K3500 PICKUP
    • 1979 K3500
    • 1971-1975 SPRINT

FEATURES:

  • ALL NEW OPTIMIZED DESIGN FOR MODERN HIGHER OUTPUT BIG BLOCK ENGINES
  • LOW RISE DUAL PLANE DESIGN DELIVERING FRIENDLY POWER AND TORQUE ACROSS THE USABLE RPM RANGE
  • PERMANENT MOLD 319 ALUMINUM CONSTRUCTION IS PRECISION CNC MACHINED PROVIDING LIGHTER CASTINGS WITH BETTER SURFACE FINISHES
  • RUNNER GEOMETRY OPTIMIZED USING COMPUTATIONAL FLUID DYNAMICS SOFTWARE FOR EVEN FUEL & AIR DISTRIBUTION
  • UNIVERSAL DUAL PATTERN CARB FLANGE ACCEPTS SPREAD BORE (QUADRAJETS) AND SQUARE BORE CARBS IDLE TO 5,500 RPM BAND
  • OVAL PORT DIMENSIONS: 1.775" HIGH X 1.600" WIDE
  • HEIGHT: FRONT 4.25", REAR 5.42"

SPECS:

  • BARRELS: 4
  • BRAND: WEIAND
  • CONSTRUCTION/FINISH: CAST SATIN
  • ENGINE: CHEVROLET BIG BLOCK V8
  • FUEL SYSTEM TYPE: CARB
  • MANIFOLD TYPE: LOW RISE
  • PRODUCT TYPE: INTAKE MANIFOLD
  • RPM POWER BAND: IDLE-5500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
