ZONE 3" COIL SPRING LIFT KIT WITH NITRO SHOCKS,84-01 JEEP XJ W/CHRYSLER REAR AXL

BRAND NEW ZONE OFFROAD 3" COIL SPRING LIFT KIT WITH NITRO SHOCKS (PART #ZONJ6N).

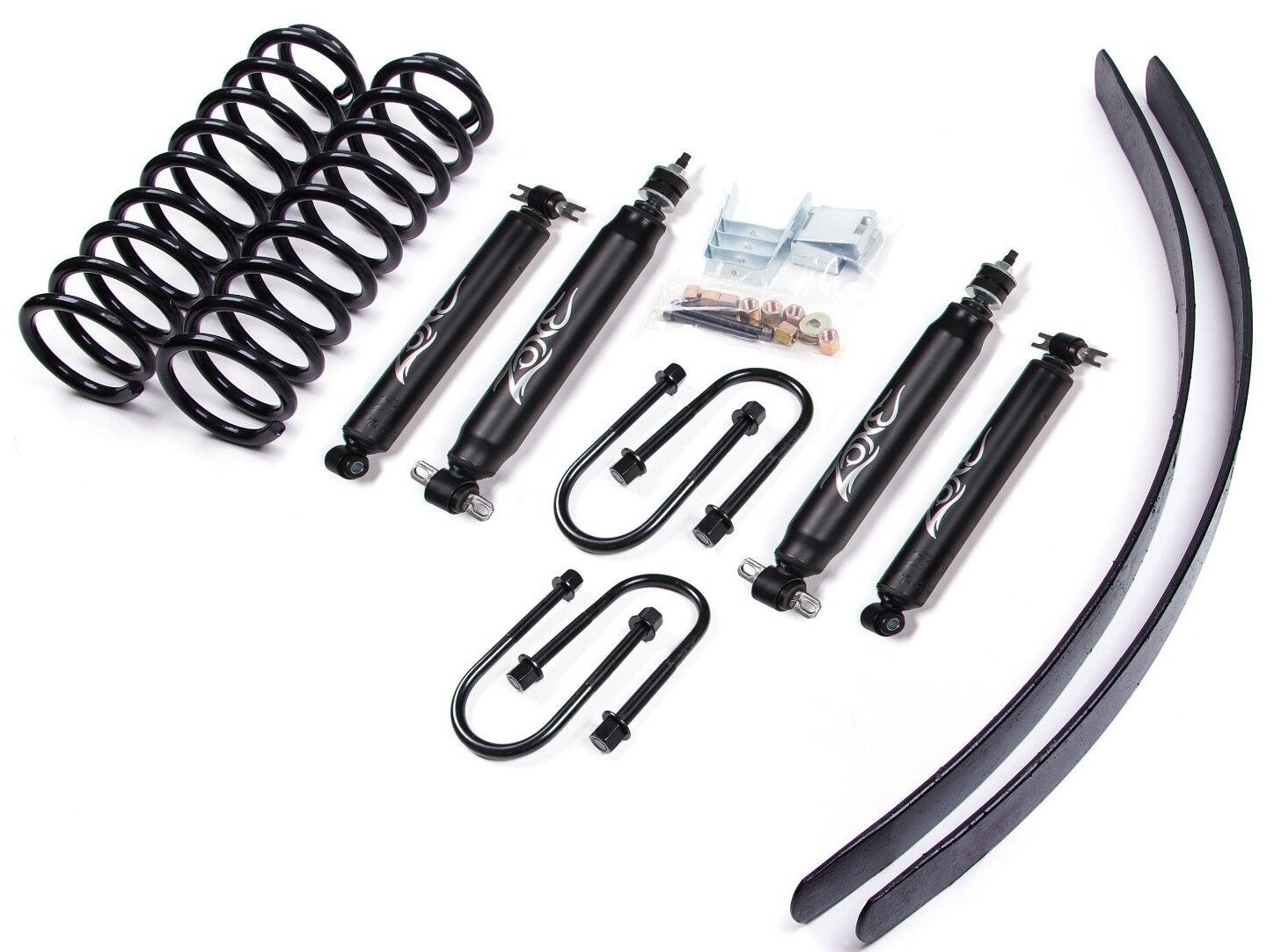

YOUVE GOT THE JEEP YOU WANT, NOW GET PERFORMANCE YOU WANT. THIS EASY-TO-INSTALL 3" COMBO LIFT KIT COMES WITH FRONT COIL SPRINGS, 4 SHOCKS AND 2 LONG ADD-A-LEAFS FOR A SMOOTH RIDE IN YOUR 4WD 1984 - 2001 JEEP CHEROKEE (XJ) MODEL.

FITS:

• JEEP:
• 1984-2001 CHEROKEE XJ 4WD GAS WITH CHRYSLER AXLE

FEATURES:

• FRONT 3" COIL SPRINGS LIFT RIDE HEIGHT, OFFER GREAT RIDE QUALITY AND IMPROVE ARTICULATION
• REAR LONG ADD-A-LEAFS, NEW CENTER PINS, CLAMPS AND REPLACEMENT U-BOLTS ARE SUPPLIED TO FRESHEN UP THE REAR WHILE LEVELING THE STANCE

SPECS:

• FRONT LIFT HEIGHT: 3"
• REAR LIFT HEIGHT: 2.5"
• FRONT LIFT METHOD: COIL SPRINGS
• REAR LIFT METHOD: ADD-A-LEAF
• LIFT TYPE: LIFT KIT
• WHEEL SIZE: 15 X 8
• BACK SPACING: 4"
• MAX TIRE SIZE: 30 X 9.5
• WHEEL SIZE 2: 15 X 8
• BACK SPACING 2: 4"
• MAX TIRE SIZE 2: 31 X 10.5
• WHEEL SIZE 3: 16 X 8
• BACK SPACING 3: 4"
• MAX TIRE SIZE 3: 31 X 10.5
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: YES
• WELDING REQUIRED: NO

NOTES:

• CHECK REAR AXLE DIAMETER: THE XJ WAS MANUFACTURED WITH DIFFERENT REAR AXLES. YOULL NEED TO IDENTIFY YOURS TO COMPLETE AN ORDER. TO TELL THE DIFFERENCE, MEASURE THE INNER DIAMETER (I.D.) OF YOUR REAR U-BOLTS. THE CHRYSLER 8.25 REAR AXLE USES A 3" I.D. U-BOLT AND THE DANA 35 REAR AXLE REQUIRES A 2-3/4" I.D. U-BOLT.
• DRIVELINE: 1" TRANSFER CASE DROP KIT RECOMMENDED WHEN USING STOCK DRIVELINE TO MAINTAIN THE FACTORY DRIVELINE ANGLE.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
