ZONE 2018-2023 JEEP WRANGLER JL 2-DOOR 3" SUSPENSION LIFT KIT WITH NITRO SHOCKS

BRAND NEW ZONE OFFROAD 4" SUSPENSION LIFT KIT WITH NITRO SHOCKS (PART #ZONJ33N).

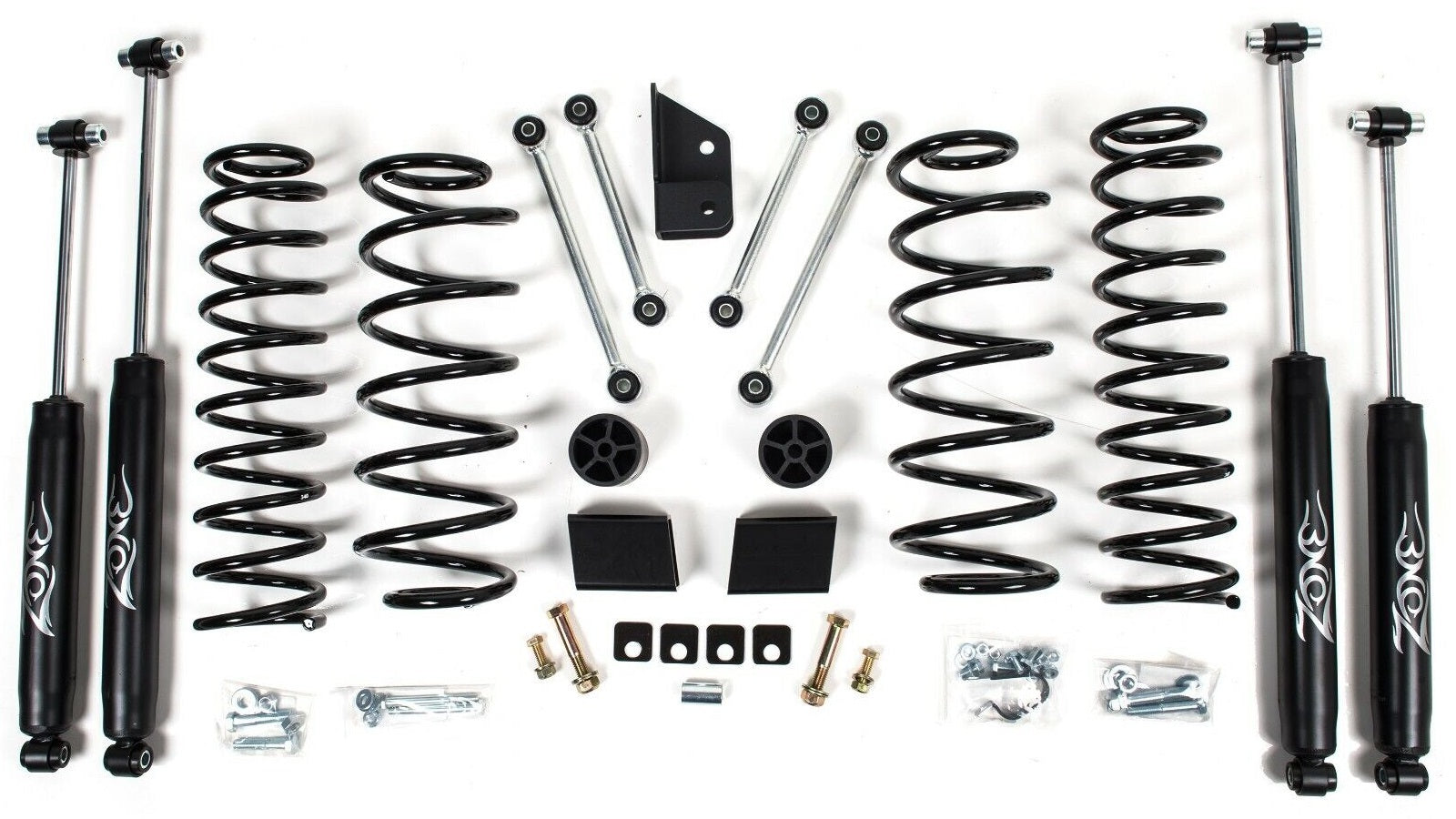

DESIGNED AS A COMPLETE SYSTEM, THIS 3" LIFT INCLUDES EVERYTHING NECESSARY TO PROPERLY LIFT YOUR NEW WRANGLER JL WHILE ALLOWING CLEARANCE FOR 35-37" TIRES. THE EXTRA RIDE HEIGHT COMES FROM A SET OF REPLACEMENT JL-SPECIFIC COIL SPRINGS AT EACH CORNER. THESE SPRINGS ARE ENGINEERED FOR ADDITIONAL RIDE HEIGHT, IMPROVED SUSPENSION ARTICULATION, AND TO PROVIDE AN CUSTOM-TAILORED "SPRING RATE" TO COMPENSATE FOR THE MASS OF AFTERMARKET WHEELS/TIRES AND EXTRA GEAR / OFF-ROADING EQUIPMENT. IN ADDITIONAL TO REPLACEMENT COIL SPRINGS AND SHOCKS, THIS KIT INCLUDES FRONT LOWER CONTROL ARM CAM WASHERS TO CORRECT CASTER ALIGNMENT. EXTENDED-LENGTH, HEAVY-DUTY FRONT AND REAR SWAY BAR LINKS ARE SUPPLIED TO CORRECT SWAY BAR GEOMETRY, WHILE BUMP STOP EXTENSIONS LIMIT SUSPENSION UP-TRAVEL. WRAPPING UP THIS KIT IS A HEAVY-DUTY REAR TRACK BAR BRACKET, USED TO RE-CENTER THE REAR AXLE AND ALL THE NECESSARY HARDWARE REQUIRED TO COMPLETE THE FULL INSTALL.

FITS:

• JEEP:
• 2018-2023 WRANGLER JL 2 DOOR 4WD

FEATURES:

• F/R COIL SPRINGS TO SET RIDE HEIGHT, MAINTAIN RIDE AND IMPROVE ARTICULATION
• NITRO-SERIES GAS SHOCKS FOR SMOOTH ON/OFF-ROAD PERFORMANCE
• F/R EXTENDED SWAY BAR LINKS TO CORRECT SWAY BAR OPERATING ANGLE
• F/R BUMP STOP EXTENSIONS TO PROPERLY LIMIT SUSPENSION UP TRAVEL
• FRONT LCA CAM WASHERS TO CORRECT FRONT END CASTER
• REAR TRACK BAR BRACKET TO RECENTER REAR AXLE
• ALLOWS CLEARANCE FOR 35-37" TIRES

SPECS:

• FRONT LIFT HEIGHT: 3"
• REAR LIFT HEIGHT: 3"
• MATERIAL: STEEL
• FRONT LIFT METHOD: COIL SPRINGS
• REAR LIFT METHOD: COIL SPRINGS
• LIFT TYPE: LIFT KIT
• WHEEL SIZE: 17 X 9
• BACK SPACING: 4.5"
• MAX TIRE SIZE: 35 X 12.5
• FINISH: POWDERCOAT
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: NO
• WELDING REQUIRED: NO

NOTES:

• STOCK WHEELS CANNOT BE REINSTALLED W/O INSTALLING WHEEL SPACERS DUE TO CLEARANCE ISSUE TO REAR SWAY BAR LINKS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
