ZONE 2007-2014 TAHOE,YUKON 4WD 6.5" STRUT & DROP CROSSMEMBER LIFT,FOX SHOCKS

ZONE 2007-2014 TAHOE,YUKON 4WD 6.5" STRUT & DROP CROSSMEMBER LIFT,FOX SHOCKS

STU ZONC6F

$1,924.75
$1,924.75
View full details

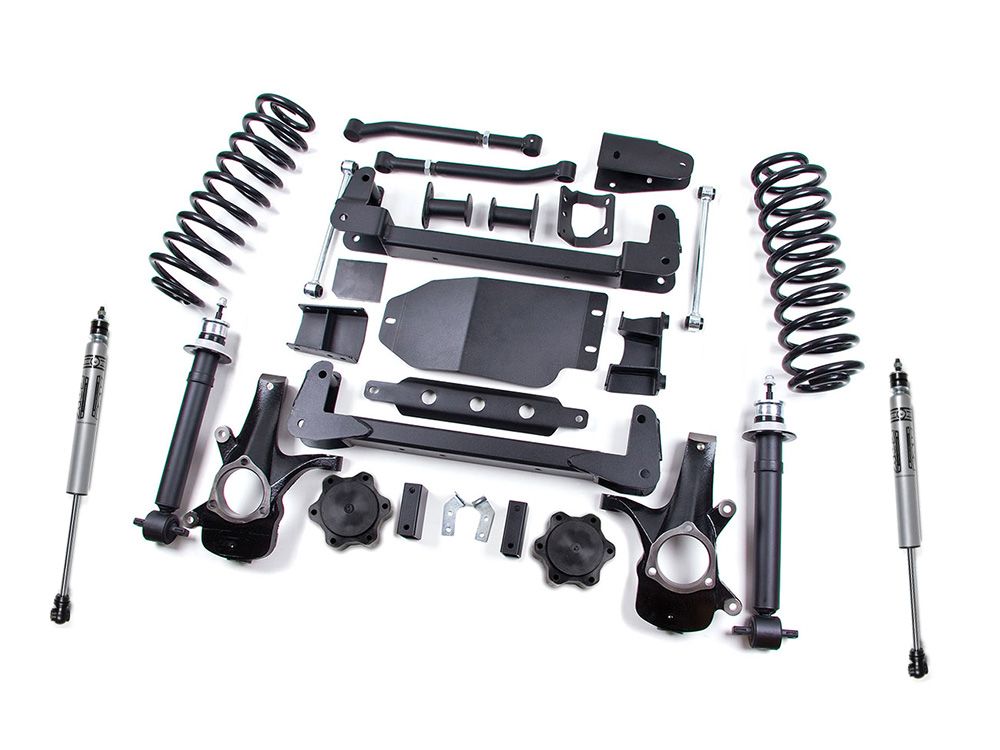

Brand New Zone Offroad 6.5" Strut & Drop Crossmember Lift Kit with Fox Shocks (Part #ZONC6F).

If you really want to take your SUV to new places this 6.5" Lift Kit is the way to go. You’ll have a head-turning SUV that is off-road worthy, but you can still use as a daily driver. Fits 4WD 2007 - 2014 Chevy/GM 1500 SUVs. Step up now, you’ll be glad you did.

Fox Performance Shocks:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Fits:

  • Chevrolet:
    • 2007-2013 Avalanche 4WD
    • 2007-2014 Suburban 1500 4WD
    • 2007-2014 Tahoe 4WD
  • GMC:
    • 2007-2014 Yukon 4WD
    • 2007-2014 Yukon XL 1500 4WD

Features:

  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-pressure, extended length, replacement front struts improve performance on and offroad.
  • High-strength, CNC machined, replacement Steering Knuckles improve strength while correcting steering angles.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.

Specs:

  • Front Lift Height: 6.5"
  • Rear Lift Height: 5.5"
  • Front Lift Method: Strut Spacer & Cross-Member
  • Rear Lift Method: Coil Springs
  • Wheel Size 1: 17 x 9
  • Back Spacing 1: 5.75"
  • Max Tire Size 1: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing: 2: 5"
  • Max Tire Size 2: 34 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 35 x 12.5
  • Is Adjustable: No
  • Finish: Powdercoat
  • Cutting Required: No
  • Welding Required: Yes

Notes:

  • Driveline Notice: Minor engagement of the StabiliTrak system may occur during certain maneuvers.
  • Fitment: All wheel drive models may require front CV driveshaft. See installation instructions for more information.
  • Fitment: Will NOT fit 2007 "Classic" models. If you have a 2007 Classic, see kits for comparable 1999-06 models.
  • Fitment: Will NOT fit 2009-11 Two-Mode Hybrid models with Electronic Power Steering (EPS).
  • Fitment: Will not fit vehicles equipped with Auto-Ride.
  • Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
  • Wheels / Tires: For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.5-5.75" backspacing.

You can view and download the complete assembly instruction booklet for this kit here.
