ZONE 1988-1998 CHEV,GMC 1500 4WD 6" TORSION BAR DROP LIFT KIT WITH NITRO SHOCKS

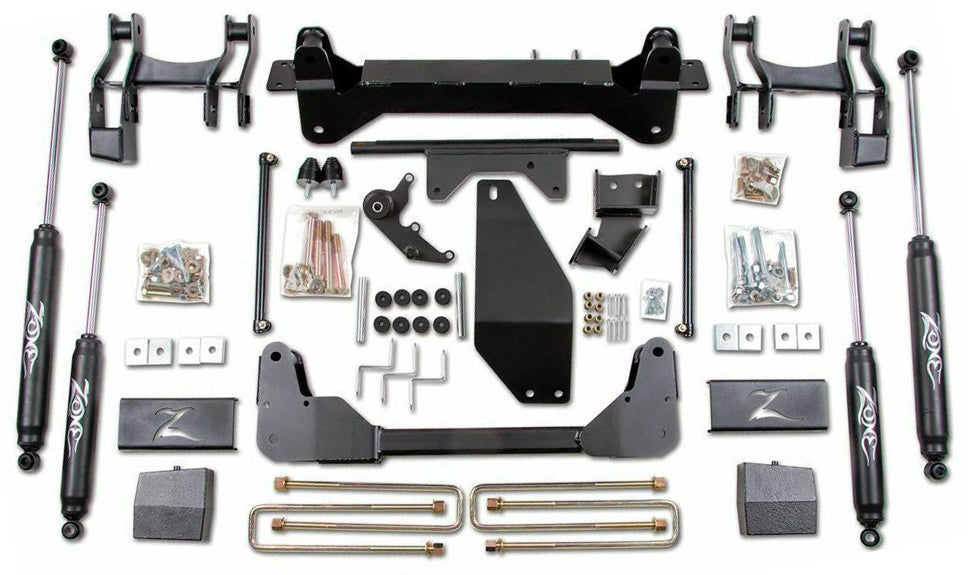

BRAND NEW ZONE OFFROAD 6" TORSION BAR DROP LIFT KIT WITH NITRO SHOCKS (PART #ZONC14N).

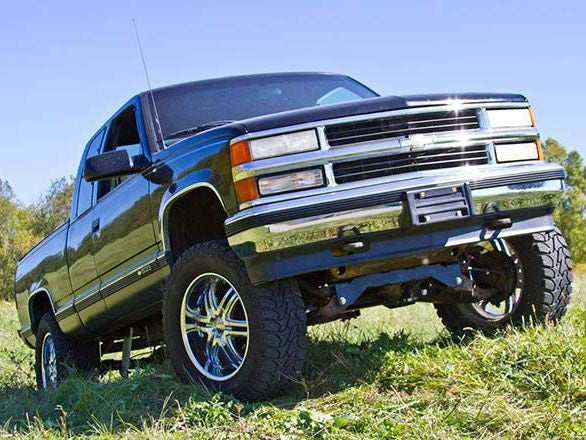

TURN HEADS AND DROP JAWS WHEN YOU LIFT YOUR CHEVY WITH THIS 6" LIFT KIT. THIS KIT HAS EVERYTHING YOU NEED TO CLEAR 35" TIRES AND ALL THE PIECES AND PARTS FOR OPTIMAL STEERING AND DRIVETRAIN GEOMETRY. FITS 4WD 1988 - 1998 CHEVY/GM K1500 TRUCK & SUVS.

FITS:

• CHEVROLET:
• 1988-1998 K1500
• 1988-1998 K2500
• 1992-1998 K1500 SUBURBAN
• 1995-1998 TAHOE 2 DOOR 4WD
• GMC:
• 1988-1998 K1500
• 1988-1998 K2500
• 1992-1998 YUKON 2 DOOR 4WD

FEATURES:

• HEAVY-DUTY DIFFERENTIAL SKID SLATE IMPROVES OFFROAD PROTECTION.
• HIGH-STRENGTH, 1/4" STEEL CONSTRUCTION CROSSMEMBERS CORRECT LOWER CONTROL ARM GEOMETRY.
• LIFT SYSTEM DOES NOT CHANGE THE FRONT TRACK WIDTH OF THE VEHICLE.
• MULTI-POINT DIFFERENTIAL RELOCATION BRACKETS SECURE FRONT DIFFERENTIAL FOR IMPROVED CV OPERATING ANGLES.
• RELOCATION BRACKET ALLOWS FOR REINSTALLATION OF THE FACTORY SPARE TIRE.
• UPPER CONTROL ARM RELOCATION BRACKETS CORRECT FRONT SUSPENSION GEOMETRY.

SPECS:

• FRONT LIFT HEIGHT: 6"
• REAR LIFT HEIGHT: 5"
• MATERIAL: 1/4" STEEL
• FRONT LIFT METHOD: TORSION BAR DROP
• REAR LIFT METHOD: CAST BLOCKS
• LIFT TYPE: LIFT KIT
• WHEEL SIZE 1: STOCK
• BACK SPACING 1: STOCK
• MAX TIRE SIZE 1: 35 X 12.5
• WHEEL SIZE 2: 17 X 9
• BACK SPACING 2: 6"
• MAX TIRE SIZE 2: 35 X 12.5
• WHEEL SIZE 3: 20 X 9
• BACK SPACING 3: 6"
• MAX TIRE SIZE 3: 35 X 12.5
• IS ADJUSTABLE: NO
• FINISH: POWDERCOAT
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: YES
• WELDING REQUIRED: NO

NOTES:

• AUTO-TRAC/FRONT DRIVESHAFT? MODELS EQUIPPED WITH AN AUTO-TRAC TRANSFER CASE MAY REQUIRE A NEW FRONT DRIVESHAFT. AUTO-TRAC TRANSFER CASES CAN BE IDENTIFIED BY A BADGE ON THE REAR CASE THAT READS "NP246". IN ADDITION, THE DASH MOUNTED DISPLAY WILL SHOW THE AUTO 4WD SYMBOL. CASES WITH "NP243" ARE NOT AUTO-TRAC.
• EXHAUST: REQUIRES EXHAUST MODIFICATION TO CLEAR THE FRONT DRIVESHAFT. SEE INSTALLATION INSTRUCTIONS FOR MORE INFORMATION.
• FITMENT: NOT RECOMMENDED FOR TAHOE/YUKON 4 DOOR MODELS.
• DOES NOT FIT 8 LUG MODELS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
