JKS 07-18 WRANGLER JK J-VENTURE 4DR 3.5IN SYSTEM W/ FOX 2.0 PERFORMANCE SHOCKS

BRAND NEW JKS MANUFACTURING 3.5" LIFT KIT, J-VENTURE SUSPENSION SYSTEM, FOX 2.0 PERFORMANCE SHOCKS, COMPATIBLE WITH 2007-18 JEEP WRANGLER UNLIMITED JK 4 DOOR

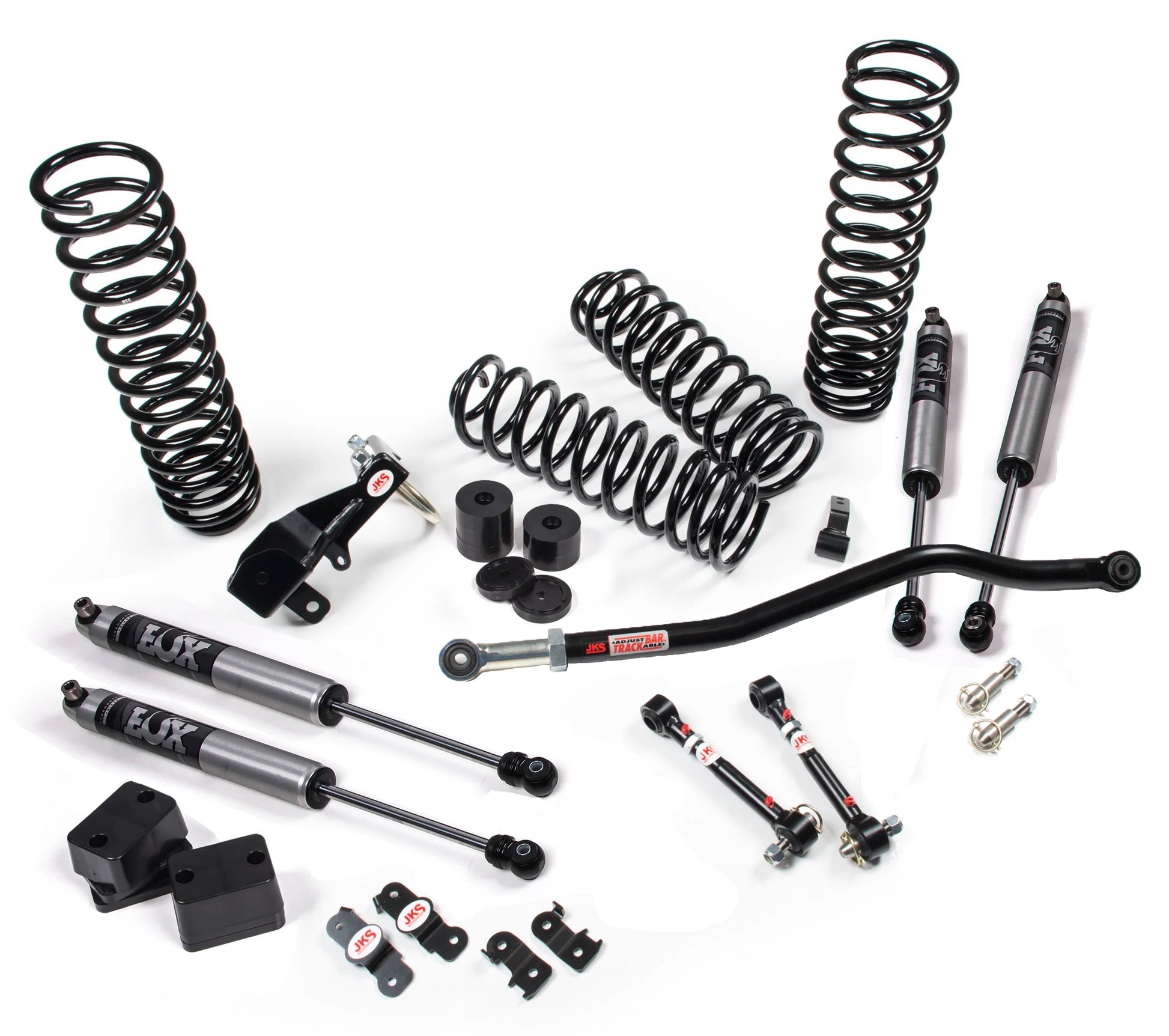

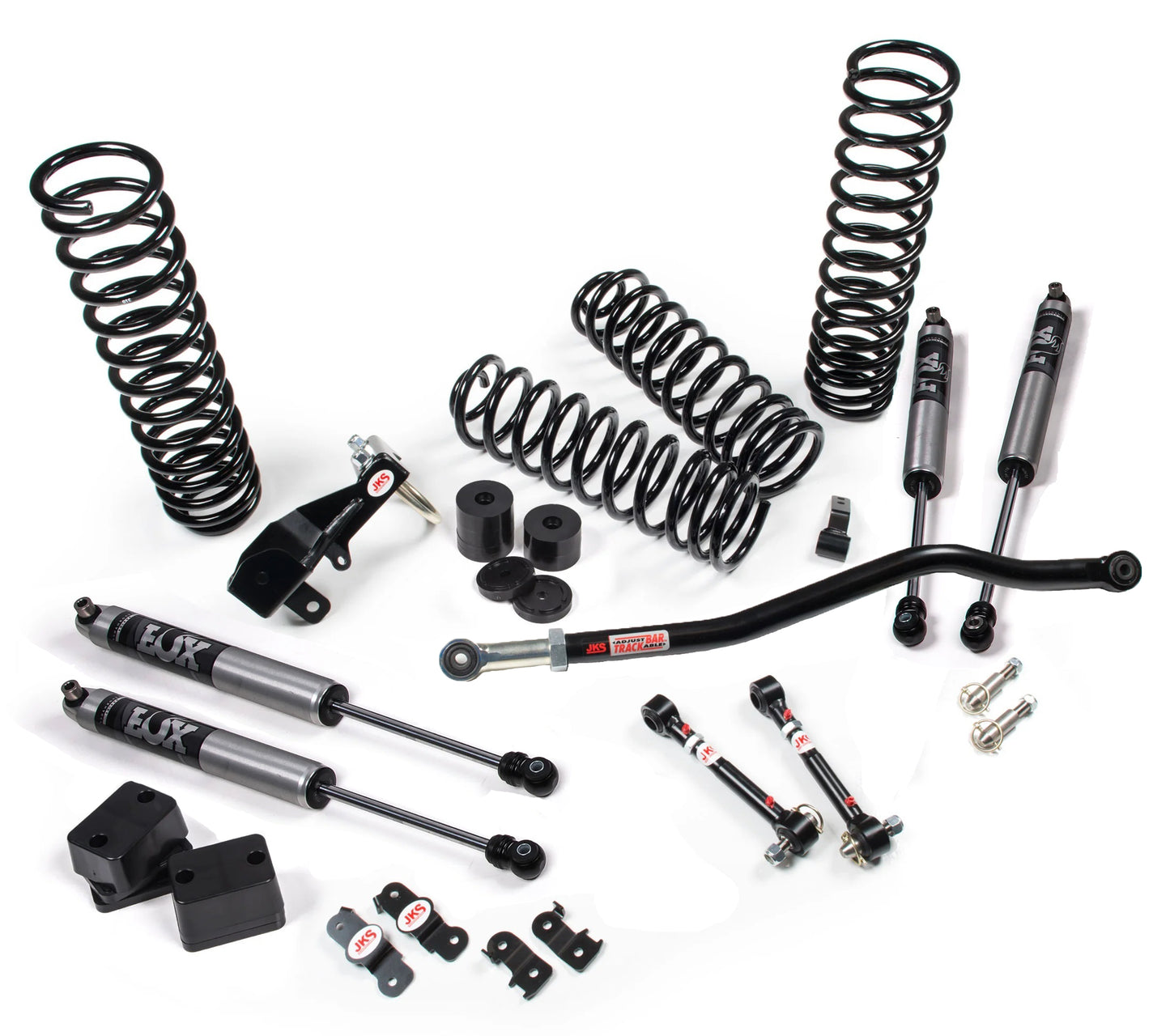

INCREASE GROUND CLEARANCE AND TIRE CLEARANCE ON YOUR JK WRANGLER WITH A 3.5" LIFT J-VENTURE SUSPENSION SYSTEM. YOU GET THE PERFECT BALANCE OF ON AND OFF-ROAD CAPABILITY PLUS LOW MAINTENANCE. J-VENTURE LIFT KITS INCLUDE DUAL RATE FRONT AND REAR COIL SPRINGS, SPECIFIC VALVE GAS SHOCKS, A FRONT ADJUSTABLE TRACK BAR, REAR TRACK BAR BRACKET, FRONT SWAY BAR QUICKER DISCONNECTS, BUMP STOP EXTENSIONS, AND FRONT CASTER LOCK PLATES TO DIAL IN GEOMETRY.

THE ENGINEERS AT JKS CUSTOM TUNE SHOCKS AND MATCHING SPRINGS TO SIGNIFICANTLY IMPROVE RIDE QUALITY AND HANDLING ON ROAD, AS WELL AS PERFORMANCE OFF-ROAD. AN ADJUSTABLE TRACK BAR HELPS CENTER THE FRONT AXLE WHILE THE QUICKER DISCONNECTS IMPROVE ARTICULATION OFF-ROAD. GET OUT AND EXPLORE WITH J-VENTURE.

NOTE: 2012-2018 MODELS WITH 3.6L PENTASTAR MOTOR WILL REQUIRE ЕXHAUST MODIFICATION FOR DRIVESHAFT CLEARANCE AT FULL SUSPENSION DROOP, USE JKS8150 ЕXHAUST EXTENSIONS.

NOTE: RUBICON SWAY BAR LINK HARDWARE INCLUDED IN KIT.

COMPATIBLE WITH:

• JEEP:
• 2007-2018 WRANGLER UNLIMITED JK 4 DOOR

FEATURES:

• FRONT & REAR DUAL RATE COIL SPRINGS DESIGNED TO GREAT RIDE AND IMPROVED PERFORMANCE ACROSS ANY TERRAIN
• FRONT & REAR GAS SHOCKS (FOX 2.0 PERFORMANCE SERIES IFP) SPECIFIC VALVE FOR THIS SUSPENSION SYSTEM FOR IMPROVED PERFORMANCE ON AND OFF-ROAD
• FRONT ADJUSTABLE TRACK BAR AND REAR TRACK BAR BRACKET TO CORRECT AXLE POSITIONING UNDER VEHICLE
• FRONT SWAY BAR QUICKER DISCONNECTS AND BRAKE LINE BRACKETS TO ALLOW FOR INCREASED OFF-ROAD ARTICULATION
• FRONT & REAR BUMP STOP EXTENSIONS TO PROPERLY LIMIT SUSPENSION UP TRAVEL
• FRONT CASTER CAM LOCKS TO CORRECT FRONT END CASTER ONCE LIFTED

TIRE SPECS:

• TIRE: 35X12.50
• WHEEL: 17X9, 18X9, 20X9
• BACKSPACING: 4.5"
• OTHER TIRE/WHEEL SIZES CAN BE USED, HOWEVER MAY REQUIRE ADDITIONAL MODIFICATIONS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
