BDS 82-86 CJ5/CJ7 2.5/2.5 SPRING KIT

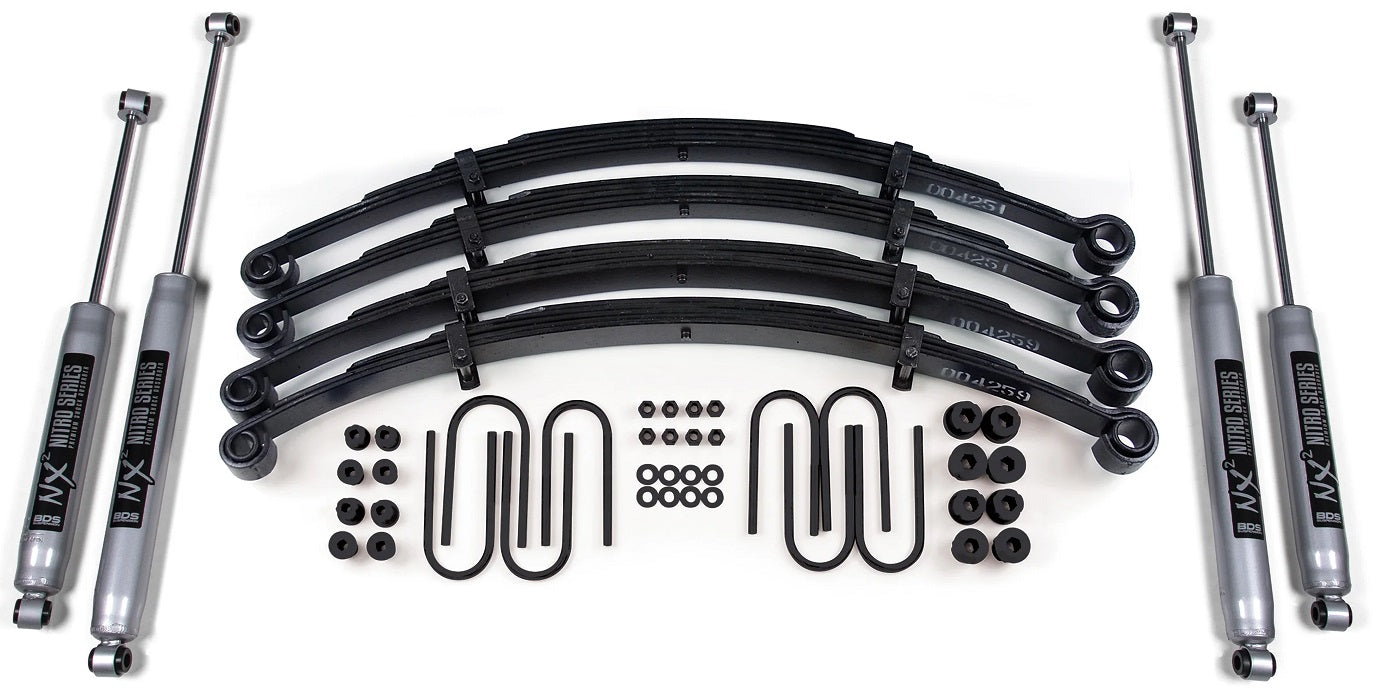

BRAND NEW BDS SUSPENSION 2.5" LIFT KIT WITH NX2 NITRO SERIES SHOCKS, COMPATIBLE WITH 1982-1986 JEEP CJ5 & CJ7

DESIGNED TO IMPROVE STANCE, PERFORMANCE, AND CAPABILITY. BDS SUSPENSION HAS DESIGNED THIS 2.5-INCH LIFT KIT FOR YOUR 1982-1986 JEEP CJ5 AND CJ7. THIS KIT INCLUDES EVERYTHING NECESSARY TO SET YOUR TRUCK UP RIGHT WITH CLEARANCE FOR UP TO 31" TIRES.

THIS 2.5-INCH LIFT KIT INCLUDES FRONT AND REAR GLIDE-RIDE LEAF SPRINGS WITH NEW U-BOLTS AND ROUND OUT THESE KITS WITH YOUR CHOICE OF SPECIALLY TUNED NX2 NITRO SERIES GAS SHOCKS OR FOX 2.0 IFP PERFORMANCE SERIES GAS SHOCKS TO OFFER IMPROVED DAMPER PERFORMANCE.

NOTE: VEHICLES EQUIPPED WITH THE OPTIONAL DANA 44 AXLE WILL REQUIRE 04005 U-BOLTS (QTY. 4) LISTED IN THE ACCESSORIES

NOTE: SHACKLE BUSHING KIT PART #074002 LISTED IN THE ACCESSORIES IS HIGHLY RECOMMENDED

COMPATIBLE WITH:

• JEEP:
• 1982-1986 CJ5
• 1982-1986 CJ7

GLIDE-RIDE LEAF SPRINGS:

• BUILT TO OUTPERFORM, BDS ENGINEERED THE GLIDE-RIDE LEAF SPRINGS INTO A MULTI-LEAF PROGRESSIVE SPRING RATE DESIGN THAT PROVIDES A SMOOTH RIDE WITH ANY LOAD. THIS IS ACCOMPLISHED WITH AN EXCLUSIVE TRIPLE-STAGE LEAF SPRING DESIGN. THESE SPRING FEATURE TAPERED LEAFS, ANTI-FRICTION PADS, BOLT STYLE LEAF ALIGNMENT CLAMPS AND A FULL MILITARY WRAP TO PROTECT YOUR SPRING EYES FROM THE ROCKS. UPGRADING TO BDS GLIDE-RIDE LEAF SPRINGS WILL PROVIDE FLEXIBILITY THROUGHOUT THE SUSPENSION CYCLE.

FEATURES:

• NITROGEN-CHARGED
• TWIN-TUBE DESIGN
• 10-STAGE VELOCITY-SENSITIVE VALVING
• DUAL-WELDED ENDS FOR INCREASED STRENGTH
• 1-3/8-INCH HIGH-FLOW PISTON
• SELF-LUBRICATING SEALS
• SILVER POWDER COAT FINISH

SPECS:

• FRONT LIFT METHOD: LEAF SPRINGS
• REAR LIFT METHOD: LEAF SPRING
• SHOCKS INCLUDED: TRUE
• FRONT LIFT HEIGHT: 2.5"
• REAR LIFT HEIGHT: 2.5"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
