BDS 2017-2019 F250/F350 4WD DIESEL 2-LEAF 4" 4-LINK LIFT KIT,NX2 SHOCKS

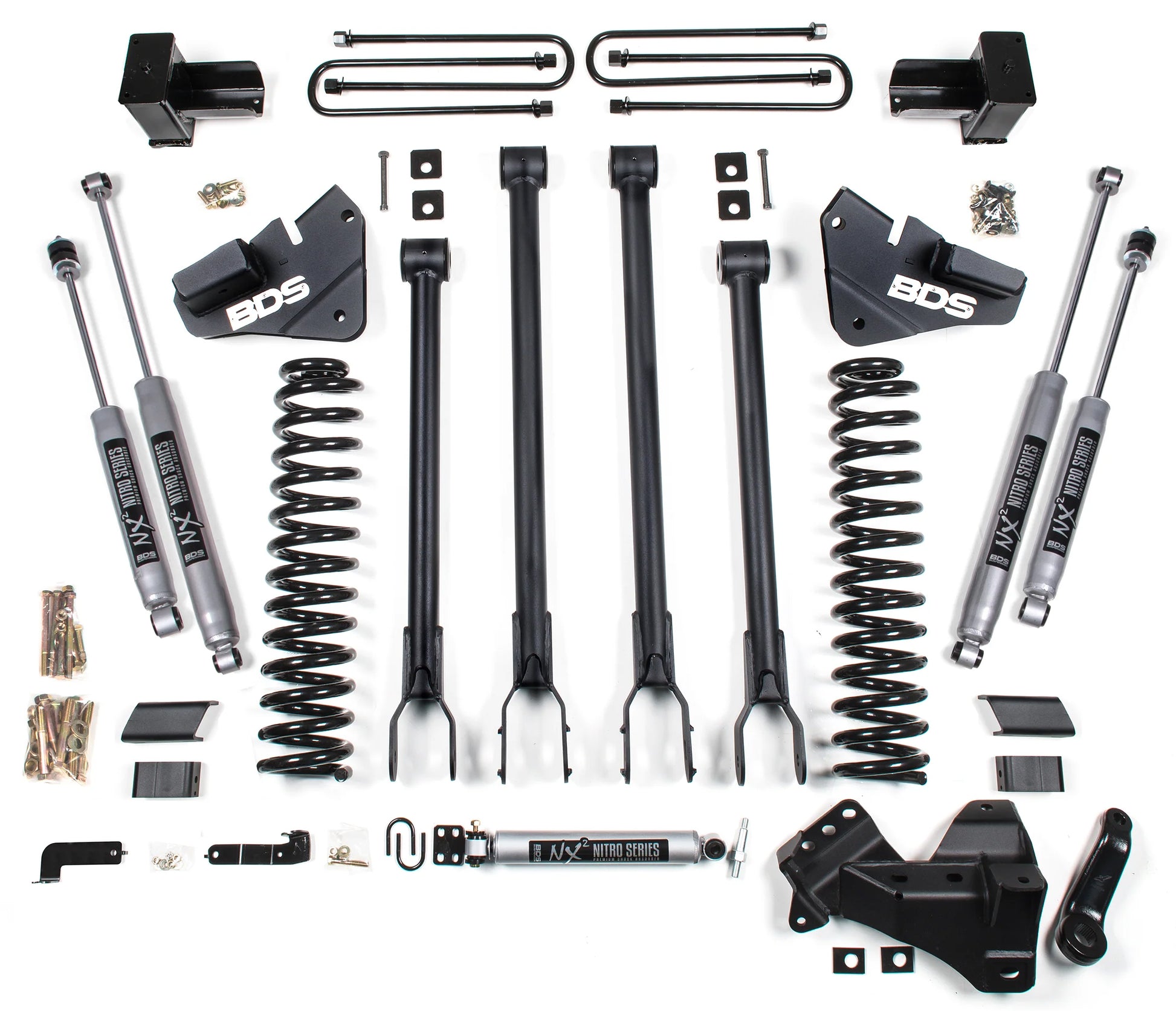

BRAND NEW BDS SUSPENSION 4" 4-LINK CONVERSION LIFT KIT WITH NX2 SERIES SHOCKS (PART #BDS1537H) WITH A 5" BLOCK FOR 2-LEAF REAR MAINS

RAISE THE HEIGHT OF YOUR 2017-2019 FORD F250 AND F350 SUPER DUTY DIESEL POWERED TRUCK WITH THIS 4-INCH LIFT KIT AND 4-LINK CONVERSION FROM BDS SUSPENSION. DESIGNED TO IMPROVE STANCE, PERFORMANCE, AND CAPABILITY, THIS KIT INCLUDES EVERYTHING NECESSARY TO SET YOUR TRUCK UP RIGHT WITH CLEARANCE FOR UP TO 37" TIRES.

IN THE FRONT, THE LIFT KIT INCLUDES DIESEL-SPECIFIC PRO-RIDE COIL SPRINGS, 4-LINK CONTROL ARMS WITH CONVERSION BRACKETS, FORGED DROP PITMAN ARM AND TRACK BAR BRACKET FOR STEERING CORRECTION, SWAY BAR RELOCATION, BRAKE LINE BRACKETS AND PRECISION TUNED NITROGEN CHARGED SHOCKS.

IN THE REAR, THIS KIT UTILIZES A HIGH-STRENGTH FABRICATED LIFT BLOCK, LONGER U-BOLTS, BRAKE LINE BRACKETS AND A MATCHING SET OF NX2 NITRO SHOCKS.

4-LINK CONVERSION: CONVERT THE FACTORY STAMPED STEEL RADIUS ARMS OVER TO THE BDS 4-LINK TO OPTIMIZE SUSPENSION GEOMETRY FOR BETTER HANDLING CHARACTERISTICS WHILE ADDING STRENGTH AND STABILITY. THIS BOLT-ON UPGRADE UTILIZES HIGH-STRENGTH 1/4-INCH STEEL BRACKETS THAT ALLOW MOUNTING OF HD UPPER AND LOWER CONTROL ARMS TO CORRECT AXLE POSITIONING WHILE LIMITING CASTER CHANGE THROUGHOUT WHEEL TRAVEL.

PRO-RIDE COIL SPRINGS: A PAIR OF FULL-LENGTH, DIESEL-SPECIFIC, PRO-RIDE COIL SPRINGS ARE SUPPLIED TO PROVIDE THE CORRECT LIFT HEIGHT AND SMOOTH, PREDICTABLE RIDE ACROSS VARIOUS TERRAINS.

STEERING CORRECTION: TO OPTIMIZE STEERING GEOMETRY ONCE LIFTED, A FORGED DROP PITMAN ARM IS USED TO MINIMIZE THE STEERING ANGLE AND PAIR IT WITH A HEAVY DUTY TRACK BAR DROP BRACKET TO KEEP THEM IN PHASE THROUGH SUSPENSION TRAVEL WHILE RE-CENTERING THE FRONT AXLE.

REAR LIFT OPTION: 5" BLOCK WITH 2 LEAF MAIN SOME F250/350 FACTORY OPTIONS INCREASE THE MAIN LEAF PACK COUNT FROM 2 TO 3 LEAFS (THIS IS FOR TOP OVERLOAD OPTIONS ONLY). BE SURE TO VERIFY WHICH FACTORY LEAF SPRING CONFIGURATION YOUR VEHICLE HAS AND CHOOSE THE APPROPRIATE OPTION.

FEATURES:

• EASY, 100% BOLT-ON INSTALLATION
• PRO-RIDE DUAL RATE COIL SPRINGS PROVIDE A REMARKABLE RIDE THROUGH ANY TERRAIN
• HEAVY DUTY TUBULAR STEEL RADIUS ARMS THAT CORRECT CASTER WHILE MAXIMIZING GROUND CLEARANCE
• TRACK BAR RELOCATION BRACKET AND PITMAN ARM MAINTAIN PROPER STEERING ANGLES FOR IMPROVED HANDLING
• FABRICATED STEEL BLOCKS PROVIDE LEVEL STANCE FROM FRONT TO REAR
• STANDARD NX2 NITRO SHOCKS WITH VEHICLE-SPECIFIC VALVING FOR BETTER CONTROL
• AS WITH ALL BDS KITS, THESE RADIUS ARM SYSTEMS FOR THE FORD SUPER DUTY ARE BACKED BY FACTORY PROTECTION PLUS OFFERING YOU PEACE OF MIND OUT ON THE TRAIL OR WHEREVER YOUR NEXT ADVENTURE MAY BE. THIS INCLUDES A BDS NO FINE PRINT WARRANTY, ESC SYSTEM COMPATIBILITY AND A 5YEAR-60,000MILE DRIVETRAIN WARRANTY.

NX2 NITRO SERIES SHOCKS:

• NITROGEN-CHARGED
• TWIN-TUBE DESIGN
• 10-STAGE VELOCITY-SENSITIVE VALVING
• DUAL-WELDED ENDS FOR INCREASED STRENGTH
• 1 3/8-INCH HIGH-FLOW PISTON
• SELF-LUBRICATING SEALS
• SILVER POWDER COAT FINISH

NOTE: IF EQUIPPED WITH A 2-PIECE REAR DRIVESHAFT, A CARRIER BEARING DROP KIT MAY BE REQUIRED (BDS123402)

NOTE: 37 X 12.50 TIRES MAY REQUIRE MINOR TRIMMING

NOTE: SOME MODELS MAY BE FACTORY EQUIPPED WITH A 2-LEAF MAIN REAR LEAF SPRING PACK AND OTHERS A 3-LEAF MAIN. BE SURE TO ORDER THE CORRECT OPTION WHEN CUSTOMIZING YOUR KIT. IF YOUR TRUCK IS EQUIPPED WITH A FACTORY REAR SWAY BAR ADD: 123005

COMPATIBLE WITH:

• FORD:
• 2017-2019 F-250 SUPER DUTY 4WD DIESEL WITH 2-LEAF REAR MAIN
• 2017-2019 F-350 SUPER DUTY 4WD DIESEL WITH 2-LEAF REAR MAIN

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SUSPENSION KIT HERE.
