BDS 2012-2018 JEEP WRANGLER JK 2 DOOR 4" LIFT KIT,FOX 2.0 SHOCKS

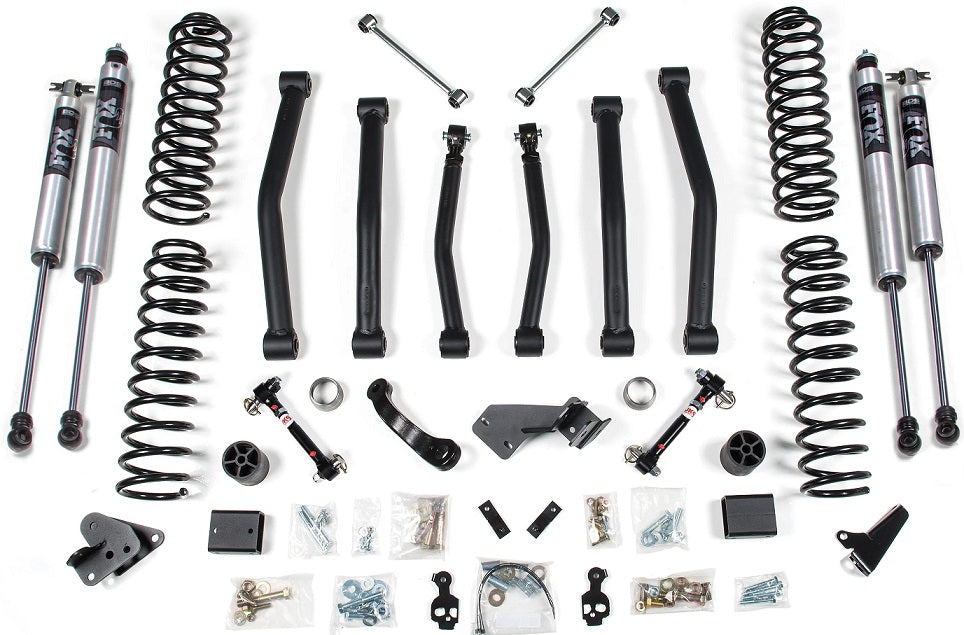

BRAND NEW BDS SUSPENSION 4 INCH LIFT KIT WITH FRONT & REAR FOX 2.0 PERFORMANCE SERIES SHOCKS, COMPATIBLE WITH 2012-2018 JEEP WRANGLER JK 2 DOOR

TAKE YOUR 2012-2018 JEEP WRANGLER JK 2 DOOR TO THE NEXT LEVEL AND IMPROVE THE RIDE WITH THIS 4-INCH LIFT KIT FROM BDS SUSPENSION. DESIGNED TO IMPROVE STANCE THIS KIT INCLUDES EVERYTHING NECESSARY TO SET YOUR TRUCK UP RIGHT WITH CLEARANCE FOR UP TO 37" TIRES.

UP FRONT THE LIFT KIT INCLUDES 4" PRO-RIDE COIL SPRINGS CAPABLE OF FULL COIL BIND AND 3" BUMP STOP EXTENSIONS TO CONTROL THE COMPRESSION TRAVEL, BUT INCREASE WHEEL TRAVEL. ALSO INCLUDED ARE BRAKE LINE BRACKETS, SWAY BAR LINKS, AND FRONT TRACK BAR RELOCATION BRACKET AND PITMAN ARM TO IMPROVE THE STEERING AND HANDLING GEOMETRY. THE FRONT SUSPENSION IN THIS 4-INCH LIFT KIT IS FINISHED OFF WITH FIXED LENGTH LOWER CONTROL ARMS WITH OE GRADE RUBBER BUSHINGS THAT RE-POSITION THE FRONT AXLE FOR PROPER ALIGNMENT.

IN THE REAR THE KIT UTILIZES PRO-RIDE COIL SPRINGS, SWAY BAR DROP BRACKETS, AND A REAR FRAME MOUNTED TRACK BAR RELOCATION BRACKET TO CORRECT AXLE SHIFT. FOR PROPER REAR AXLE POSITION AND PINION ANGLE THIS KIT INCLUDES FIXED LENGTH REAR LOWER CONTROL ARMS AND ADJUSTABLE REAR UPPER ARMS. ROUND OUT THIS 4" LIFT KIT WITH YOUR CHOICE OF SPECIALLY TUNED NX2 NITRO SERIES GAS SHOCKS OR FOX 2.0 IFP PERFORMANCE SERIES GAS SHOCKS TO OFFER IMPROVED DAMPER PERFORMANCE.

NOTE: WILL NOT FIT 2WD MODELS

NOTE: THE FIXED FRONT AND REAR LOWER CONTROL ARMS CAN BE UPGRADED TO THE FLEX OR ADJUSTABLE ARMS LISTED IN THE ACCESSORIES

NOTE: THE FRONT DRIVESHAFT IS MAXED OUT AT FULL DROOP AND ON CERTAIN MODELS, THE DRIVESHAFT BOOT CAN CONTACT THE TRANSMISSION PAN. REPLACEMENT OF THE FRONT DRIVESHAFT IS RECOMMENDED

NOTE: ЕXHAUST MODIFICATION MAY BE REQUIRED

COMPATIBLE WITH:

• JEEP:
• 2012-2018 WRANGLER JK 2 DOOR

FOX 2.0 PERFORMANCE SERIES:

• 2-INCH IMPACT EXTRUDED ALUMINUM BODY
• INTERNAL FLOATING PISTON (IFP) MONOTUBE DESIGN
• CNC MACHINED 6061-T6 ALUMINUM MOUNTING ENDS
• LARGE 5/8-INCH HARD CHROME PLATED HEAT-TREATED ALLOY STEEL SHAFT
• RACE-DEVELOPED HIGH-FLOW PISTON DESIGN
• APPLICATION-SPECIFIC VALVING TO MAXIMIZE PERFORMANCE
• LONG-LASTING CLEAR ANODIZED FINISH

PRO-RIDE COIL SPRINGS:

• A PAIR OF FULL-LENGTH, GAS-SPECIFIC, PROGRESSIVE RATE PRO-RIDE COIL SPRINGS ARE SUPPLIED TO PROVIDE THE CORRECT LIFT HEIGHT AND SMOOTH, PREDICTABLE RIDE ACROSS VARIOUS TERRAINS. MANUFACTURED FROM HIGH TENSILE STEEL, OUR DIRECT OE REPLACEMENT COIL SPRINGS ARE ENGINEERED WITH PROPERLY SIZED WIRE DIAMETER. THIS RESULTS IN MAXIMUM RELIABILITY WITHOUT PREMATURE COIL BIND.

STEERING CORRECTION:

• TO OPTIMIZE STEERING GEOMETRY ONCE LIFTED, A FORGED DROP PITMAN ARM IS USED TO MINIMIZE THE STEERING ANGLE AND PAIR IT WITH A HEAVY DUTY TRACK BAR DROP BRACKET TO KEEP THEM IN PHASE THROUGH SUSPENSION TRAVEL WHILE RECENTERING THE FRONT AXLE.

FEATURES:

• PRORIDE COIL SPRINGS OFFER IMPROVED RIDE QUALITY AND MORE ARTICULATION
• SWAY BAR QUICKER DISCONNECTS AND EXTENDED REAR LINK FOR IMPROVED OFF-ROAD FLEX
• NEW CONTROL ARMS TO PROPERLY CONTROL THE FRONT AND REAR AXLE POSITIONS
• REAR TRACK BAR BRACKET REPOSITIONS REAR AXLE UNDER VEHICLE
• ALLOWS CLEARANCE FOR 37" TIRES

SPECS:

• FRONT LIFT METHOD: COIL SPRINGS
• REAR LIFT METHOD: COIL SPRINGS
• SHOCKS INCLUDED: YES
• FRONT LIFT HEIGHT: 4"
• REAR LIFT HEIGHT: 4"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
