BDS 2012-2018 JEEP WRANGLER JK 4DR 3" LIFT KIT,FOX 2.0 SHOCKS

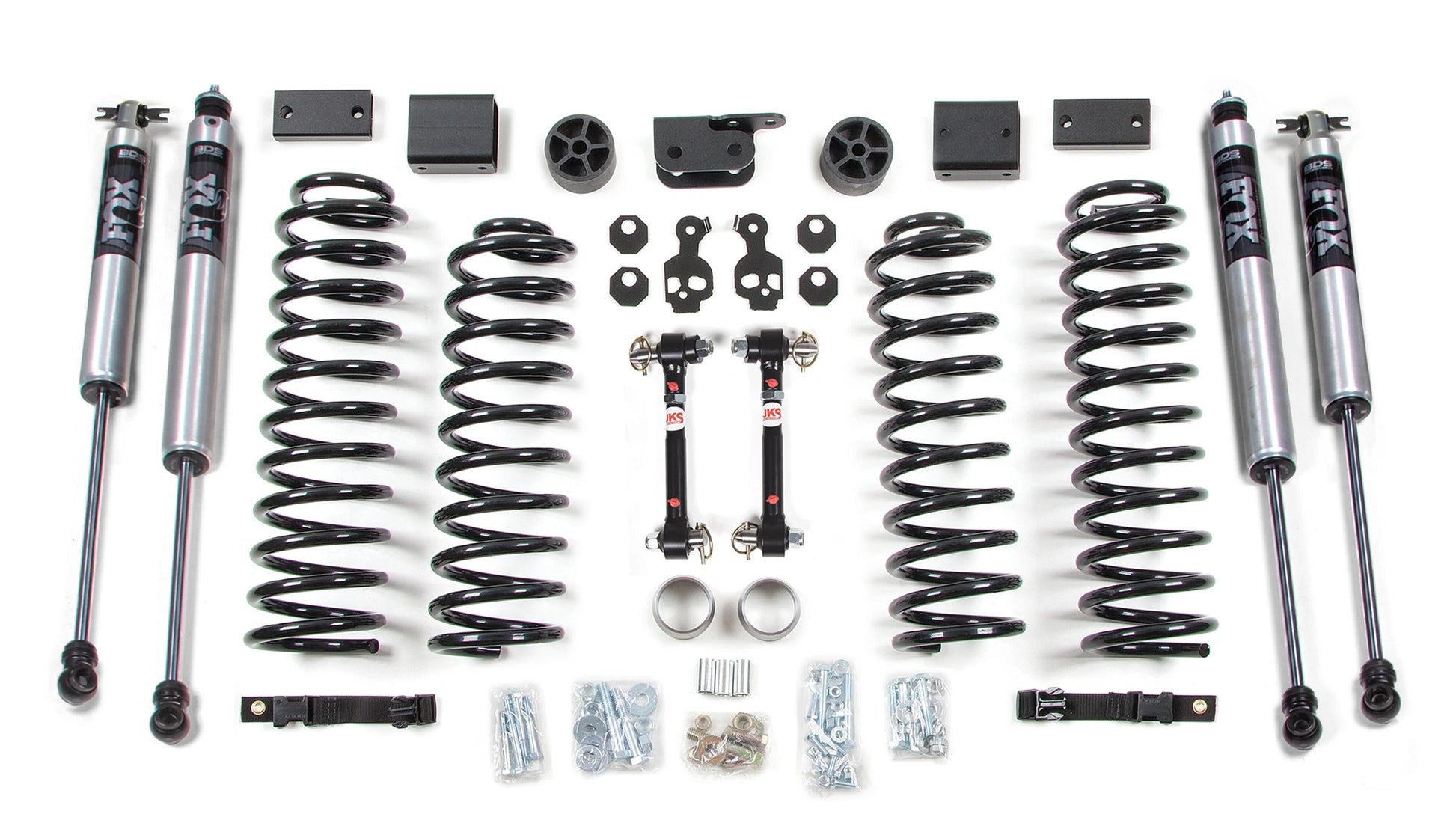

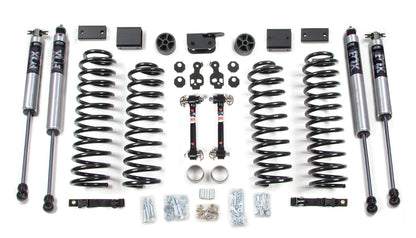

BRAND NEW BDS SUSPENSION 3" LIFT KIT WITH FOX 2.0 SERIES SHOCKS (PART #BDS1403FS).

SPECIFICALLY INTENDED FOR 2012-17 MODELS, THIS SYSTEM INCLUDES AN EXHAUST EXTENSION KIT THAT MAXIMIZES ALLOWABLE WHEEL TRAVEL WITH THE FACTORY FRONT DRIVESHAFT. THIS KIT COMES WITH 3" PRO-RIDE COIL SPRINGS CAPABLE OF FULL COIL BIND AND 2" BUMP STOP EXTENSIONS TO CONTROL THE COMPRESSION TRAVEL, BUT INCREASE WHEEL TRAVEL. BRAKE LINE RELOCATION BRACKETS ARE SUPPLIED TO HANDLE THE ADDED WHEEL TRAVEL. MANY COMPANIES DONT INCLUDE ANYTHING TO CORRECT YOUR ALIGNMENT, BUT BDS INCLUDES OCTO CAM WASHERS FOR THE FRONT LOWER CONTROL ARMS TO FINE TUNE THE CASTER ANGLE.

FIXED SWAYBAR LINKS ARE INCLUDED FOR RUBICON MODELS WITH THE FACTORY DISCONNECT SYSTEM, FOR NON-RUBICON MODELS CHOOSE BETWEEN BDS ULTIMATE SWAY BAR DISCONNECTS OR JKS QUICKER DISCONNECTS. IN THE REAR, SWAY BAR DROP BRACKETS ARE INCLUDED INSTEAD OF LONGER SWAY BAR LINKS TO ALLOW THE USE OF A FACTORY WHEEL AND LARGER TIRE. TO CORRECT THE REAR AXLE SHIFT FROM THE LIFT, A REAR FRAME MOUNTED TRACK BAR RELOCATION BRACKET IS INCLUDED.

IMPROVE RIDE QUALITY AND CAPABILITY WITH THE FOX 2.0 PERFORMANCE SERIES IFP SHOCKS. SPECIALLY DESIGNED FOR BDS LIFT SYSTEMS, THESE FOX 2.0 ALUMINUM BODY SHOCKS OFFER IMPROVED COOLING CAPACITY AND CORROSION PROTECTION. THESE SHOCKS USE RACE-PROVEN VEHICLE SPECIFIC VALVING ALONG WITH AN INTERNAL FLOATING PISTON (IFP) MONOTUBE DESIGN TO SEPARATE SHOCK OIL FROM HIGH PRESSURE NITROGEN TO ELIMINATE AERATION AND MAXIMIZE PERFORMANCE ON/OFF-ROAD.

FITS:

• JEEP:
  • 2012-2018 WRANGLER JK 4 DOOR 4WD

NOTES:

• EXHAUST MODIFICATION MAY BE REQUIRED.
• THIS KIT IS FMVSS NO.126 COMPLIANT
• THIS KIT IS RIGHT HAND DRIVE COMPATIBLE.
• IF USING THESE REAR SWAY BAR LINKS, THE SWAY BAR DROP WILL NOT NEED TO BE INSTALLED. THIS ALSO REQUIRES A WHEEL WITH 4.5" BACKSPACING OR LESS FOR TIRE CLEARANCE.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
