FRONT TRUTURN SYSTEM & COILOVERS,68-79

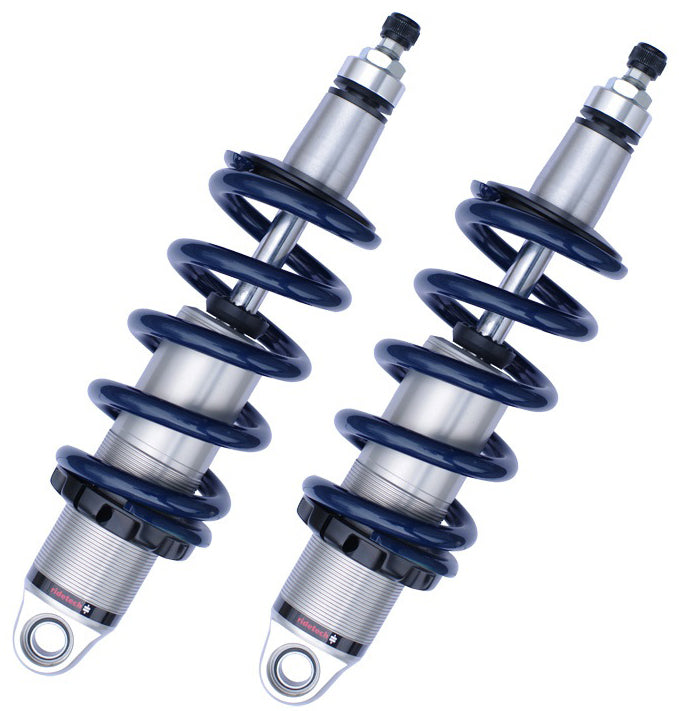

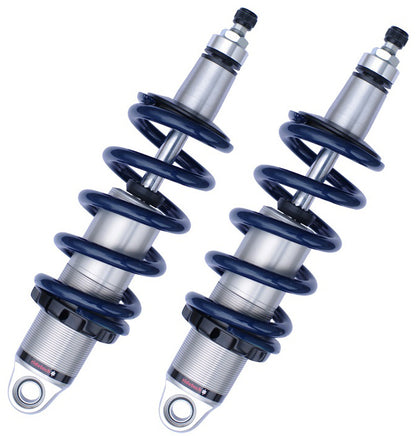

BRAND NEW RIDETECH FRONT TRUTURN SYSTEM WITH FRONT COILOVERS

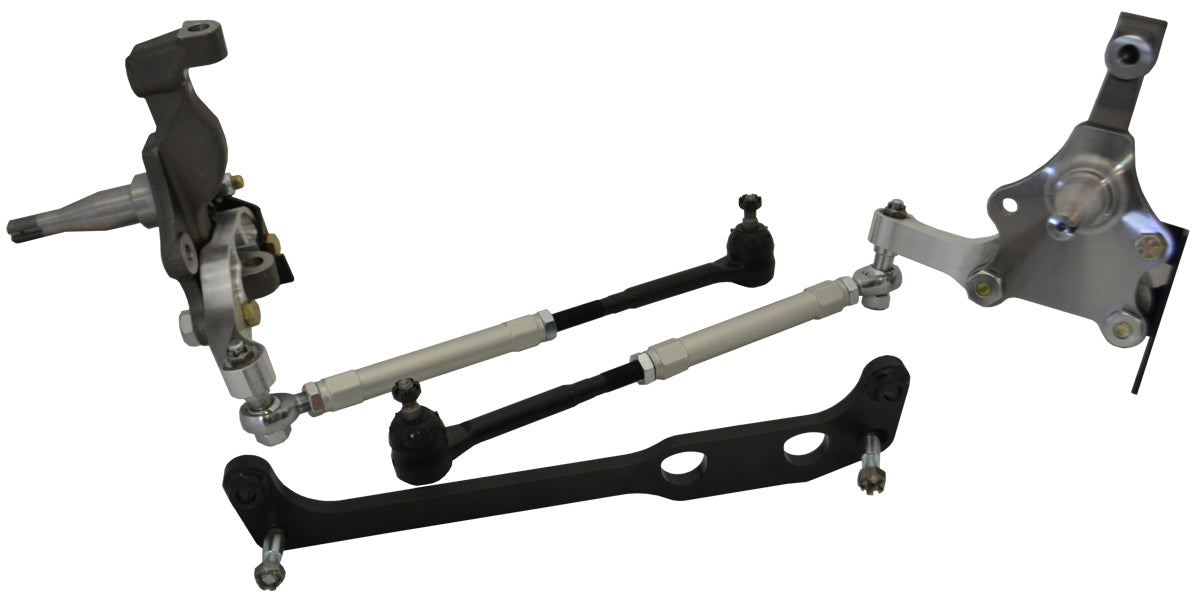

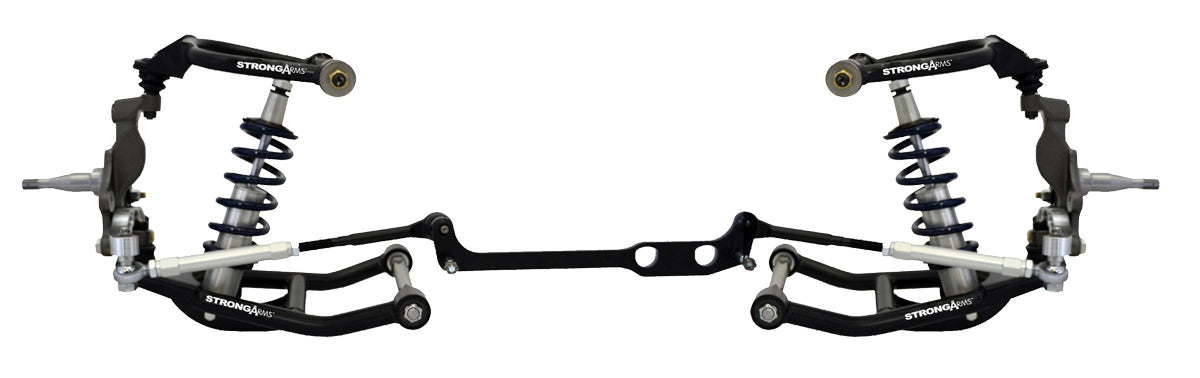

THE NEW CORVETTE SYSTEM OFFERS MANY ADVANTAGES OVER THE OEM SUSPENSION SYSTEM. THE ENGINEERS HAVE PUT THEIR HEART AND SOUL INTO FABRICATING A COMPLETE SUSPENSION DESIGN THAT IS A DIRECT BOLT IN TO THE C3 CORVETTES. UP FRONT THE TASK WAS TO INCREASE CAMBER GAIN AND MINIMIZE BUMP STEER. BY UTILIZING THE RIDETECH "TALL DROP" SPINDLE AND TUBULAR STRONGARM CONTROL ARMS WITH DELRIN BUSHINGS THE RIDE HEIGHT WAS LOWERED TWO INCHES, CAMBER GAIN WAS INCREASED TO MATCH THE REQUIREMENTS OF MODERN TIRES, THE BALL JOINTS WERE UPDATED TO A MODERN STYLE AND RELOCATED FOR INCREASED CASTER AND THE CORRECT ANGLE FOR THE LOWER STANCE, WHILE THE SELF LUBRICATING DELRIN BUSHINGS KEEP THINGS WHERE THEY SHOULD BE WITHOUT REQUIRED MAINTENANCE. THE TRUTURN SYSTEM REDUCES BUMPSTEER TO UNDER 0.060" AND INCREASES STEERING RESPONSE BY RELOCATING THE INNER TIE RODS AND REPLACING THE OUTER TIE RODS WITH TEFLON LINED HEIM JOINTS. NEW BILLET ALUMINUM STEERING ARMS ARE SUPPLIED THAT CORRECT THE ACKERMAN WHICH RESULTS IN A VEHICLE WITH AMAZING TURN IN AND STEERING FEEL. STRONGARM TUBULAR CONTROL ARMS NOT ONLY IMPROVE SUSPENSION GEOMETRY AND HANDLING, THEY ALSO MAKE INSTALLATION EVEN EASIER. THE ADDED BENEFIT WHEN REPLACING CONTROL ARMS IS NEW BUSHINGS AND BALL JOINTS. NO MORE WORN OUT COMPONENTS.UPGRADE YOUR 1968-1979 CORVETTE WITH HQ SERIES ADJUSTABLE COILOVERS. YOU WILL GET HIGH PERFORMANCE HANDLING, EXCEPTIONAL RIDE QUALITY AND THE ABILITY TO ADJUST YOUR CARS RIDE HEIGHT. THEY ARE BACKED BY THE RIDETECH EXCLUSIVE 1,000,001 MILE WARRANTY. RIDETECH DEVELOPS OUR SHOCK CALIBRATIONS AND SPRING RATES THROUGH THOUSANDS OF CROSS-COUNTRY TEST MILES, ON OUR EXCLUSIVE TEST TRACK AND AT COMPETITION EVENTS FROM COAST TO COAST. WE UNDERSTAND THE SUSPENSION NEEDS OF YOUR CORVETTE BETTER THAN ANY OTHER COMPANY. THIS SYSTEM INCLUDES TWO FRONT HQ SERIES COILOVER SHOCKS AND TWO HYPERCO COIL SPRINGS WITH PROPER SPRING RATE.

FITS:

• CHEVROLET: 1968-1979 CORVETTE C3
• THESE CONTROL ARMS ARE DESIGNED FOR USE WITH THE RIDETECH MUSCLEBAR SWAYBAR. THE FACTORY SWAY BAR WILL NOT FIT THESE ARMS. THE CORVETTE TRUTURN SUSPENSION PACKAGE USES A GM SPINDLE USED ON 67-69 F BODY, 64-72 A BODY, AND 68-74 X BODY. ANY BRAKE KIT DESIGNED TO FIT THE OEM DISC BRAKE SPINDLE OF THE LISTED CARS WILL FIT THE SPINDLE IN THIS TRUTURN SYSTEM.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS TRUTURN SYSTEM HERE, AND COILOVERS HERE.
