COILOVER SYSTEM W/REAR BAR,WILWOOD 13",RED

COILOVER SYSTEM W/REAR BAR,WILWOOD 13",RED

RDT 11520201-36

$12,399.99
$12,399.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

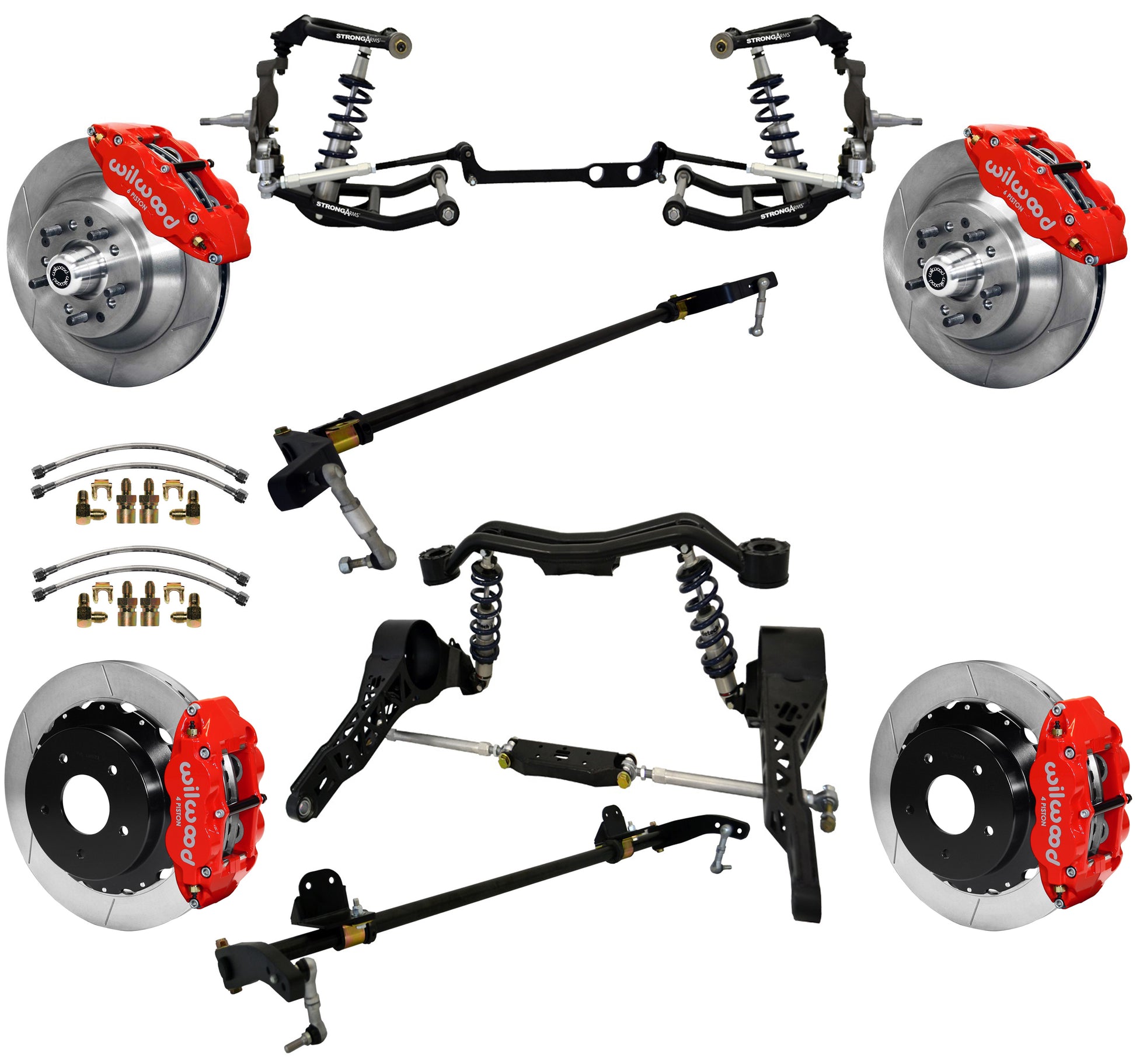

  • BRAND NEW RIDETECH COILOVER SYSTEM WITH FRONT & REAR MUSCLEBAR SWAY BARS AND WILWOOD DISC BRAKE KIT, INCLUDING CONTROL ARMS, SPINDLES, STEERING ARMS, DRAG LINK, TIE ROD LINKAGE, MUSCLEBAR FRONT & REAR SWAY BARS, 13" ROTORS, RED BRAKE CALIPERS, BRAKE LINES, AND MORE (PART #11520201-36).

  • THE RIDETECH COILOVER SYSTEM FOR THE 1965-1967 CORVETTE INCLUDES EVERYTHING YOU NEED TO MAKE YOUR VINTAGE C2 CORVETTE HANDLE LIKE A NEW CORVETTE. THE PACKAGE CONTAINS FRONT UPPER AND LOWER CONTROL ARMS, TALL SPINDLES, BILLET STEERING ARMS, INNER & OUTER TIE RODS, FRONT & REAR MUSCLEBARS, REAR TRAILING ARMS AND 4 HQ SERIES COILOVERS FOR EVERY CORNER OF YOUR VEHICLE. THE BENEFIT OF BUYING A COMPLETE SUSPENSION SYSTEM IS THAT IT TAKES ALL OF THE GUESSWORK OUT WHEN PURCHASING A NEW SUSPENSION. RIDETECH HAS SPENT HOURS COLLECTING DATA TO FIND A PERFECT SPRING RATE AND COMPONENTS FOR YOUR VEHICLES PERFORMANCE AND RIDE QUALITY.

    • APPLICATIONS:

  • CHEVROLET:
    • 1965-1967 CORVETTE

    • RIDETECH SYSTEM INCLUDES:

  • FRONT TRUTURN SYSTEM WITH SPINDLES, STEERING ARM, DRAG LINK, AND TIE ROD LINKAGE:

    • THE TRUTURN SYSTEM INCLUDES TALL SPINDLES WHICH INDUCE MORE NEGATIVE CAMBER GAIN TO MAXIMIZE TIRE CONTACT PATCH DURING CORNERING. IT ALSO INCLUDE BILLET ALUMINUM STEERING ARMS, CENTER LINK ADAPTER, TIE RODS AND ADJUSTERS TO VIRTUALLY ELIMINATE BUMPSTEER, CORRECT ACKERMAN ANGLE AND ALLOW FOR WIDER TIRES. THESE SPINDLES WONT ACCEPT STOCK CORVETTE BRAKES. THEY ARE DESIGNED FOR USE WITH 1967-1969 CAMARO BRAKE SYSTEMS. WE HAVE SEVERAL KITS AVAILABLE WITH THE MATCHING BRAKES

  • FRONT UPPER STRONGARM CONTROL ARMS:

    • THE UPPER STRONGARMS FEATURE CORRECTED BALL JOINT ANGLES FOR THE TALL SPINDLES. THE UPPER BALL JOINT HAVE BEEN MOVED BACK TO ALLOW FOR ADDITIONAL CASTER SETTING TO IMPROVE HIGH SPEED STABILITY AND STEERING FEEL. OFFSET SLUGS ARE ALSO AVAILABLE FOR ADDITIONAL CASTER. INJECTION MOLDED DELRIN BUSHINGS WITH 13% TEFLON ARE USED TO REDUCE DEFLECTION AND STICTION.

  • FRONT LOWER STRONGARM CONTROL ARMS:

    • LOWER STRONGARMS FEATURE A DOUBLE SHEER LOWER MOUNT FOR INCREASED STRENGTH. WE HAVE ALSO DROPPED THE LOWER SHOCK MOUNT TO INCREASE SUSPENSION TRAVEL AND MOVED THE LOWER BALL JOINT FORWARD TO INCREASE CASTER SETTINGS WHILE KEEPING THE WHEEL CENTERED IN THE WHEEL OPENING. INJECTION MOLDED DELRIN BUSHINGS WITH 13% TEFLON ARE USED TO REDUCE DEFLECTION AND STICTION.

  • FRONT MUSCLEBAR SWAY BAR:

    • THIS FRONT MUSCLEBAR IS A SPLINED DESIGN AND HELPS REDUCE BODY ROLL AND CREATES ROOM FOR WIDER FRONT TIRES. IT INCLUDES THE POSILINK ENDLINKS THAT PROVIDE IMMEDIATE ENGAGEMENT BETWEEN THE CHASSIS AND CONTROL ARMS.
    • IMPROVES RANGE OF MOTION & ELIMINATES BINDING
    • STRONG DESIGN PREVENTS DEFORMATION AND FAILURE
    • POSITIVE TRANSFER OF MOTION THROUGH SWAYBAR
    • OEM HIGH-PERFORMANCE QUALITY

  • REAR MUSCLEBAR SWAY BAR:

    • THIS PARTICULAR KIT THAT WE OFFER INCLUDES THE MUSCLEBAR REAR SWAY BAR, WHICH HAS THE SAME GREAT FEATURES AS THE FRONT BAR. INCREASED BAR DIAMETER, POLYURETHANE BUSHINGS, APPROPRIATE ATTACHMENT LINKS, WHICH ALL GIVES THE REAR OF YOUR CORVETTE THE SAME IMPROVED RANGE OF MOTION AND POSITIVE TRANSFER OF MOTION, WHILE ELIMINATING BINDING, AND PREVENTING DEFORMATION & FAILURE.

  • FRONT HQ SERIES ADJUSTABLE COILOVERS:

    • WITH THE HQ SERIES OF COILOVERS, YOULL GET HIGH PERFORMANCE HANDLING, EXCEPTIONAL RIDE QUALITY AND THE ABILITY TO ADJUST YOUR CARS RIDE HEIGHT. THE RIDETECH COILOVERS FEATURE 24-POSITION REBOUND ADJUSTMENT TO HELP YOU FINE TUNE THE SHOCKS TO YOUR DRIVING PREFERENCES AND VEHICLE DEMANDS. WITH LARGE 1.834" PISTONS, HEAVY-DUTY 5/8" SHAFTS, AND IMPACT FORGED BODIES, HQ SERIES COILOVERS ARE BUILT TO PERFORM AND MADE TO LAST. THEYRE BACKED BY THE RIDETECH EXCLUSIVE 1,000,001 MILE WARRANTY. RIDETECH DEVELOPS THE SHOCK CALIBRATIONS AND SPRING RATES THROUGH THOUSANDS OF CROSS-COUNTRY TEST MILES, ON THEIR EXCLUSIVE TEST TRACK AND AT COMPETITION EVENTS FROM COAST TO COAST.

  • REAR HQ SERIES ADJUSTABLE COILOVERS:

    • THESE REAR COILOVERS ARE DESIGNED TO PROVIDE THE OPTIMAL RIDE QUALITY AND EASE OF INSTALLATION. RIDETECH CONTINUES TO OFFER TODAYS HOT RODDERS THE ULTIMATE IN RIDE QUALITY, HANDLING PERFORMANCE, TECHNICAL SUPPORT, AND NOW, SIMPLICITY, WITH THE NEW RIDETECH COILOVERS.
    • MONOTUBE GAS PRESSURE DESIGN OFFERS SUPERIOR FADE FREE PERFORMANCE
    • IMPACT FORGED ALUMINUM BODY PROVIDES SUPERIOR STRENGTH AND RELIABLE SERVICE
    • LARGER 1.834" PISTON PROVIDES OUTSTANDING RIDE QUALITY
    • DOUBLE SEALED ROD GUIDE WITH DUST COVER ELIMINATES OIL LEAKAGE
    • 5/8" CHROME SHOCK SHAFT
    • ANODIZED FINISH PROTECTS AGAINST CORROSION
    • CNC MACHINED BILLET HARDWARE
    • UNIQUE PINCH CLAMP HEIGHT ADJUSTER USES FINER THREAD FOR EASY ADJUSTMENT
    • INCLUDES 1/2" BORE X 1" KEVLAR LINED BEARINGS FOR NOISE FREE OPERATION

  • REAR STRONGARM PACKAGE:

    • THE REAR STRONGARMS ARE OFFSET FOR INCREASED TIRE CLEARANCE AND ARE FABRICATED INTO A TRUSS DESIGN FOR MAXIMIUM STRENGTH AND MINIMUM WEIGHT. THEY FEATURE TEFLON LINED BEARINGS AT THE FRONT MOUNTING POINT TO REDUCE STICTION AND ROLL BIND. ALSO INCORPORATED IS THE ADJUSTABLE COILOVER MOUNT, CONVENIENTLY LOCATING THEM BEHIND THE AXLE FOR EASY ADJUSTMENTS. THE UPPER COILOVER CROSSMEMBER SIMPLY BOLTS IN PLACE OF THE STOCK CROSS MEMBER. THE STRUT RODS ARE OUTFITTING WITH R-JOINT ROD ENDS TO COMBINE THE BEST QUALITIES OF LOW FRICTION MOVEMENT, LATERAL STABILITY, FULL RANGE ARTICULATION, AND QUIET OPERATION INTO ONE SPECIAL BEARING THAT IS AS HOME ON THE STREET AS IT IS ON THE RACETRACK!
    • LOWERS VEHICLE RIDE HEIGHT
    • MOUNTING HARDWARE TO MAINTAIN GROUND & TIRE CLEARANCE, DRIVELINE ANGLES, AND LOAD CAPACITIES
    • BOLT-ON INSTALLATION (NO FABRICATION REQUIRED)
    • GREATLY IMPROVED HANDLING PERFORMANCE
    • ULTIMATE RIDE QUALITY

    • WILWOOD BRAKE KIT INCLUDES:

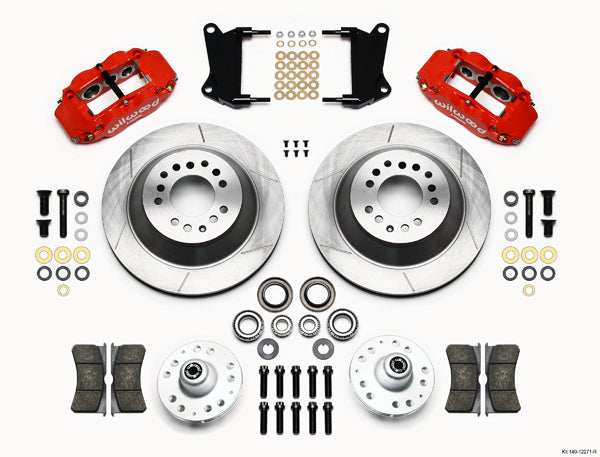

  • WILWOOD FRONT DISC BRAKE KIT WITH 12.90" ROTORS AND RED CALIPERS (140-12271R):
    • 1.10" THICK X 12.90" O.D.ROTORS
    • FORGED NARROW SUPERLITE 6 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • ALL HARDWARE NECESSARY TO INSTALL FRONT BRAKING SYSTEM

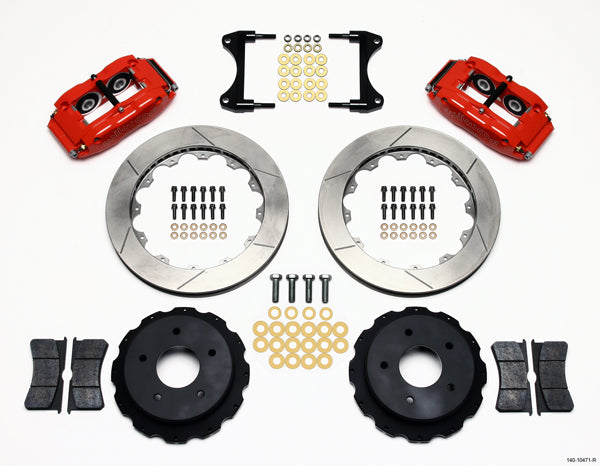

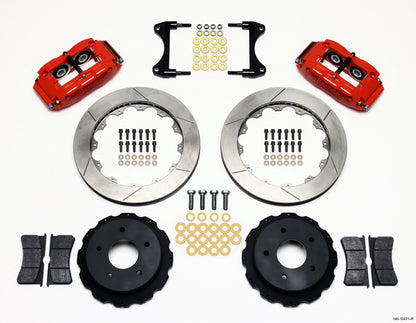

  • WILWOOD REAR DISC BRAKE KIT WITH 12.90" ROTORS AND RED CALIPERS (140-10471R):
    • 1.10" THICK X 12.90" O.D.ROTORS W/ HATS
    • FORGED NARROW SUPERLITE 4 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • ALL HARDWARE NECESSARY TO INSTALL REAR BRAKING SYSTEM

  • FULL BRAKE LINE KIT FOR THE FRONT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS
  • FULL BRAKE LINE KIT FOR THE REAR WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS

    • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THE RIDETECH KIT HERE, THE FRONT BRAKE KIT HERE, AND THE REAR BRAKE KIT HERE.
