COILOVER & ARMS,WILWOOD 13/12" BRAKES,DRILLED

COILOVER & ARMS,WILWOOD 13/12" BRAKES,DRILLED

RDT 11360201-33

$10,929.99
$10,929.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

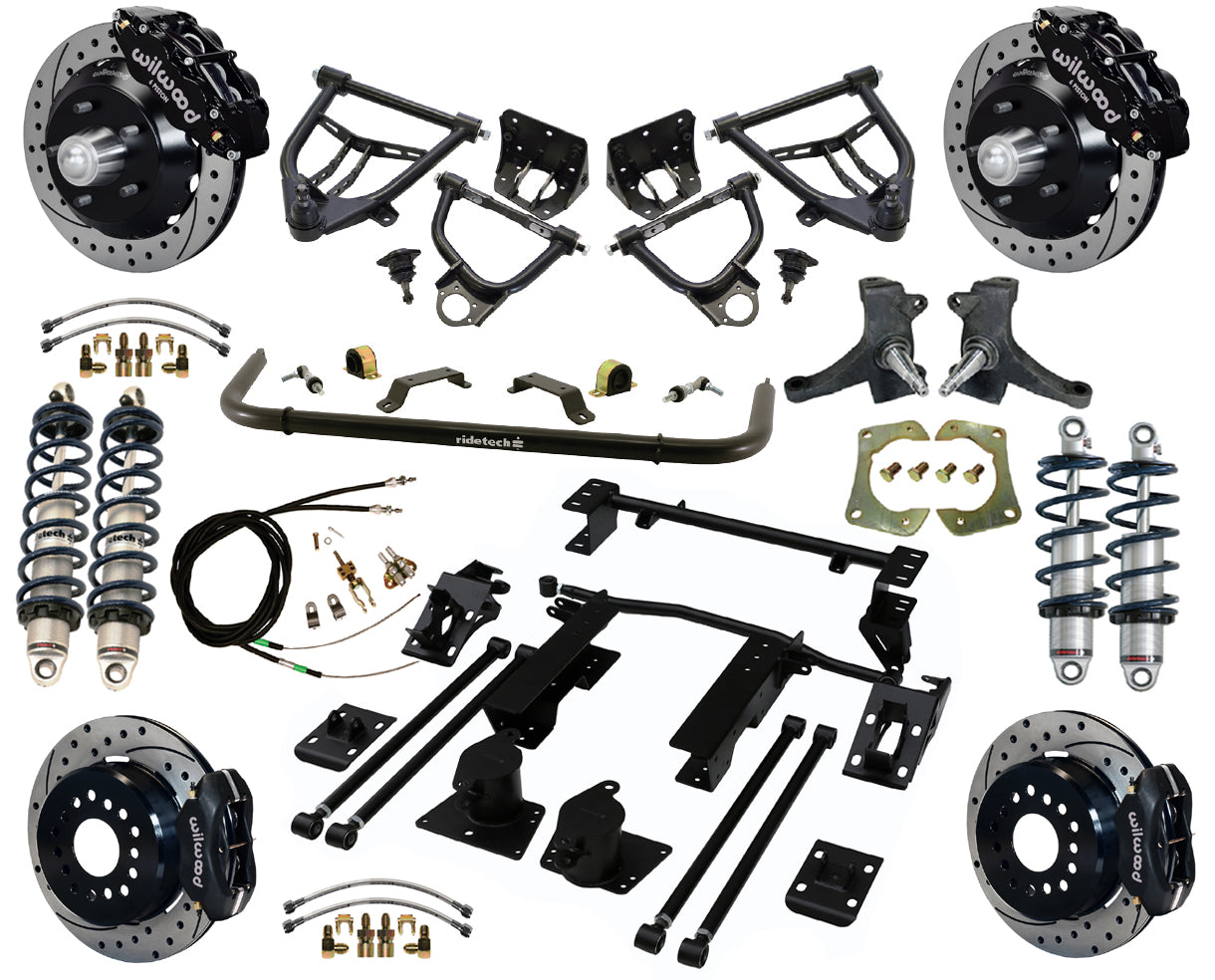

  • BRAND NEW RIDETECH COILOVER & 4-LINK SYSTEM AND WILWOOD DISC BRAKE KIT, INCLUDING FRONT CONTROL ARMS, DROP SPINDLES, MUSCLEBAR FRONT SWAY BAR, REAR 4-LINK SYSTEM, 13" FRONT AND 12" REAR DRILLED ROTORS, BLACK BRAKE CALIPERS, BRAKE LINES, PARKING BRAKE CABLE KIT, AND MORE (PART #11360201-33).

  • THIS SYSTEM FOR YOUR 1973-1987 C10 PICKUP TRUCK INCLUDES EVERYTHING NEEDED TO DRAMATICALLY IMPROVE THE HANDLING, RIDE QUALITY AND STANCE OF YOUR "SQUARE FENDER" PICKUP INCLUDING AN ALL-NEW BOLT-IN 4-LINK ASSEMBLY WITH C-NOTCH THAT REPLACES THE FACTORY LEAF SPRINGS. THE COMPLETE KIT INCLUDES THE AFOREMENTIONED BOLT-IN 4-LINK KIT (WITH R-JOINTS), FRONT STRONGARM CONTROL ARMS, HQ SERIES SINGLE ADJUSTABLE COILOVERS, DROP SPINDLES, FRONT UPPER COILOVER MOUNTING BRACKETS AND A BEEFY, 1.5" MUSCLEBAR SWAY BAR KIT. THE KIT IS 100% CAD-ENGINEERED IN-HOUSE AND REFINED ON RIDETECHS EXCLUSIVE TEST TRACK.

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS. THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, AND SUSPENSION UPGRADES. EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE.

    • APPLICATIONS:

  • CHEVROLET:
    • 1973-1987 C10
  • GMC:
    • 1973-1987 C15

    • RIDETECH SYSTEM INCLUDES:

  • 2.5" DROP SPINDLES:

    • THE RIDETECH SPINDLES ALLOW A LOWERED STANCE WHILE MAINTAINING SUSPENSION TRAVEL. THE MODULAR DESIGN ALLOWS FOR VARIETY OF BRAKE OPTIONS, INCLUDING WILWOOD, OR STOCK HD BRAKES (1.25" WIDE ROTORS)

  • FRONT UPPER AND LOWER STRONGARMS:

    • WHAT SAYS "PERFORMANCE" MORE THAN A SET OF TUBULAR CONTROL ARMS! AFTER ALL OF THE TIME AND EFFORT EXPENDED ON YOUR RIDE, YOU DEFINITELY CANT LET YOUR STAMPED OEM CONTROL ARMS DETRACT FROM ALL THAT WORK. FINISH YOUR SUSPENSION OFF WITH THESE NEW TUBULAR CONTROL ARMS. BUILT WITH ALL OF THE CARE AND EXPERIENCE YOU HAVE COME TO EXPECT FROM US, THESE TUBULAR CONTROL ARMS ARE A PRECISION-ENGINEERED SOLUTION FOR BALL JOINT BINDING AND FRAME CLEARANCE ISSUES THAT CAN HAUNT SOME VEHICLES. WHEN YOU COMBINE THE PERFORMANCE BENEFITS WITH THE ELEGANT DESIGN OF THESE ARMS, THERE IS NO BETTER CHOICE ON THE MARKET.
    • DEVELOPMENT: STRONGARMS ARE DEVELOPED BY RIDETECH IN JASPER, INDIANA, ON AN ACTUAL RUNNING, DRIVING VEHICLE. THIS ALLOWS US TO PROPERLY ADDRESS ALL FITMENT AND PERFORMANCE ISSUES. IT ALSO ALLOWS US TO DOCUMENT AN INSTALLATION, DEMONSTRATE THE INSTALLATION TO OUR SALES TECHS, AND ALLOWS ONGOING EVALUATION OF THE PERFORMANCE OF THE STRONGARMS.
    • DESIGN: RIDETECH THINK THE BEST WAY TO DESIGN ANY COMPONENT IS TO KEEP IT SIMPLE. THAT IS WHY STRONG ARMS ARE DESIGNED WITH AS FEW COMPONENTS AS POSSIBLE. THE NEW 4-AXIS TUBING BENDER ALLOWS PRECISE, REPEATABLE BENDS THAT NO OTHER MACHINE CAN ACHIEVE. WE CAN CREATE ELEGANT TUBING BENDS THAT WOULD OTHERWISE REQUIRE SEVERAL SEPARATE WELDED COMPONENTS.
    • COMPONENTS: POWDERCOATED IN A SATIN BLACK FINISH AND COMPLETELY ASSEMBLED WITH BALL JOINTS AND BUSIHNGS. TO REDUCE ALL STICKION FROM THE SUSPENSION MOVEMENT, INJECTION MOLDED DELRIN BUSHINGS ARE USED. THESE BUSHINGS ARE ALSO IMPREGNATED WITH TEFLON, WHICH ELIMINATES THE NEED FOR LUBRICATION.
    • GEOMETRY: GEOMETRY OF A SUSPENSION STARTS WITH THE POSITION OF THE FRAME MOUNTS AND THE HEIGHT OF THE SPINDLE, NOT THE SHAPE OF THE CONTROL ARM. HOWEVER, THERE ARE A FEW SMALL THINGS IN CONTROL ARM DESIGN THAT CAN MAKE A BIG DIFFERENCE IN HOW A VEHICLE DRIVES AND PERFORMS.
    • STRONGARMS ARE OPTIMIZED TO ALLOW PROPER CAMBER ADJUSTMENT AT YOUR NEW LOWERED RIDE HEIGHT WITHOUT USING A LARGE STACK OF SHIMS.

  • FRONT MUSCLEBAR SWAY BAR:

    • LETS FACE IT...THE MOST OVERLOOKED SUSPENSION COMPONENT IS ALSO ONE OF THE MOST IMPORTANT. THE MAGIC YOU COULD BE MISSING IN YOUR SUSPENSION MAY BE NOTHING MORE THAN SIMPLY ADDING OR UPGRADING YOUR SWAY BARS! THE NEW MUSCLEBAR SWAY BARS WERE DEVELOPED SPECIFICALLY FOR LOWERED VEHICLES AND WILL GREATLY ENHANCE THE CORNERING PERFORMANCE OF YOUR CAR OR TRUCK. NOT TO MENTION, THEYLL ALSO MAKE SOME VEHICLES SAFER AT THE SPEEDS WE TRAVEL ON TODAYS INTERSTATE HIGHWAYS. INCREASED BAR DIAMETERS, POLYURETHANE BUSHINGS, AND APPROPRIATE ATTACHMENT LINKS ALL ADD UP TO A SWAY BAR PACKAGE THAT IS DESIGNED TO WORK CORRECTLY WITH YOUR LOWERED CAR OR TRUCK AND YOUR AGGRESSIVE DRIVING STYLE.
    • IMPROVES RANGE OF MOTION & ELIMINATES BINDING
    • STRONG DESIGN PREVENTS DEFORMATION AND FAILURE
    • POSITIVE TRANSFER OF MOTION THROUGH SWAYBAR
    • OEM HIGH-PERFORMANCE QUALITY

  • FRONT HQ SERIES ADJUSTABLE COILOVERS:

    • WITH THE HQ SERIES OF COILOVERS, YOULL GET HIGH PERFORMANCE HANDLING, EXCEPTIONAL RIDE QUALITY AND THE ABILITY TO ADJUST YOUR CARS RIDE HEIGHT. THE RIDETECH COILOVERS FEATURE 24-POSITION REBOUND ADJUSTMENT TO HELP YOU FINE TUNE THE SHOCKS TO YOUR DRIVING PREFERENCES AND VEHICLE DEMANDS. WITH LARGE 1.834" PISTONS, HEAVY-DUTY 5/8" SHAFTS, AND IMPACT FORGED BODIES, HQ SERIES COILOVERS ARE BUILT TO PERFORM AND MADE TO LAST. THEYRE BACKED BY THE RIDETECH EXCLUSIVE 1,000,001 MILE WARRANTY. RIDETECH DEVELOPS THE SHOCK CALIBRATIONS AND SPRING RATES THROUGH THOUSANDS OF CROSS-COUNTRY TEST MILES, ON THEIR EXCLUSIVE TEST TRACK AND AT COMPETITION EVENTS FROM COAST TO COAST. RIDETECH UNDERSTANDS THE SUSPENSION NEEDS OF YOUR F-BODY BETTER THAN ANY OTHER COMPANY. THIS SYSTEM INCLUDES TWO FRONT HQ SERIES COILOVER SHOCKS AND TWO HYPERCO COIL SPRINGS WITH PROPER SPRING RATE.

  • REAR HQ SERIES ADJUSTABLE COILOVERS:

    • THESE REAR COILOVERS ARE DESIGNED TO PROVIDE THE OPTIMAL RIDE QUALITY AND EASE OF INSTALLATION FOR RIDETECH BOLT-ON 4-LINK SYSTEMS. RIDETECH CONTINUES TO OFFER TODAYS HOT RODDERS THE ULTIMATE IN RIDE QUALITY, HANDLING PERFORMANCE, TECHNICAL SUPPORT, AND NOW, SIMPLICITY, WITH THE NEW RIDETECH COILOVERS.
    • MONOTUBE GAS PRESSURE DESIGN OFFERS SUPERIOR FADE FREE PERFORMANCE
    • IMPACT FORGED ALUMINUM BODY PROVIDES SUPERIOR STRENGTH AND RELIABLE SERVICE
    • LARGER 1.834" PISTON PROVIDES OUTSTANDING RIDE QUALITY
    • DOUBLE SEALED ROD GUIDE WITH DUST COVER ELIMINATES OIL LEAKAGE
    • 5/8" CHROME SHOCK SHAFT
    • ANODIZED FINISH PROTECTS AGAINST CORROSION
    • CNC MACHINED BILLET HARDWARE
    • UNIQUE PINCH CLAMP HEIGHT ADJUSTER USES FINER THREAD FOR EASY ADJUSTMENT
    • INCLUDES 1/2" BORE X 1" KEVLAR LINED BEARINGS FOR NOISE FREE OPERATION

  • REAR 4-LINK SYSTEM:

    • THE BOLT-ON REAR 4 LINK SYSTEM REPLACES THE LEAF SPRINGS TO PROVIDE EXCELLENT RIDE QUALITY, HANDLING, TRACTION AND LOAD CAPACITY. IT IS COMPLETELY BOLT-ON AND PROVIDES MOUNTING FOR COILOVERS. THE PANHARD IS ADJUSTABLE SO YOU CAN OPTIMIZE YOUR TIRE CLEARANCE AT THE NEW LOWERED HEIGHT AND THE MOUNT HAS BEEN LOCATED TO OPTIMIZE THE BAR LENGTH AND ANGLE FOR THE LOWERED HEIGHT. THIS HELPS KEEP THE REAREND CENTERED IN THE TRUCK AND LOWERS THE ROLL CENTER TO MIMIZE BODY ROLL. THE R-JOINT ROD ENDS COMBINE THE BEST QUALITIES OF LOW FRICTION MOVEMENT, LATERAL STABILITY, FULL RANGE ARTICULATION, AND QUIET OPERATION INTO ONE SPECIAL BEARING THAT IS AS HOME ON THE STREET AS IT IS ON THE RACETRACK! THE C-NOTCHES ARE INCLUDED WITH THE KIT AND FIT THE FRAME RAIL.

    • WILWOOD BRAKE KIT INCLUDES:


  • WILWOOD FRONT DISC BRAKE KIT WITH 13" DRILLED ROTORS AND BLACK CALIPERS (140-10775-D):

    • FORGED NARROW SUPERLITE 6 PISTON CALIPERS WITH 13.06" DIAMETER, 2 PIECE ROTOR AND HAT KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WITH WHEEL, TIRE, AND SUSPENSION UPGRADES.

    • THESE BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

      • DRILLED & SLOTTED 1.25" THICK X 13.06" O.D. ROTORS
      • FORGED NARROW SUPERLITE 6 PISTON CALIPERS - BLACK
      • CALIPER MOUNTING BRACKETS
      • BP-10 SMART COMPOUND BRAKE PADS
      • HUBS, BEARINGS, SEALS, & ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • WILWOOD REAR DISC BRAKE KIT WITH 12.19" DRILLED ROTORS AND BLACK CALIPERS (140-10094-D):

    • FDL PRO SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE FOUR-PISTON CALIPERS 12.19" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

      • DRILLED & SLOTTED .810" THICK X 12.19" O.D. ROTORS WITH HATS
      • FORGED DYNALITE 4 PISTON CALIPERS - BLACK
      • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
      • BP-10 SMART COMPOUND BRAKE PADS
      • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

    • FULL BRAKE LINE KIT FOR THE FRONT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS
    • FULL BRAKE LINE KIT FOR THE REAR WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS
    • PARKING BRAKE CABLE KIT THAT CONNECTS TO THE WILWOOD PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION

    YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THE COILOVER KIT HERE, THE FRONT BRAKE KIT HERE, AND THE REAR BRAKE KIT HERE.
