COILOVER & 4-LINK SYSTEM,WILWOOD 13" BRAKES,RED CALIPERS,70-81 GM F-BODY

Brand New Ridetech Coilover & 4-Link System and Wilwood Disc Brake Kit, including Control Arms, MuscleBar Front Sway Bar, Rotors, Calipers, Brake Lines, and Parking Brake Cable Kit (Part #11170203-36).

The Ridetech 1970-1981 Camaro / Firebird Coil-Over package includes everything you need to completely upgrade your existing suspension and give your Camaro the aggressive lowered stance with modern drivability. The package contains front upper and lower control arms, front sway bar, a rear 4-Link, and 4 HQ Series Coil-Overs for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Each kit is engineered specific for each vehicle.

Ridetech System Includes:

• Front Upper and Lower StrongArms:
  • What says "performance" more than a set of tubular control arms! After all of the time and effort expended on your ride, you definitely can't let your stamped oem control arms detract from all that work. Finish your suspension off with these new tubular control arms. Built with all of the care and experience you have come to expect from us, these tubular control arms are a precision-engineered solution for ball joint binding and frame clearance issues that can haunt some vehicles. When you combine the performance benefits with the elegant design of these arms, there is no better choice on the market.
  • Development:
    • StrongArms are developed by Ridetech in Jasper, Indiana, on an actual running, driving vehicle. This allows us to properly address ALL fitment and performance issues. It also allows us to document an installation, demonstrate the installation to our sales techs, and allows ongoing evaluation of the performance of the StrongArms.
  • Design:
    • Ridetech think the best way to design any component is to keep it simple. That is why Strong Arms are designed with as few components as possible. The new 4-axis tubing bender allows precise, repeatable bends that no other machine can achieve. We can create elegant tubing bends that would otherwise require several separate welded components.
  • Components:
    • powder-coated in a satin black finish and completely assembled with ball joints and bushings. To reduce all stiction from the suspension movement, Injection Molded Delrin Bushings are used. These bushings are also impregnated with Teflon, which eliminates the need for lubrication.
  • Geometry:
    • Geometry of a suspension starts with the position of the frame mounts and the height of the spindle, not the shape of the control arm. However, there are a few small things in control arm design that can make a big difference in how a vehicle drives and performs.
      • Ridetech creates extra caster potential by adjusting the fore-and-aft position of the ball joints. At the same time, we make sure the wheel is properly positioned in the wheel-well so your new large wheels fit like they should!
      • The ball joint camber travel is re-centered to accommodate the new lowered ride height, so the ball joint doesn't bind during extreme suspension movement.
      • The perimeter of the StrongArms is contoured to allow maximum wheel clearance and turning radius.
      • All shock mounts, air spring mounts, and Sway bar mounts are integrated into the design, so you don't have to finish the engineering in order to enjoy your ride!
  • StrongArms are optimized to allow proper camber adjustment at your new lowered ride height without using a large stack of shims.
• Front MuscleBar Sway Bar:
  • Most OEM front swaybars were calibrated with tires and cornering loads that were radically less capable than today. We increase the diameter of the swaybar to minimize the body roll through the corners to optimize the handling performance. Includes Delrin bushing to eliminate stiction and allow the swaybar to move freely.
  • Ridetech has upgraded the traditional notion of sway bars with the new MuscleBar. Using precision CNC tubing benders, investment cast bar ends and billet aluminum frame mounts with low friction bushings. Ridetech can now produce sway bars with unheard of dimensional and rate accuracy.
  • Billet aluminum frame mounts, anodized black.
  • Low friction frame bushings allow easy and predictable rotation over the stiction of polyurethane or rubber.
  • Precision CNC bent tubing for accurate and repeatable fitment.
  • Investment cast steel bar ends offer performance and appearance improvements over the traditional beat it flat and punch a hole in it"manufacturing.
  • Easy to install end links with barrel lock nuts to prevent over-tightening. The bushing contour matches the concave bar end to reduce bind.
  • Powder coated satin black
• Front HQ Series Adjustable Coilovers:
  • Upgrade your 1970-1981 Camaro or Firebird with HQ Series adjustable Coil-Overs. You'll get high performance handling, exceptional ride quality and the ability to adjust your car's ride height. Our Coil-Overs feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. With large 1.834" pistons, heavy duty 5/8" shafts, and impact forged bodies, HQ Series Coil-Overs are built to perform and made to last. They're backed by our exclusive 1,000,001 mile warranty. Ridetech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your F-body better than any other company. This system includes two front HQ Series Coil-Over shocks and two Hyperco coil springs with proper spring rate.
• Rear HQ Series Adjustable Coilovers:
  • This Coilover kit is designed to be used with a RideTech Airbar. It has been developed to give the optimal ride quality and ease of installation for Airbar systems.
  • RideTech continues to offer today's hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new RideTech Coil-Overs.
  • Monotube gas pressure design offers superior fade free performance
  • Impact forged aluminum body provides superior strength and reliable service
  • Larger 1.834" piston provides outstanding ride quality
  • Double sealed rod guide with dust cover eliminates oil leakage
  • 5/8" chrome shock shaft
  • Anodized finish protects against corrosion
  • CNC machined billet hardware
  • Unique pinch clamp height adjuster uses finer thread for easy adjustment
  • Includes 1/2" bore x 1" aramid composite lined bearings for noise free operation
• Rear Bolt-on 4-Link Kit:
• Ridetech Bolt-On suspension systems for 1970-1981 Camaro / Firebird. Includes a new adjustable rear cradle assembly, double adjustable upper and lower 4-link bars with R-Joints, bolt-on axle brackets, and all necessary hardware and fasteners.
• Lowered stance / approximately 1"- 3" drop (Adjustable)
• Eliminates spring wrap / wheel hop

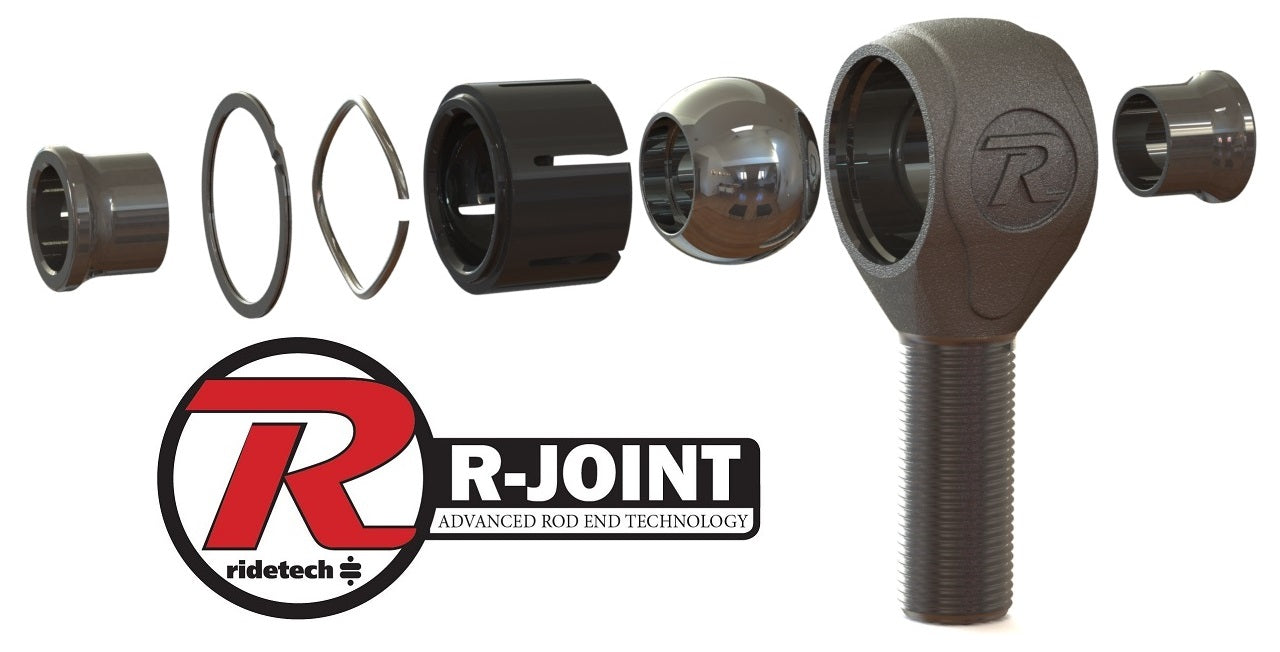

• Double adjustable upper and lower bars are standard and include R-Joint rod ends
• Adjustable anti-squat to maximize performance on straight line or through the corners (50% to 100%)
• Optimized roll center height for confident cornering
• Easy installation, no cutting through the floor pan or welding to the car.
• New adjustable cradle design allows for variable manufacturing tolerances.
• Lower bar mount bolts to factory leaf spring perch
• Wilwood Front Disc Brake Kit with 12.90" Rotors and Red Calipers (140-12278-R):
  • Forged Narrow Superlite 6 piston calipers with 12.90" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big Brake kits provide increased brake capacity and complimentary style with with wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.
  • These Brake kits require at least 17" diameter wheels.
  • Kit includes parts for both front wheels:
    • 1.10" Thick x 12.90" O.D. Rotors
    • Forged Narrow Superlite 6 Piston Calipers - Red
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals, &
    • All Hardware necessary to install the complete braking system on both front wheels
• Wilwood Rear Disc Brake Kit with 12.90" Rotors and Red Calipers (140-12964-R):
  • Forged Narrow Superlite 4 piston rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake. Forged Superlite four-piston calipers 12.90" rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • 1.10" Thick x 12.90" O.D. Rotors with Hats
    • Forged Narrow Superlite 4 Piston Calipers - Red
    • Drum Parking Brake Assemblies with Caliper Mounting Brackets
    • Hats
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Full brake line kit for the front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full brake line kit for the rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Parking brake cable kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission

Fits:

• Chevrolet:
  • 1970-1981 Camaro
• Pontiac:
  • 1970-1981 Firebird

You can view and download the complete assembly instruction booklets for the Ridetech Coilover & 4-Link Kit, the Wilwood Front Brake Kit, and the Wilwood Rear Brake Kit
