APPLICATIONS:
- 1967-1969 CAMARO
- 1967-1969 FIREBIRD

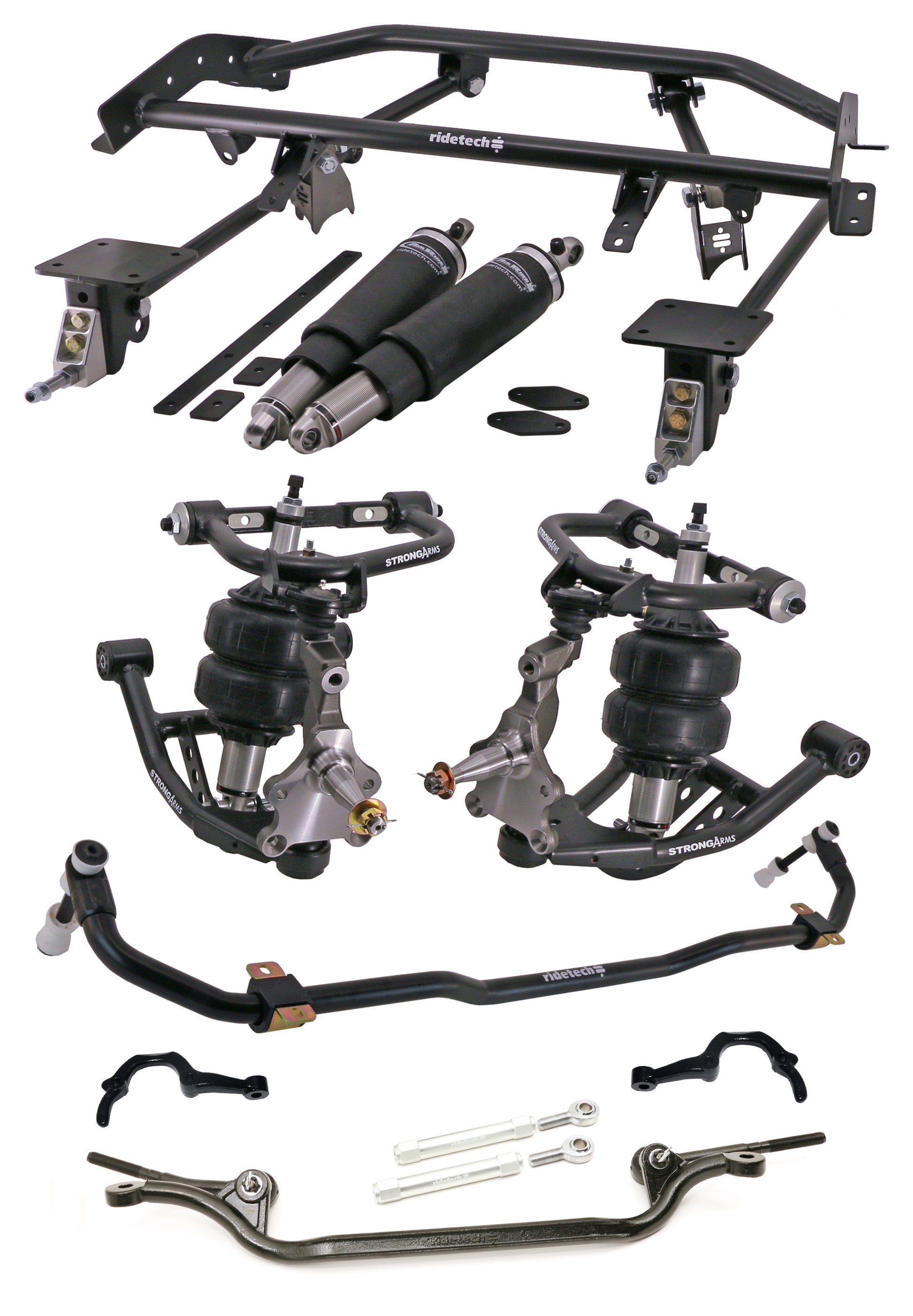

RIDETECH SYSTEM INCLUDES:
- THE RIDETECH SPINDLE IS A HEAVY-DUTY FORGING THAT IS APPROXIMATELY 1.75" TALLER, BALLJOINT-TO-BALLJOINT, THAN THE OEM SPINDLE. THIS BASIC GEOMETRY CHANGE INCREASES THE CAMBER GAIN DURING SUSPENSION COMPRESSION, ALLOWING THE TIRE TO LEAN INTO THE TURN INSTEAD OF AWAY FROM THE TURN. THE RIDETECH SPINDLE ALSO HAS A PIN HEIGHT THAT IS 2" HIGHER THAN THE OEM SPINDLE. THIS MEANS THAT YOUR CAR WILL SIT 2" LOWER THAN IT WOULD WITH THE OEM SPINDLE. FOR USE WITH DISC BRAKES.
- THIS SYSTEM IS DESIGNED TO FIX THE POOR STEERING GEOMETRY ON THESE F-BODY CARS

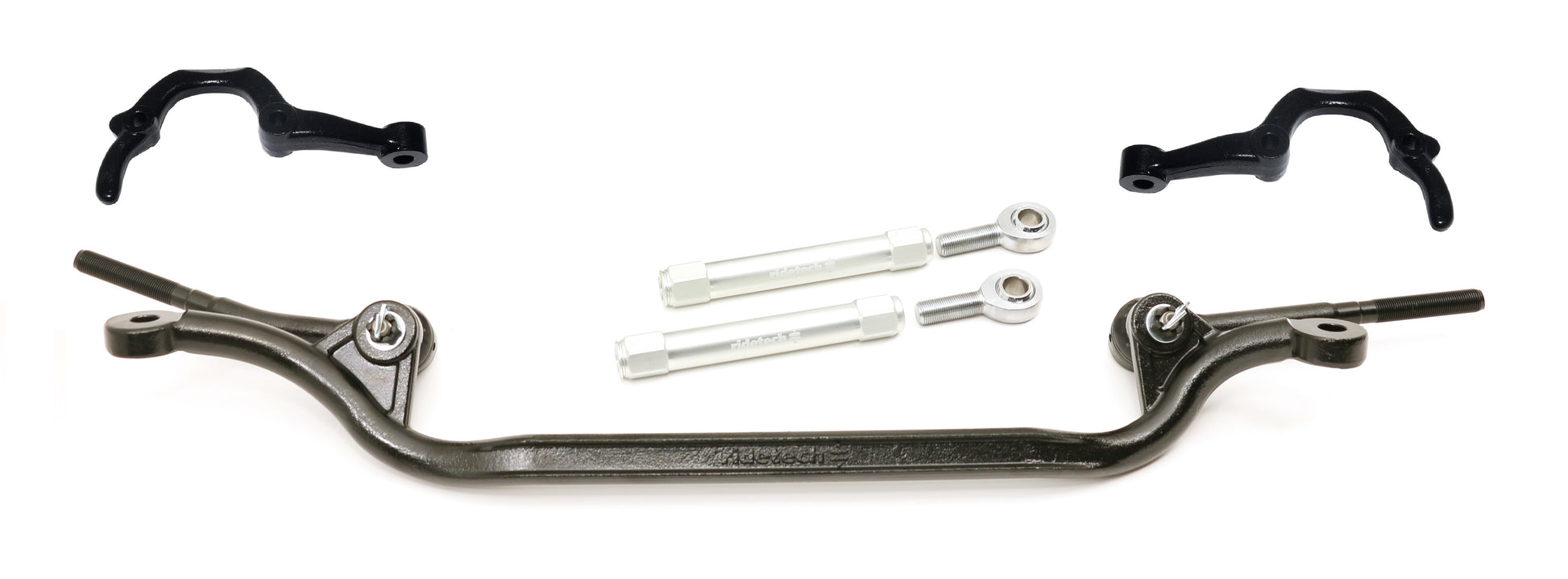

- INCLUDES:
- STEERING ARMS: DESIGNED TO CORRECT BUMPSTEER AND ALLOW CLEARANCE FOR UP TO A 10" WIDE WHEEL WITH A 5.75" BACKSPACING
- FORGED DRAGLINK: BOLTS IN PLACE OF OEM DRAGLINK TO RELOCATE THE INNER TIEROD END TO MINIMIZE BUMPSTEER
- TIE ROD ASSEMBLIES: INTEGRATES WITH YOUR NEW STEERING ARMS AND CENTERLINK TO PROVIDE A TRU "NO FAB" BOLT ON STEERING SYSTEM.
- WHAT SAYS "PERFORMANCE" MORE THAN A SET OF TUBULAR CONTROL ARMS! AFTER ALL OF THE TIME AND EFFORT EXPENDED ON YOUR RIDE, YOU DEFINITELY CANT LET YOUR STAMPED OEM CONTROL ARMS DETRACT FROM ALL THAT WORK. FINISH YOUR SUSPENSION OFF WITH THESE NEW TUBULAR CONTROL ARMS. BUILT WITH ALL OF THE CARE AND EXPERIENCE YOU HAVE COME TO EXPECT FROM US, THESE TUBULAR CONTROL ARMS ARE A PRECISION-ENGINEERED SOLUTION FOR BALL JOINT BINDING AND FRAME CLEARANCE ISSUES THAT CAN HAUNT SOME VEHICLES. WHEN YOU COMBINE THE PERFORMANCE BENEFITS WITH THE ELEGANT DESIGN OF THESE ARMS, THERE IS NO BETTER CHOICE ON THE MARKET.
- DEVELOPMENT: STRONGARMS ARE DEVELOPED BY RIDETECH IN JASPER, INDIANA, ON AN ACTUAL RUNNING, DRIVING VEHICLE. THIS ALLOWS US TO PROPERLY ADDRESS ALL FITMENT AND PERFORMANCE ISSUES. IT ALSO ALLOWS US TO DOCUMENT AN INSTALLATION, DEMONSTRATE THE INSTALLATION TO OUR SALES TECHS, AND ALLOWS ONGOING EVALUATION OF THE PERFORMANCE OF THE STRONGARMS.
- DESIGN: RIDETECH THINK THE BEST WAY TO DESIGN ANY COMPONENT IS TO KEEP IT SIMPLE. THAT IS WHY STRONG ARMS ARE DESIGNED WITH AS FEW COMPONENTS AS POSSIBLE. THE NEW 4-AXIS TUBING BENDER ALLOWS PRECISE, REPEATABLE BENDS THAT NO OTHER MACHINE CAN ACHIEVE. WE CAN CREATE ELEGANT TUBING BENDS THAT WOULD OTHERWISE REQUIRE SEVERAL SEPARATE WELDED COMPONENTS.
- COMPONENTS: POWDERCOATED IN A SATIN BLACK FINISH AND COMPLETELY ASSEMBLED WITH BALL JOINTS AND BUSHINGS. TO REDUCE ALL STICKION FROM THE SUSPENSION MOVEMENT, INJECTION MOLDED DELRIN BUSHINGS ARE USED. THESE BUSHINGS ARE ALSO IMPREGNATED WITH TEFLON, WHICH ELIMINATES THE NEED FOR LUBRICATION.
- GEOMETRY:GEOMETRY OF A SUSPENSION STARTS WITH THE POSITION OF THE FRAME MOUNTS AND THE HEIGHT OF THE SPINDLE, NOT THE SHAPE OF THE CONTROL ARM. HOWEVER, THERE ARE A FEW SMALL THINGS IN CONTROL ARM DESIGN THAT CAN MAKE A BIG DIFFERENCE IN HOW A VEHICLE DRIVES AND PERFORMS. RIDETECH CREATES EXTRA CASTER POTENTIAL BY ADJUSTING THE FORE-AND-AFT POSITION OF THE BALL JOINTS. AT THE SAME TIME, WE MAKE SURE THE WHEEL IS PROPERLY POSITIONED IN THE WHEEL-WELL SO YOUR NEW LARGE WHEELS FIT LIKE THEY SHOULD! THE BALLJOINT CAMBER TRAVEL IS RE-CENTERED TO ACCOMMODATE THE NEW LOWERED RIDE HEIGHT, SO THE BALL JOINT DOESNT BIND DURING EXTREME SUSPENSION MOVEMENT. THE PERIMETER OF THE STRONGARMS IS CONTOURED TO ALLOW MAXIMUM WHEEL CLEARANCE AND TURNING RADIUS. ALL SHOCK MOUNTS, AIRSPRING MOUNTS, AND SWAYBAR MOUNTS ARE INTEGRATED INTO THE DESIGN, SO YOU DONT HAVE TO FINISH THE ENGINEERING IN ORDER TO ENJOY YOUR RIDE!
- STRONGARMS ARE OPTIMIZED TO ALLOW PROPER CAMBER ADJUSTMENT AT YOUR NEW LOWERED RIDE HEIGHT WITHOUT USING A LARGE STACK OF SHIMS.
- LETS FACE IT...THE MOST OVERLOOKED SUSPENSION COMPONENT IS ALSO ONE OF THE MOST IMPORTANT. THE MAGIC YOU COULD BE MISSING IN YOUR SUSPENSION MAY BE NOTHING MORE THAN SIMPLY ADDING OR UPGRADING YOUR SWAY BARS! THE NEW MUSCLEBAR SWAY BARS WERE DEVELOPED SPECIFICALLY FOR LOWERED VEHICLES AND WILL GREATLY ENHANCE THE CORNERING PERFORMANCE OF YOUR CAR OR TRUCK. NOT TO MENTION, THEYLL ALSO MAKE SOME VEHICLES SAFER AT THE SPEEDS WE TRAVEL ON TODAYS INTERSTATE HIGHWAYS. INCREASED BAR DIAMETERS, POLYURETHANE BUSHINGS, AND APPROPRIATE ATTACHMENT LINKS ALL ADD UP TO A SWAY BAR PACKAGE THAT IS DESIGNED TO WORK CORRECTLY WITH YOUR LOWERED CAR OR TRUCK AND YOUR AGGRESSIVE DRIVING STYLE.
- IMPROVES RANGE OF MOTION & ELIMINATES BINDING
- STRONG DESIGN PREVENTS DEFORMATION AND FAILURE
- POSITIVE TRANSFER OF MOTION THROUGH SWAYBAR
- OEM HIGH-PERFORMANCE QUALITY

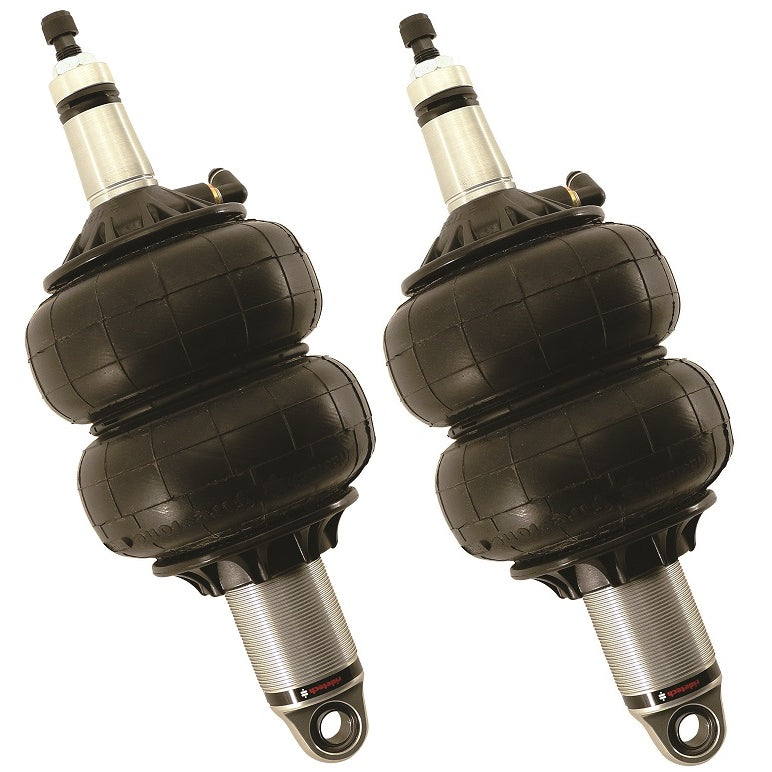

- HQ SERIES SHOCKWAVES MOUNT IN YOUR 1967-1969 CAMARO OR FIREBIRD JUST LIKE COILOVERS AND DELIVER GREAT RIDE QUALITY, HANDLING WITH ADJUSTABLE AIR RIDE STANCE. RIDETECHS PATENTED, INTEGRAL "SHOCK-WITHIN-A-SPRING" AIR SPRING AND SHOCK ABSORBER ASSEMBLY IS A PROVEN WINNER AT SHOWS AND IN MOTION. 24-POSITION REBOUND ADJUSTMENT HELPS YOU FINE TUNE THE SHOCKS TO YOUR DRIVING PREFERENCES AND VEHICLE DEMANDS. ADVANCED TECHNOLOGY HIDES WITHIN THE SHOCKS. THE MONOTUBE DESIGN FEATURES LARGE 1.834‚¬³ PISTONS, HEAVY DUTY 5/8‚¬³ SHAFTS, AND IMPACT-FORGED BODIES. SINCE HQ SERIES SHOCKWAVES ARE BUILT TO PERFORM AND MADE TO LAST, THEY ARE BACKED BY RIDETECHS EXCLUSIVE 1,000,001 MILE WARRANTY. WE UNDERSTAND YOUR CAMARO OR FIREBIRDS SUSPENSION BETTER THAN ANY OTHER COMPANY. SHOCK CALIBRATIONS AND AIR SPRING SPECS ARE BASED ON MORE THAN 20 YEARS OF EXTENSIVE AIR RIDE DEVELOPMENT ON THE STREET, HIGHWAYS AND RACE TRACKS. IT ALL ADDS UP TO PREDICTABLE HANDLING THAT IS COMPARABLE TO COILOVERS BUT WITH INSTANT RIDE HEIGHT ADJUSTMENT. YOU GET THE BEST OF BOTH WORLDS.
- MUSCLE CARS HAVE ALWAYS BEEN THE BACKBONE OF HOTRODDING...AND NOW THEY ARE HOTTER THAN EVER! THE PROBLEM IS NOBODY WANTS TO PUT UP WITH THE RIDE QUALITY, HANDLING, AND BRAKING TECHNOLOGY OF 40 YEARS AGO. AFTER DRIVING A NEW CAMARO OR FIREBIRD, THE COMPROMISES OF A STANDARD LEAFSPRING SUSPENSION JUST DOESNT CUT IT! NOW THERE IS A SOLUTION......

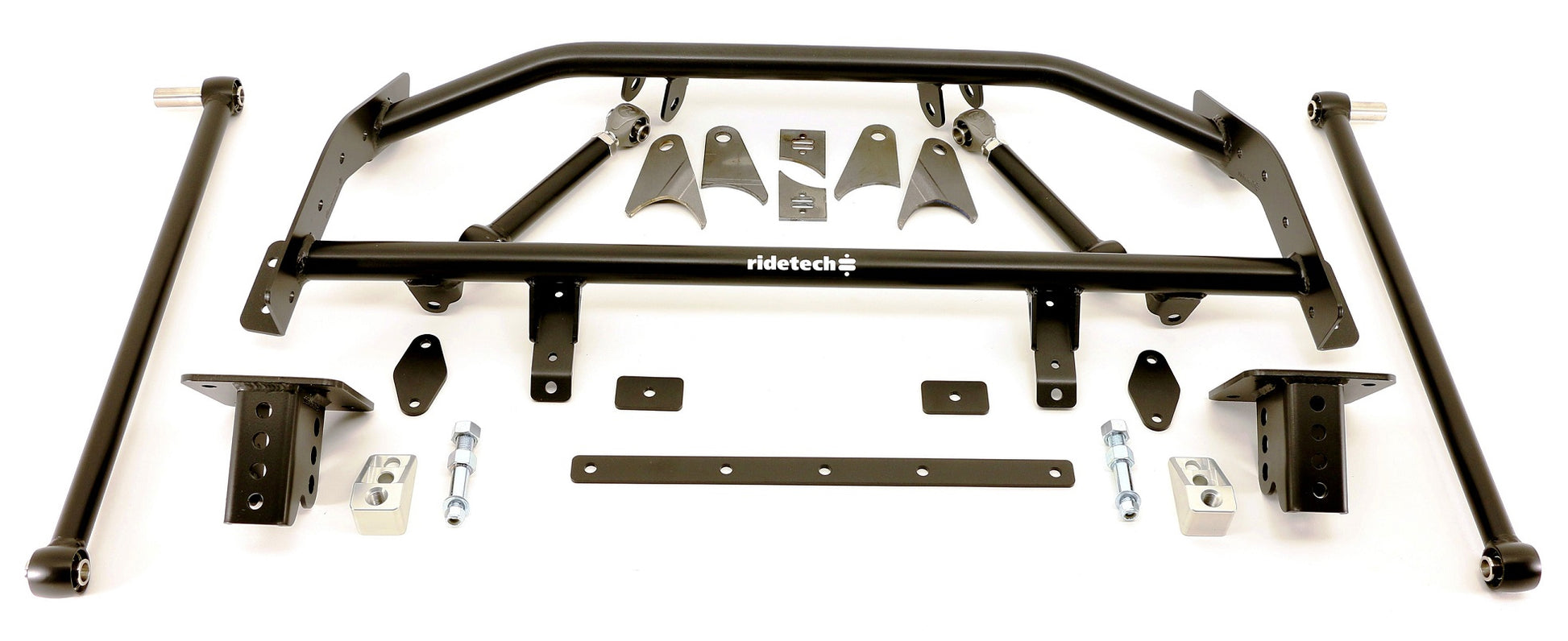

- THE RIDETECH BOLT-ON 4-LINK INSTALLS ONTO THE OEM LEAFSPRING MOUNTS OF YOUR PRIZED F-BODY... NO CUTTING, NO FABRICATION, JUST FOUR SMALL TABS TO WELD TO THE AXLE FOR YOUR UPPER BARS. THE RIDE HEIGHT OF YOUR CAR IS TYPICALLY LOWERED BY APPROXIMATELY 2". THE RIDE QUALITY IS DRAMATICALLY IMPROVED OVER STOCK... INSTEAD OF A WALLOWING SOFT RIDE, YOULL EXPERIENCE A CRISP, CONTROLLED RIDE QUALITY THAT WILL INSPIRE MORE CONFIDENCE FOR PERFORMANCE DRIVING.
- THE AREA OF LARGEST IMPROVEMENT IS THE HANDLING AND CORNERING PERFORMANCE. THE SYSTEM ELIMINATES THE OEM LEAFSPRING AND REPLACES THEM WITH A 4 LINK REAR SUSPENSION. THE 4 LINK BARS OFFER MORE PRECISE POSITIONING OF THE REAR AXLE TO ELIMINATE FLEXING AND INCREASE STABILITY THROUGH THE CORNERS. WHEN COMBINED WITH THE RIDETECH COIL-OVER FRONT SUSPENSION KIT, YOUR CLASSIC MUSCLECAR CAN NOW ENJOY THE BENEFITS OF MODERN HANDLING AND RIDE QUALITY TECHNOLOGY. THE R-JOINT ROD ENDS COMBINE THE BEST QUALITIES OF LOW FRICTION MOVEMENT, LATERAL STABILITY, FULL RANGE ARTICULATION, AND QUIET OPERATION INTO ONE SPECIAL BEARING, THAT IS AS HOME ON THE STREET AS IT IS ON THE RACETRACK!
- IF YOU WANT YOUR CLASSIC MUSCLE CAR TO RIDE AND DRIVE LIKE A MODERN PERFORMANCE CAR, THE BOLT-ON 4-LINK SYSTEM IS THE PERFECT SOLUTION!
- WE WOULDNT EXPECT YOU TO BOLT ON ANY SUSPENSION COMPONENT THAT WE HAVENT THOROUGHLY TESTED. RIDETECH REGULARLY USES THESE CARS IN A WIDE RANGE OF PERFORMANCE DRIVING ENVIRONMENTS, AS WELL AS PLAIN OL HIGHWAY TIME. OUR 4-LINK SYSTEMS HAVE PROVEN TIME AND TIME AGAIN TO PROVIDE NOT ONLY GROUND SHAKING TRACTION, BUT A GREAT HIGHWAY RIDE AS WELL.
YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS SUSPENSION SYSTEM HERE & TRU TURN SYSTEM HERE
