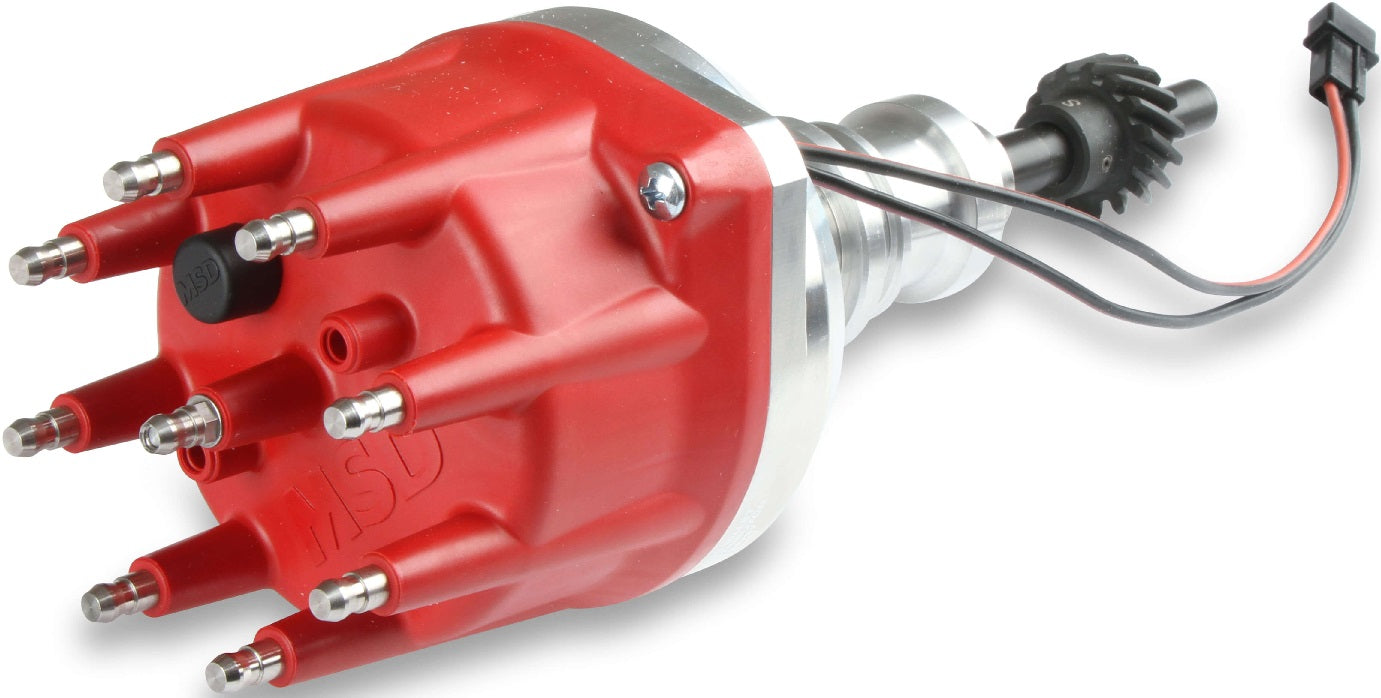

DISTRIBUTOR,PRO BILLET,FORD 289/302W,STEEL GEAR,HI RAM

BRAND NEW MSD PRO-BILLET SMALL DIAMETER DISTRIBUTOR WITH RED CAP & STEEL GEAR, COMPATIBLE WITH HOLLEY 289-302 HI-RAM CARBURETOR INTAKE MANIFOLDS

SPECIFICALLY DESIGNED FOR USE WITH THE HOLLEY FORD HI-RAM CARBURETOR INTAKE MANIFOLDS, THE FORD DISTRIBUTORS ARE BUILT ON THE PROVEN FOUNDATION OF THE MSD PRO-BILLET DISTRIBUTOR LINE. THEY RELY ON MSD RACE PROVEN MAGNETIC PICKUP AND PRECISION RELUCTOR TO DELIVER ACCURATE TRIGGER SIGNALS TO THE MSD IGNITION THROUGHOUT RPM RANGE.

THE RELUCTOR ASSEMBLY IS TURNED BY A HARDENED STEEL SHAFT WHICH RIDES IN A SEALED BALL BEARING FOR HIGH RPM STABILITY AND ENDURANCE. MOUNTED TO THE TOP OF THIS SHAFT IS A FULLY ADJUSTABLE MECHANICAL ADVANCE ASSEMBLY, AND WHILE AT THE BOTTOM, YOU HAVE A STEEL GEAR FOR USE WITH HYDRAULIC ROLLER CAMSHAFTS.

FEATURES:

• DESIGNED SPECIFICALLY FOR THE HOLLEY FORD 289-302 HI-RAM CARBURETED MANIFOLD PART #300-275, 300-275BK WITH 300-207, 300-207BK HI-RAM PLENUM TOP
• SUPPLIED WITH A STEEL DISTRIBUTOR GEAR, COMPATIBLE WITH MOST HYDRAULIC ROLLER CAM APPLICATIONS
• MUST BE USED WITH AN MSD IGNITION CONTROL THAT ACCEPTS MAGNETIC INPUTS SIGNAL
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE FOR STRENGTH & DURABILITY
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY A SEALED BALL BEARING
• MAINTENANCE-FREE MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• CNC MACHINED BILLET ALUMINUM HOUSING & BILLET ALUMINUM BASE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS PROVIDE THE ABILITY TO CREATE A TIMING CURVE PERFECT FOR YOUR ENGINE

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• EMISSION CODE: 4
• ENGINE: 289-302
• GEAR: STEEL
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS DISTRIBUTOR HERE.
