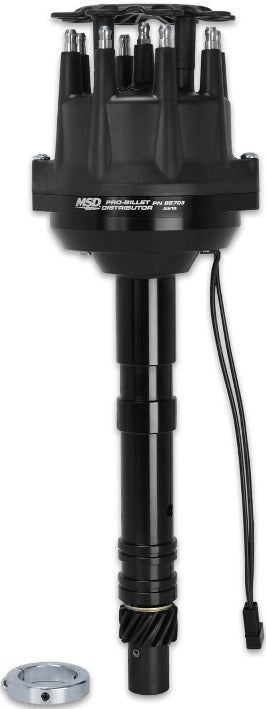

DISTRIBUTOR,PRO BILLET,CHEVY V-8,SMALL,BLACK

BRAND NEW MSD SMALL DIAMETER CHEVY V8 PRO BILLET DISTRIBUTOR, SBC GEN I, BLACK FINISH, COMPATIBLE WITH MSD 6, 7, OR 8 SERIES IGNITION CONTROL

ALL THE PERFORMANCE OF OUR PRO-BILLET LINE FOR YOUR FORD, CHEVY OR CHRYSLER. MSD PRO-BILLET DISTRIBUTORS HAVE BEEN ENGINEERED TO ENDURE THE RIGORS OF HIGH PERFORMANCE & RACING ENGINES. WHETHER CRUISING THE STREETS OR RACING STOCK CARS, DRAGSTERS, BOATS OR TRUCKS, MSD HAS A DISTRIBUTOR FOR IT.

MSD USES STATE OF THE ART, COMPUTER NUMERICAL CONTROLLED (CNC) MILLS & LATHES TO MACHINE EACH HOUSING. AFTER A LONG SERIES OF PRECISE CUTS & MOVEMENTS, THE BILLET IS FORMED INTO A FLAWLESS DISTRIBUTOR HOUSING THAT IS ACCURATE TO WITHIN 0.001". THE FLEX-FREE HOUSINGS ARE LIGHTWEIGHT, HAVE NO POROSITY OR WEAK AREAS & LOOK GREAT ON POLISHED SHOW QUALITY ENGINES.

NOTE: MUST BE USED WITH AN MSD 6, 7 OR 8-SERIES IGNITION.

FEATURES:

• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING FOR SMOOTH OPERATION AT ALL RPMS
• MAINTENANCE-FREE MAGNETIC PICKUP AND PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• CNC MACHINED BILLET ALUMINUM HOUSING AND BILLET ALUMINUM BASE PROVIDING SUPERIOR STRENGTH & GREAT LOOKS
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS AND STOP BUSHINGS (EXCEPT LOCKED OUT VERSIONS)
• ADVANCE PLATE AND WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QРQ COATED FOR FRICTION REDUCTION
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO PLATE
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS OR RACING APPLICATIONS

SPECS:

• BRAND: MSD
• COLOR: BLACK
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
