DISTRIBUTOR,PRO BILLET,CHEVY V-8,BLACK

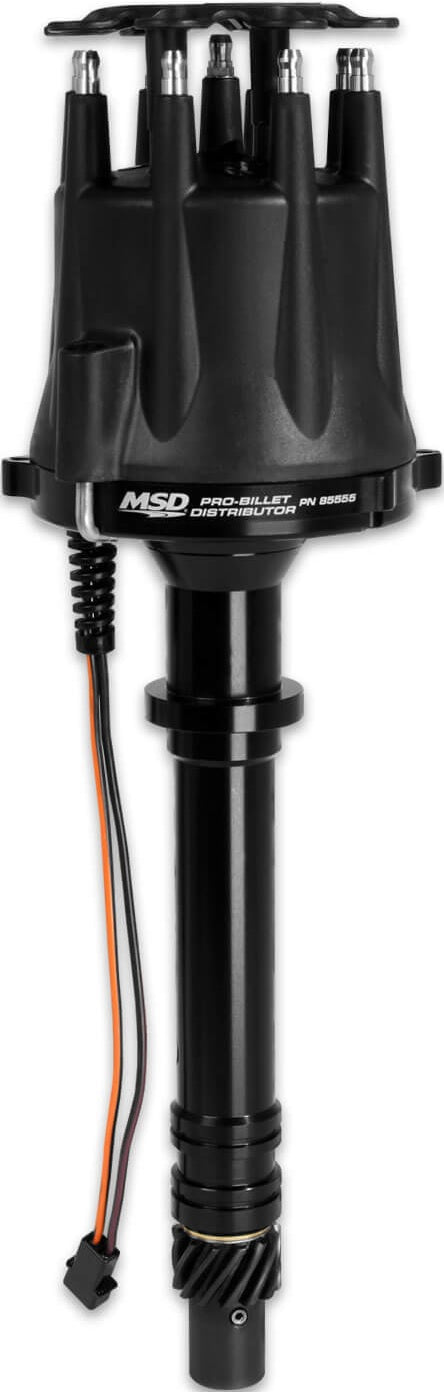

BRAND NEW MSD PRO-BILLET DISTRIBUTOR, BLACK, COMPATIBLE WITH CHEVROLET V8 ENGINES, PRODUCED BY HOLLEY PERFORMANCE PRODUCTS

THE HOUSING IS MACHINED FROM A BILLET OF 6061-T6 ALUMINUM ON A STATE-OF-THE-ART CNC MACHINE PRODUCING EXACT TOLERANCES. FOR HIGH RPM STABILITY, A .500" STEEL SHAFT IS SUPPORTED BY A SEALED BALL BEARING & LONG SINTERED BUSHING. THIS SHAFT ALSO RECEIVES A QPQ COATING FOR FRICTION REDUCTION & RESISTANCE TO CORROSION.

A PRECISION MACHINED RELUCTOR IS ATTACHED TO THE SHAFT WHICH TRIGGERS THE MAGNETIC PICK-UP MOUNTED IN THE HOUSING. THIS HIGH OUTPUT MAGNETIC PICK-UP IS THE MOST ACCURATE WAY TO TRIGGER YOUR IGNITION. WITH NO MOVING PARTS TO WEAR OR ADJUST THE PICK-UP IS MAINTENANCE FREE.

NOTE: DIFFERENT SPRINGS & STOP BUSHINGS ARE SUPPLIED SO YOU CAN TUNE AN ADVANCE CURVE TO MATCH YOUR APPLICATION. MUST BE USED WITH AN MSD 6, 7 OR 8-SERIES IGNITION.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING & BILLET ALUMINUM BASE
• WILL NOT ACCEPT VACUUM ADVANCE CANISTER
• MUST BE USED WITH AN MSD IGNITION CONTROL
• SUPPLIED WITH AN HEI STYLE DISTRIBUTOR CAP & ROTOR (ACCEPTS CAP-A-DAPTS)
• O-RING SEALS CAN BE ADDED TO MODIFIED BLOCKS TO IMPROVE OIL PRESSURE CONTROL
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO DISTRIBUTOR & CAM GEAR
• NYLON PADS ENSURE SMOOTH OPERATION OF ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO PLATE
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY SEALED BALL BEARING & EXTRA LONG SINTERED BUSHING
• MAINTENANCE-FREE MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT RPM RANGE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS

SPECS:

• COLOR: BLACK
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
