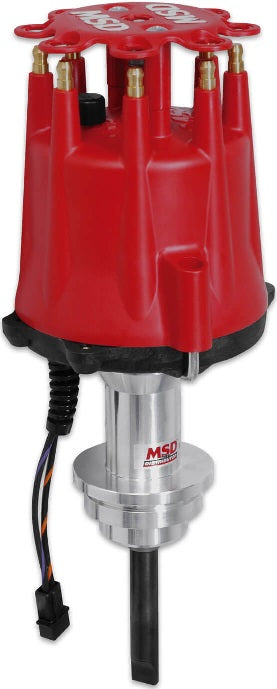

DISTRIBUTOR,PRO BILLET,MOPAR 318/340/360

BRAND NEW MSD PRO BILLET DISTRIBUTOR, RED FINISH, MSD 6, 7, OR 8 SERIES IGNITION, COMPATIBLE WITH CHRYSLER SMALL BLOCK LA 273, 318, 340 & 360

REMOVE THE MSD CAP AND RACE ROTOR & FIND EASY ACCESS TO THE ADJUSTABLE MECHANICAL ADVANCE ASSEMBLY FOR EASY ADJUSTMENTS. THIS ADVANCE IS DESIGNED FOR ACCURACY & STRENGTH WITH TIG-WELDED WEIGHT PINS, NYLON PADS FOR SMOOTH MOVEMENT OF THE WEIGHTS AND A QPQ COATING FOR FRICTION REDUCTION. DIFFERENT ADVANCE SPRINGS & STOP BUSHINGS ARE SUPPLIED SO YOU CAN CUSTOM TAILOR A TIMING CURVE TO FIT YOUR NEEDS.

SUPPORTING THE ADVANCE ASSEMBLY IS A HARDENED, POLISHED STEEL SHAFT. 2 BALL BEARING GUIDES ARE USED TO SUPPORT THE SHAFT PRODUCING INCREDIBLE STABILITY. PRECISION PADDLES OF A ZINC PLATED RELUCTOR PASS A MAINTENANCE-FREE MAGNETIC PICKUP CREATING A TRIGGER SIGNAL THAT TELLS THE MSD TO FIRE.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING & DUРONT RУNITE BASE
• MUST BE USED WITH AN MSD IGNITION CONTROL
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY 2 SEALED BALL BEARINGS

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• ENGINE: CHRYSLER SMALL BLOCK LA
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
