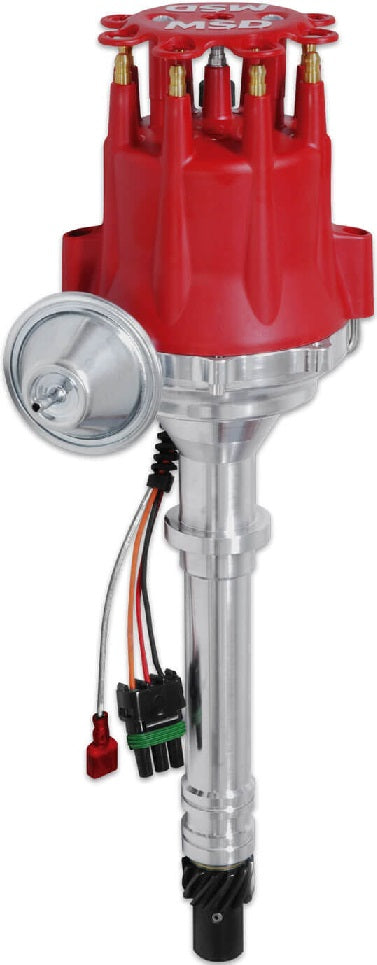

DISTRIBUTOR,READY-TO-RUN,CHEVY V-8

BRAND NEW MSD DISTRIBUTOR WITH BUILT-IN INTERNAL MODULE, RED, COMPATIBLE WITH CHEVROLET V8 ENGINES, PRODUCED BY HOLLEY PERFORMANCE PRODUCTS

THE PRO-BILLET READY-TO-RUN DISTRIBUTOR IS THE PERFECT UPGRADE FOR OUTDATED POINTS DISTRIBUTORS OR BULKY HEIS. SIMPLY INSTALL THE DISTRIBUTOR IN THE ENGINE, CONNECT THREE WIRES, THE COIL AND FIRE IT UP!

A MAINTENANCE-FREE MAGNETIC PICK-UP ACCURATELY TRIGGERS THE MODULE. THE INCREASED OUTPUT OF THE AMPLIFIER EASILY OUTPERFORMS STOCK IGNITIONS AND WILL SMOOTH OUT THE ENGINE IDLE, IMPROVE STARTING AND PROVIDE A MUCH HIGHER RPM RANGE.

THE READY-TO-RUN FEATURES MSD ADJUSTABLE MECHANICAL ADVANCE WHICH ALLOWS YOU TO CUSTOM TAILOR AN IGNITION CURVE TO MATCH YOUR ENGINE NEEDS. THERE IS ALSO A VACUUM ADVANCE CANISTER TO HELP IMPROVE ECONOMY. FOR POSITIVE STREET PERFORMANCE, THE READY-TO-RUN IS THE BEST CHOICE.

INCLUDES A SEPARATE TACH CIRCUIT THAT IS IDEAL TO TRIGGER AN AFTERMARKET EFI SUCH AS AN ATOMIC EFI SYSTEM.

FEATURES:

• SIMPLE AND CLEAN INSTALLATION WITH ONLY THREE WIRES TO CONNECT
• SUPPLIED WITH AN HEI STYLE DISTRIBUTOR CAP AND ROTOR (ACCEPTS CAP-A-DAPTS)
• DOES NOT REQUIRE AN MSD IGNITION CONTROL
• CARB E.O. APPROVED
• NOW INCLUDES BUILD-IN REV LIMITER!
• O-RING SEALS CAN BE ADDED TO MODIFIED BLOCKS TO IMPROVE OIL PRESSURE CONTROL
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO THE DISTRIBUTOR AND CAM GEAR
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• POWERFUL BUILT-IN MODULE PRODUCES A 7.5 AMP SINGLE SPARK THROUGH HIGH RPM
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS AND STOP BUSHINGS
• VACUUM ADVANCE CANISTER FOR IMPROVED ECONOMY (CAN BE LOCKED OUT)
• CNC MACHINED BILLET ALUMINUM HOUSING AND BILLET ALUMINUM BASE
• MAINTENANCE-FREE MAGNETIC PICKUP AND PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING
• ADVANCE PLATE AND WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL AND QPQ COATED FOR FRICTION REDUCTION
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE WEIGHT PINS ARE STAKED AND TIG WELDED TO THE PLATE

SPECS:

• BRAND: MSD
• C.A.R.B. EO #: D-40-39
• COLOR: RED
• DISTRIBUTOR TYPE: READY TO RUN
• EMISSION CODE: 1
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.

YOU CAN VIEW AND DOWNLOAD THE GEAR LUBE ADDENDUM HERE.

YOU CAN VIEW AND DOWNLOAD THE REV LIMITER ADDENDUM HERE.

YOU CAN VIEW AND DOWNLOAD THE SUPPLY VOLTAGE ADDENDUM HERE.
