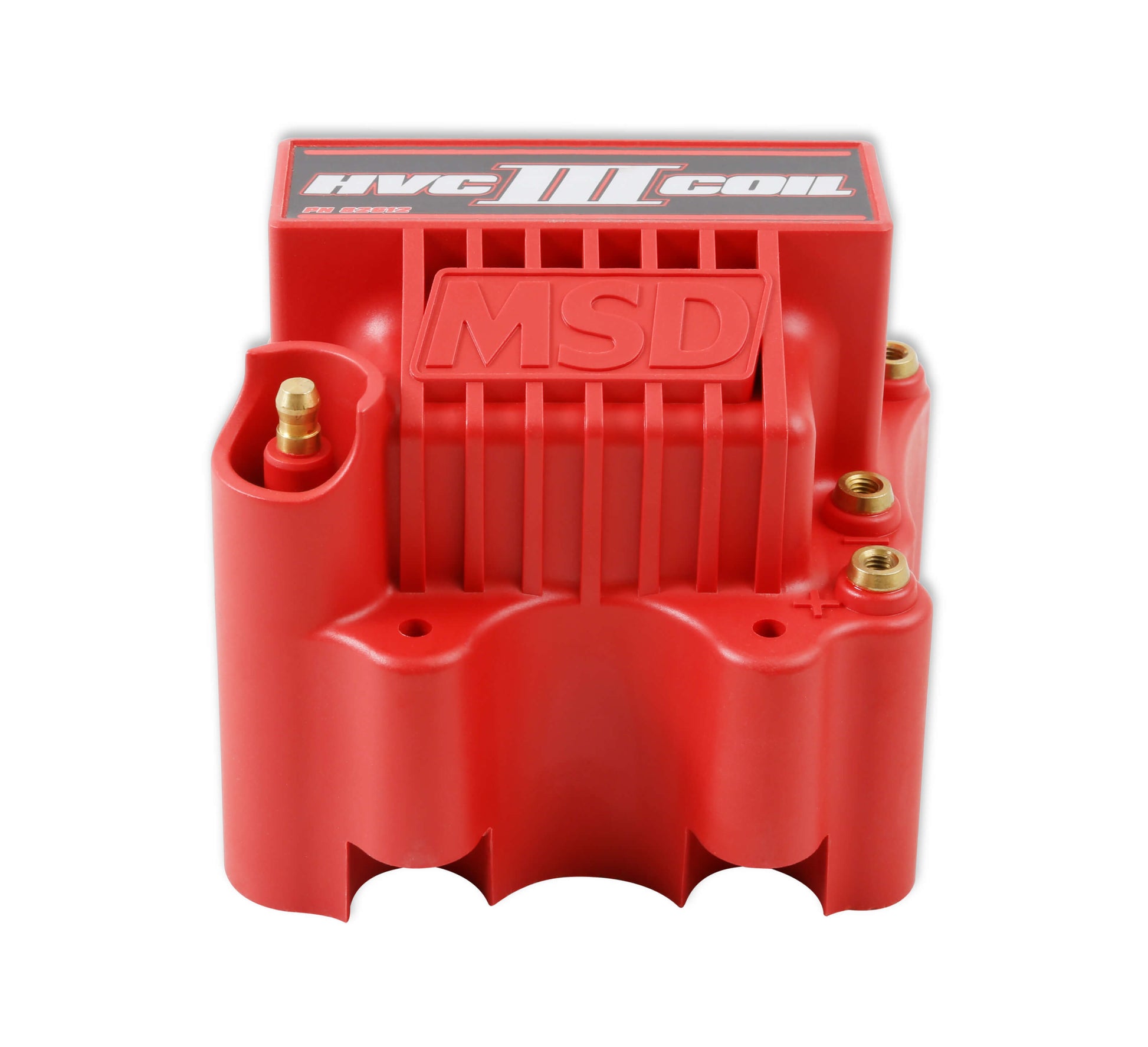

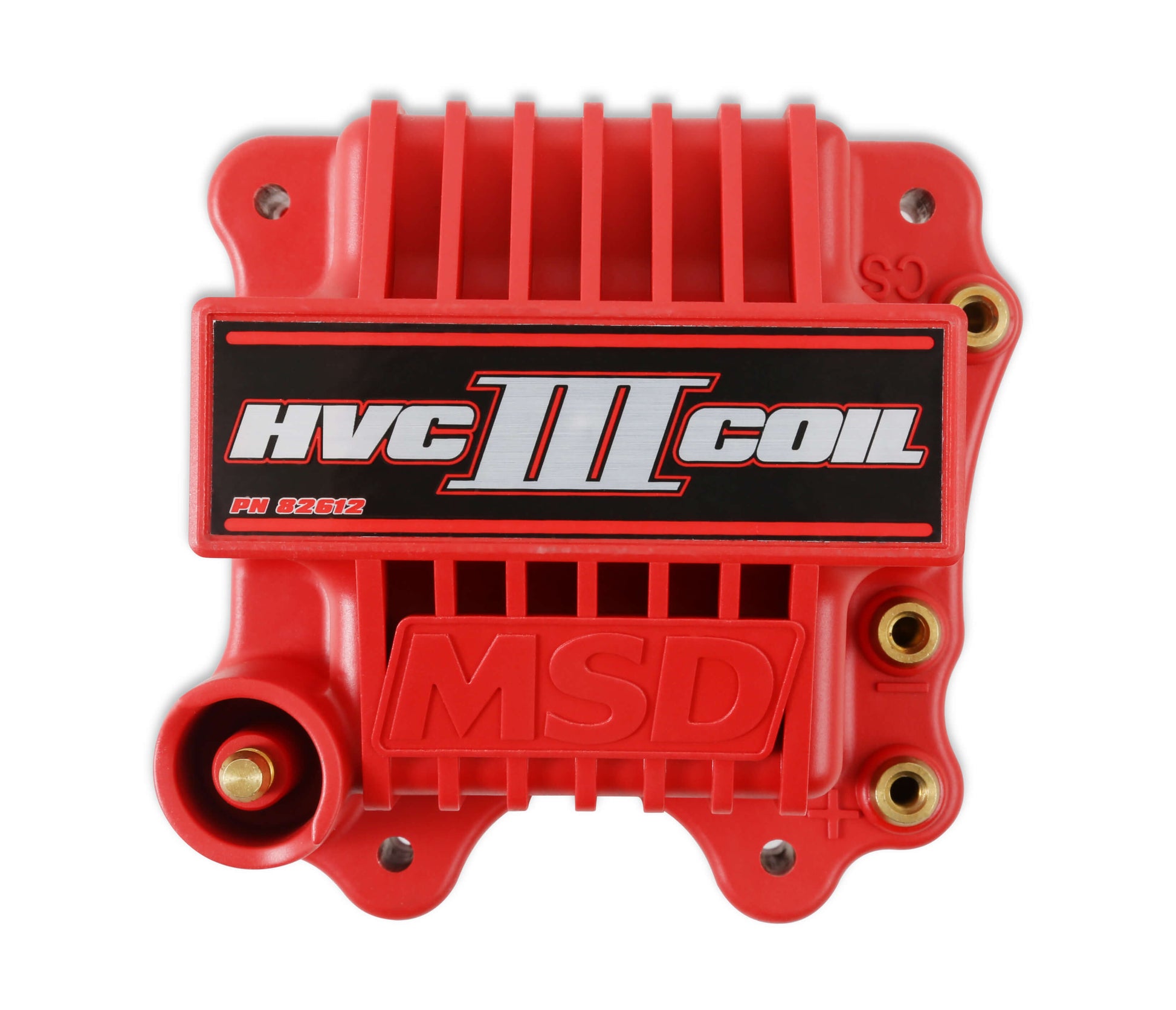

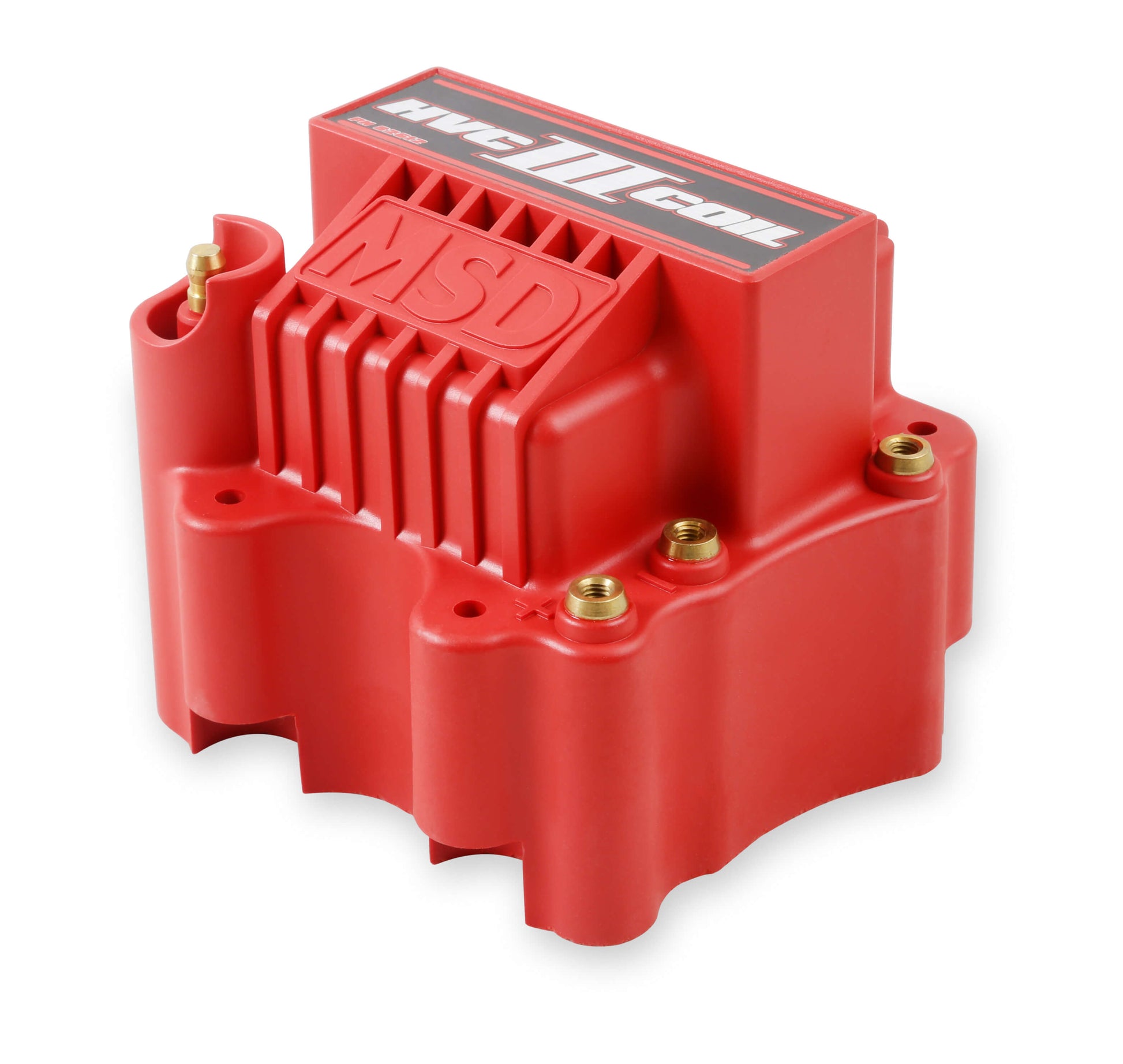

IGNITION COIL,HVC-3,CURRENT SENSING,RED

BRAND NEW MSD HVC-3 SERIES IGNITION COIL, RED, COMPATIBLE WITH POWER GRID 600 SINGLE CHANNEL (HOLLEY PART #82612).

THE HVC III COIL IS COMPLETELY BUILT IN-HOUSE SO OUR ENGINEERS HAVE EXCLUSIVE CONTROL OVER THEIR PERFORMANCE AND QUALITY. THE COIL UTILIZES AN IRON U-CORE DESIGN WITH A SEGMENTED BOBBIN FOR IMPROVED VOLTAGE DISTRIBUTION. THE BOBBIN IS MOLDED FROM FR946 MATERIAL WHICH HAS INCREDIBLE DIELECTRIC CAPABILITIES AT HIGH TEMPERATURES. MSD ALSO INCORPORATED A CUTTING-EDGE WINDING MATERIAL THAT HAS IMPROVED INSULATION AND IS ALSO CAPABLE OF ENDURING EXTREME VOLTAGES. TOGETHER, THESE MATERIALS CREATE A DURABLE COIL WITH INCREDIBLE VOLTAGE CAPABILITIES, LIGHTNING-QUICK RISE TIME, AND LONGER SPARK DURATION. EQUIPPED WITH AN INDUSTRY-FIRST THIRD TERMINAL TO ALLOW SECONDARY CURRENT SENSING, FOR EACH SPARK, WHEN USED IN CONJUNCTION WITH THE MSD 8001 PRO 600 SINGLE CHANNEL IGNITION.

FEATURES:

• DESIGNED FOR RACING APPLICATIONS WITH AN MSD 7 OR 8 SERIES IGNITION CONTROL OR PRO 600 SINGLE CHANNEL - P/N 8001
• NEW U-CORE WINDING DESIGN PRODUCES MORE VOLTAGE AND CURRENT
• 70:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• WINDINGS ARE ENCASED IN FRACTURE RESISTANT COMPOUND FOR VIBRATION RESISTANCE
• ISOLATED TOWER AND BRASS PRIMARY TERMINALS

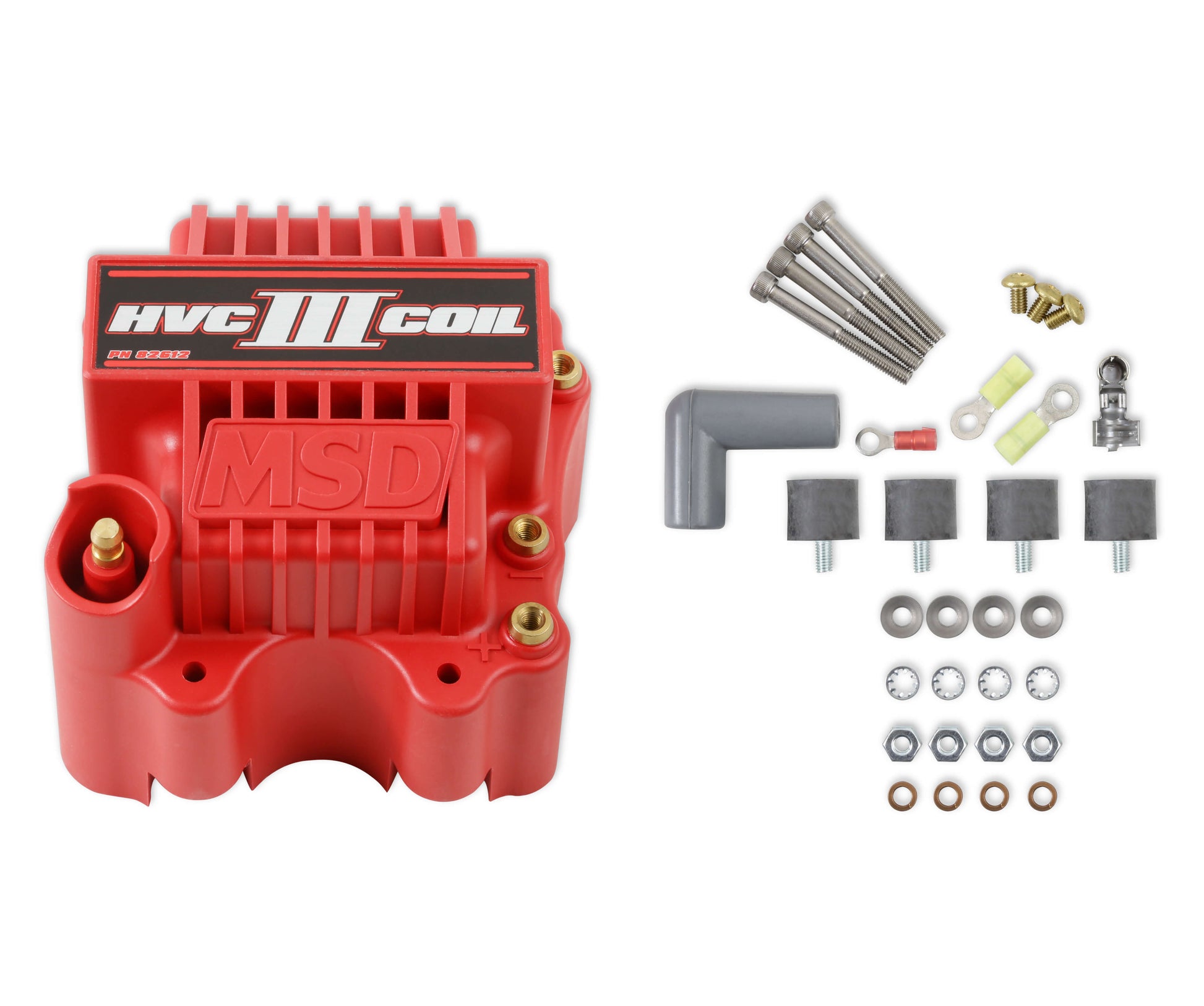

• SUPPLIED WITH MOUNTING HARDWARE AND RUBBER SHOCK MOUNTS
• BUILT-IN CURRENT SENSING WHEN USED WITH MSD PRO 600 SINGLE CHANNEL (8001)

SPECS:

• BRAND: MSD
• COLOR: RED
• INDUCTANCE: .250 MH
• MAXIMUM VOLTAGE: 45,000 VOLTS
• PEAK CURRENT: 2 AMPS
• PRIMARY RESISTANCE: .016 OHMS
• PRODUCT TYPE: COIL
• SECONDARY RESISTANCE: 30 OHMS
• SPARK DURATION: 150 US
• TURNS RATIO: 70:1
• TYPE: DRAG RACE / LONG DURATION USE
• WEIGHT: 3.75 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
