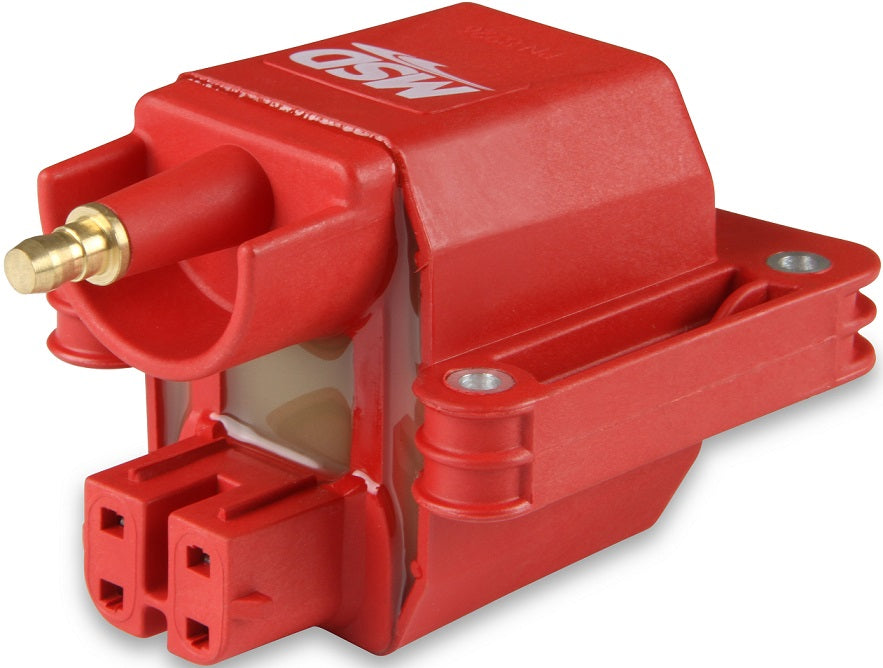

COIL,GM EXTERNAL HEI COIL,HIGH PERFORMAN

BRAND NEW MSD IGNITION COIL, RED FINISH, FACTORY STYLE HOUSING, 44,000 MAX VOLTAGE, COMPATIBLE WITH GM APPLICATIONS

TOP OFF YOUR GM IGNITION SYSTEM WITH THESE GREAT NEW REPLACEMENT COILS. THE GM COILS HAVE MSD PERFORMANCE IN FACTORY-STYLE HOUSINGS! MSD DESIGNED THESE COILS BY COMBINING OUR BLASTER COIL EXPERIENCE WITH E-CORE COIL EFFICIENCY. EACH COIL HAS A UNIQUE TURNS RATIO PLUS THERE IS LOWER PRIMARY RЕSISTANCE THAN THE STOCK COIL. THIS ALL AMOUNTS TO A BOLT-IN REPLACEMENT COIL THAT PRODUCES MORE OUTPUT VOLTAGE. THE COILS WILL WORK WITH STOCK IGNITION SYSTEMS AS WELL AS MSD EQUIPPED CARS & TRUCKS.

THE MSD BLASTER GM COIL PRODUCES INCREASED VOLTAGE AND ENERGY OVER THE STOCK GM COIL. TO GET EVEN MORE IGNITION PERFORMANCE, INSTALL AN MSD IGNITION CONTROL WITH A PART #8876 HARNESS FOR A DIRECT PLUG-IN INSTALLATION.

NOTE: DIRECT PLUG IN HARNESS USE PART #8876 WHEN INSTALLING CD IGNITION UNIT

FEATURES:

• DIRECT PERFORMANCE REPLACEMENT FOR GM DUAL CONNECTOR COIL
• 100:1 TURNS RATIO & LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• COMPATIBLE WITH STOCK IGNITION AS WELL AS MSD IGNITIONS

SPECS:

• BRAND: MSD
• INDUCTANCE: 5.6 MH
• MAXIMUM VOLTAGE: 44,000 VOLTS
• PEAK CURRENT: 220 MA
• PRIMARY RЕSISTANCE: .68 OHMS
• PRODUCT TYPE: IGNITION COILS
• SECONDARY RЕSISTANCE: 4.8K OHMS
• SPARK DURATION: 300 US
• TURNS RATIO: 100:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION COIL HERE.
