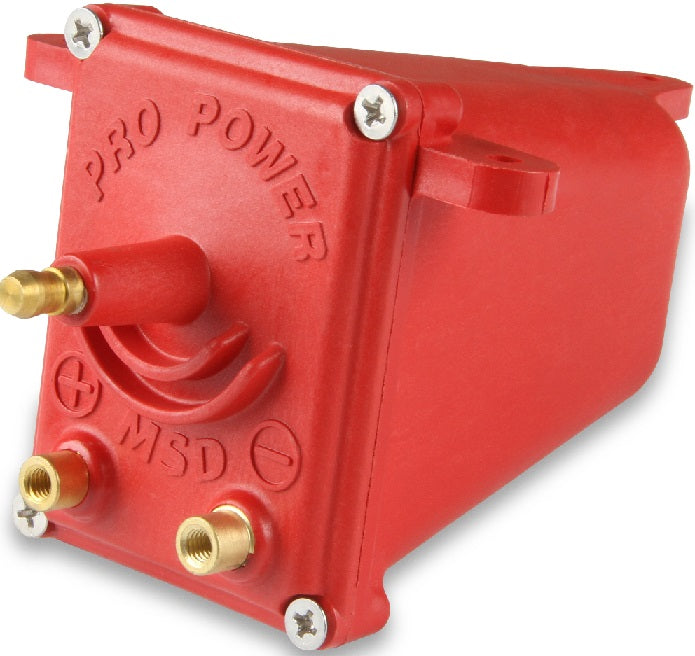

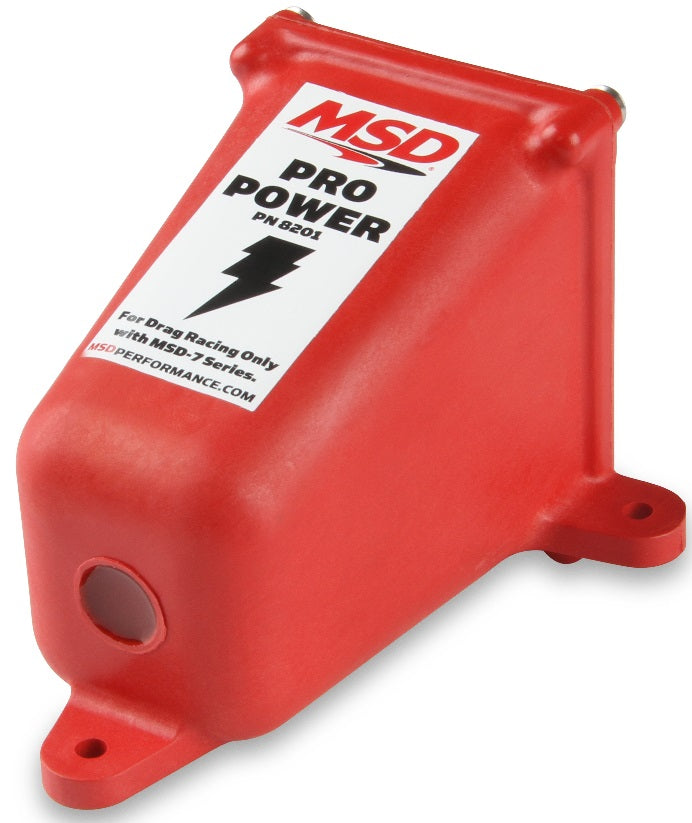

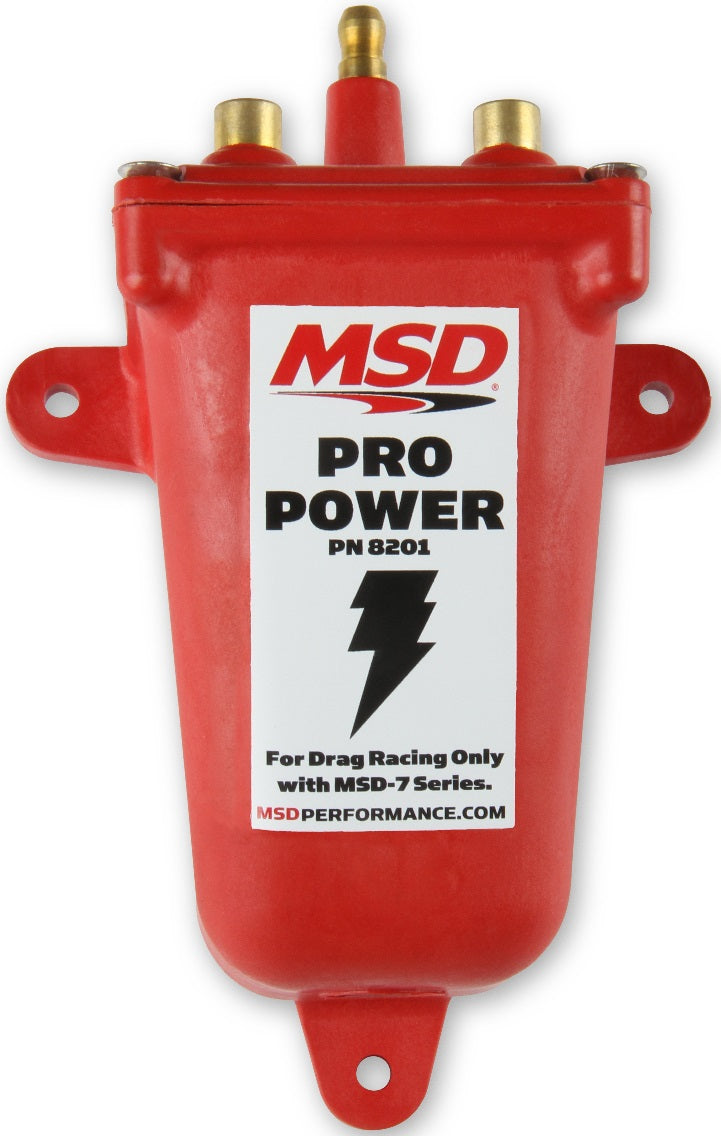

PRO POWER COIL

BRAND NEW MSD PRO POWER SERIES IGNITION COIL, RED, COMPATIBLE WITH MSD 7 AND 8 SERIES IGNITIONS

THE SPECIAL WINDINGS OF THE PRO POWER COIL HAVE EXTREMELY LOW RESISTANCE TO PRODUCE THE HIGHEST VOLTAGE POSSIBLE WITH PLENTY OF SPARK ENERGY WHEN USED WITH AN MSD 7 OR 8 SERIES IGNITION CONTROL. THE MSD PRO POWER COIL IS A GREAT CHOICE FOR SHORT-DURATION APPLICATIONS SUCH AS DRAG. SOLD INDIVIDUALLY.

THIS COIL IS DESIGNED FOR USE WITH AN MSD 7AL-2 (#7220), 7AL-2 PLUS (#7222), 7AL-3 (#7230) & MSD 8 (7805) IGNITIONS ONLY.

FEATURES:

• HIGH VOLTAGE COIL DESIGNED FOR SHORT DURATION APPLICATIONS ONLY
• PRIMARY AND SECONDARY WINDINGS ARE ENCASED IN CIBA POLYURETHANE FOR VIBRATION PROTECTION
• EXTREMELY LOW PRIMARY RESISTANCE
• HOUSING IS MOLDED FROM A DURABLE AND HIGH DIELECTRIC POLYESTER
• SUPPLIED WITH RUBBER SHOCK MOUNTS

SPECS:

• BRAND: MSD
• COLOR: RED
• INDUCTANCE: 1 MH
• MAXIMUM VOLTAGE: 43,000 VOLTS
• PEAK CURRENT: 800 MA
• PRIMARY RESISTANCE: .03 OHMS
• PRODUCT TYPE: IGNITION COIL
• SECONDARY RESISTANCE: 240 OHMS
• SPARK DURATION: 180 US
• TURNS RATIO: 100:1
• TYPE: DRAG / SHORT DURATION USE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS IGNITION COIL HERE.
