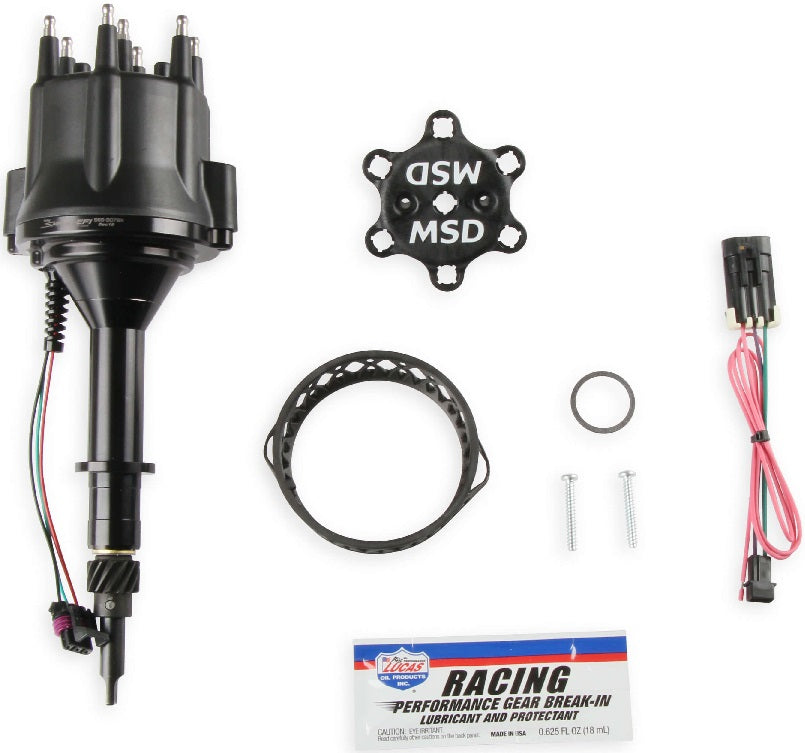

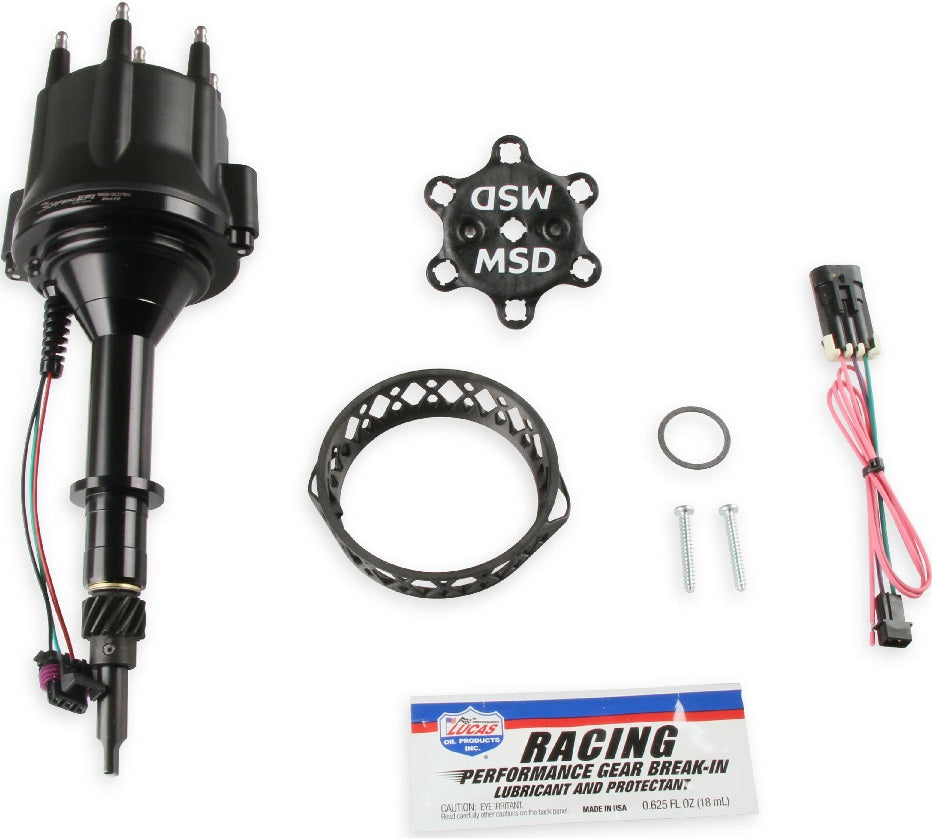

SNIPER EFI,HYPERSPARK,DISTRIBUTOR,JEEP 258,BLACK

BRAND NEW HOLLEY SNIPER EFI HYPERSPARK DISTRIBUTOR, BLACK BILLET HOUSING, COMPATIBLE WITH JEEP 258, I6

HYPERSPARK IGNITION, FROM SNIPER EFI IS DESIGNED TO EASILY ADD IGNITION TIMING CONTROL TO NEARLY ANY SNIPER EFI INSTALL. THE HOUSING IS BILLET ALUMINUM STUFFED WITH A HALL EFFECT CRANK SIGNAL SENSOR FOR A NOISE-FREE RPM SIGNAL TO YOUR SNIPER EFI ECU. THE COMPLETE SYSTEM CONSISTS OF A HIGH OUTPUT HYPERSPARK CD IGNITION BOX (PART #556-151) THAT PRODUCES 535 VOLTS OF PRIMARY VOLTAGE ALL THE WAY UP TO 12,000 RPM & A HYPERSPARK IGNITION COIL (PART #556-152) THAT SENDS 45,000 VOLTS TO THE PLUG.

NOTE: HYPERSPARK CD IGNITION BOX PART #556-152 AND IGNITION COIL PART #556-151 SOLD SEPARATELY.

COMPATIBLE WITH:

• JEEP:
• 1971-1983 CJ5
• 1971-1975 CJ6
• 1976-1986 CJ7

FEATURES:

• HALL EFFECT CRANK TRIGGER SENSOR HOUSING PROVIDES A NOISE-FREE RPM SIGNAL TO SNIPER ECU
• RECOMMENDED FOR SNIPER EFI BBD, 550-858,550-859 OR 550-860
• BILLET DISTRIBUTOR HOUSING PROVIDES CORROSION RESISTANCE
• PATENTED CLEAR INSTALL CAP ELIMINATES ANY CONFUSION WHILE INSTALLING THE DISTRIBUTOR
• PLUG & PLAY WAY TO ADD TIMING CONTROL TO A SNIPER EFI INSTALL
• DISTRIBUTOR SHUTTER WHEEL IS PINNED & WELDED TO THE SHAFT

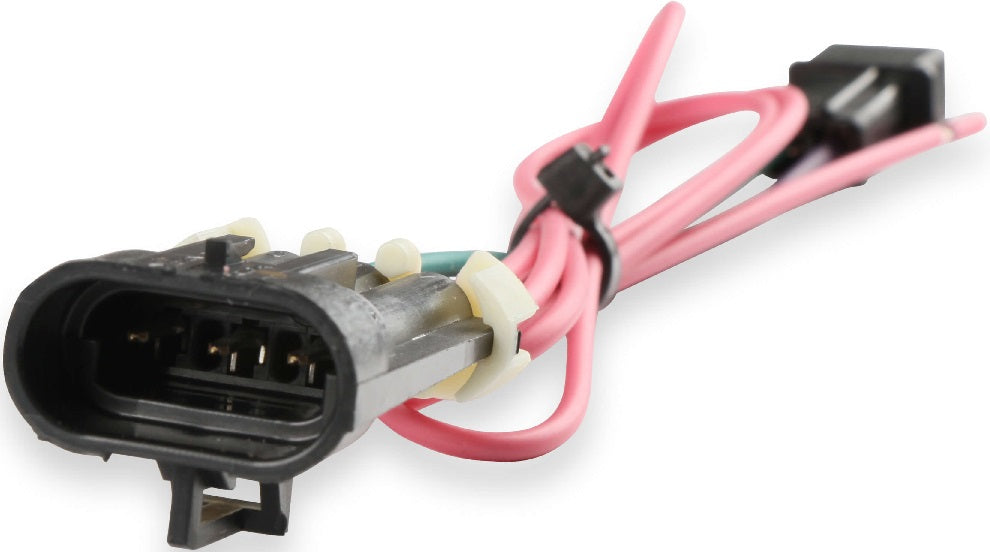

• INCLUDES WIRE RETAINER FOR A CLEAN INSTALL
• COMES WITH CAST GEAR INSTALLED - CONTACT CAMSHAFT MANUFACTURER FOR RECOMMENDED GEAR MATERIAL

SPECS:

• BRAND: HOLLEY SNIPER EFI
• COLOR: BLACK
• EMISSION CODE: 3
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
