TERMINATOR X MAX FORD MPFI,W/TRANS

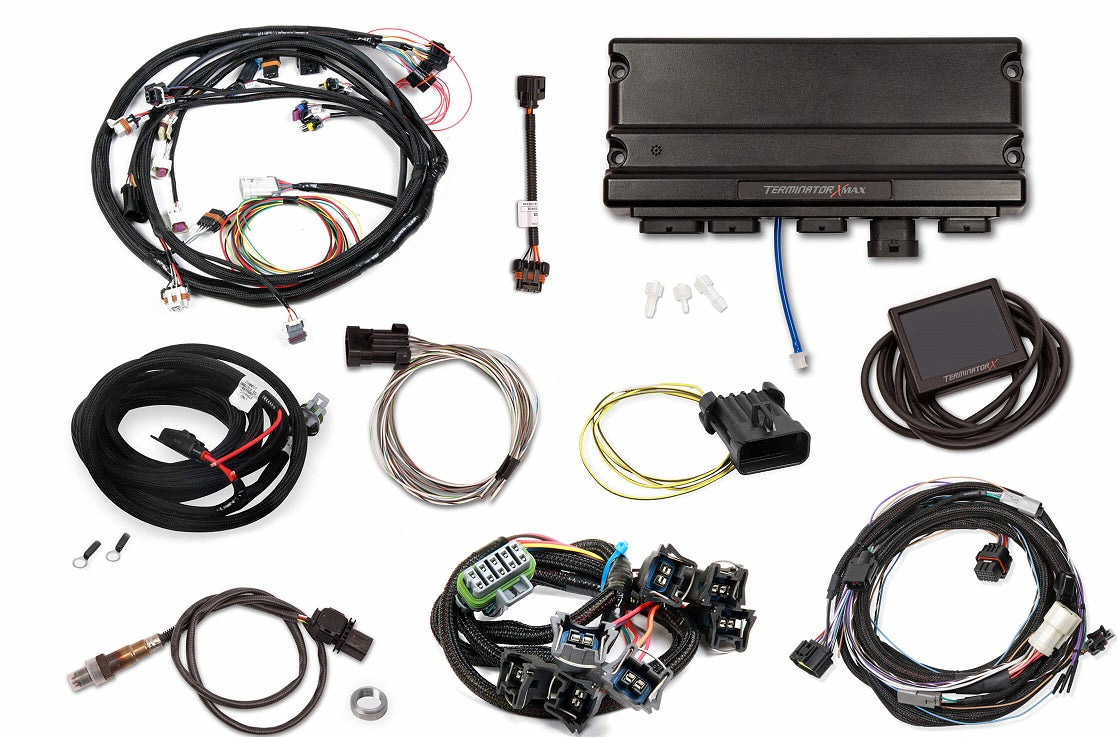

BRAND NEW TERMINATOR X MAX FORD MPFI KIT, UNIVERSAL MPFI MAIN HARNESS, UNIVERSAL MPFI MAIN HARNESS, 92-97 4R70W TRANSMISSION CONTROL HARNESS, FORD SPACED EV1 INJECTOR HARNESS, 3.5" TOUCHSCREEN, FITS FORD V8 ENGINES

TAKE CONTROL OF YOUR CONVENTIONAL FORD ENGINE WITH TERMINATOR X! DO NOT SETTLE FOR A FACTORY ECU WITH A CUMBERSOME TUNING INTERFACE WHEN YOU CAN HAVE COMPLETE CONTROL OF YOUR ENGINE, SELF-LEARNING FUEL STRATEGIES AND THE PROVEN, RACE-WINNING TECHNOLOGY OF HOLLEY EFI AT A BUDGET-FRIENDLY PRICE! TERMINATOR X FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR, AND 4 PROGRAMMABLE INPUTS AND OUTPUTS.

INPUT/OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL, AND MUCH MORE. TERMINATOR X COMES FULLY LOADED WITH BASE MAPS FOR COMMON V8 ENGINE COMBINATIONS TO GET YOU OUT OF THE GARAGE AND ON THE ROAD/TRACK FAST. THE 3.5" TOUCH SCREEN LCD HANDHELD CONTAINS AN EASY TO USE CALIBRATION WIZARD AS WELL AS TUNING AND GAUGE DISPLAY FUNCTIONS. ALSO INCLUDED IS HOLLEY EFI INDUSTRY-LEADING, EASY TO USE SOFTWARE SUITE THAT ALLOWS FULL LAPTOP ACCESS FOR ADVANCED USERS.

NOTE: TERMINATOR X ECU ARE DESIGNED TO BE MOUNTED WITH THE LEDS FACING UP.

FEATURES:

• PLUG AND PLAY FORD V8 ENGINE CONTROL, SUCH AS THE 302W, 351W OR 460 BIG BLOCK.
• INCLUDES EV1 INJECTOR HARNESS
• FORD 4R70W TRANSMISSION CONTROL HARNESS (TERMINATOR X MAX ONLY)
• HIGH IMPEDANCE INJECTOR DRIVERS WILL SAFELY POWER MOST STOCK INJECTORS, AND HOLLEY EFI INJECTORS. INJECTOR SUPPORT CHART PROVIDED IN THE INSTRUCTIONS (WILL NOT CONTROL LOW IMPEDANCE INJECTORS)
• ALL OF THE NEW TERMINATOR X SYSTEMS UTILIZE THE BOSCH LSU 4.9 WIDEBAND TO RELAY AFR INFORMATION TO THE ECU FOR ACCURATE READING AND PRECISE TUNING CONTROL.
• BUILT IN 1BAR MAP SENSOR, VACUUM HOSE ADAPTERS INCLUDED (1/8TH - 1/4 AND 3/16THS) - OR FOR BOOSTED APPLICATIONS, YOU CAN DISABLE THE INTERNAL MAP SENSOR, AND UTILIZE AN EXTERNAL MAP SENSOR, THE HARNESS COMES WITH THE CONNECTOR TERMINATED, MAKING THE INSTALL

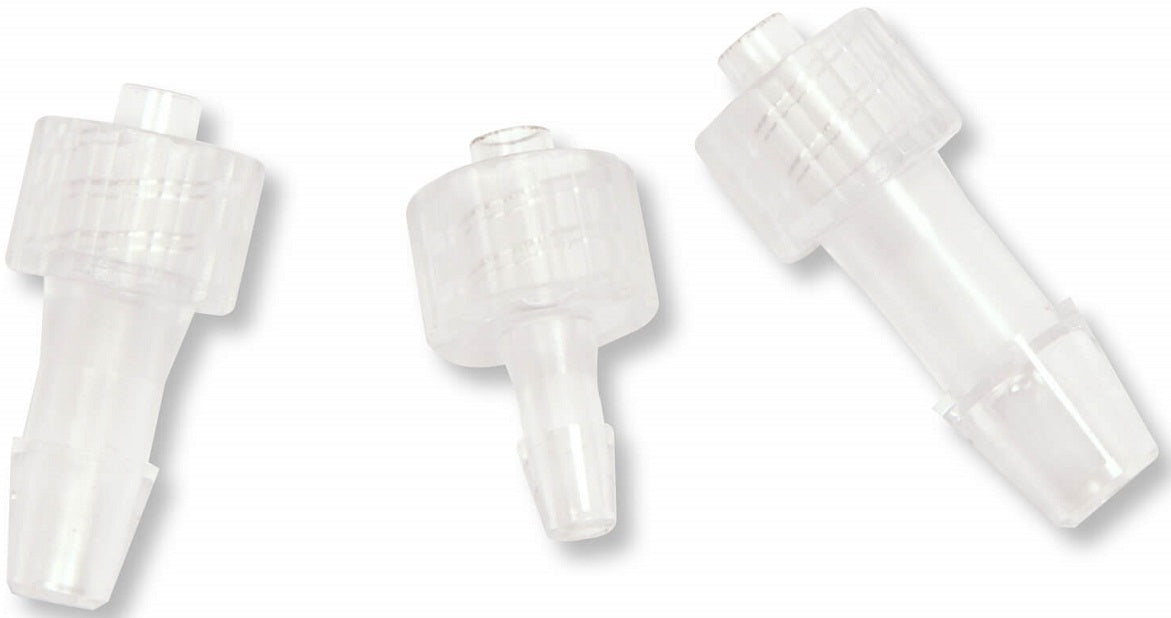

• MAP SENSOR VACUUM HOSE ADAPTERS (1/8TH - 1/4 AND 3/16THS)
• PLUG AND PLUG IGNITION CAPABILITY WITH DUAL SYNC AND HYPERSPARK DISTRIBUTORS, ADAPTER HOLLEY PART # 558-323 REQUIRED FOR HYPERSPARK DISTRIBUTORS.
• 4 INPUTS - 12V, GROUND, 5V, AND FREQUENCY, FOR THINGS SUCH AS ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE
• BOOST CONTROL - BOOST VS TIME, BOOST VS GEAR, BOOST VS RPM, BOOST VS SPEED, BOOST SAFETIES
• NITROUS CONTROL - SINGLE CHANNEL OF WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES, AND TARGET CLOSED LOOP AFR
• ADVANCED TABLES - 4X 1D TABLES, 1X 1D PER GEAR TABLE, 4X 2D TABLES, 1X 2D PER GEAR TABLE, CAN BE USED FOR ANY CUSTOM TABLES YOU CAN DREAM UP, SUCH AS FLEX FUEL SENSOR OFFSET TABLE, OR A CUSTOM FUEL OR OIL PRESSURE SAFETY!
• ON-BOARD DIAGNOSTIC LEDS FOR: ECU POWER - ENGINE RUN - WIDEBAND STATUS - TPS CALIBRATION - CRANK SIGNAL - CAM SIGNAL. ALLOW YOU TO IDENTIFY ANY CRITICAL ENGINE ISSUES AT A GLANCE
• THE INCLUDED 3.5" TOUCHSCREEN HANDHELD CONTAINS A CALIBRATION WIZARD, THAT ALLOWS YOU TO QUICKLY BUILD A BASE TUNE FOR ANY DOMESTIC V8 ENGINE. ADDITIONALLY THE HANDHELD PROVIDES INTERNAL DATA-LOGGING AND A FULLY CUSTOMIZABLE GAUGE DISPLAY.
• THE COMPACT ECU SIZE ALLOWS YOU TO MOUNT IT VIRTUALLY ANYWHERE. REMEMBER, DIAGNOSTIC LEDS MUST FACE UP!
• PLUG AND PLAY COMPATIBLE WITH MORE HOLLEY EFI ACCESSORIES SUCH AS ANALOG STYLE GAUGES, SHIFT LIGHTS, VARIOUS MODULES, AND COMING SOON, 12.3" DIGITAL DASH SUPPORT!
• FREE EFI TUNING SOFTWARE FOR COMPLETE CONTROL OF YOUR TERMINATOR X POWER PLANT

SPECS:

• BRAND: HOLLEY EFI
• INJECTOR CONNECTOR: JETRONIC / MINITIMER (BOSCH)
• PRODUCT TYPE: TERMINATOR X FORD MPFI KIT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MPFI UNIT HERE.
