TERMINATOR X MAX MPFI ECU,LS1,LS6,DBW

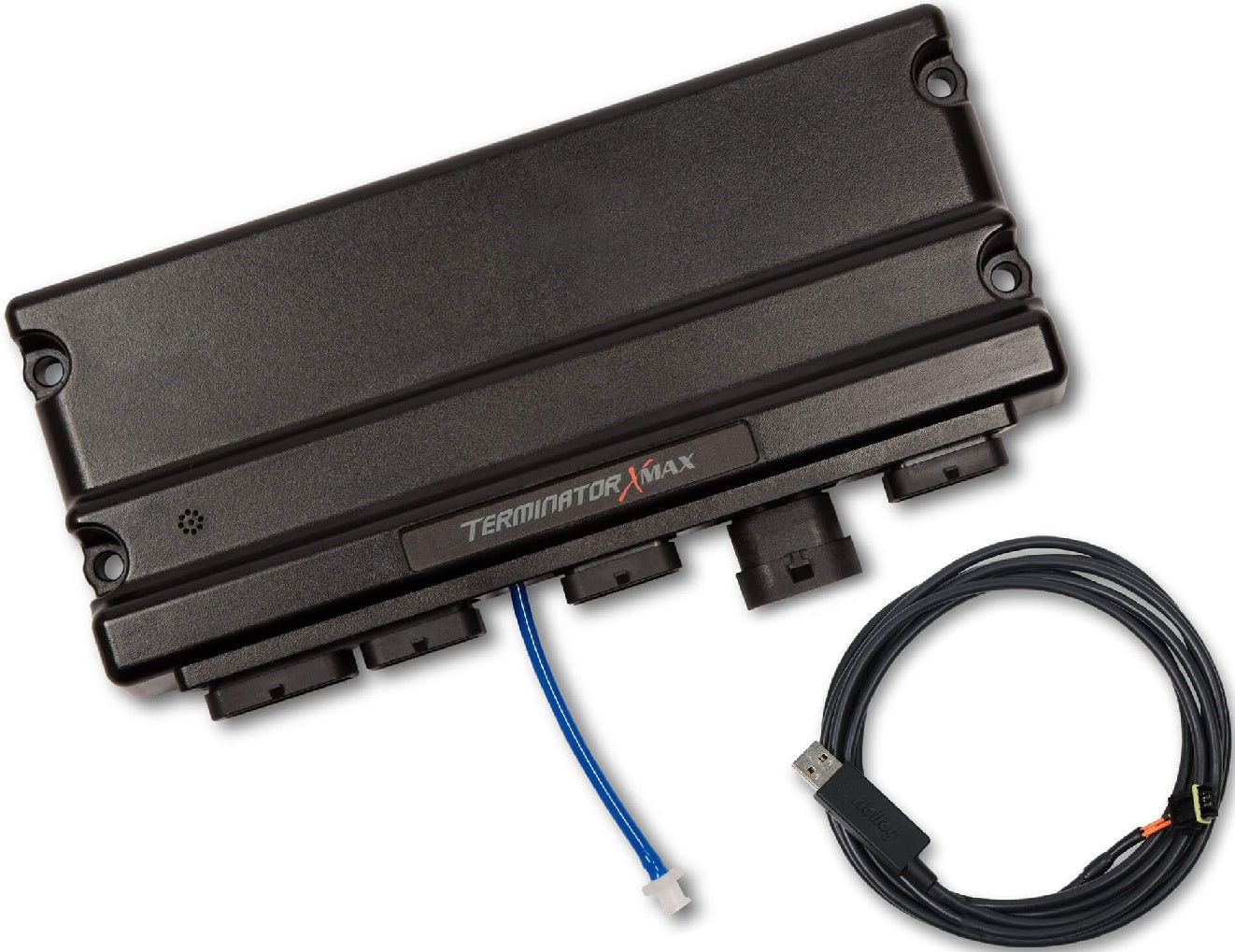

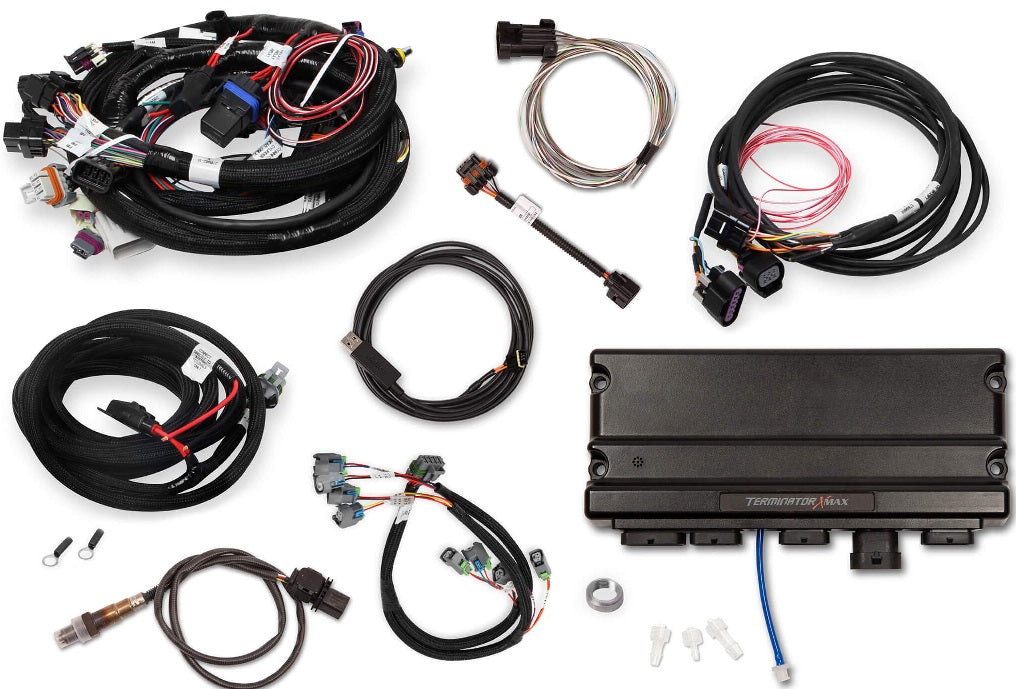

BRAND NEW HOLLEY TERMINATOR X MAX 24X/1X EV6 LS MPFI KIT WITH DRIVE-BY-WIRE THROTTLE BODY CONTROL, USB/CAN TUNING CABLE, COMPATIBLE WITH LS1/LS6 ENGINES

TERMINATOR X MAX FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR & 4 PROGRAMMABLE INPUTS/OUTPUTS. THE INPUTS/OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE. PART # 550-929 ALSO HAS DRIVE-BY WIRE THROTTLE BODY CONTROL.

TERMINATOR X MAX COMES FULLY LOADED WITH BASE MAPS FOR COMMON LS ENGINE COMBINATIONS TO GET YOU OUT OF THE GARAGE & ON THE ROAD/TRACK FAST. USB/CAN TUNING CABLE INSTEAD OF THE 3.5" HANDHELD LCD. HOLLEY EFI EASY TO USE SOFTWARE SUITE INCLUDED.

NOTE: DESIGNED TO WORK WITH GM THROTTLE BODY PART # - 12570790 & 12580760

NOTE: DESIGNED TO WORK WITH GM THROTTLE PEDAL PART # - 10379038

FEATURES:

• FOR GM LS1/LS6 ENGINES WITH 24X CRANK RELUCTOR & DRIVE-BY-WIRE THROTTLE BODY & EV6 INJECTORS
• REAL-TIME FUEL MAP LEARN
• HIGH IMPEDANCE INJECTOR DRIVERS WILL SAFELY POWER MOST STOCK LS INJECTORS & HOLLEY EFI INJECTORS. (WILL NOT CONTROL LOW IMPEDANCE INJECTORS)

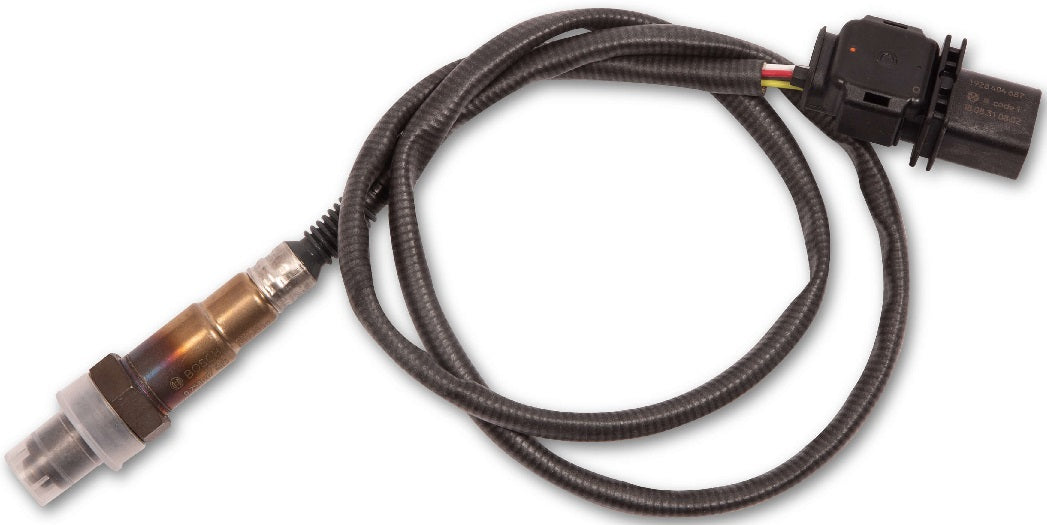

• BOSCH LSU 4.9 WIDEBAND TO RELAY AFR INFORMATION TO THE ECU FOR ACCURATE READING & PRECISE TUNING CONTROL
• ON-BOARD 1BAR MAP SENSOR, IS PERFECT FOR N/A OR NITROUS ENGINE COMBOS. IF YOUR COMBINATION REQUIRES A 2+BAR, WE RECOMMEND GM 12592525 & ADAPTER PART # 558-416
• MAP SENSOR VACUUM HOSE ADAPTERS (1/8TH - 1/4 & 3/16TH)
• 4 INPUTS 12V, GROUND, 5V & FREQUENCY, FOR THINGS LIKE ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE
• 4 OUTPUTS - GROUND, PWM - , FOR ACCESSORIES LIKE FANS, BOOST CONTROL, NITROUS CONTROL, IAC KIT, & MORE
• BOOST CONTROL - BOOST VS TIME, BOOST VS GEAR, BOOST VS RPM, BOOST VS SPEED, BOOST SAFETIES
• NITROUS CONTROL - SINGLE CHANNEL OF WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES & TARGET CLOSED LOOP AFR
• ADVANCED TABLES - 4X 1D TABLES, 1X 1D PER GEAR TABLE, 4X 2D TABLES, 1X 2D PER GEAR TABLE, CAN BE USED FOR ANY CUSTOM TABLES YOU CAN DREAM UP, SUCH AS FLEX FUEL SENSOR OFFSET TABLE, OR A CUSTOM FUEL OR OIL PRESSURE SAFETY!
• ON-BOARD DIAGNOSTIC LEDS FOR: ECU POWER - ENGINE RUN - WIDEBAND STATUS - TPS CALIBRATION - CRANK SIGNAL - CAM SIGNAL
• CAN/USB TUNING CABLE ALLOWS CONFIG OF ECU & TUNING THE ENGINE IN REAL TIME.
• DIAGNOSTIC LEDS MUST FACE UP
• PLUG & PLAY COMPATIBLE WITH ACCESSORIES LIKE ANALOG STYLE GAUGES, SHIFT LIGHTS, VARIOUS MODULES
• FREE EFI TUNING SOFTWARE
• RECOMMENDED PEDAL PART #10379038

SPECS:

• BRAND: HOLLEY EFI
• CRANK RELUCTOR: 24X
• EMISSION CODE: 3
• IGNITION TYPE: GM LS 24X
• INJECTOR CONNECTOR: USCAR (EV6)
• PRODUCT TYPE: TERMINATOR X MAX LS MPFI
• TERMINATOR LS OPTIONS: FUEL, SPARK, DRIVE-BY-WIRE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EFI KIT HERE, AND THE HANDHELD & REFERENCE MANUAL HERE.
