TERMINATOR X MAX MPFI ECU,LS2,3,LATE TRUCK,TRANSMISSION

TERMINATOR X MAX MPFI ECU,LS2,3,LATE TRUCK,TRANSMISSION

SKU:HOL 550-920

Regular price $1,879.99
Regular price Sale price $1,879.99
View full details

BRAND NEW TERMINATOR X MAX LS2/LS3 & LATE 58X/4X LS TRUCK MPFI KIT WITH TRANSMISSION CONTROL, GM LS 58X CRANK, 4X CAM, 4L60E/4L80E TRANSMISSION CONTROL, 3.5" TOUCHSCREEN, FITS 4.8/5.3/6.0 TRUCK ENGINES & LS2/LS3

TAKE CONTROL OF YOUR LS ENGINE WITH TERMINATOR X MAX! DO NOT SETTLE FOR A JUNKYARD ECU WITH A CUMBERSOME TUNING INTERFACE WHEN YOU CAN HAVE COMPLETE CONTROL OF YOUR ENGINE, SELF-LEARNING FUEL STRATEGIES & THE PROVEN, RACE-WINNING TECHNOLOGY OF HOLLEY EFI AT A BUDGET-FRIENDLY PRICE!

TERMINATOR X MAX FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR & 4 PROGRAMMABLE INPUTS/OUTPUTS. THE INPUTS/OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE. TERMINATOR X COMES FULLY LOADED WITH BASE MAPS FOR COMMON LS ENGINE COMBINATIONS TO GET YOU OUT OF THE GARAGE & ON THE ROAD/TRACK FAST. THE 3.5" TOUCH SCREEN LCD HANDHELD IS INCLUDED.

NOTE: TERMINATOR X ECU ARE DESIGNED TO BE MOUNTED WITH THE LEDS FACING UP.

FEATURES:

  • DESIGNED FOR GM LS 4.8/5.3/6.0 LS TRUCK ENGINES AND LS2/LS3 WITH 58X CRANK, 4X CAM AND 4L60E/4L80E TRANSMISSIONS, AND EV1 INJECTORS
  • REAL-TIME FUEL MAP LEARN, TAKES THE GUESS WORK OUT OF TUNING YOUR BASE FUEL TABLE.
  • HIGH IMPEDANCE INJECTOR DRIVERS WILL SAFELY POWER MOST STOCK LS INJECTORS, AND HOLLEY EFI INJECTORS. INJECTOR SUPPORT CHART PROVIDED IN THE INSTRUCTIONS (WILL NOT CONTROL LOW IMPEDANCE INJECTORS)
  • ALL OF THE NEW TERMINATOR X SYSTEMS UTILIZE THE BOSCH LSU 4.9 WIDEBAND TO RELAY AFR INFORMATION TO THE ECU FOR ACCURATE READING AND PRECISE TUNING CONTROL.
  • ON-BOARD 1BAR MAP SENSOR, IS PERFECT FOR N/A OR NITROUS ENGINE COMBOS. IF YOUR COMBINATION REQUIRES A 2+BAR, WE RECOMMEND GM 12592525, AND HOLLEY ADAPTER PART # 558-416.

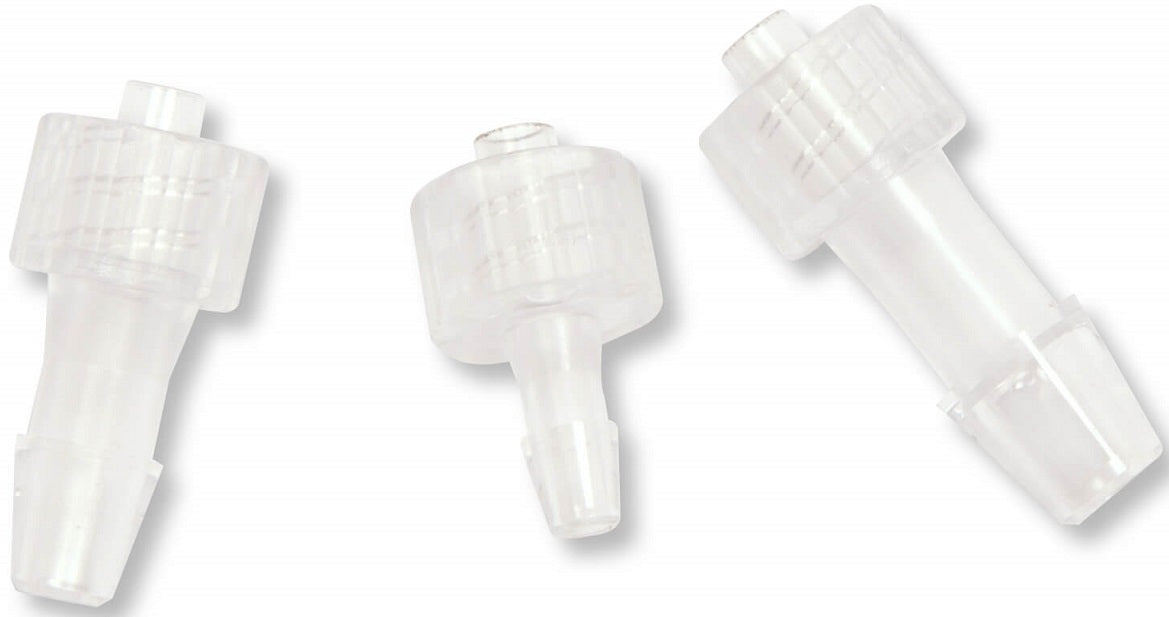

  • MAP SENSOR VACUUM HOSE ADAPTERS (1/8TH - 1/4 & 3/16THS)
  • 4 INPUTS - 12V, GROUND, 5V, AND FREQUENCY, FOR THINGS SUCH AS ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE
  • 4 OUTPUTS - GROUND, PWM - , FOR ACCESSORIES SUCH AS; FANS, BOOST CONTROL, NITROUS CONTROL, IAC KIT, AND MORE
  • BOOST CONTROL - BOOST VS TIME, BOOST VS GEAR, BOOST VS RPM, BOOST VS SPEED, BOOST SAFETIES
  • NITROUS CONTROL - SINGLE CHANNEL OF WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES, AND TARGET CLOSED LOOP AFR
  • ON-BOARD DIAGNOSTIC LEDS FOR: ECU POWER - ENGINE RUN - WIDEBAND STATUS - TPS CALIBRATION - CRANK SIGNAL - CAM SIGNAL. ALLOW YOU TO IDENTIFY ANY CRITICAL ENGINE ISSUES AT A GLANCE
  • ADVANCED TABLES - 4X 1D TABLES, 1X 1D PER GEAR TABLE, 4X 2D TABLES, 1X 2D PER GEAR TABLE, CAN BE USED FOR ANY CUSTOM TABLES YOU CAN DREAM UP, SUCH AS FLEX FUEL SENSOR OFFSET TABLE, OR A CUSTOM FUEL OR OIL PRESSURE SAFETY!

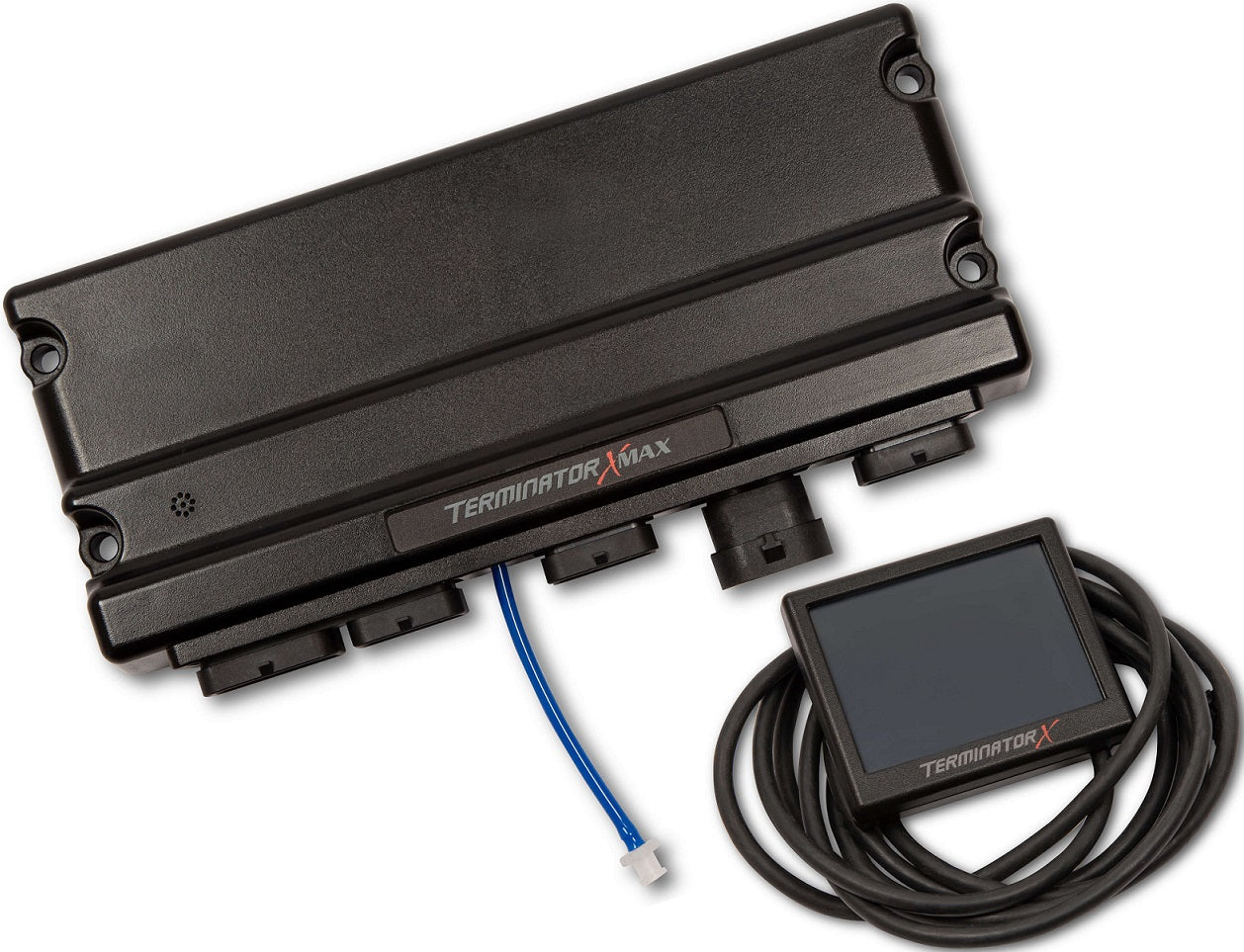

  • THE INCLUDED 3.5" TOUCHSCREEN HANDHELD CONTAINS A CALIBRATION WIZARD, THAT ALLOWS YOU TO QUICKLY BUILD A BASE TUNE FOR ANY LS ENGINE. ADDITIONALLY THE HANDHELD PROVIDES INTERNAL DATA-LOGGING AND A FULLY CUSTOMIZABLE GAUGE DISPLAY.
  • THE COMPACT ECU SIZE ALLOWS YOU TO MOUNT IT VIRTUALLY ANYWHERE. REMEMBER, DIAGNOSTIC LEDS MUST FACE UP!
  • PLUG & PLAY COMPATIBLE WITH MORE HOLLEY EFI ACCESSORIES SUCH AS; ANALOG STYLE GAUGES, SHIFT LIGHTS, VARIOUS MODULES, AND COMING SOON, 12.3" DIGITAL DASH SUPPORT!
  • FREE EFI TUNING SOFTWARE FOR COMPLETE CONTROL OF YOUR TERMINATOR X POWER PLANT

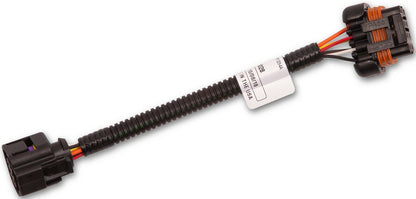

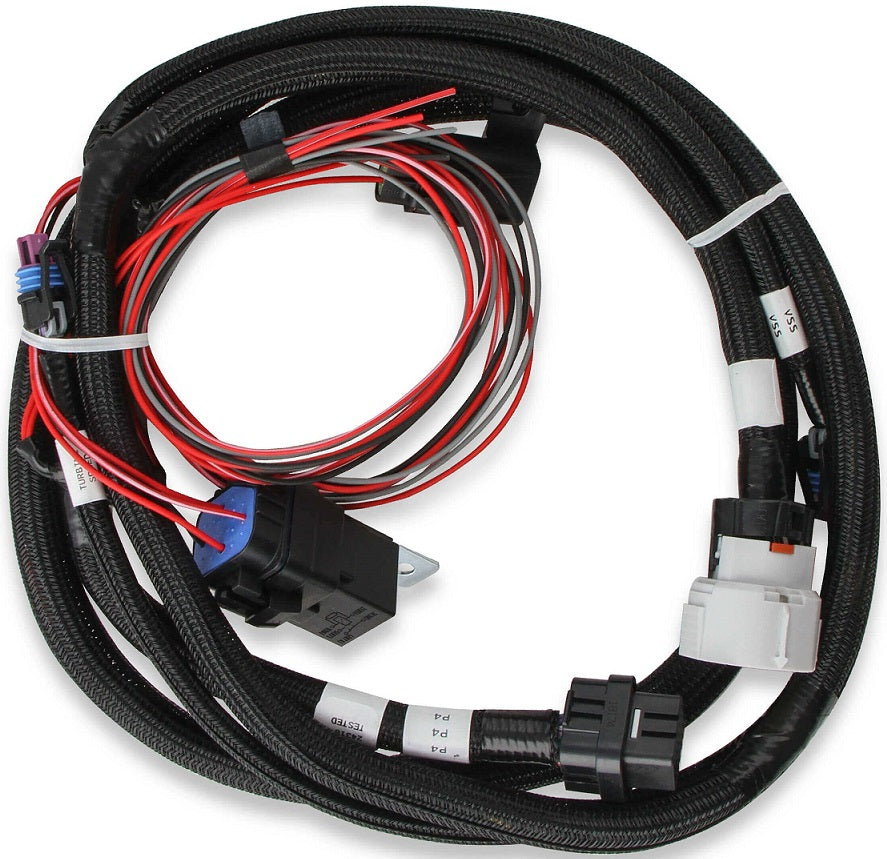

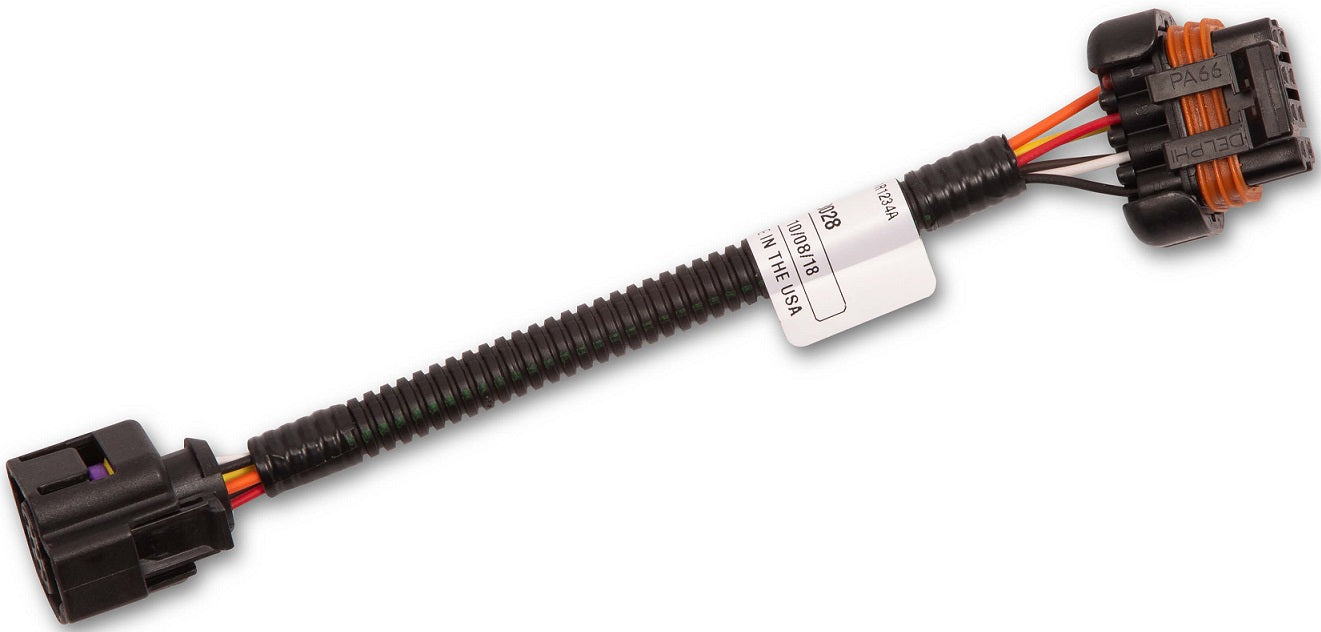

  • INCLUDES: 58X/4X LS ENGINE MAIN HARNESS - EV1 INJECTOR HARNESS - 4L60E/4L80E TRANSMISSION CONTROL HARNESS - TERMINATOR X MAX ECU - ECU MAIN POWER HARNESS - BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR - INPUT/OUTPUT HARNESS - AND ASSORTED VACUUM ADAPTERS.

SPECS:

  • BRAND: HOLLEY EFI
  • CRANK RELUCTOR: 58X
  • IGNITION TYPE: GM LS 58X
  • INJECTOR CONNECTOR: JETRONIC / MINITIMER (BOSCH)
  • PRODUCT TYPE: TERMINATOR X MAX LS MPFI
  • TERMINATOR LS OPTIONS: FUEL, SPARK, TRANSMISSION

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EFI UNIT HERE, AND THE HANDHELD & REFERENCE MANUAL HERE.
