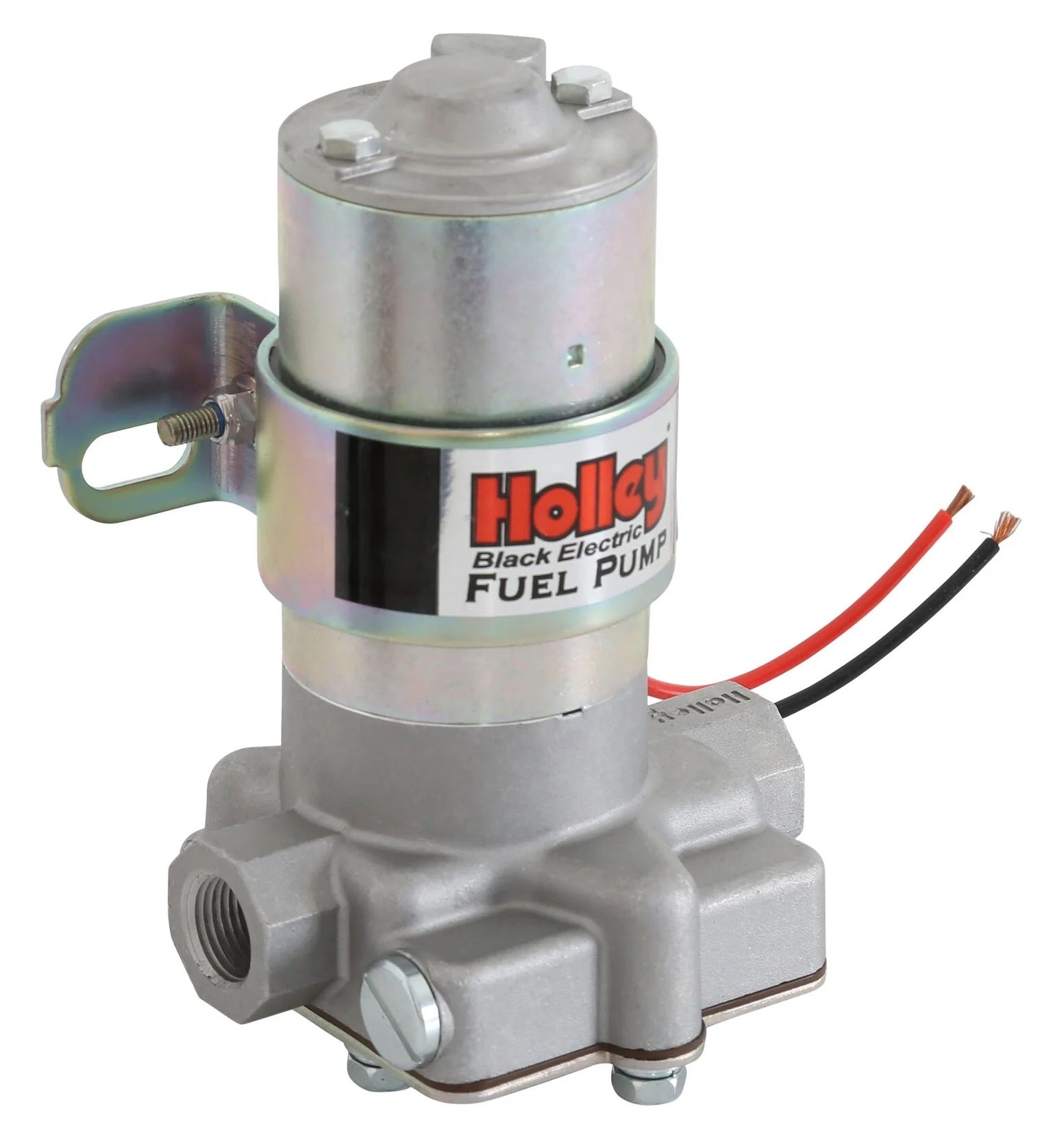

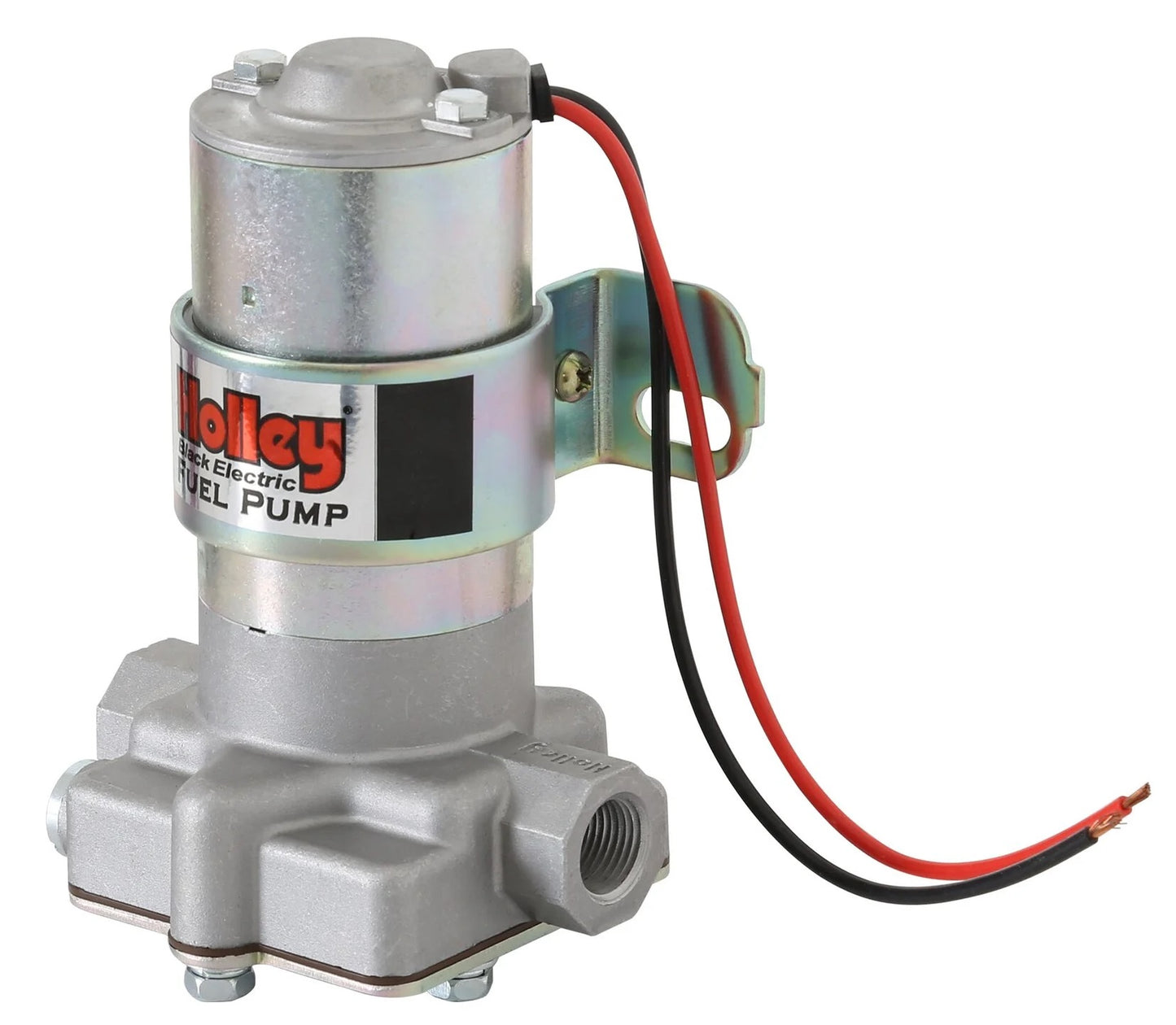

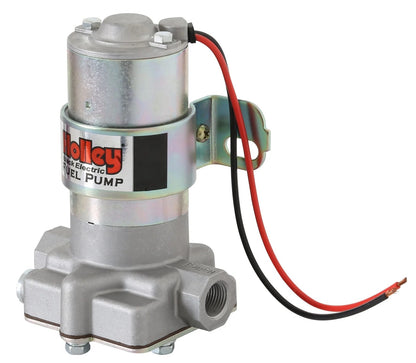

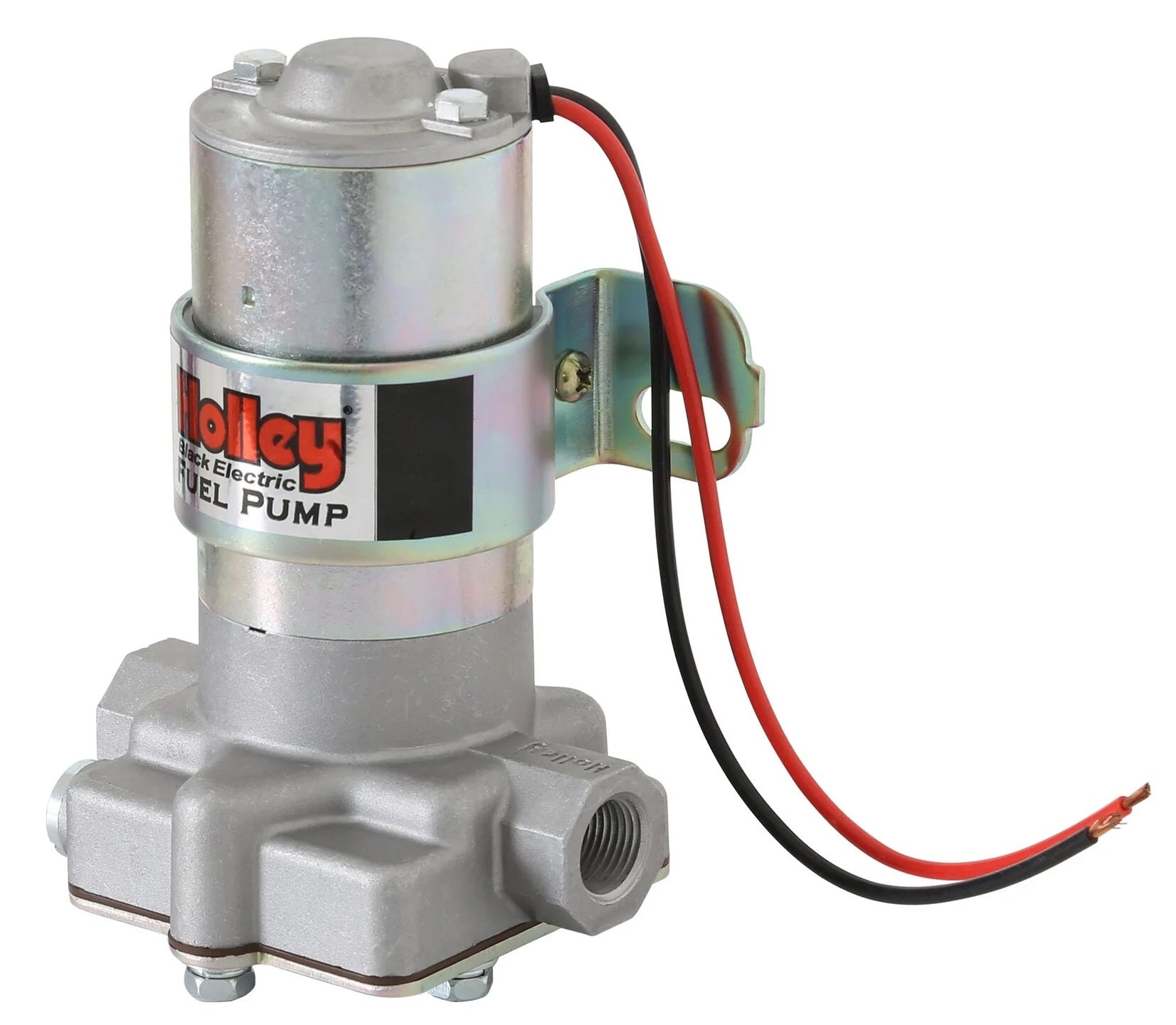

FUEL PUMP,ELECTRIC,BLACK,140GPH

BRAND NEW HOLLEY 140 GPH BLACK ELECTRIC FUEL PUMP COMPATIBLE WITH GASOLINE, ALCOHOL OR METHANOL

THE WORLD FAMOUS RED, BLUE AND BLACK FUEL PUMPS ARE THE MOST RECOGNIZED PERFORMANCE PUMPS OF ALL TIMES. THEY HAVE BEEN POWERING RACING LEGENDS AND STREET ENTHUSIASTS ALIKE SINCE THE EARLY 70S. THEIR TIME PROVEN ROTOR/VANE DESIGN IS KNOWN TO GET THE JOB DONE IN AN AFFORDABLE PACKAGE.

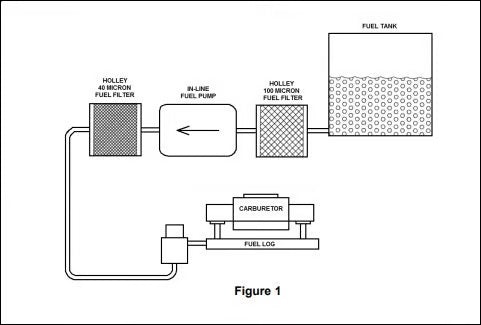

NOTE: SHOULD BE MOUNTED BELOW THE FUEL LEVEL OF THE TANK FOR A GOOD GRAVITY FEED ON THE INLET SIDE. RELAY KIT P/N 12-753 RECOMMENDED. THESE ARE TO BE USED WITH 12 VOLT SYSTEMS ONLY.

STREET/STRIP CARBURETED APPLICATIONS COMPATIBLE WITH GASOLINE, ALCOHOL OR METHANOL.

FEATURES:

• TUMBLE POLISHED BILLET LOOK
• LOWER HOUSING CASTING DESIGNED FOR ENHANCED FUEL FLOW
• IMPROVED DESIGN FOR STREET/STRIP APPLICATIONS
• DISTINCTIVE BLACK LOGO
• COMPATIBLE WITH ALCOHOL OR METHANOL FUELS
• NOT DESIGNED TO BE USED ON AIRCRAFT OF ANY TYPE

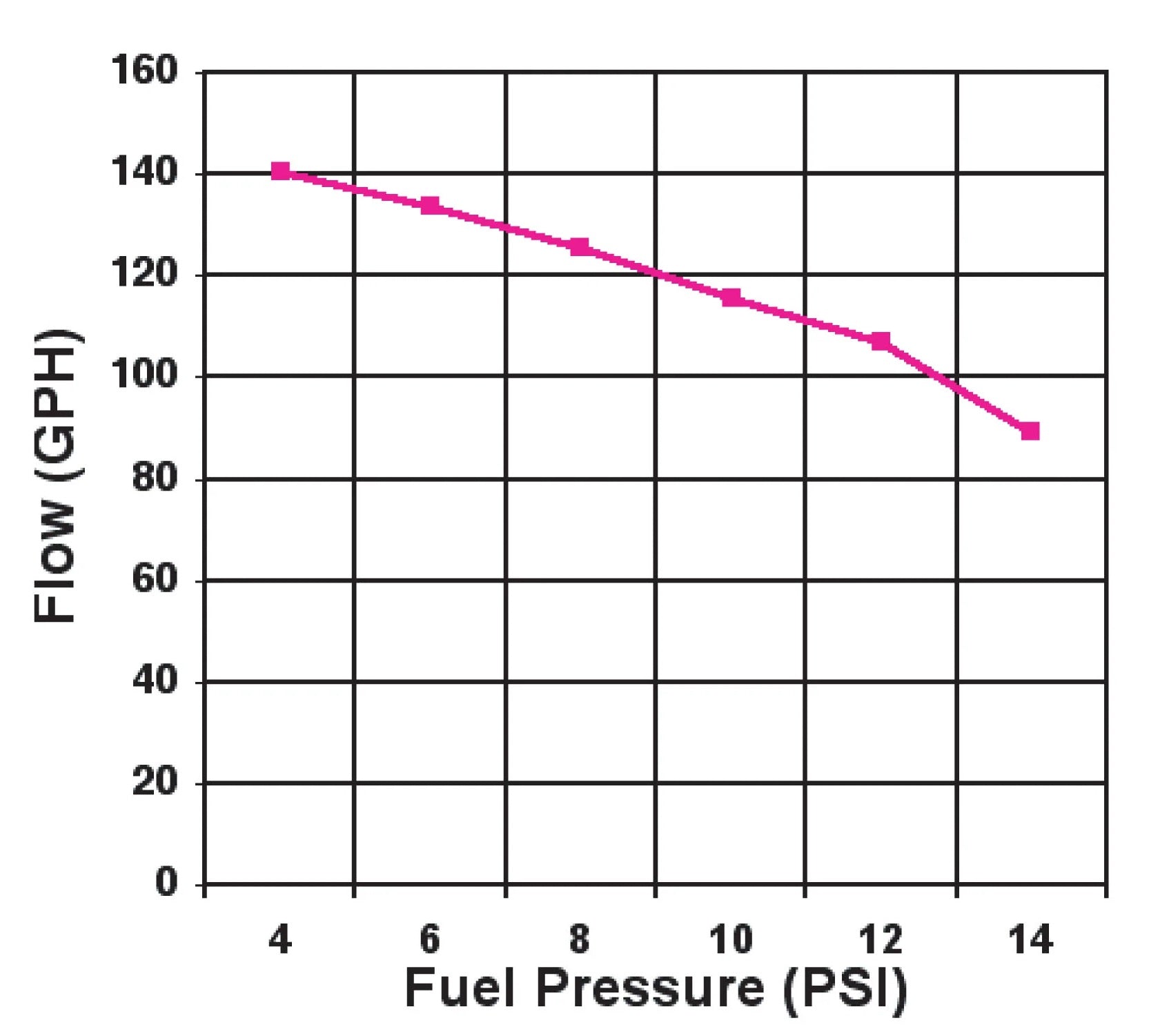

• FLOWS 140 GPH (FREE FLOW)
• FLOWS 120 GPH AT 9 PSI
• MAXIMUM PRESSURE IS 14 PSI
• 3/8" NPT INLET AND OUTLET PORTS
• FUEL PRESSURE REGULATOR IS REQUIRED (RECOMMEND HOLLEY P/N 12-704 FOR GASOLINE & P/N 12-707 FOR ALCOHOL)
• MOTOR DRAWS ONLY 4 AMPS CURRENT
• RELAY KIT P/N 12-753 & 7 1/2 AMP FUSE RECOMMENDED
• PROVIDES CONSTANT FUEL FLOW WITH NO PULSATION

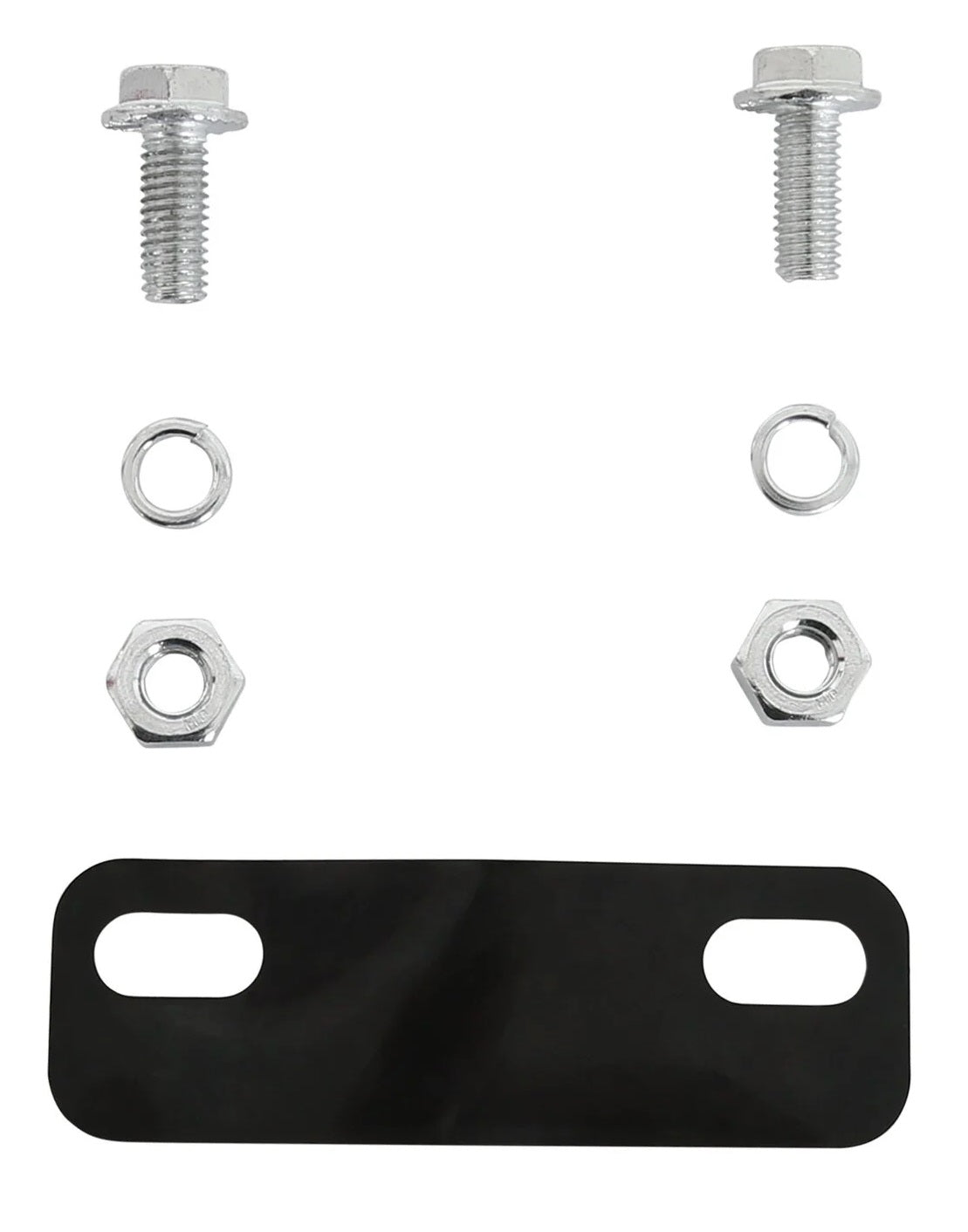

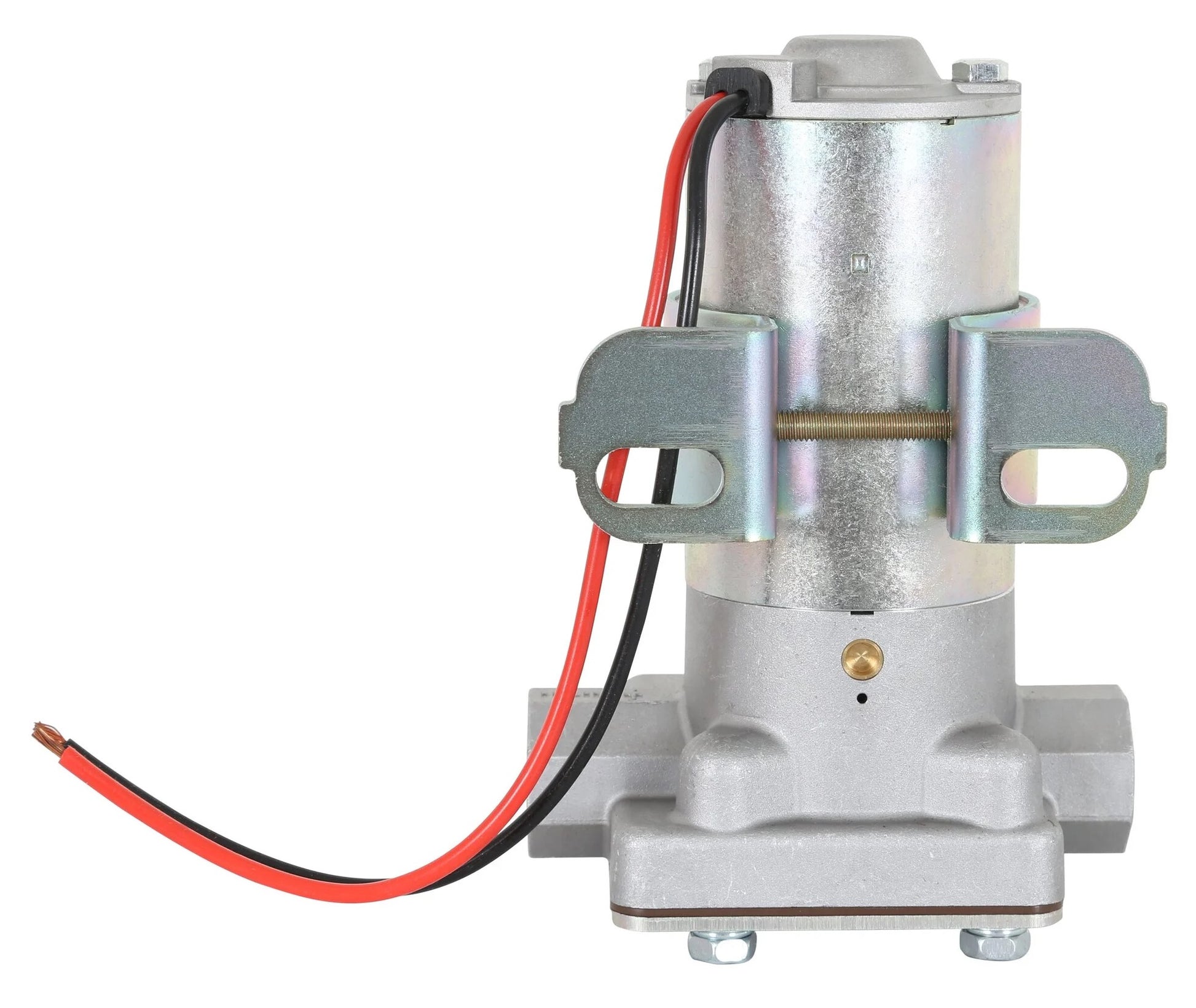

• INCLUDES MOUNTING BRACKET
• HAS EXTERNALLY ACCESSIBLE PRESSURE RELIEF VALVE (MAX 14 PSI)
• ROTOR/VANE PUMP DESIGN IS MORE TOLERANT OF CONTAMINATED FUELS
• WEIGHS ONLY 3 LBS
• INCLUDES MOUNTING BRACKET
• REPAIR KITS ARE READILY AVAILABLE

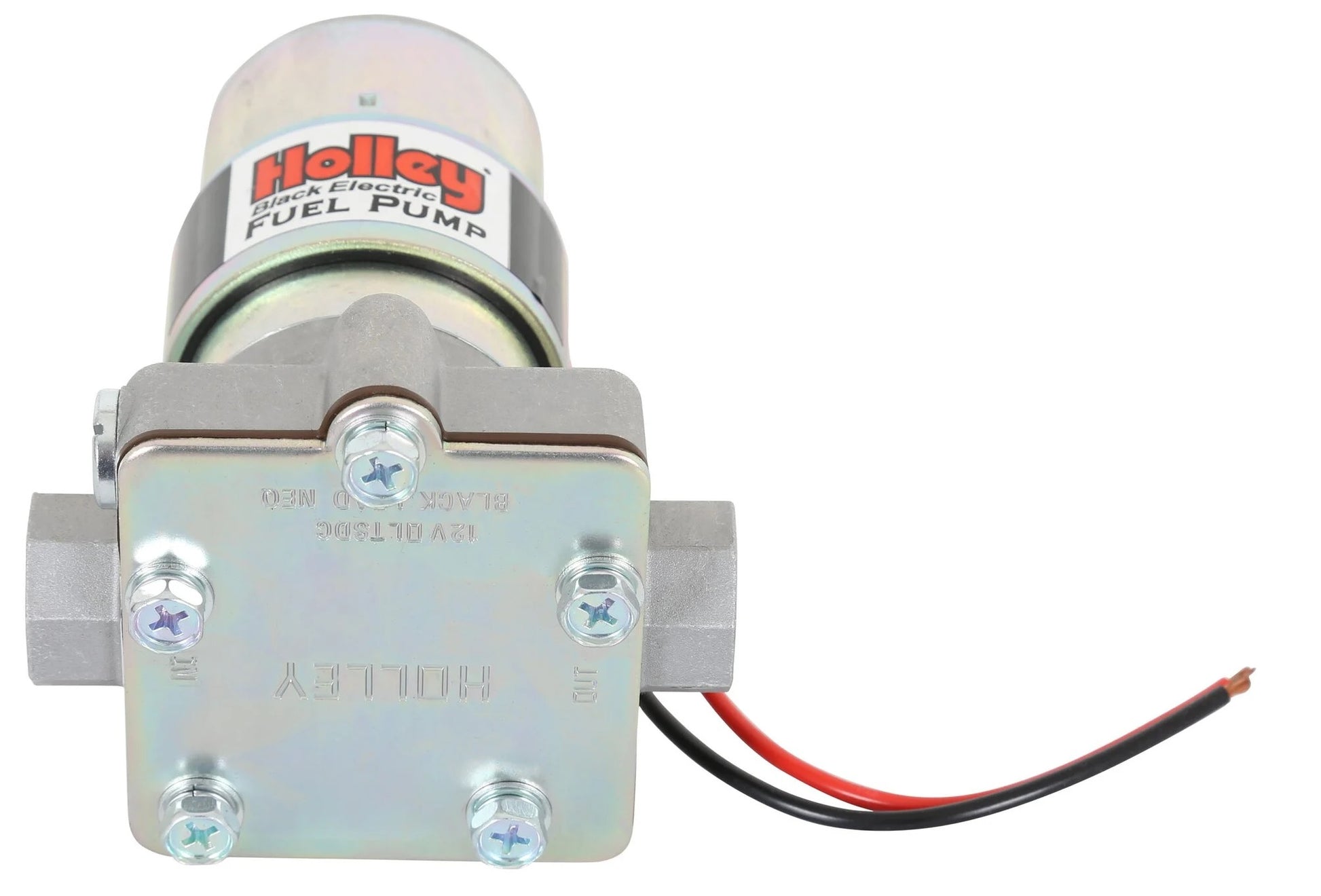

• CAN BE SERVICED FROM THE PUMP END
• USE OF SAFETY SHUT-OFF SWITCH, P/N 12-810, STRONGLY RECOMMENDED
• NOT DESIGNED OR RECOMMENDED FOR USE WITH FUEL INJECTION SYSTEMS

SPECS:

• APPLICATION: UNIVERSAL
• BRACKET COLOR: SILVER
• EMISSION CODE: 5
• FREE FLOW GPH: 140
• FREE FLOW LPH: 530
• FUEL SYSTEM: CARBURETED
• FUEL TYPE: GASOLINE/METHANOL
• INLET SIZE: 3/8" NPT
• MATERIAL: ALUMINUM
• MOTOR FINISH: SILVER
• OUTLET SIZE: 3/8" NPT
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: SILVER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS HERE FOR THIS FUEL PUMP HERE
