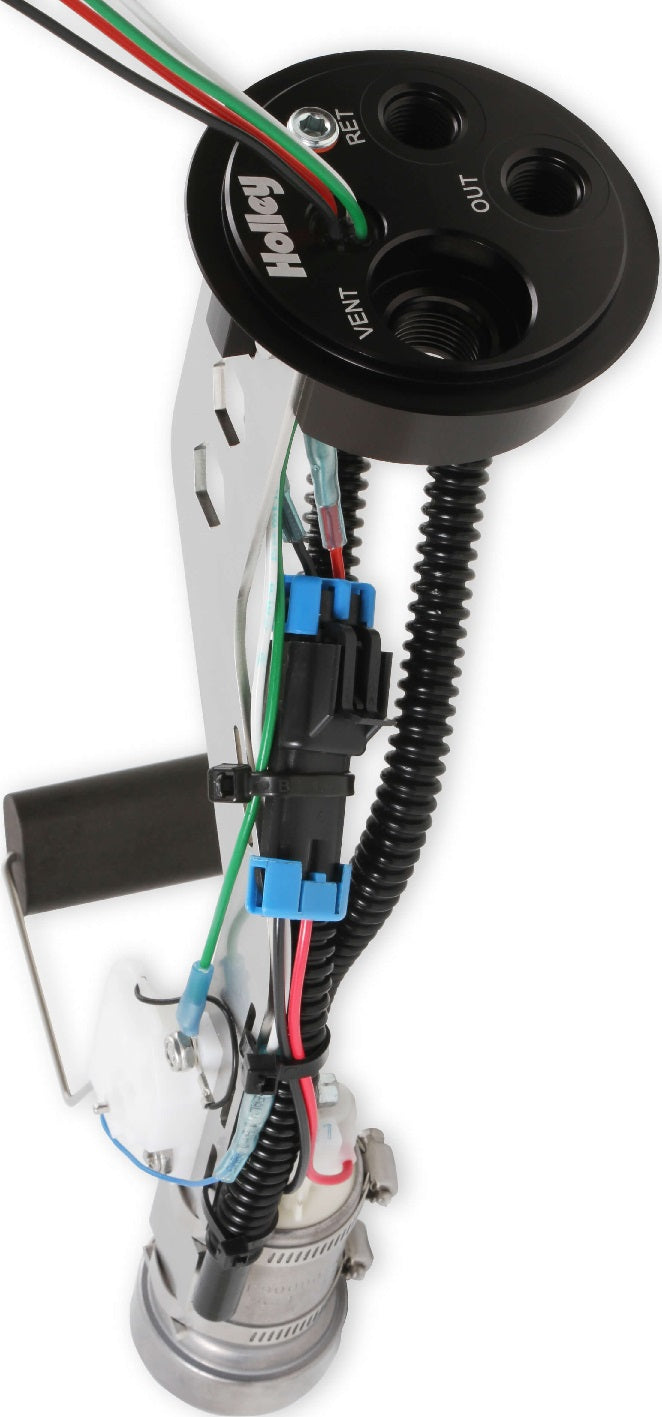

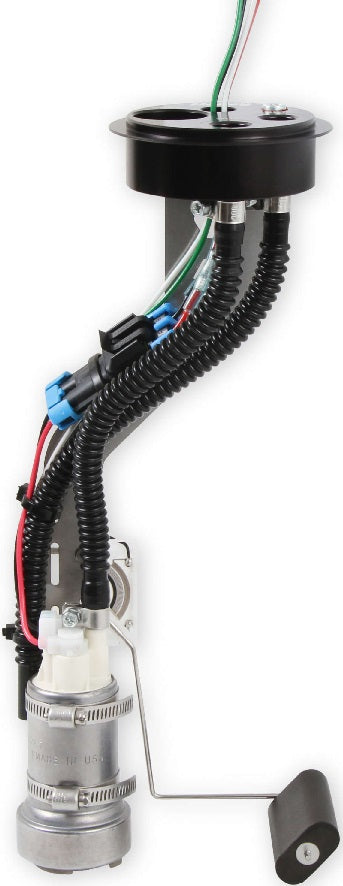

SNIPER 525LPH PUMP MODULE,88-98 CHEVY TRUCK

BRAND NEW HOLLEY 525 LPH PUMP FUEL PUMP MODULE, COMPATIBLE WITH 1988-1998 CHEVY C1500

THIS DIRECT COMPATIBILITY FUEL PUMP MODULE WILL DROP DIRECTLY INTO ANY 1988-1998 GM C/K SERIES TRUCK EFI FUEL TANK. THE MODULE HAS BEEN DESIGNED WITH A 340 LPH (LITERS PER HOUR) SNIPER FUEL PUMP THAT WILL SUPPORT UP TO 700 EFI OR 900 CARBURETED HORSEPOWER (HP RATING @ 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW).

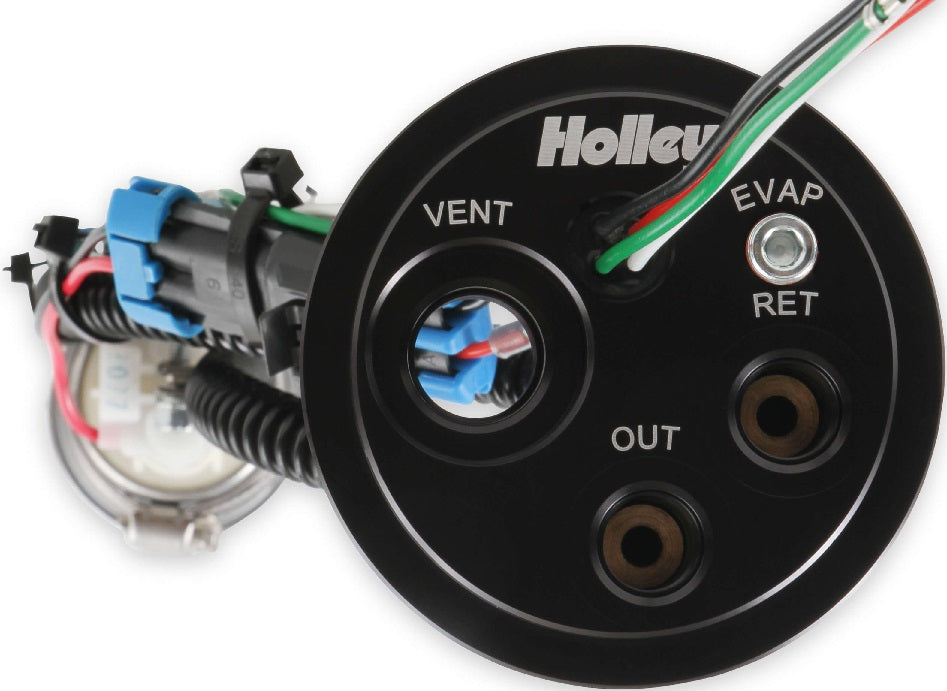

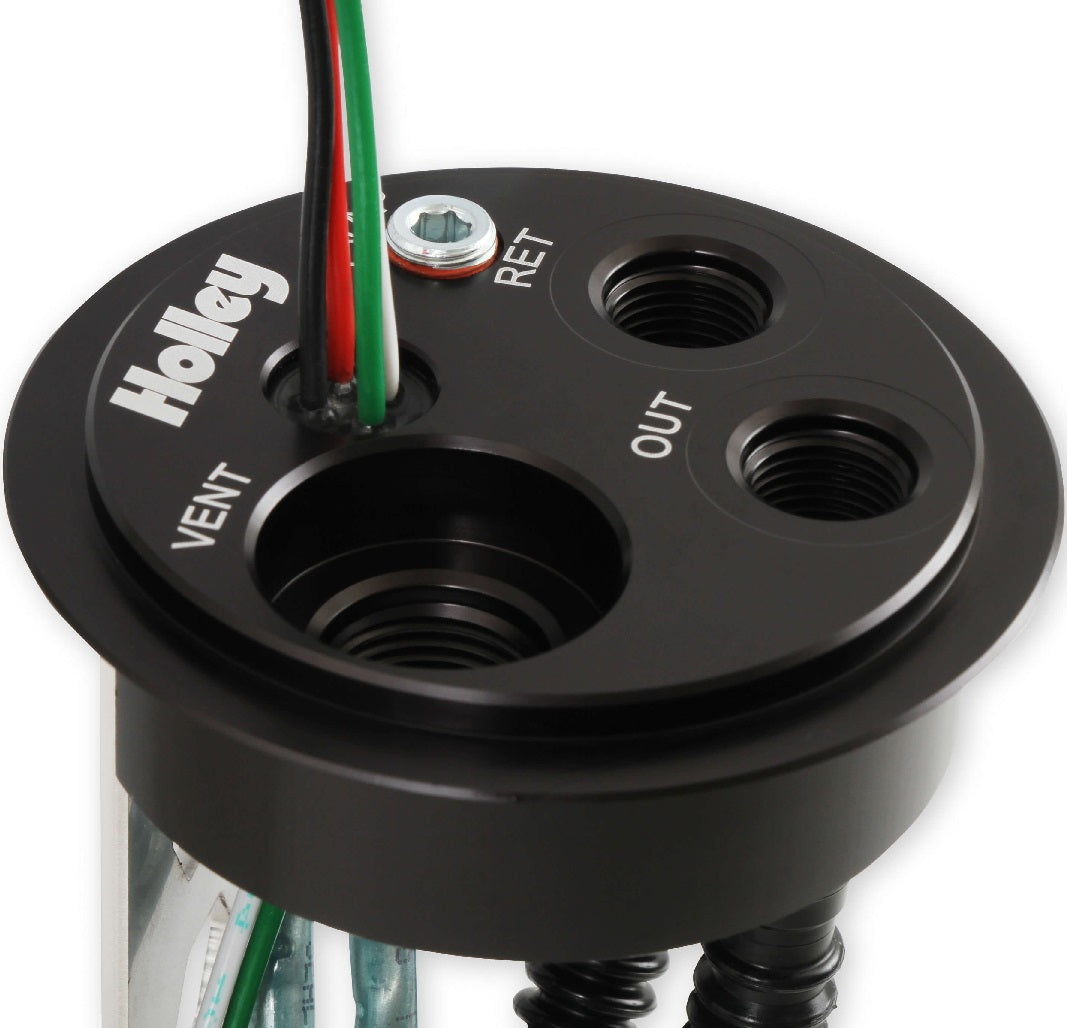

THE FLANGE HAS A 6AN O-RING OUTLET AND RETURN PORT MAKING THE PLUMBING CONNECTIONS EASY. THE KIT INCLUDES THE ASSEMBLED MODULE, A NEW FILTER SOCK, FLANGE O-RING, AND THE LOCK RING TO COMPLETE YOUR INSTALLATION INTO YOUR STOCK FUEL TANK. THE 6061-T6 MODULE FLANGE HAS BEEN ANODIZED IN A BRIGHT DIP BLACK FINISH THAT NOT ONLY LOOKS GREAT BUT WILL ALSO PROTECT FROM UNDERCAR CORROSION.

NOTE: BOTH EFI AND CARBURETED SYSTEMS WILL NEED A BYPASS DESIGN REGULATOR (HOLLEY RECOMMENDS PART #12-879 OR #12-880 BYPASS REGULATORS FOR THESE INSTALLATIONS. THEY CAN BE USED FOR BOTH CARBURETED & EFI SYSTEMS).

COMPATIBLE WITH:

• CHEVROLET:
• 1988-1998 C1500
• 1988-1998 C2500
• GMC:
• 1988-1998 C1500
• 1988-1998 C2500

FEATURES:

• THE 6061-T6 ALUMINUM FUEL PUMP MODULE IS A HIGH-PRESSURE UNIT THAT FLOWS 340 LITERS PER HOUR (LPH) AND IS CAPABLE OF SUPPORTING EFI (ELECTRONIC FUEL INJECTION) ENGINES PRODUCING UP TO 700 EFI HP
• INCLUDES A PRE-CALIBRATED FUEL-LEVEL SENDING UNIT DESIGNED TO WORK WITH THE FACTORY FUEL GAUGE FOR THIS APPLICATION
• 6AN O-RING OUTLET AND RETURN PORTS FOR EASY PLUMBING CONNECTIONS
• FILTER SOCK, FLANGE O-RING, AND FUEL TANK LOCK RING INCLUDED
• CAN BE USED WITH BOTH CARBURETED AND EFI (ELECTRONIC FUEL INJECTION) FUEL SYSTEMS DEPENDING ON YOUR NEED
• THE FLANGE IS BRIGHT DIP BLACK ANODIZED FOR CORROSION PROTECTION FROM UNDERCAR MOISTURE

SPECS:

• APPLICATION: 1988-1998 GM C/K TRUCKS
• BRAND: HOLLEY SNIPER
• FREE FLOW LPH: 525
• FUEL TYPE: GASOLINE/E85 COMPATIBLE
• MATERIAL: 6061 T-6 ALUMINUM
• PRODUCT TYPE: FUEL PUMP MODULE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP MODULE HERE.
