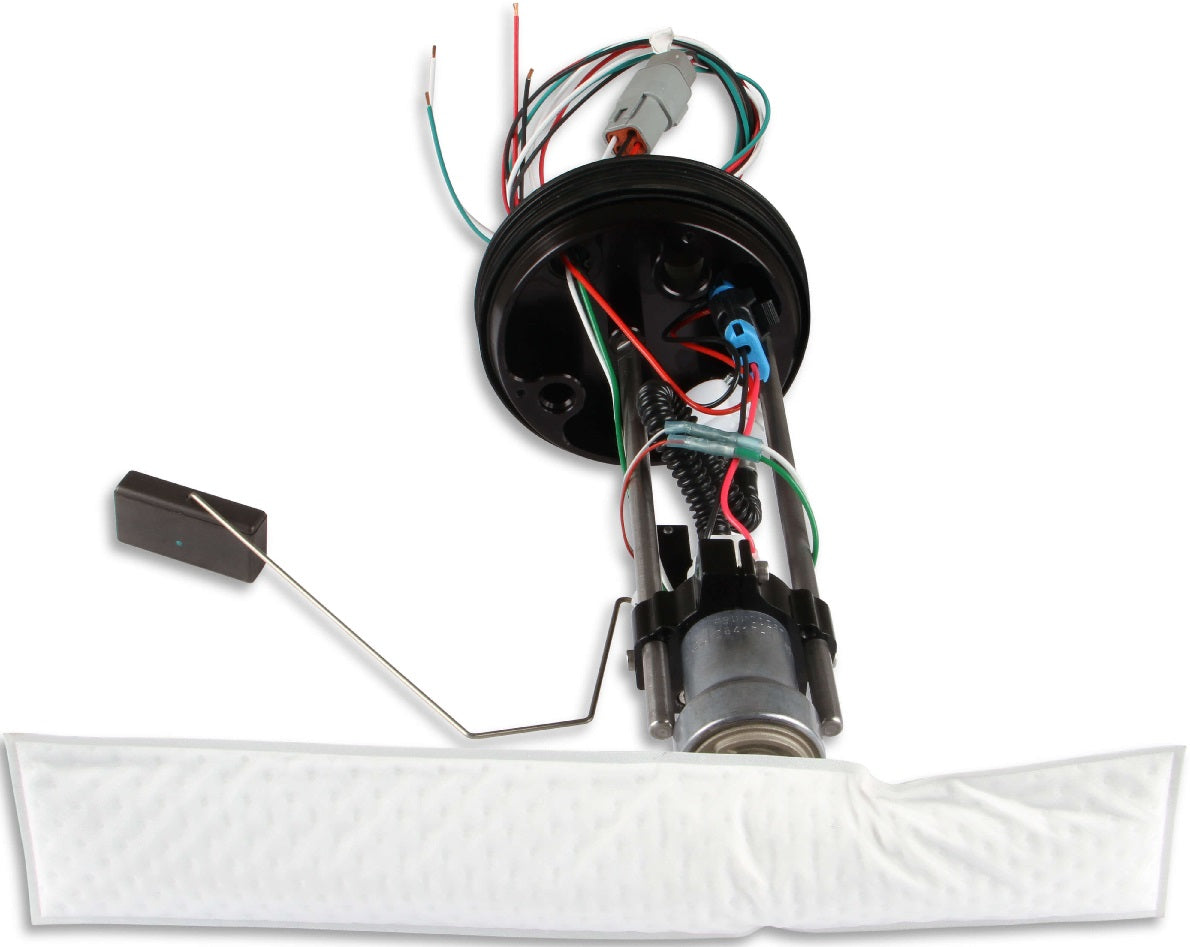

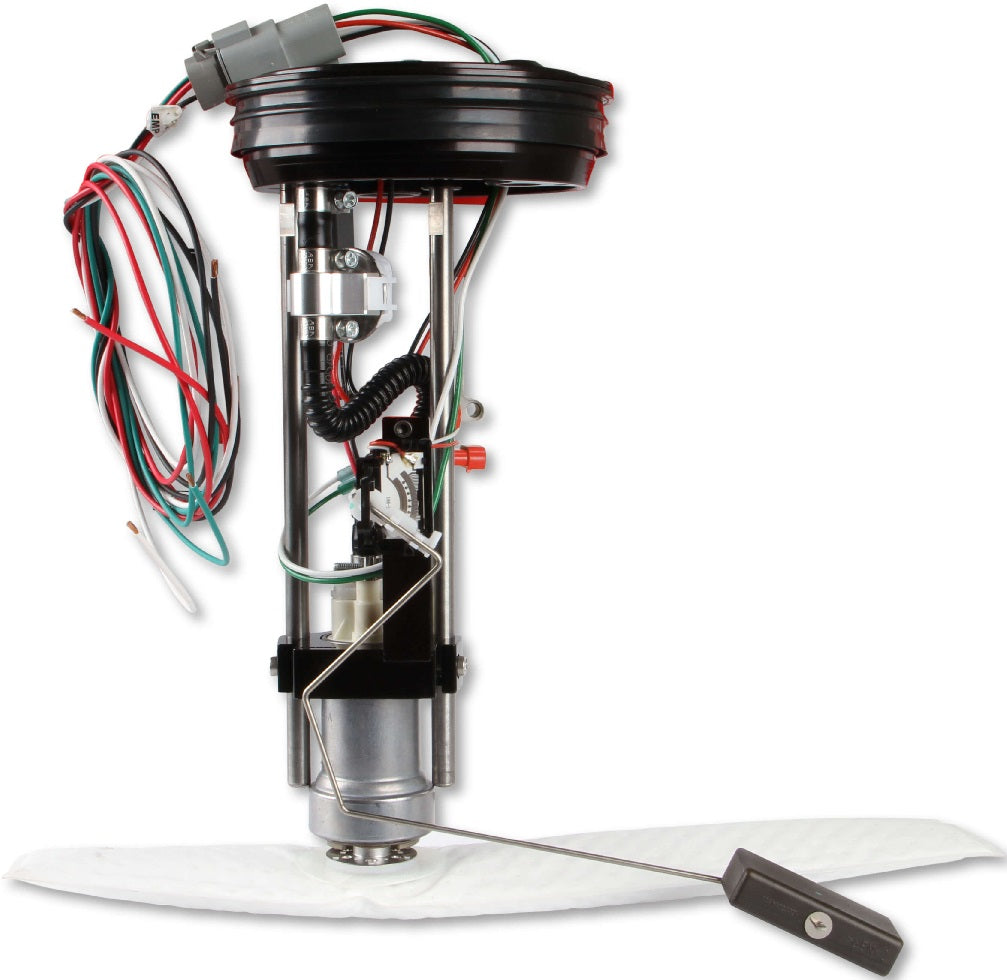

450LPH PUMP MODULE,NO RET,98-04 DODGE TK

BRAND NEW HOLLEY 450 LPH PUMP MODULE SYSTEM, RETURNLESS, 220-20 OHM FUEL SENDING UNIT, COMPATIBLE WITH 1998-2003 DODGE RAM 1500

UPDATE THE FUEL SYSTEM IN YOUR DODGE TRUCK WITH A HIGH PERFORMANCE IN-TANK EFI FUEL PUMP MODULE. THEY FIT INSIDE THE FACTORY TANK & FEATURE A BILLET ALUMINUM FLANGE, HYDRAMAT, FUEL SENDING UNIT & HIGH PERFORMANCE PUMP.

HYDRAMAT IS A HOLLEY PATENT PENDING DESIGN THAT SOLVES THE PROBLEMS ASSOCIATED WITH TRADITIONAL FUEL PICK-UPS IN STOCK FUEL TANKS AS WELL AS RACING FUEL CELLS. DURING HARD CORNERING, ACCELERATION, STOPPING, INCLINES & LOW FUEL CONDITIONS FUEL RUNS AWAY FROM THE FUEL PICK UP WHICH INTRODUCES AIR INTO THE SYSTEM RESULTING IN POOR ENGINE PERFORMANCE & EVEN STALLING.

NOTE: FILLER NECK VENT - SOME VEHICLES WILL HAVE A 3/4" FILLER NECK VENT LINE THAT GOES TO THE FLANGE ON THE FUEL MODULE. IF SO, YOU WILL NEED TO PURCHASE THE FOLLOWING EARLS FITTINGS: #AT949013ERL & #AT700113ERL.

NOTE: SOME VEHICLES WILL HAVE A SMALL EVAP HOSE THAT GOES TO THE FLANGE ON THE FUEL MODULE. TO RETAIN THIS, THE FOLLOWING PARTS ARE NEEDED: #AT984204ERL & #12-874. THREAD SEALANT WITH PTFE WILL ALSO BE NEEDED - USE EARLS #D024ERL.

DIRECT FIT IN THE FOLLOWING VEHICLES:

• 1997-2004 DODGE DAKOTA (2WD & 4WD)
• 1998 DODGE B1500/B2500/B3500 (FULL SIZE VANS)
• 1999-2003 DODGE RAM 1500 VAN/RAM 2500 VAN/RAM 3500 VAN (FULL SIZE VANS)
• 1998-2003 DODGE RAM 1500/RAM 2500/RAM 3500 (2WD & 4WD FULL SIZE PICKUPS)
• 1999-2001 DODGE RAMCHARGER (2WD & 4WD - MEXICO ONLY)
• 1998-2003 DODGE DURANGO (2WD & 4WD)

COMPATIBLE WITH:

• DODGE:
• 1998 B1500
• 1998 B2500
• 1998 B3500
• 1997-2004 DAKOTA
• 1998-2003 DURANGO
• 1998-2003 RAM 1500
• 1998-2003 RAM 2500
• 1998-2003 RAM 3500
• 1998-2003 RAM 1500 VAN
• 1998-2003 RAM 2500 VAN
• 1998-2003 RAM 3500 VAN
• 1999-2001 RAMCHARGER

FEATURES:

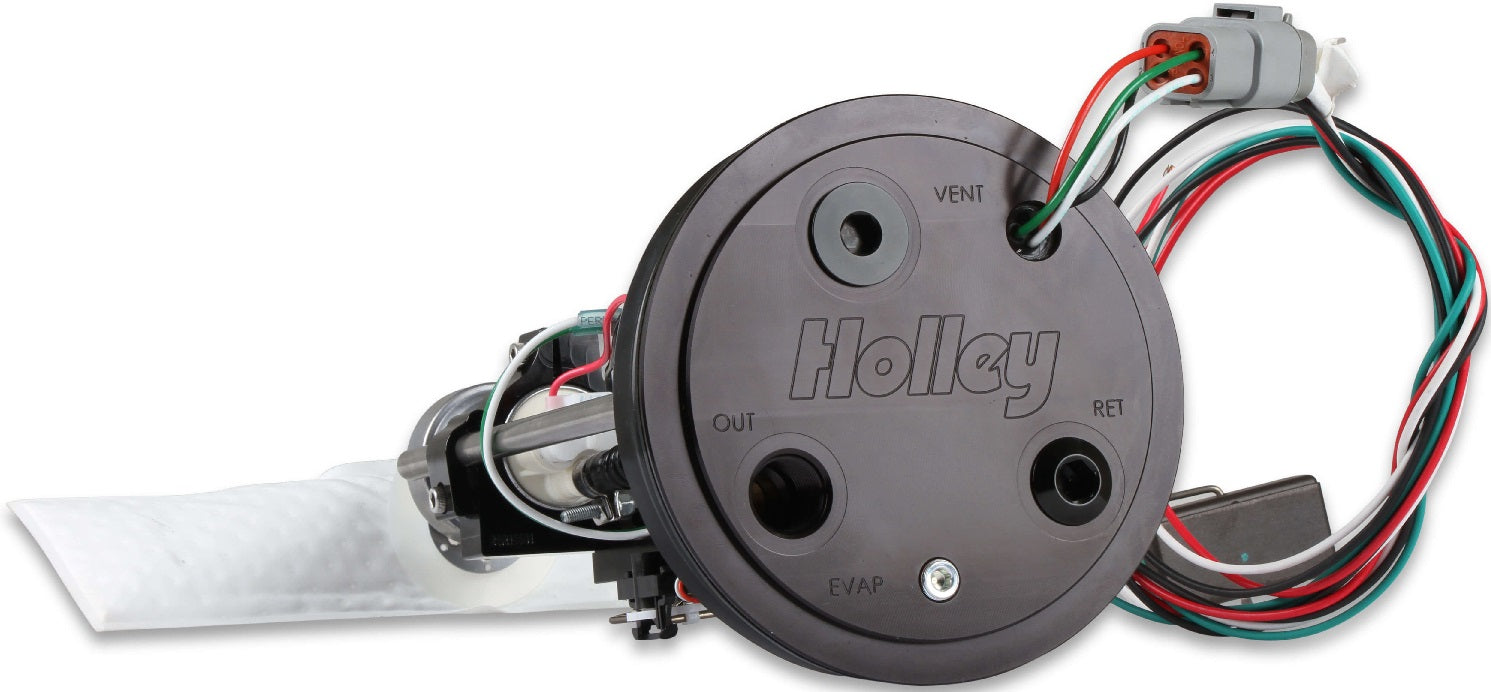

• BILLET ALUMINUM FLANGE, CLAMP & FUEL LEVEL SENDER
• BLACK ANODIZED FINISH
• 255 LPH (LITERS PER HOUR) PUMP
• ADJUSTABLE FOR TANK DEPTH
• RETURNLESS FUEL MODULE
• PROVISIONS FOR EVAP (EVAPORATIVE EMISSION CONTROL SYSTEM)
• INLETS & OUTLET PORTS: -8 AN O-RING BOSS
• NEW FUEL LEVEL SENDER INCLUDED
• OPTIONAL FILL VENT BUILT INTO BILLET ALUMINUM TOP
• INCLUDES HYDRAMAT - 3" X 15"
• FITS IN STOCK FACTORY FUEL TANKS
• IDEAL FOR USE IN GEN III HEMI ENGINE SWAPS

SPECS:

• AMP DRAW: 22
• APPLICATION: 1998-2004 DODGE TRUCKS
• FORCED INDUCTION HP @60PSI: 750
• FREE FLOW GPH: 139
• FREE FLOW LPH: 450
• FUEL SENDING UNIT OHMS: 220-20 OHMS
• FUEL SYSTEM: EFI
• FUEL TYPE: GAS & E85
• GPH@ 60PSI: 100
• MATERIAL: BILLET ALUMINUM & STEEL
• NATURALLY ASPIRATED HP@ 60PSI: 1000
• OUTLET SIZE: 8 AN
• PRODUCT TYPE: FUEL PUMP MODULE
• PUMP BODY COLOR: SILVER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP MODULE HERE.
